Cummins 20~115 KVA Silent & Open Gen-set

Cummins is the world's largest independent diesel engine manufacturer, with the industry's largest power range of diesel and natural gas engine line. GTL cummins unit adopts DCEC/CCEC/XCEC and original engine as driving power, with high overall reliability, long continuous operation time and low fuel consumption. In particular, cummins' worldwide service network provides reliable service guarantee for customers.

Facebook Twitter Pinterest LinkedIn 分享

Description

Click here for Cummins 20~115 kva technical data

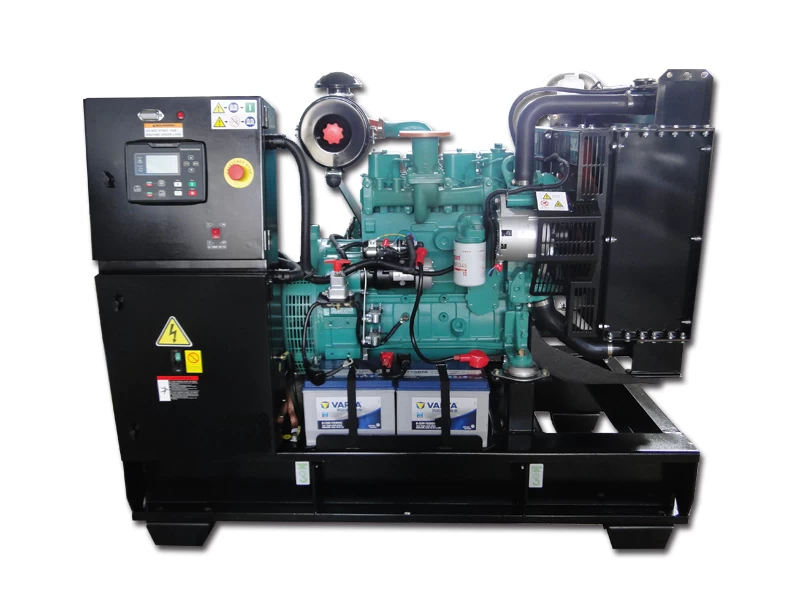

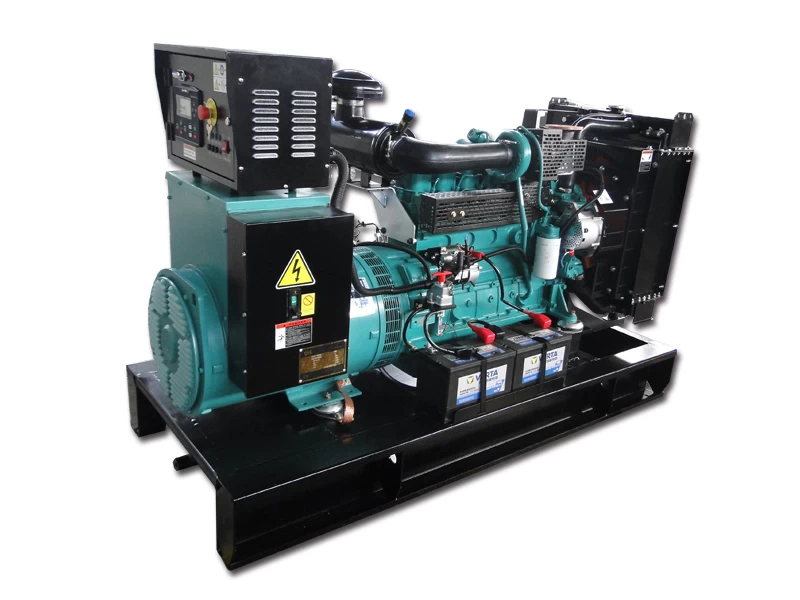

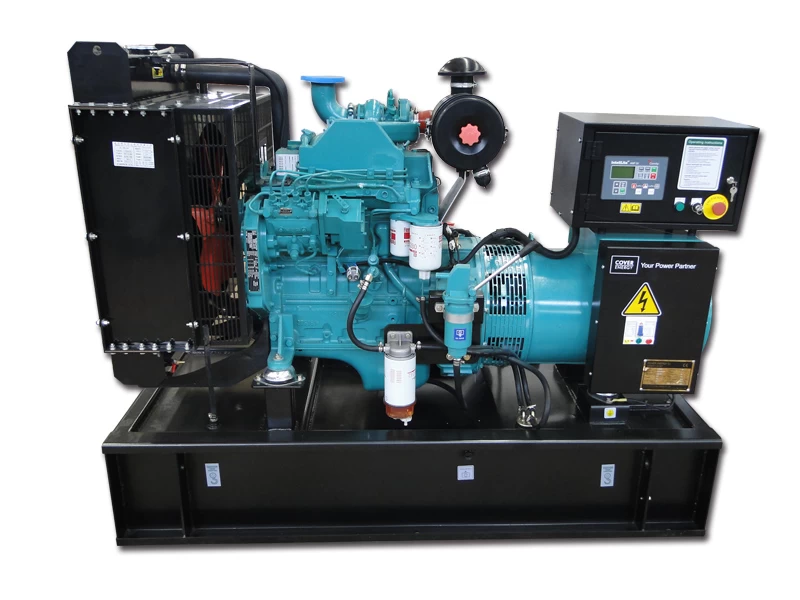

GTL Cummins 20~115 kva diesel generator

Features:

▣ Install protective radiator fan and radiator device of water tank;
▣ Self-starting control cabinet and power output switch cabinet;
▣ The built-in fuel tank can run for 8 hours;
▣ Robust, high-strength fuselage base;
▣ The base can be equipped with forklift foot or lifting hole;
▣ Conduct heat insulation protection treatment for high-temperature pipelines;
▣ Optional voltage grade: 230V/400V, 220V/380V, 240V/480V, etc.

gtl power system

Standard Configuration

▣ Cooling system with large size radiator and expansion tank

▣ Heavy- duty chassis

▣ Built-in insulation and anti-vibration block

▣ Free-maintenance battery

▣ AC alternator for battery charger
▣ Battery charger

▣ Cable and bracket for battery

▣ Battery isolation switch

▣ Main circuit breaker

▣ Automatic start control system

▣ Fuel_ Water separator

▣ Fuel level sensor

▣ Oil sump pump

▣ Full load test

▣ Comprehensive security protection

▣ Emergency stop button

Optional Configuration

▣ Silent Canopy

▣ Heavy duty air filter

▣ Cold weather operation

▣ Engine coolant heater

▣ Intake air heater

▣ The sensor of cooling water level

▣ Anti_condensation heater(alternator)

▣ PMG alternator

▣ Power sockets panel

▣ Leakage circuit breaker

▣ High capacity fuel tank

▣ External fuel connections

▣ Automatic fuel refilling device

▣ Superior residential type silencer

▣ Skid with forklift slots

▣ Control system with parallel function

▣ ATS (Automatic transfer switch)

▣ Mobile trailer chassis

* Note: Special configuration is available

Next Product

Prev Product

Product Tags cummins diesel gensets Cummins diesel genset cummins diesel genset factory cummins diesel genset supplier cummins diesel genset price buy cummins diesel genset china cummins diesel genset 150kva cummins diesel genset cummins diesel genset china

Model	1500 rmp/400v 3P 4W/50HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-20T5	20	16	22	17.6	4B3.9-G11	16008601360	820	225010601750	1200
DCW-28T5	27.5	22	30.3	24	4B3.9-G1	16008601360	820	225010601750	1200
DCW-28T5	27.5	22	30.3	24	4B3.9-G2	16008601360	820	225010601750	1200
DCW-30T5	30	24	33	26.4	4B3.9-G12	16008601360	820	225010601750	1200
DCW-40T5	40	32	44	35	4BT3.9-G1	17008601360	900	225010601750	1300
DCW-40T5	40	32	44	35	4BT3.9-G2	17008601360	900	225010601750	1300
DCW-50T5	50	40	55	44	4BTA3.9-G2	17708601360	950	240010601750	1400
DCW-56T5	56.3	45	61.9	50	4BTA3.9-G2	18608601360	1000	240010601750	1450
DCW-60T5	60	48	66.3	53	QSB3.9-G2	19208601360	1050	265010601750	1550
DCW-65T5	65	52	70	56	4BTA3.9-G2	18608601360	1050	250010601750	1500
DCW-80T5	80	64	90	72	4BTA3.9-G11	18908601360	1100	250010601750	1550
DCW-80T5	80	64	87.5	70	QSB3.9-G3	19608601360	1100	265010601750	1600
DCW-94T5	93.8	75	102.5	82	6BT5.9-G1	21808601450	1250	295011001900	1700
DCW-94T5	93.8	75	102.5	82	6BT5.9-G2	21308601450	1280	295011001900	1700
DCW-100T5	100	80	110	88	QSB5.9-G2	22108801510	1300	295011001900	1800
DCW-105T5	105	84	115.5	92	6BT5.9-G2	21308601450	1280	295011001900	1700
DCW-115T5	115	92	125	100	6BTA5.9-G2	21308601450	1300	295011001900	1750

Model	1800 rmp/480v 3P 4W/60HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-30T6	30	24	34	27	4B3.9-G2	16008601360	820	225010601750	1200
DCW-41T6	41.3	33	45	36	4BT3.9-G2	17008601360	900	225010601750	1300
DCW-64T6	64	51	70	56	4BTA3.9-G2	17708601360	950	240010601750	1400
DCW-75T6	75	60	85	68	4BTA3.9-G2	18608601360	1000	240010601750	1450
DCW-88T6	90	72	100	80	4BTA3.9-G11	18608601360	1050	250010601750	1500
DCW-104T6	104	83	114	91	6BT5.9-G2	21308601450	1280	295011001900	1700
