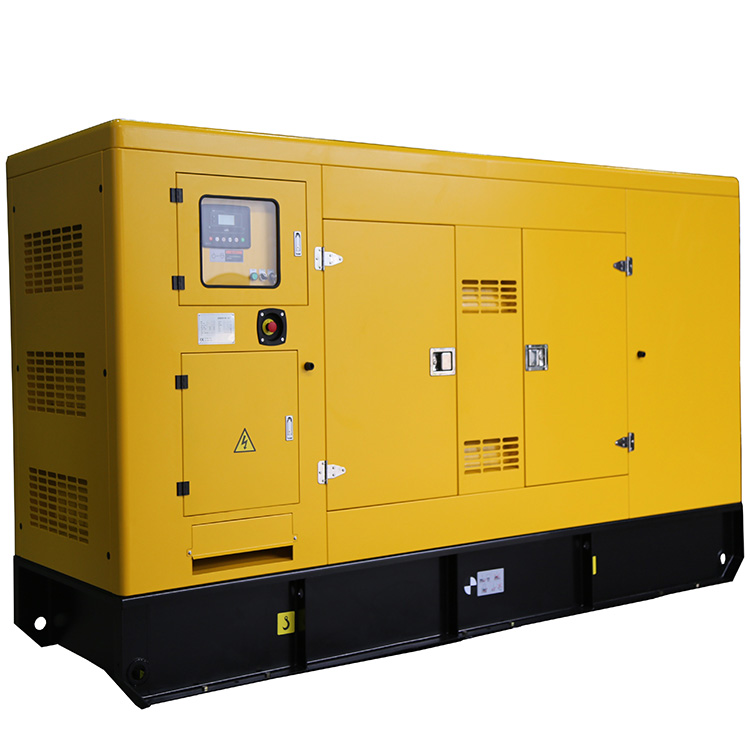

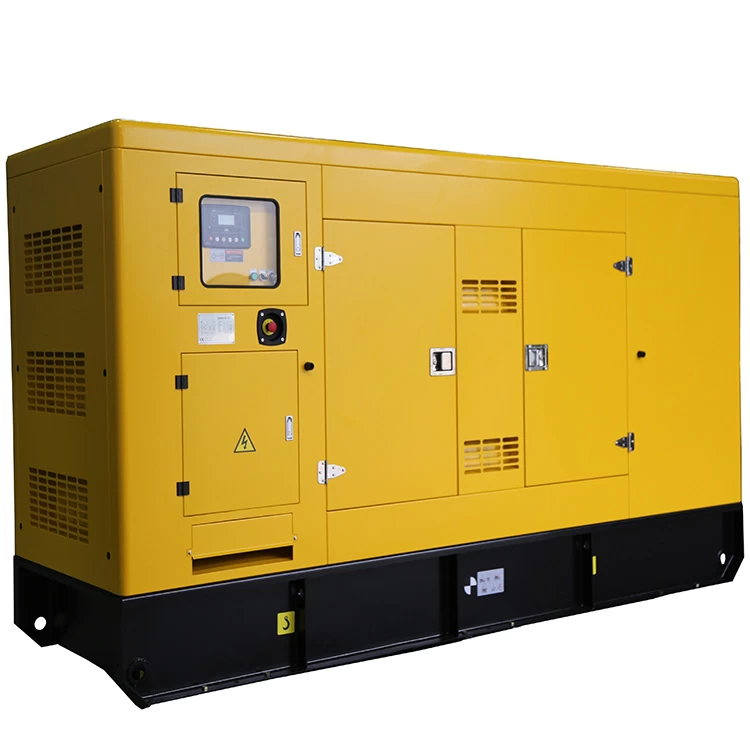

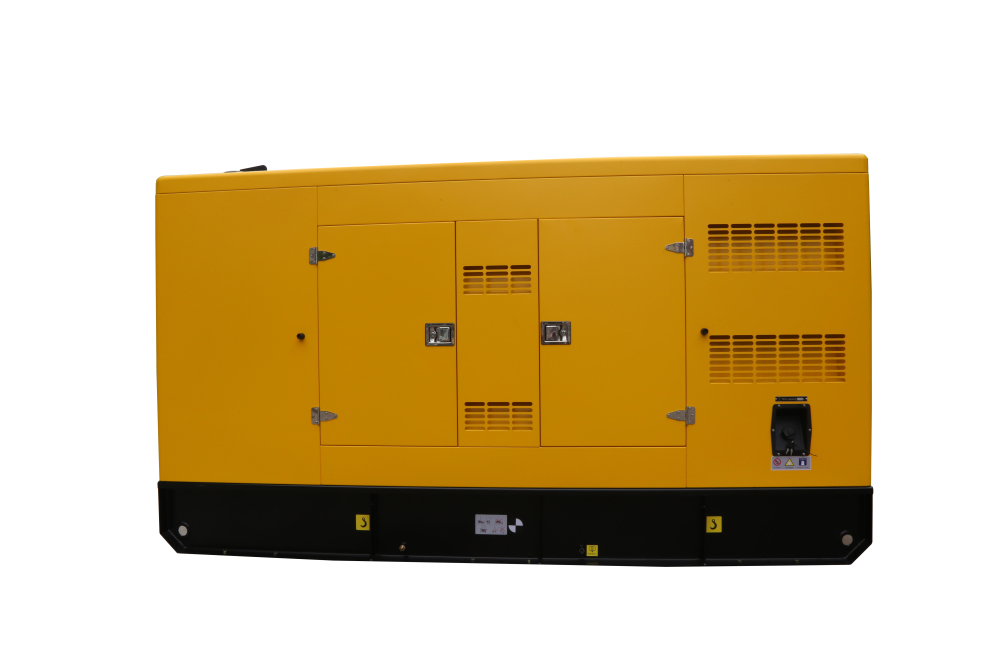

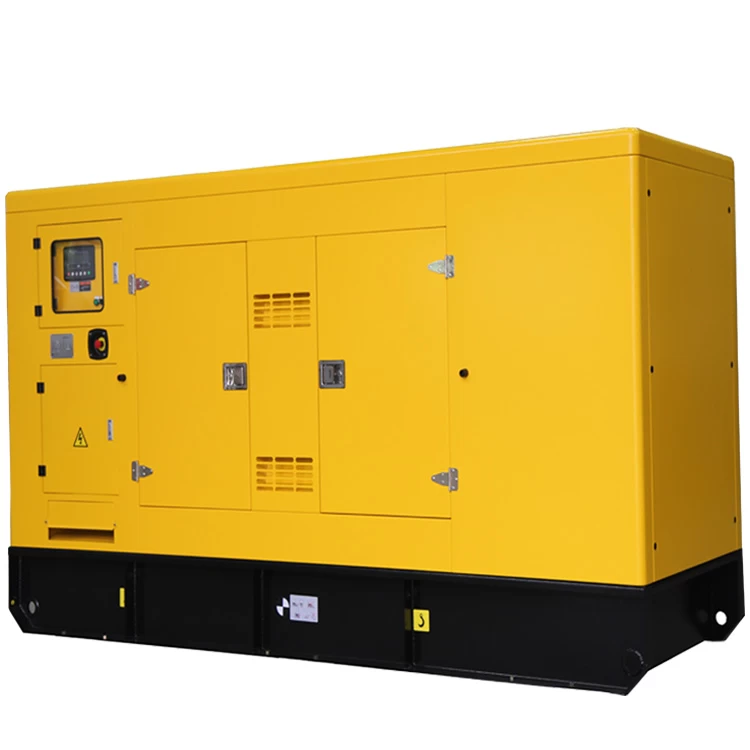

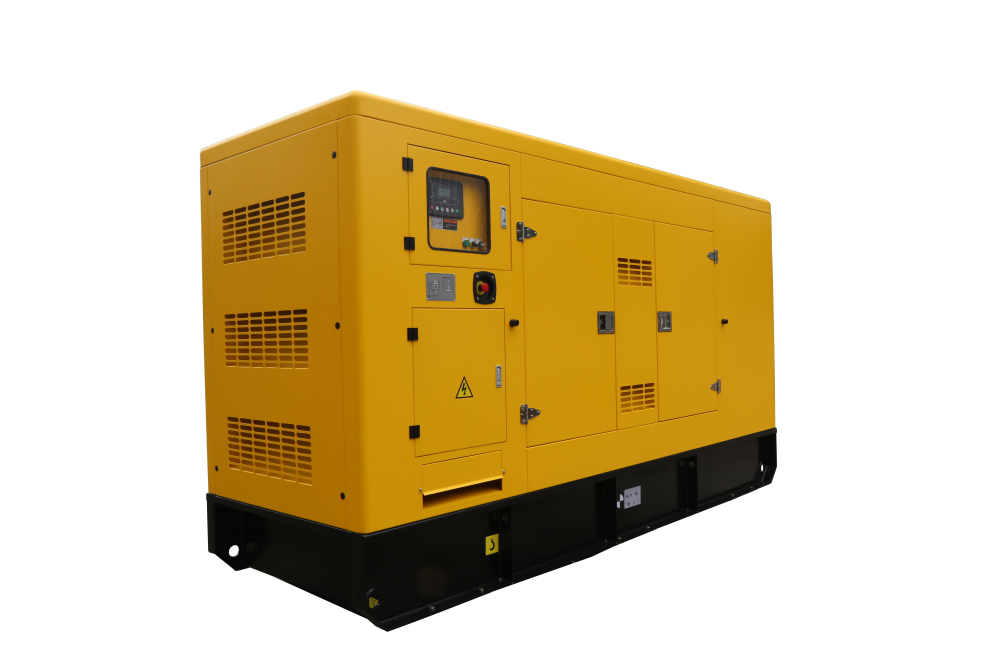

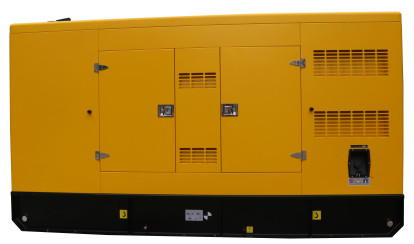

XIAMEN BIAO 250KVA Super Silent Generator Set
The sound-proof diesel generator set is the crystallization of professional engineers' long-term exploration and development. The anti-sound unit reduces the noise by adding anti-speakers to the generator set, so that it meets the 2000/14/EC standard of the new EC fabric.
The new high-quality sound-absorbing material is used as the sound absorbing layer.
The air inlet and outlet system of the unit is a return-type sound-absorbing and noise-reducing air duct.
The air passage is equipped with louvers to prevent the intrusion of rainwater and foreign matter.
The unit is equipped with a high-efficiency muffler.
A shock absorber is installed between the unit and the underframe to further reduce the noise of the unit to the outside.

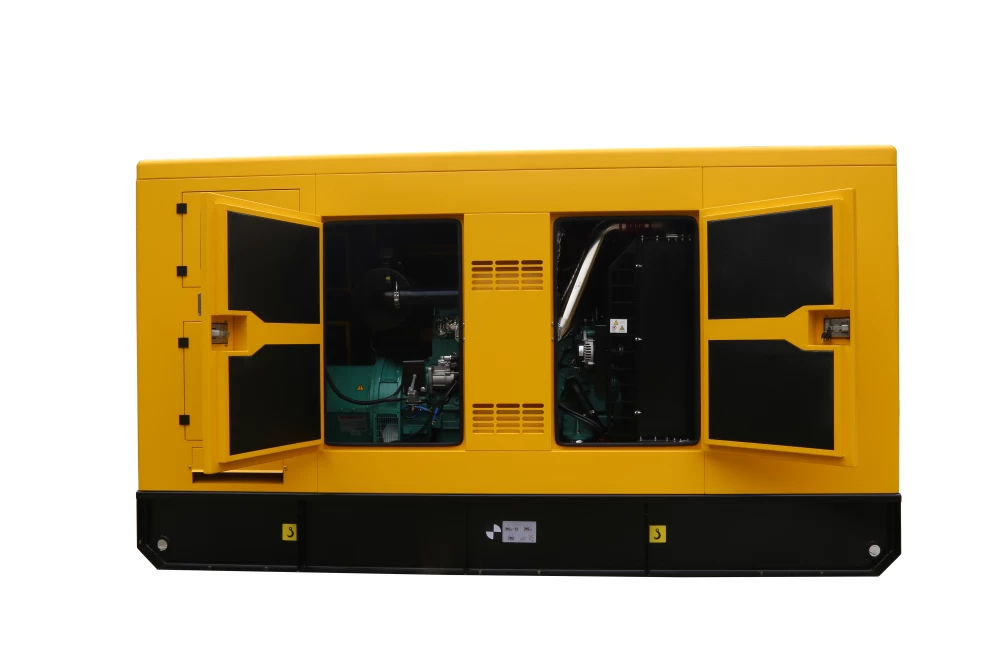

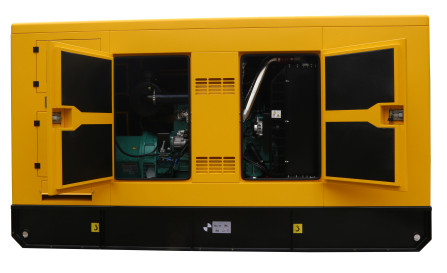

The cabinet is a modular structure with instrumentation doors and service doors for easy installation, observation and maintenance.
For special requirements, the noise can be reduced to 75-85db(A) (LP7m).
The muffler-type diesel generator set and muffler are very stable in construction, making it difficult to damage in harsh environments. The product is assembled and has interchangeable components for easy on-site repair.

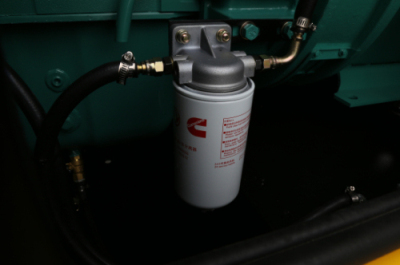

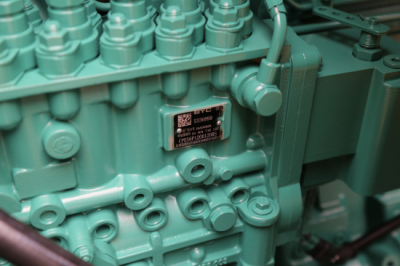

Cummins Engine Model: 6LTAA8,9-G3
OUTPUT POWER: 100% FUEL CONSUMPTION 65L/H
General Performance Data
Low idle speed: 800±50 rpm
Maximum no load speed: 1575/1890±20 rpm
Maximum overspeed capability(15sec max): 2900 rpm

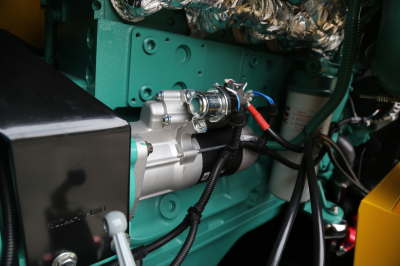

Cold start capability(Sea Level without Load):
Without start add device: -12 ℃

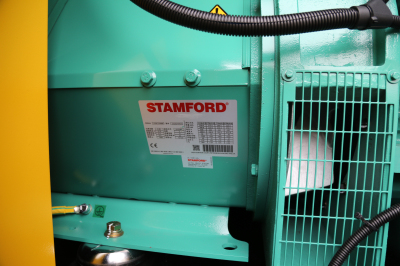

Stamford alternator: UCDI274K
Prime Power: 200kw/250kva
A.V.R.: MX321
INSULATION SYSTEM:CLASS H
PROTECTION:IP23
RATED POWER FACTOR:0.8
STATOR WINDING:DOUBLE LAYER CONCENTRIC
WINDING LEADS:12
MAXIMUM OVERSPEED: 2250 Rev/Min

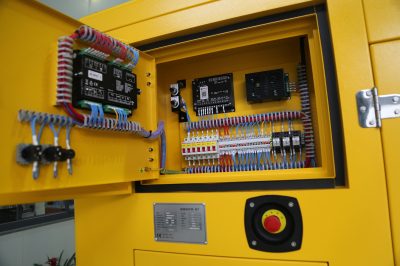

Control Panel UK Deepsea 6120
The DSE6110 MKII Auto Start Control Module and the DSE6120 MKII Auto Mains (Utility) Failure Control Module are suitable for a
wide variety of single gen-set applications. Monitoring engine speed, oil pressure, coolant temperature, frequency, voltage, current, power and fuel level, the modules give comprehensive engine and alternator protection. This is indicated on a large back-lit LCD
text display via an array of warning, electrical trip and shutdown alarms in multiple languages.

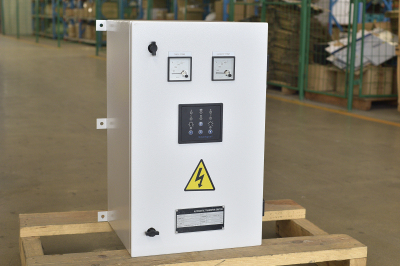

ATS(Automatic Transfer Switch)
XKQE series double power automatic transfer switch is suitable for exchanging two-power supply if one power supply output error or necessary to load or unload more machines. Especially suitable skyscraper, post, communication, mine, boat industry, military affair, industry assembly line, etc.
