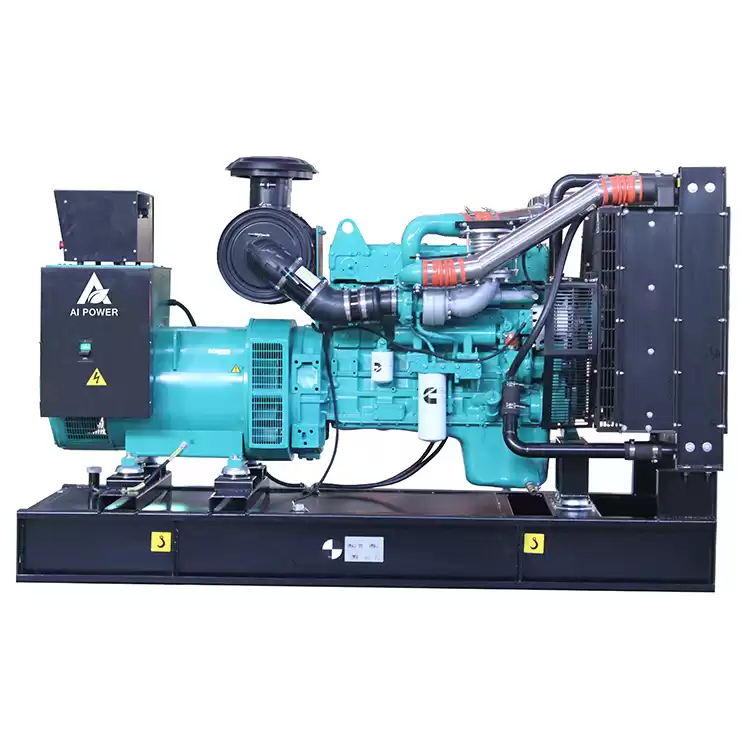

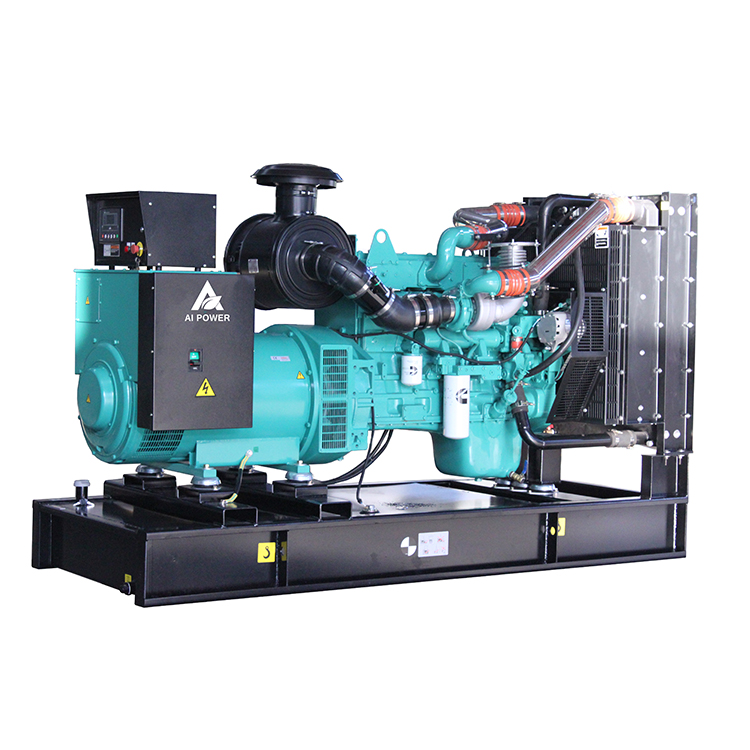

Cummins G-Drive QSM11-G1 240KW 3phase Water Cooled Marine Engine Power Diesel Generator Set
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including DCEC, CCEC engine, UK famous engine, MTU from Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts and switchgear, power transformers. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.
Product Description
|
General Information of Cummins QSM11-G1 Diesel Engine for Generator Set
|
|
Engine Model
|
Cummins QSM11-G1
|
|
Engine Type
|
6 Cylinder, In-line, 4 Stroke
|
|
Displacement
|
10.8 L
|
|
Bore*Stroke(mm)
|
125*147
|
|
Dry Weight(with flywheel and alternator)
|
973 KG
|
|
Wet Weight(with flywheel and alternator)
|
1007 KG
|
|
|
|
Technical Specification of Cummins QSM11-G1 Diesel Engine for Generator Set
|
|
Aspiration
|
Turbocharged, Air-Air Intercooled
|
|
Fuel System
|
PT Pump Direct Injection
|
|
Emission Standard
|
EU Stage II
|
|
Engine Cooling Fluid Volume
|
34 L
|
|
Coolant capacity-engine only
|
9.5 L
|
|
Idle speed
|
675-750 RPM
|
|
Maximum Friction Power
|
22.4 KW
|
|
Compression Ratio
|
16.3:1
|
|
Firing Order
|
1-5-3-6-2-4
|
|
|
|
Performance Data of Cummins QSM11-G1 Diesel Engine for Generator Set
|
|
Rated Output/Speed
|
234KW/1500RPM
|
|
Standby Output/Speed
|
257KW/1500RPM
|
|
Rated Output/Speed
|
359W/1800RPM
|
|
Standby Output/Speed
|
395KW/1800RPM
|
|
Fuel Consumption/Rated Output
|
56 L/h
|
|
Fuel Consumption/Standby output
|
61 L/h
|
Product Overviews

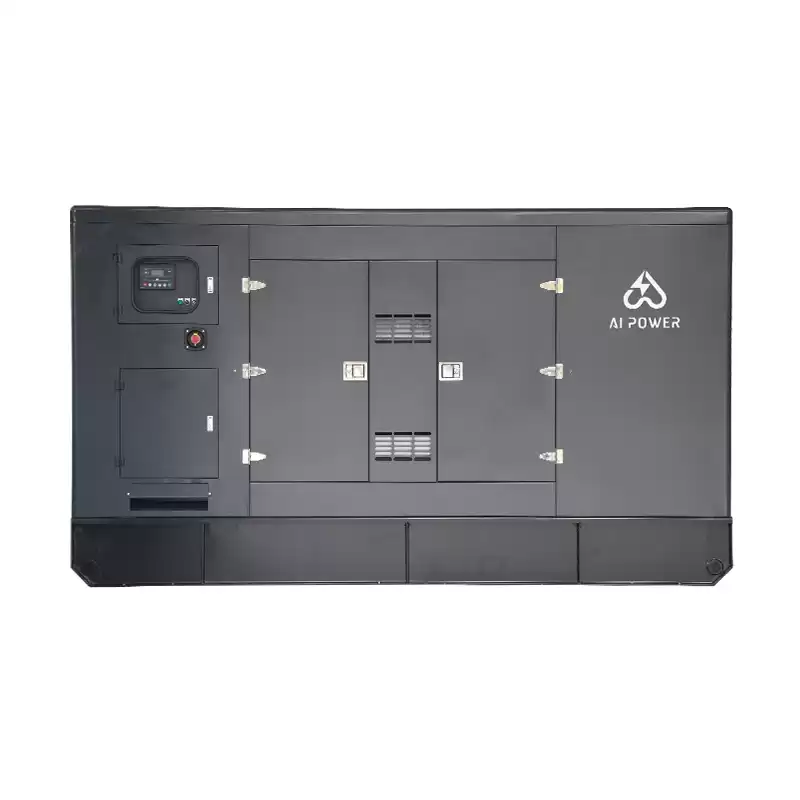

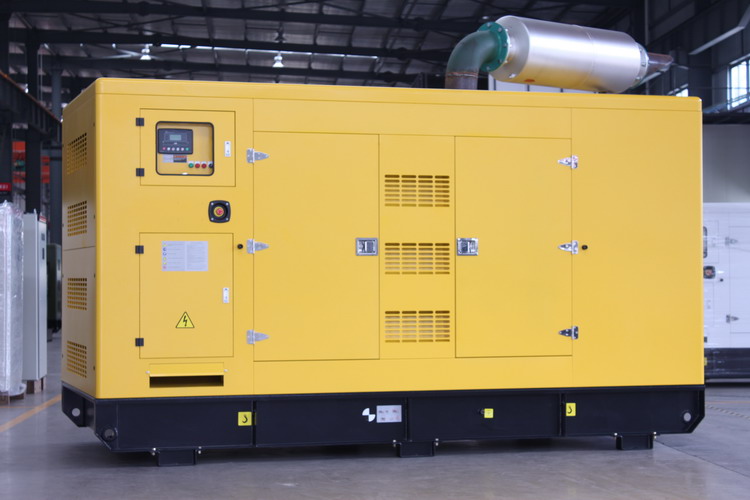

Ai Power silent generator is featured by its elegant design, lower noise level, high quality soundproof materials, thick steel metal plate. Its rainproof and soundproof function has been proved in the last 16 years experiences. It adopts international famous brand paint and skilled technicians to make the canopy powder paint. It has full transparent view windows for monitoring generator parameters.
Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.

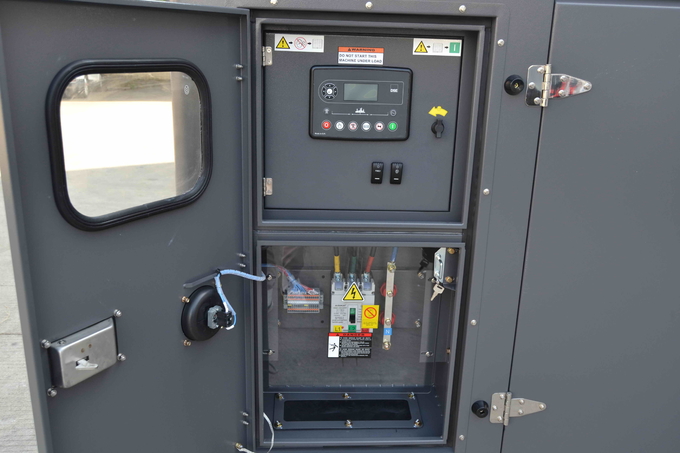

● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
Product Details
1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
