Cummins OEM Factory 75KW 4BTA3.9-G13 Soundproof Canopy Diesel Engine Power Generator Set

Cummins 4BT Series Engine, 4BTA3.9-G13, Soundproof Type



Cummins OEM Factory 75KW 4BTA3.9-G13 Soundproof Canopy Diesel Engine Power Generator Set


Cummins industry engine - Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.
Alternator - Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
Cooling system - Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.


Product Description

Diesel Engine Details
Brand/Model Cummins 4BTA3.9-G13
Standby Power 97KW
Aspiration
Turbocharged & Aftercooled
Bore*Stroke(mm) 102*120
Displacement(L) 3.9
Oil Capacity(L) 11
Starting Method  DC 24V electrical Start
Fuel Consumption(g/kw.h) 206g/kw.h
Alternator Details
Brand Stamford,Marathon,Hengsheng
Output Power 80KW
Exciter type Single bearing,brushless,Self-excited
Power factor 0.8
Voltage adjust range ≤5%
Insulattion Grade H
Protection Grade IP23
Controller Details
Brand Deepsea/ComAp/Smartgen

Product Overviews

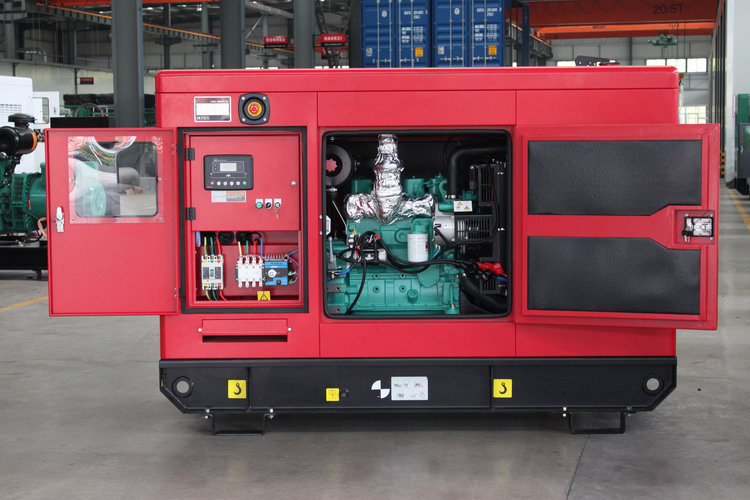

Ai Power silent generator is featured by its elegant design, lower noise level, high quality soundproof materials, thick steel metal plate. Its rainproof and soundproof function has been proved in the last 16 years experiences. It adopts international famous brand paint and skilled technicians to make the canopy powder paint. It has full transparent view windows for monitoring generator parameters.


Silent Performance Features:

● More than 2mm thick steel to make the canopy.

● High quality paint materials and strict powder paint processing.

● large-scale impedance combined type silencer effectively reducing noise of the generator.

● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.

● High quality soundproof and insulation materials could efficiently reduce noise.

● Transparent viewing window make the control panel clear at a glance.

● Lifting ear is mounted in the base frame for easy pull.

● Elegant appearance and reliable quality.

● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.

● ISO standard 20’, 40’ and 40HQ sea container canopy for options.

● Standard sea container canopy is easier for shipping.


Product Details


FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What's your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
