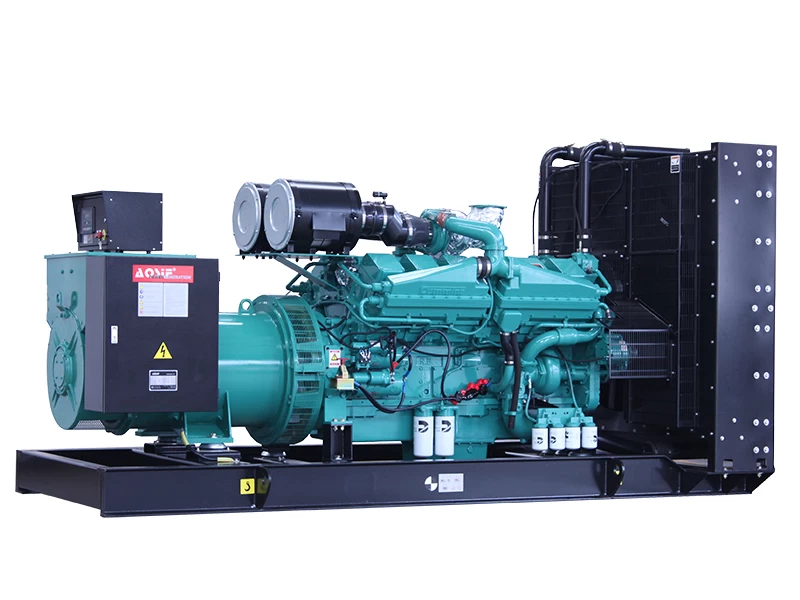

AOSIF Cummins Series Diesel Generators set
Genset Standard Configuration
◆
Assembled
by Cummins diesel engine and world
famous brand alternator
◆
Radiator
and fan with safety guard
◆
Automatic
control panel and electricity output
switch cabinet
◆
Float battery
charger and solenoid
switch as standard
supply scope
◆ Built-in shock pad
◆
Strong
and durable hi-strength base frame
◆ Optional voltage rank: 230V/400V, 220V/380V,
127V/220V, 240V/480V etc.

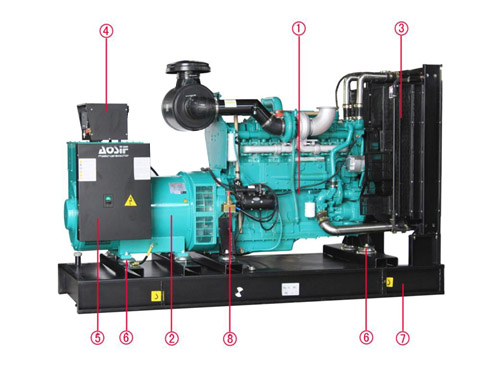

① Diesel engine
② Alternator
③ Water tank
radiator

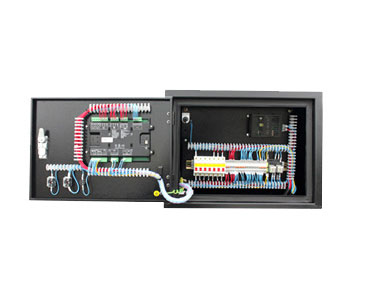

④ Automatic control panel

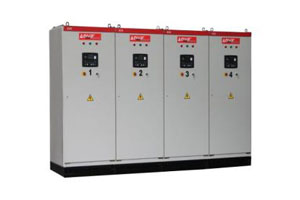

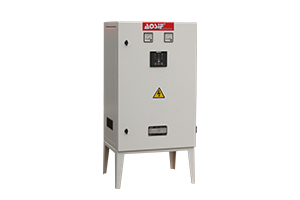

⑤ Electricity output switch cabinet
⑥ Built-in shock pad
⑦ Hi-strength Base Frame
⑧ Solenoid switch
Standard Supply Scope
|

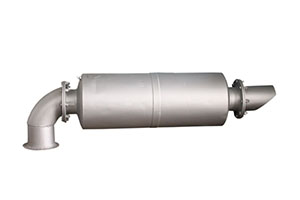

①Exhaust silencer
|

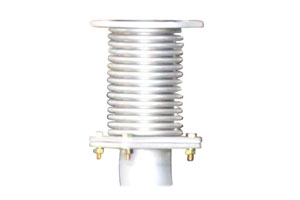

② Bellow
|

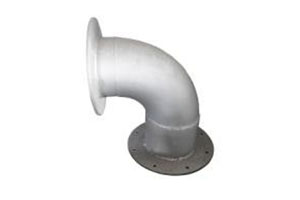

③ Elbow and flange
|
④ Starting battery
|
Optional supply scope
|
①ATS
|
②Synchronization System
|

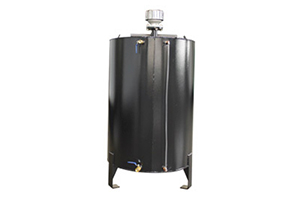

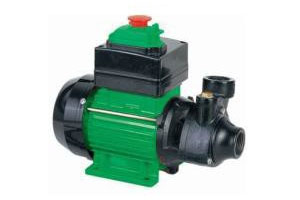

③External daily fuel
tank
|
④Silent Canopy
|

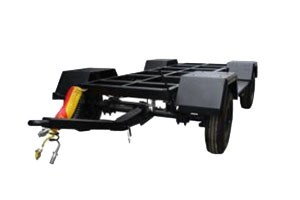

⑤Trailer
|
|
⑥Auto Fuel
Pump
|
⑦Fuel

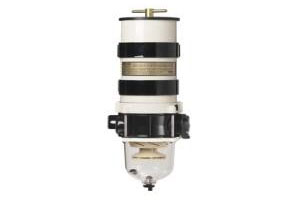

and Water Separator
|

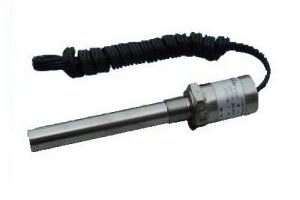

⑧Lub Oil Heater
|

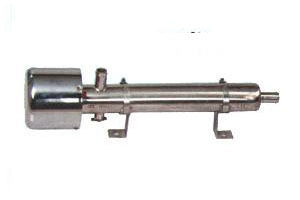

⑨Coolant Heater
|

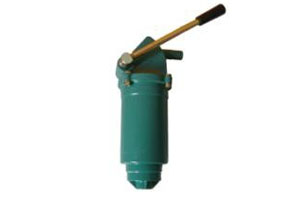

⑩Fuel
Drain Pump
|
Cummins engine:
Cummins is the world's leading power equipment manufacturer, who focuses on the design and manufacture of engines and related technologies, and has become the world's largest engine manufacturer in the industry. The product includes diesel engines (Displacement from 19 to 95 liters) , designing, manufacturing and offering multiple power solutions, and providing 6,500 after-sales service support agencies worldwide.

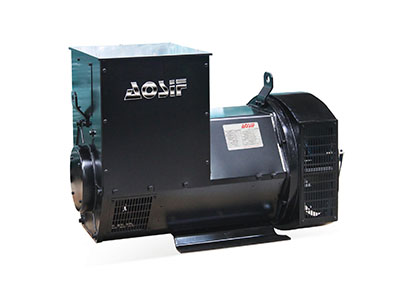

Alternator
|
AVR
|
Standard
|
|
Number of phase
|
Single/3
|
|
Power factor
|
0.8/1
|
|
Altitude
|
≤ 1000 m
|
|
Frequency
|
50/60Hz
|
|
Number of pole
|
4
|
|
Exciter type
|
Self-excitation
|
|
Voltage regulation
|
±0.5%
|
|
Total harmonics(TGH/THC)
|
< 4 %
|
|
Wave form: NEMA = TIF
|
< 50
|
|
Wave form: I.E.C. = THF
|
< 2%
|
|
◆ Optional PMG
excitation system
|
Alternator adopts brushless
synchronization alternator of world famous brand, based
on a variety of operating voltage
requirements, optimizing winding design and eliminating effectively the third
harmonic voltage, which together with
the superior performance of automatic voltage regulator
and PMG (optional), in with superior performance in generating non-linear loads.
◆
Forms: single/double bearing
◆
Protection:IP23(IP44 for option)
◆
Balance: rotator
balance is in accordance with ISO1940 and
NFC51-112 standard
◆
Overspeed: 2250rpm
◆
Insulation Class: class H
◆
Mechanical Structure: steel base frame
Control System——DeepSea 6120 Controller
① Power switch
② Power indicator
③ Run button
④ LCD display
⑤ Emergency stop button
It is a self-starting control module at mains failure and is suitable for controlling a single genset. It provides advanced
engine testing and protection
functions. This module includes an LCD backlit display that clearly displays the engine running
status. The module also includes 7-channel input and 6-channel
output. Program can be set through the
panel and PC software suite.
Monitored Parameters:
Deepsea 6120 controller provides such parameters as generator frequency, idling/overspeed, generator voltage, generator current, engine oil
pressure, engine water temperature, flexible fuel level, running hour, battery voltage, start/stop failure, emergency stop, failure to meet operating voltage/frequency, charging failure, magnetic
sensor signal loss, low battery
voltage, three-phase mains voltage and
mains frequency.
Protective functions:
◆ High water temperature
◆ Low oil pressure
◆ High/low voltage
◆ Over speed
◆ Voltage regulator frequency regulator
◆ Emergency stop
◆ Start failure
Product features:
◆ Protection: Automatic start/stop, load switching and genset alarm
◆ Magnetic sensor signal
◆ Parameters setting via PC and panel
◆ Incorporates 4-channel digital input signal and 3-channel analog input signal
◆ 6-channel output signal (4-channel customized output, CAN 6-channel customized output.)
◆ Monitoring of 3-phase generator voltage and mains voltage
◆ Remote loading/unloading
◆ Advanced measurement capabilities
◆ Test button
◆ Switch between mains and genset power
◆ Reasonable structure and button layout
◆ Multiple engine parameters can be tested simultaneously
◆ Module can be configured according to customer demand
◆ IP65 protection (soundproof)
Circuit breaker
|

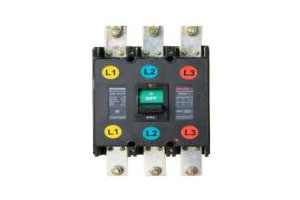

Molded case circuit breaker(MCCB)
|
63A TO 1600A
|
|
Air circuit breaker(ACB)
|
1600A TO 6300A
|
|
Breaking capacity(ICU)
|
18KA TO 120KA
|
|
Rated Operation Voltage(Ue)
|
400V
|

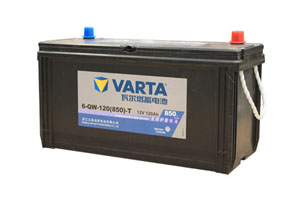

Starting
battery
|
Battery Voltage
|
12V
|
|
Battery Capacity
|
80Ah to 200 Ah
|
|
Battery Model
|
maintenance-free battery
|

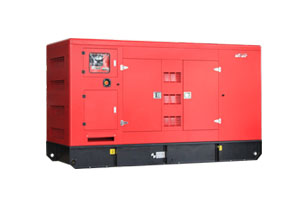

Aosif Soundproof Box-type Genset
Aosif soundproof box-type genset
is designed by professional
engineers with over a decade of
experience.The noise of this kind of genset
is controlled at 80-85dB(A) at 1m away, 70~75dB(A) at 7m away, 60~65dB(A) at 15m away.
|
★ Multiple air inlets/outlets ensure power performance of the genset.
★ Large composite impedance muffler effectively reduces the genset noise.
★ Internal high-performance rubber shock absorber and flexible materials can reduce vibration.
★ Fuel tank at the bottom can enable the genset to work for 8 hours.
★ Soundproof enclosure is made by cold steel.
★ The best powder coating with chemical surface
treatment ensure corrosion resistance and coating quality.
★ Nice appearance and reliable quality.
★ Stainless steel locks and hinges.
★ All-weather operation is available.
★ Fireproof, waterproof and dust-proof
★ High-performance insulation materials can effectively
reduce noise.
|
★ Transparent sight glass allows users to clearly see the content of control panel.
★ Emergency stop button mounted outside the genset to facilitate emergency operations.
★ Coolant filler is set on the top of the enclosure.
★ Lubricant and coolant pipes are installed at the bottom of the
genset to facilitate replacement with new lubricants and coolants.
★ Battery is accessible through the access door.
★ Cooling fan and battery are fully monitored.
★ Insulated exhaust system is installed inside the genset.
★ Type of forklift frame is optional.
★ 180° rotatable and detachable door is designed for ease of maintenance.
★ Concave lockable access door has a long lifetime.
★ Lights inside the genset are available for maintenance.
★ Lugs are mounted at the bottom of the base.
★ Top lifting mechanism is the stand configuration for high-power
genset.
|
Weight and Dimension
Our Commitments
★ Products and services all
comply with ISO8528 and GB/T2820 manufacturing standards.
★ Management is implemented in strict accordance with ISO9001 Quality
Management System and ISO14001
Environmental Management System.
★ All products are CE-certified.
★ All products have passed rigorous factory
test to ensure high quality.
★ Product warranty terms are strictly
enforced.
★ High-efficiency assembly and production lines ensure on-time delivery.
★ Professional, timely, thoughtful and dedicated services are offered.
★ Favorable and complete original
accessories are supplied.
★ Regular and irregular technical
training are provided all year round.
★ 24/7/365
Customer Service Center
provides fast and effective responses to customers’ service demands.
