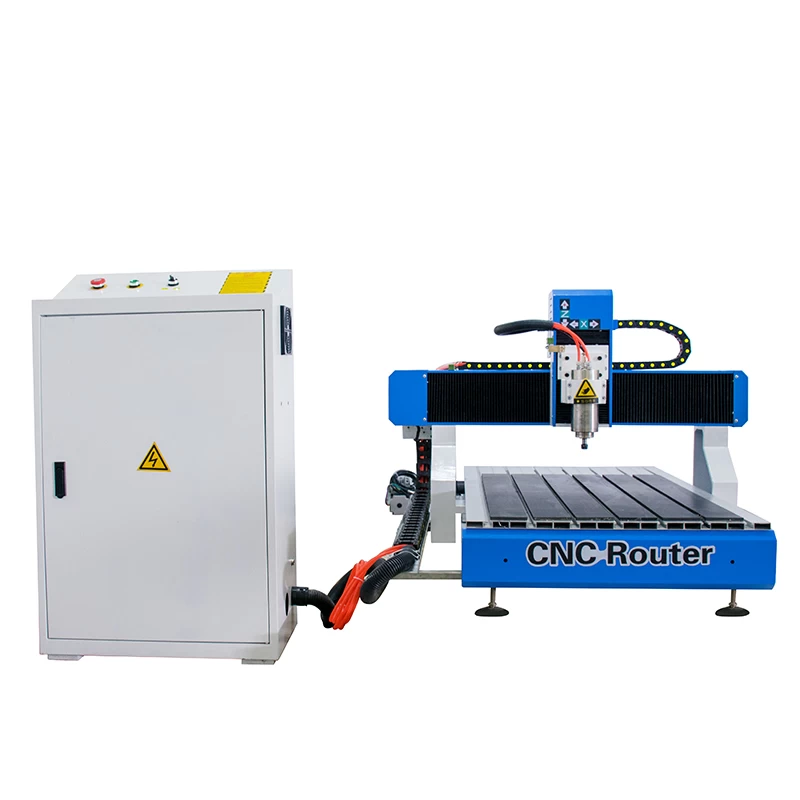

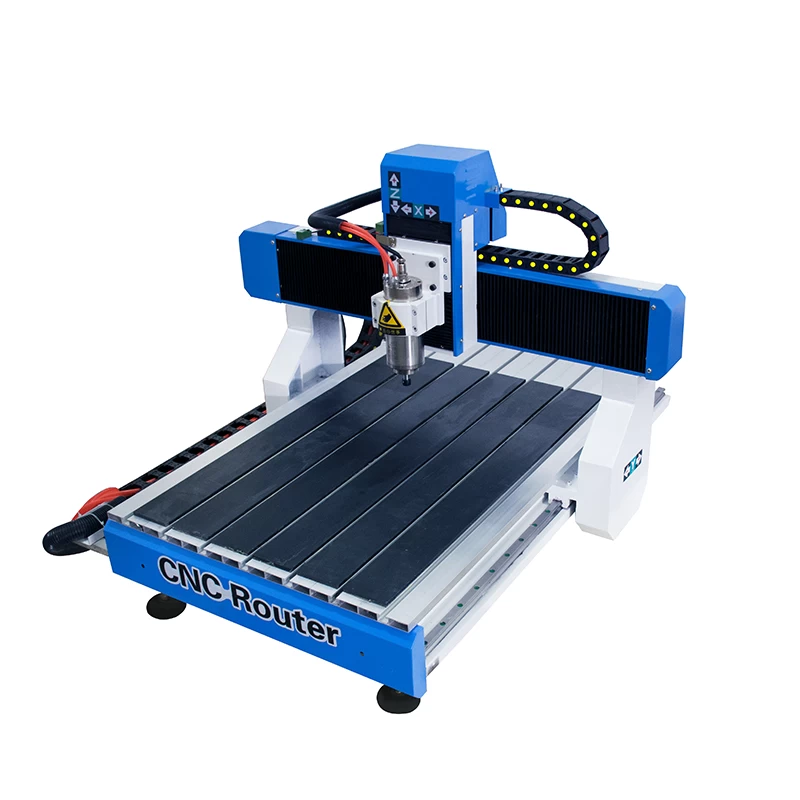

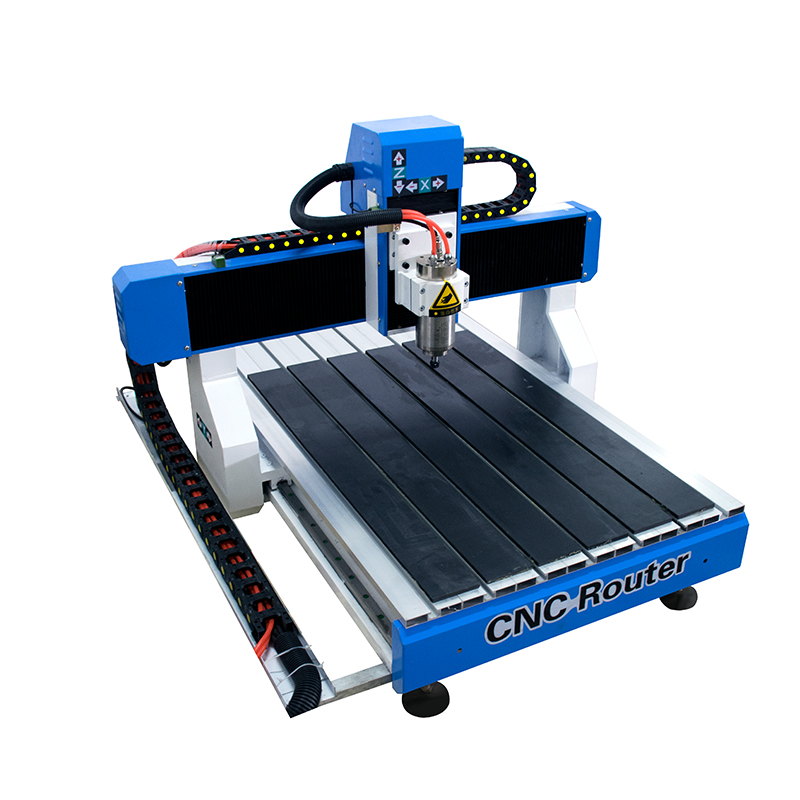

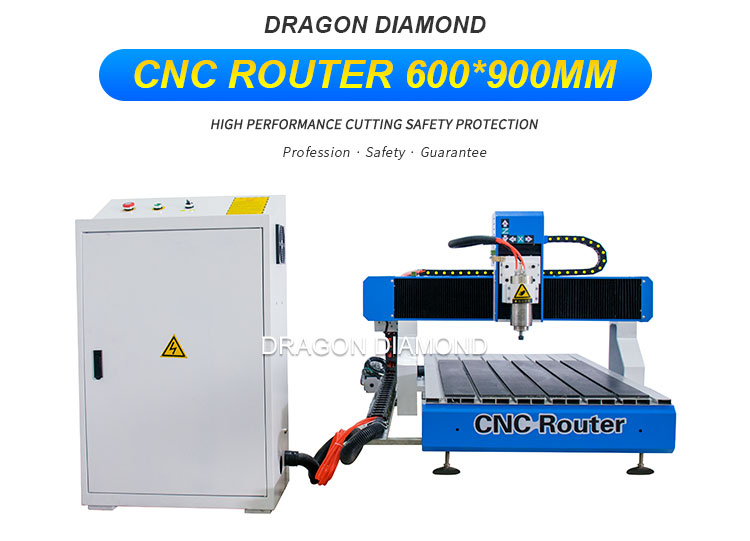

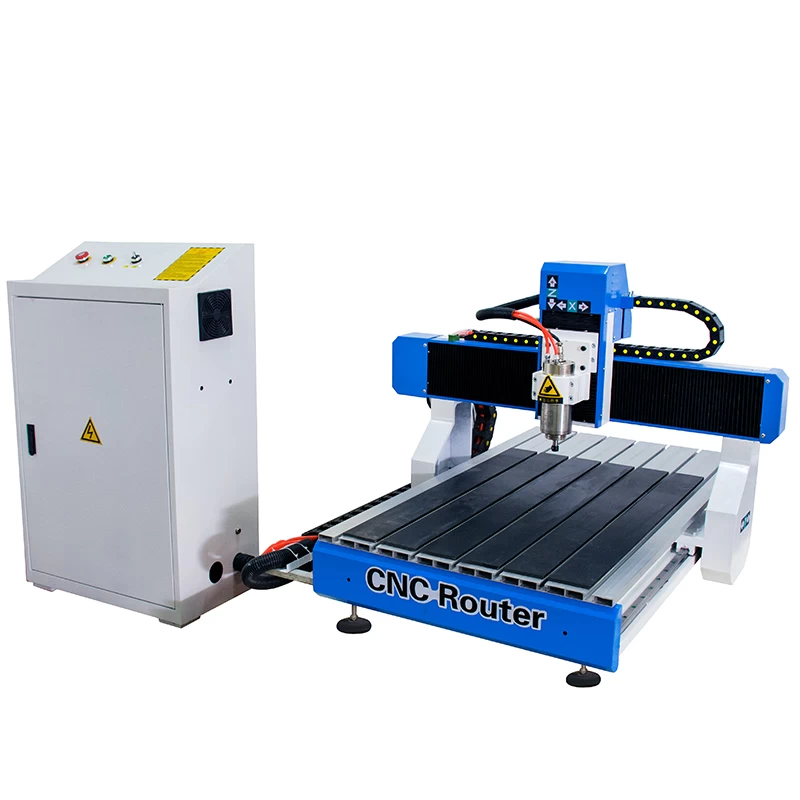

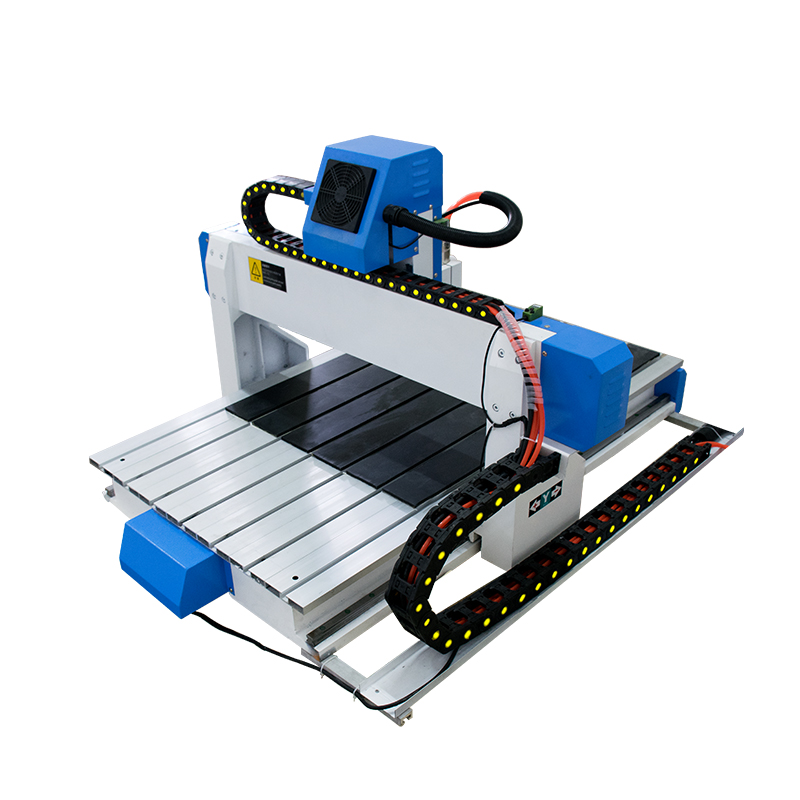

Custom 6090 Cnc Wood Router Woodwork Engraving Carving Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-6090 Desktop
|
|
1
|
Working Area
|
600x900x200mm
|
|
2
|
Packing Size
|
1300x1600x1400mm
|
|
3
|
Working Table
|
Aluminum alloy T Slot with PVC protection layer
|
|
4
|
Spindle
|
2.2KW Water Cooling Spindle
|
|
5
|
Cooling System
|
Water Cooling
|
|
6
|
Control System
|
NC Studio Controller
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
Lead ball screw for XYZ-axis
|
|
9
|
Guide Rail
|
Linear square guide rail, Hiwin, Taiwan, diameter 20mm
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Stepper motor
|
|
12
|
Machine Structure
|
Cast iron structure
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Suitable Software
|
Artcam, Type3, Ucancam V9, etc
|
|
15
|
Traveling Speed
|
>8000mm/min
|
|
16
|
Engraving speed
|
>6000mm/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC 220V±10%, 50/60Hz, Single Phase,
AC 380V±10%, 50/60Hz, Single Phase
|
PRODUCT FEATURES
1.Durable Structure
Cast iron lathe bed.Aluminum with PVC working table stable running with less vibration.
2.Strong Gantry Design
With Gantry moving type,stable and durable for long time using.Ensure high positioning accuracy.
3.Good Quality Water Cooling Spindle
Large power 2.2kw water cooling spindle which is applicable not only for cooper plate,aluminum plate,iron plate engraving but also for wood working.It can cut 20-30mm thickness acrylic by one time cutting.The fine engraving is more smoothy and cleat by large power spindle.

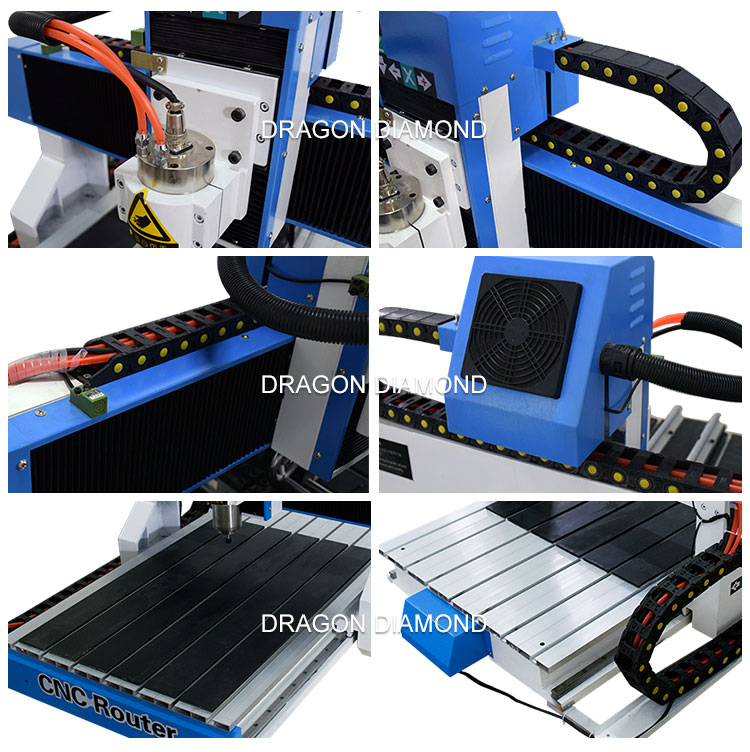

4.Guide Rail And Transmission
XYZ three axis are with linear square guide rail.Hiwin,Taiwan Ball screws transmission for all axis.Durable running with higher accuracy.
5.Dust Proof Design For XZ Axis
Dust proof design for XZ axis,protect the guide rail and ball screws from the dust & dirt.Help to ensure machine working performance.
6.Motor And Driver
China famous Leadshine Stepper Motor and Leadshine stepper motor and driver for XYZ Axis, high precision, fast speed and more stable, dual motor driven Y axis with traveling speed up to more than 10000mm per min.
7.NC Studio Control System
NC Studio control system,supporting XYZ axis moving together,showing the processing path,mote convenient.Besides,we also have other optional controller,such as Mach 3,DSP A11E,etc.
8.High End Toolbox
Rationalzed placement of the electronic parts.Optimized heat disspation effect.Adopt high quality electronic parts,minimizing fault rate.Adopt high flexible cable and imported electronic parts,electrical design of whole machine is complied with the CE standard.
9.Favorable Compatibility Software
Favorable compatibility with various CAM software such as Type3/Artcam/Mastercam/Caxa.With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
