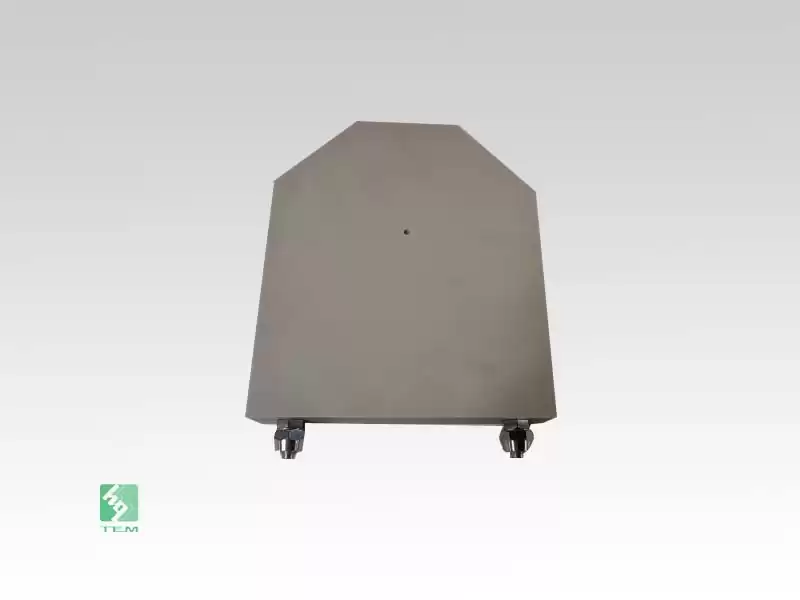

Aluminum Nitride Ceramic for Large-area Cooler
Product Description:
The monolithic structue made of Aluminum Nitride(AlN) is airtight after firing, making it perfect for high external pressure applications.
The adavantages of AlN Ceramic for large-area liquid cooler are that the design of monolithic heat-sink provides excellent heat transfer from the ceramic to the cooling water and both cooling connections are on the same side which are inserted with two seal rings. It's suitable to be used in semiconductor elements.
Our Aluminum Nitride(AlN) Ceramic are available in various sized and thickness. Thanks to a large and live investory, we can ship your part fast for you to start your project.
Our Service:
Please contact us for customization. We can also supply Aluminum Nitride(AlN) Ceramic with thermal conductivity up to 230W/m.K.
Specification:
| Dimension(LxW) |
150*130mm |
| Thickness |
25mm |
| Thermal Conductivity |
170W/m.K |
| Dielectric Constant |
8-9(mHz) |
| Bulk Density |
3.3g/cm³ |
| Surface Roughness |
Ra < 0.6 μm on both sides |
Company Adavantage:
Huaqing founded in 2004, with sum investment of 80Million RMB, registered capital 40Million RMB. Huaqing's AlN & Al2O3 ceramic products has high thermal-conductivity, low dielectric constant and good dissipation factor and excellent machanical property compare with the other factories in the industry. AlN & Al2O3 ceramic are widely used in HBLED, opto-communication, IGBT, power devices, TEC and the other high-end applications.

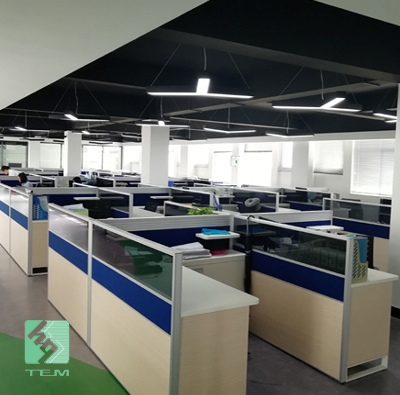

Workshop & Equipment:
Packaging & Delivery:
Deliver by UPS, DHL, Fedex etc.
