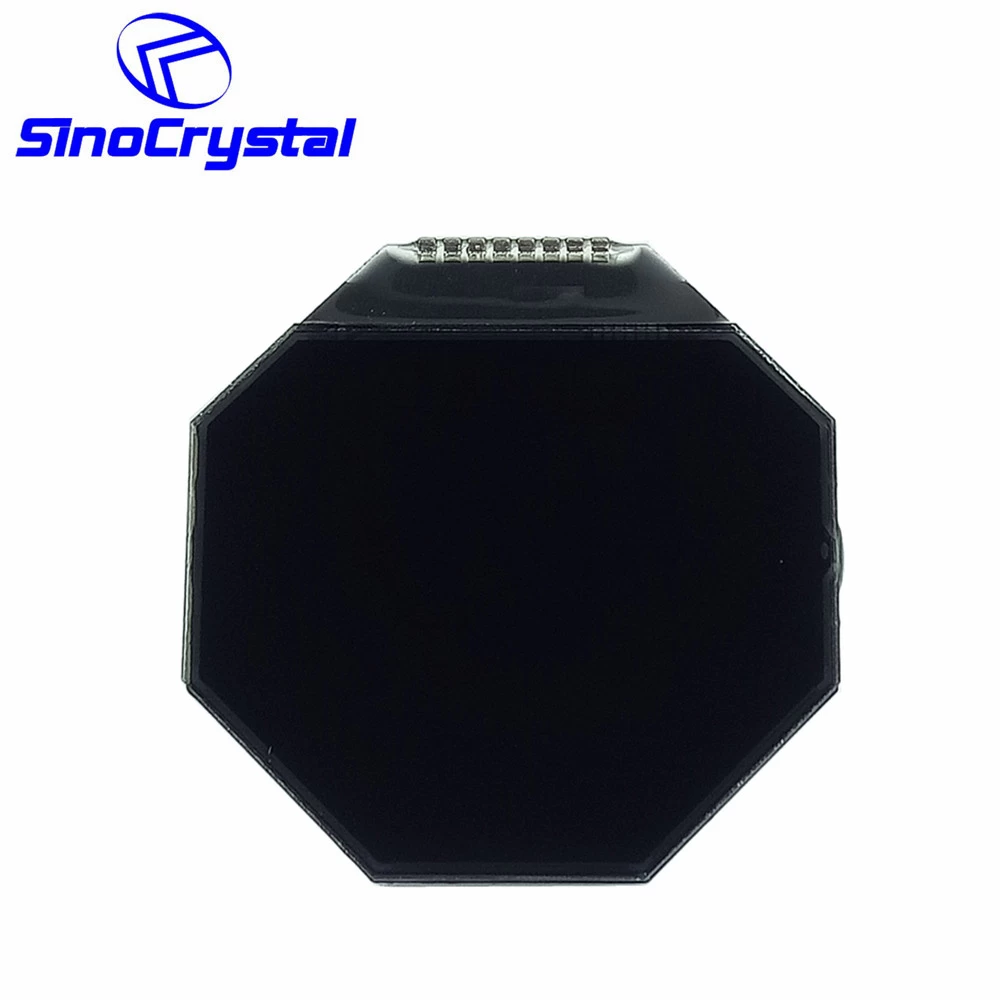

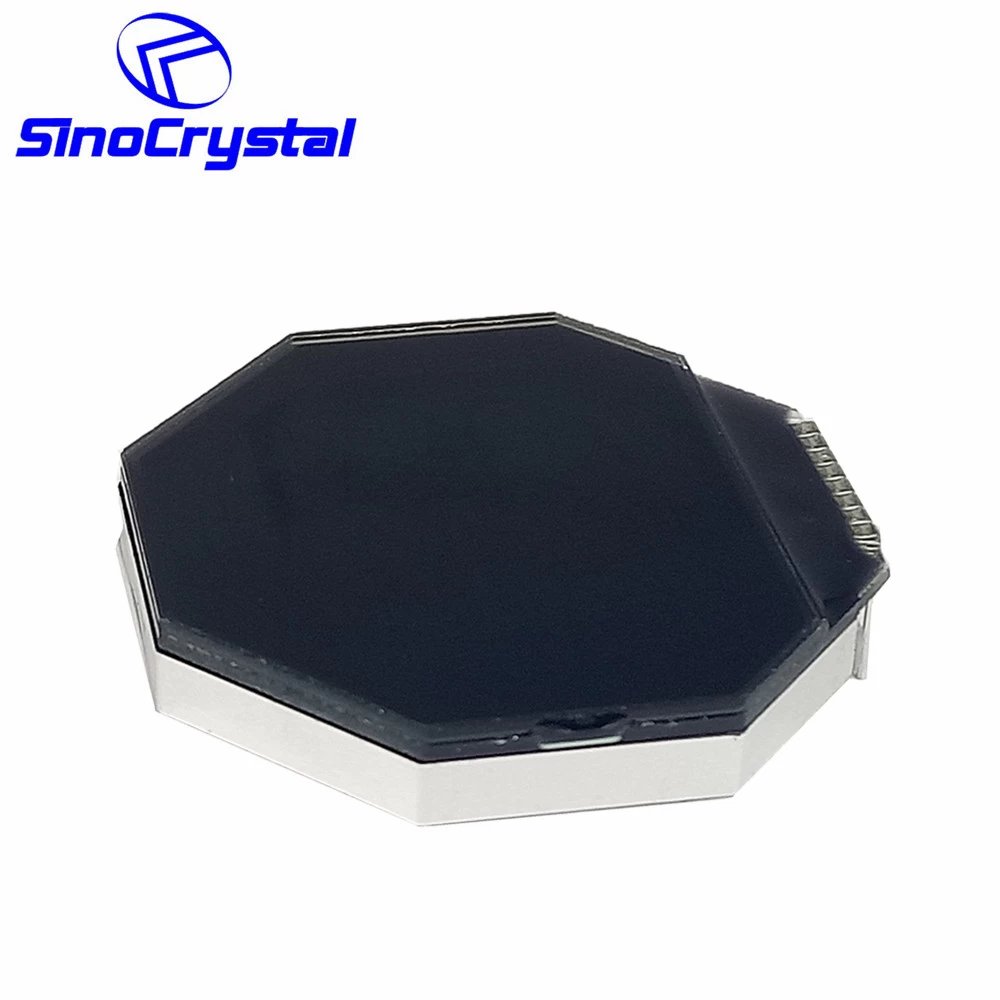

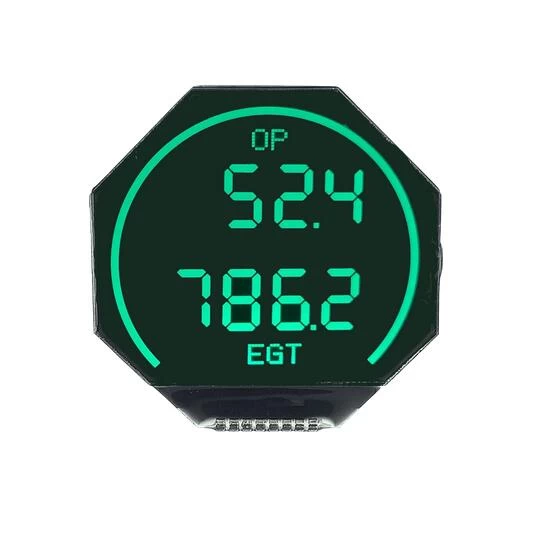

Custom Circle COG TN ST7032 RGB Round Shape LCD Display

SCC0055-V01 is a Round Mono LCD Display



LCD Type:                     TN-VA NEGATIVE TRANSMISSIVE COG

Number of Graphic:      Segment

Outline Dimension:       46.20*46.20*7.70

View area:                     30.19*21.00

Driver IC:                      ST7032I-0D

View Direction:              12 o'clock

PIN:                                8

Backlight:                      RGB LED


  • PIN8
  • View Direction12
  • BacklightRGB LED
  • Driver ICST7032I-0D
  • View area30.19*21.00
  • Outline Dimension (mm)46.20*46.20*7.70
  • Display TypeTN-VA
Facebook Twitter Pinterest LinkedIn 分享

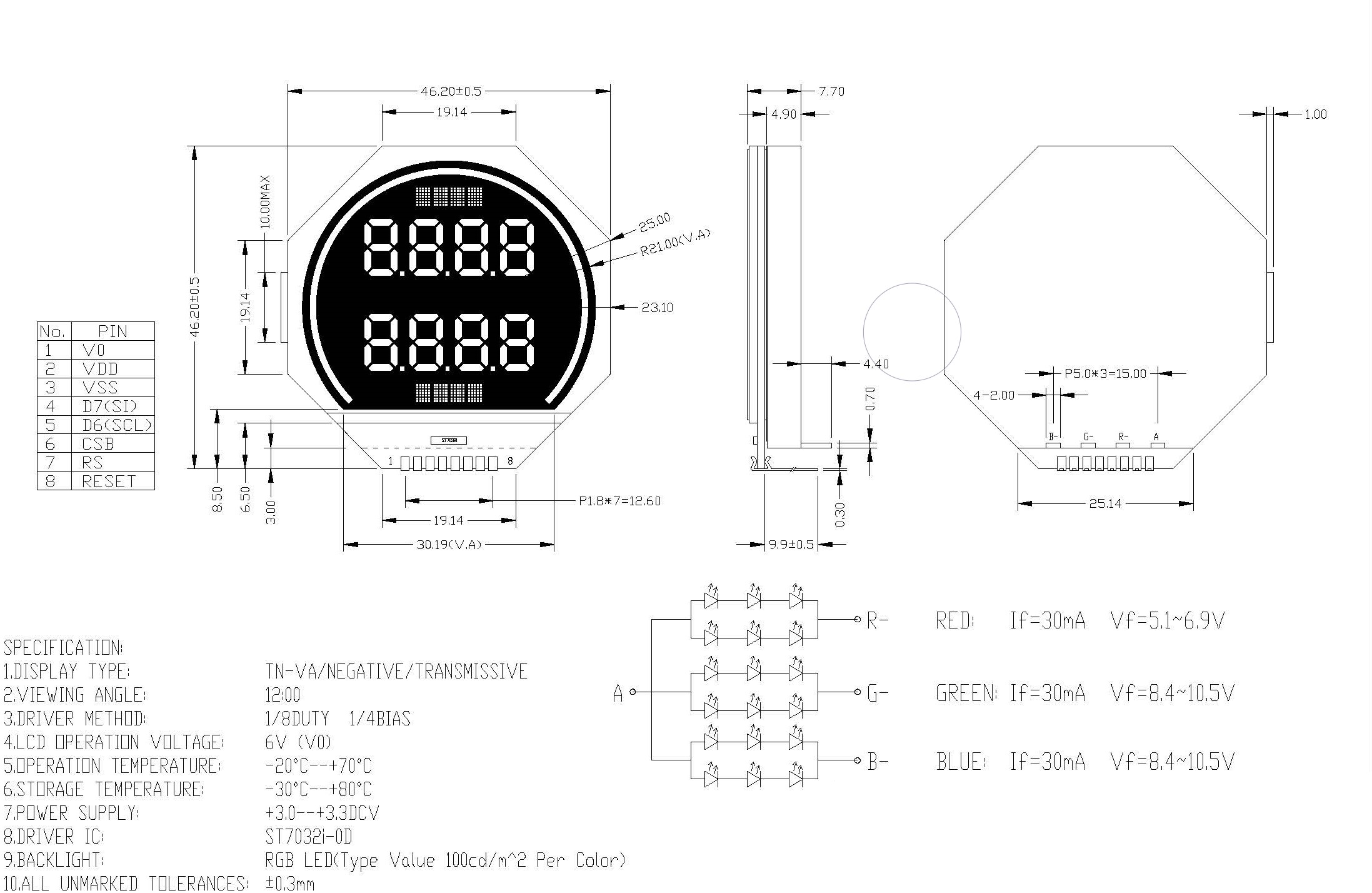

Drawing



General Specification



ITEM STANDARD VALUE UNIT
  NUMBER OF CHARACTER 4x2 + ICON Mm
  MODULE DIMENSION 46.2×46.2×7.7 Mm
  VIEWING AREA 42.0×35.6 Mm
  DOT SIZE 0.38×0.35 Mm
  DOT PITCH 0.42×0.39 Mm
  LCD TYPE TN-VA/NEGATIVE/TRANSMISSIVE
  DUTY  1/8
  VIEWING DIRECTION 0.5 o'clock
  BACK LIGHT TYPE SIDE LIT LED
  BACK LIGHT COLOR RGB COLOR
  APPROX. WEIGHT TBD G





Interface Definition


Pin No. Symbol Level Description
1 V0 -- Supply voltage for LCD
2 VDD -- Supply voltage for logic
3 VSS -- Ground
4 D7(SI) H/L serial data input
5 D6(SCL) H/L the serial clock input
6 CSB H/L Chip select signal
7 RS H/L Register selection input
H : display data.
L : control data
8 RESET H/L Chip reset signal
