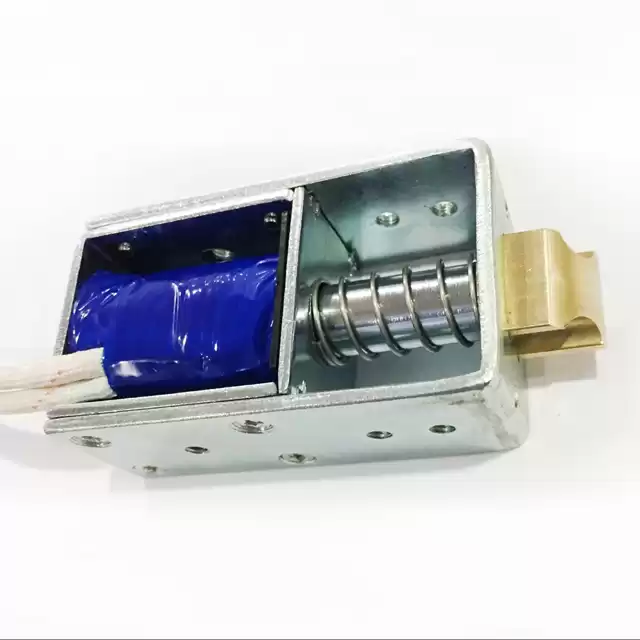

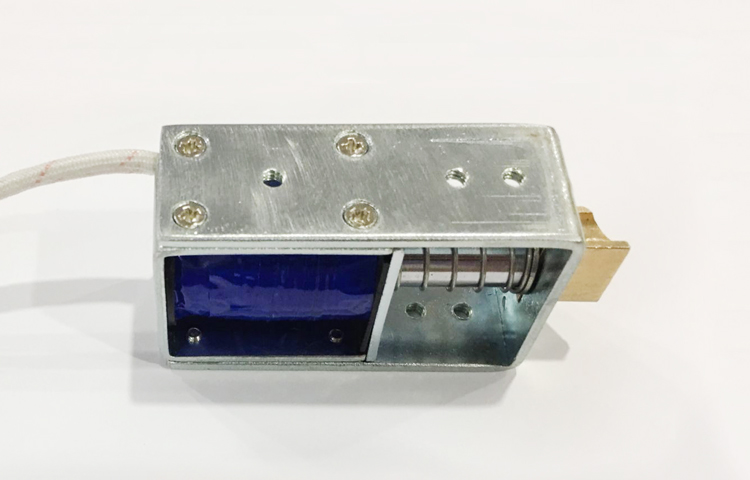

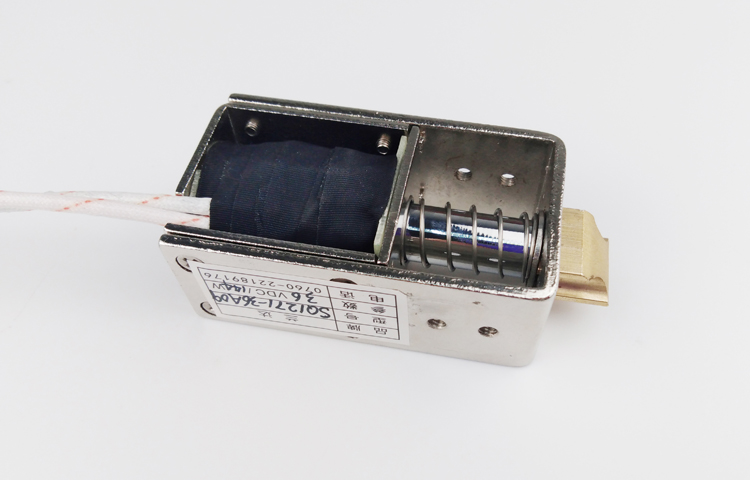

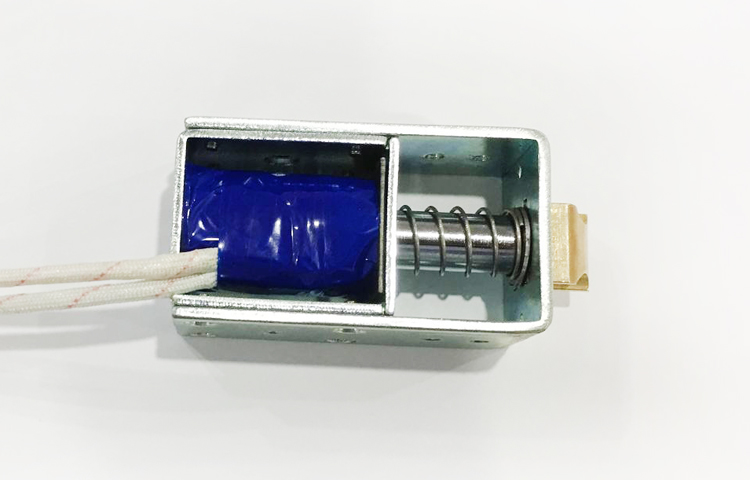

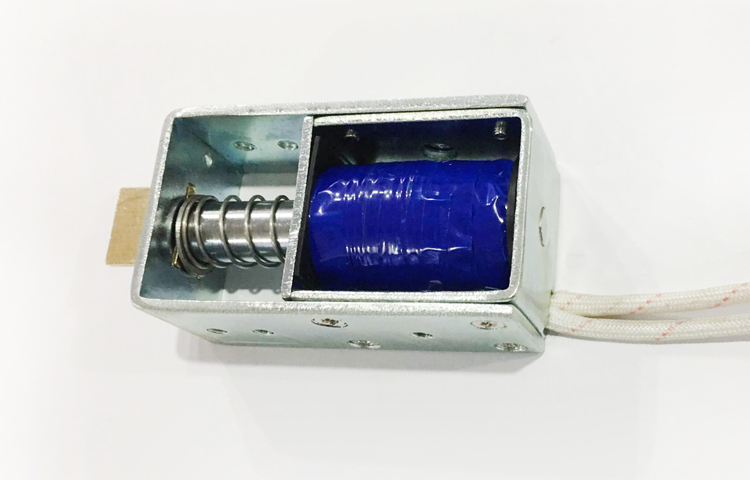

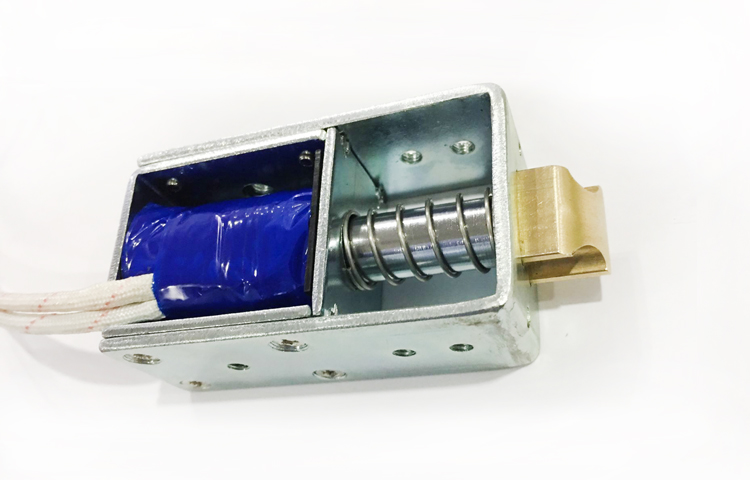

Push-pull type, linear motion, plunger spring reset, have a lock pin, this custom solenoid lock was mainly used in vending machines, household appliances, machinery, etc.
The solenoid lock works externally by pushing and pulling the plunger, and when energized, it works by pulling lock pin, and open the door.Open frame structure with mounting holes, accepted custom size as you need.
Products Description
|
Brand
|
Landa
|
SQ Model
|
SQ1271lock
|
|
Place of Origin
|
Guangdong, China
|
Certification
|
CE,ROHS,ISO9001
|
|
Dimension(L*W*H)
|
71*39*26 mm
|
Rated Voltage (V)
|
DC 12/24
|
|
Rated Power(W)
|
1-70
|
Work Model
|
Push Pull Type
|
|
Holding Force (N)
|
18
|
Stroke(mm)
|
13
|
|
Reset Time(s)
|
0.2
|
Service Life
|
500 Thousand Times
|
|
Material
|
Iron
|
Lead Wire Length(mm)
|
300
|
|
Install Style
|
screw
|
Tolerance of Dimension
|
gb/t1804-m
|
|
Water-proof
|
IP65
|
Insulation Class
|
B
|
|
Residual Magnetism
|
/
|
Duty Cycle
|
50%-100%
|
|
Working Temperature
|
-10°C-100°C
|
Thread Size(mm)
|
M3
|
|
Thread Depth(mm)
|
/
|
Payment Term
|
TT,PAYPAL
|
|
Sample Order
|
Yes
|
Warranty
|
1 year
|
|
MOQ
|
2 pcs
|
Supply Ability
|
5000 pcs per Week
|
|
Delivery Time
|
3 Days
|
Port of Loading
|
Zhongshan
|
Product Features
Small size,with force power off and without force power on Push pull type, spring return
Easy to install With mounting hole, easy to install and operate.
Materials
High quality iron house & core High temperature resistance lead wire and copper wire, efficient conductivity, outlet can be customized Epoxy filled, IP65 waterproof class
OEM/ODM is welcome
11 years of designing and producing experience CE, ROHS, ISO9001 certification Good quality, best service, competitive price. Welcome to our factory.
