Custom Hex Bore Agricultural Ball Bearings with Various Models

Hex Bore agricultural ball bearings is featured with a hex bore,based on deep groove ball bearing structure. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G".



Custom Hex Bore Agricultural Ball Bearings with Various Models

This Bearing is an Agricultural Ball Bearing with a Hexagonal Bore manufactured to be double sealed on both sides to prevent any dust & debris from entering the bearing. This Hex Bore Agricultural Ball Bearings  belongs to our collection of Single Row Radial Ball Bearings and features an extended inner diameter on both sides. Our Agricultural bearings are ideal for applications requiring contact with corrosive materials in harsh environments and have been pre-lubricated with grease, allowing it to be ready for use upon delivery.



Application :

The Hex Bore Agricultural Ball Bearings are used in a range of Agricultural  and farm machinery applications from Combine Cross Augers to Planters, Gauge Wheels, Rotary Hoe, Cultivators, Tillers, Combines, Balers, Conveyor Systems, Grain Augers, Garden Tractors, Industrial Fans, Pumps, Power Transmission Equipment, among others.

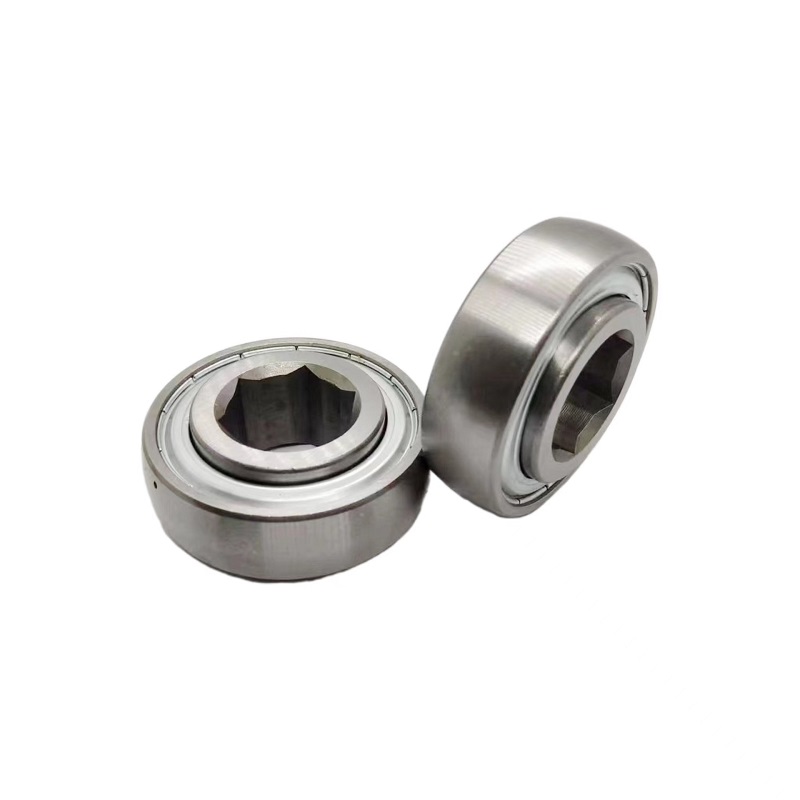

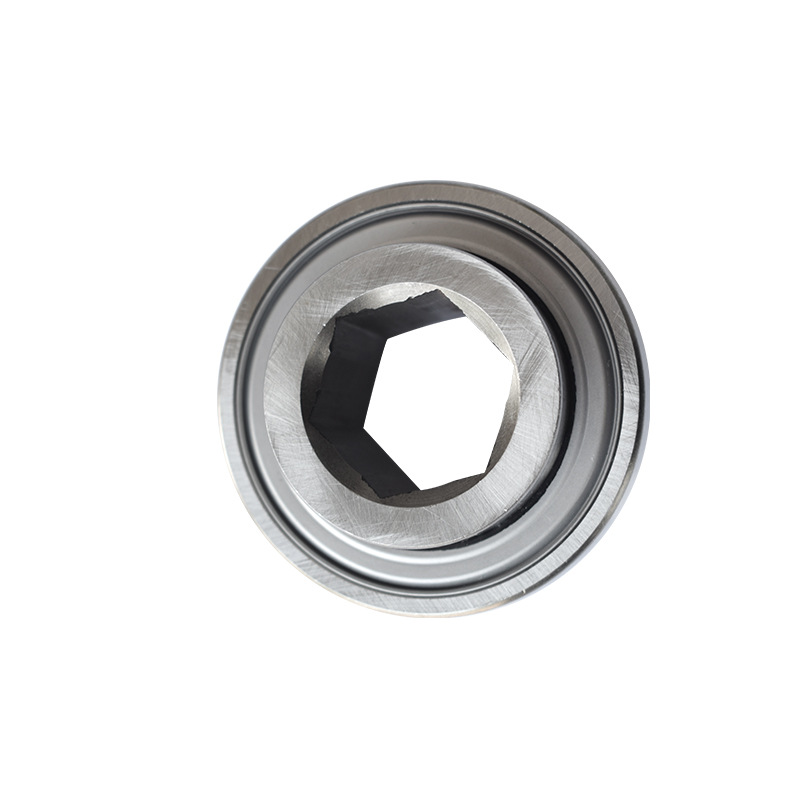

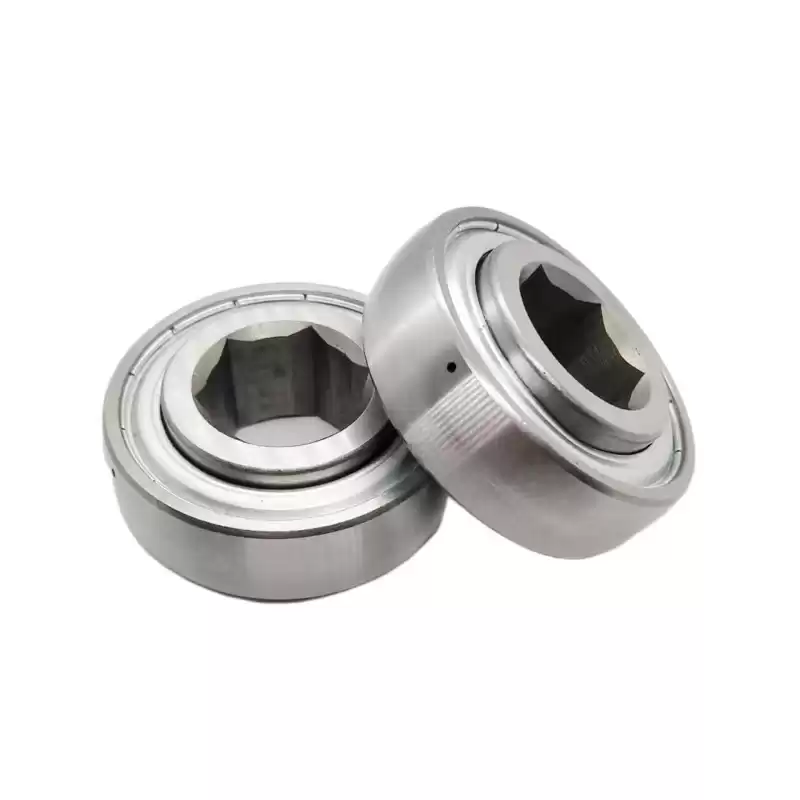

Photo:

Custom Agricultural BearingHex Bore Ball Bearings204KRR2 Hex Bore Agricultural Ball Bearings

 Hex Bore Agricultural Ball Bearings Models:

Bearing Number

HEX Shaft Size

Bore Diameter

Outside Diameter

Inner Width

Outer Width

Weight

mm

Kg

202KRR3

43359

16.46

35

11

13

0.054

204KRR2

43420

20.22

47

14

20.96

0.145

205KRR2

43289

25.65

52

15

25.4

0.2

205KRRB2

43289

25.65

52

15

25.4

0.2

205PPB13

43289

25.65

52

15

25.4

0.2

206KPP3

1

29.31

62

16

24

0.345

206KPPB3

1

29.31

62

18

24

0.345

206KRR6

1

29.31

62

16

24

0.341

206KRRB6

1

29.31

62

18

24

0.341

207KPP3

1.25

36.4

72

17

37.7

0.454

207KPPB3

1.25

36.4

72

17

25

0.395

207KRRB9

1.125

32.97

72

17

37.7

0.454

207KRRB12

1.125

32.97

72

17

25

0.395

207KRR17

1.25

36.65

72

17

25

0.395

207KRRB17

1.25

36.65

72

17

25

0.395

W208PPB16

1.25

36.65

80

18

36.53

0.658

W208KRRB6

1.375

40.3

80

21

36.53



W208KRR8

1.25

36.65

80

18

36.53

0.658

209KRRB2

1.5

43.99

85

19

30

0.576

W210PPB7

1.625

47.65

90

30.18

30.18

0.794

G206KPP4

1

29.26

62

18

24

0.281

G206KPPB4

1

29.26

62

18

24

0.277

G206KRRB6

1

29.26

62

18

24

0.268

G207KPPB2

1.125

32.97

72

19

37.7

0.454

GW208KRRB5

1.25

36.65

80

21

36.51

0.635

GW208PPB22

1.25

36.75

80

21

36.51

0.681

GC1200KPPB2

1.75

51.31

100

25

57.15

1.521
