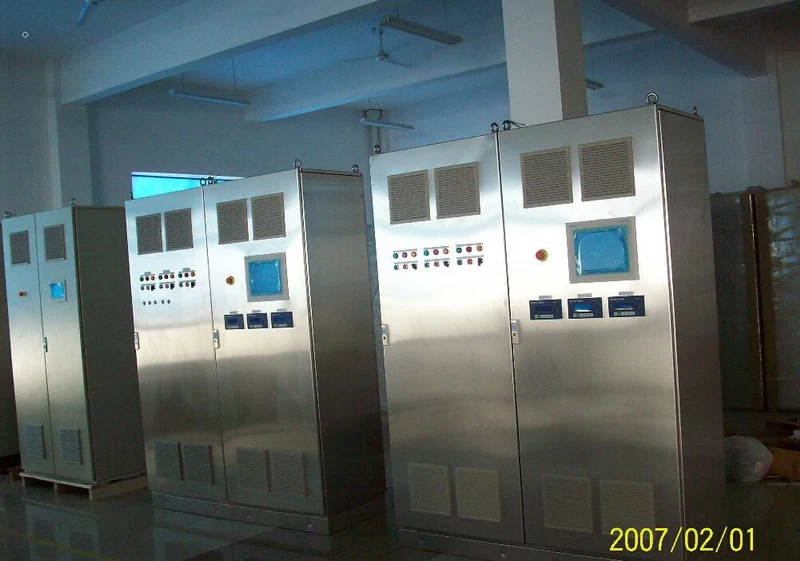

Stainless steel outdoor storage two door with windows Control panel cabinet
Specifications
OEM single phase distribution box electrical
stainless outdoor control panel cabinet
distribution box
power
anti rust
Custom made OEM single phase distribution box electrical stainless steel outdoor Control panel cabinet
OEM/ODM Control panel cabinet/Distribution encosure/Junction box/Metal enclosure Manufacturer Taicheng Metal Co.,Ltd
For more information contact
taich@taichmetal.com
Phone:+86-18350676025
|
Material
|
SPCC, SPHD, SECC, AL-EN, AL, SPHC, ZN, SGCC, SUS all available
|
|
Dimensions
|
Customized.
|
|
Optional Surface Treatment
|
plating, powder coating (with or without texture), anodizing etc.
|
|
equipment processing
|
Laser cutting, shearing, punching, bending & welding, ensure high precision
|
|
Rating IP grade
|
customized, max to IP66
|
|
Certificate
|
Certified UL 50, UL 50E, Type 3R Enclosures, Type 4X Enclosures
CSA C22.2 No. 94.1, CSA C22.2 No. 94.2
Intertek Type 3R
Intertek Type 4X
Conforms to Std UL 50, UL 50E NEMA 250
C1D2 ETL US
**Not all enclosures carry all certifications.
|
|
Service
|
OEM, small order and sample order acceptable
|
Material:
1.5mm galvanize Zinc plating steel with an N4 finish
Optional material: metal mild iron aluminum steel alloy HRS SPHC SPHD SPHE CRS SPCC SECC SPCD SPCE
stainless steel, sus201sus 301 SUS304 SUS316 SUS410
Construction:
Robust Fully welded construction
Formed in place Polyurethane Gasket
IP65 Termination Enclosures - Stainless Steel
Water-proof locks and stainless steel hinges
Back plate: galvanized steel
Optional surface treatment: galvanize Zinc plating
polyester Powder coating epoxy baking paint
Applications:
Wireless Backhaul, Fiber Optics, Satellite Communication, Cable Television, Navigation & Positioning, Military Installations, Port Security
The Connector Termination Enclosure range is ideal for applications where a smaller enclosure is required for installing terminations, push buttons or switchgear, and a greater level of protection is required for components in harsh or aggressive environments.
Features:
IP65 Protection Rating
Provision for mounting DIN rail (1 or 2) or mounting pan
Captive 316 Stainless Steel universal head screws indented in lid. These make access to the enclosure contents easy and prevent the loss of fixings
Complete with earth strap and fixings for internal accessories
Accessories include mounting pans, DIN rails and external mounting brackets
Specifications:
|
Model Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0001-ECPB-TCH
|
600 ×800 ×300
|
550 × 750
|
|
0002-ECPB-TCH
|
800 ×800 ×300
|
750 × 750
|
|
0003-ECPB-TCH
|
800 ×1000 ×300
|
750 ×950
|
|
0004-ECPB-TCH
|
800 ×1200 ×300
|
750 × 1150
|
|
0005-ECPB-TCH
|
800 ×1200 ×400
|
750 × 1150
|
|
0006-ECPB-TCH
|
1200 ×1200 ×400
|
1150 × 1150
|
|
0007-ECPB-TCH
|
800 ×1400 ×400
|
750 × 1150
|
