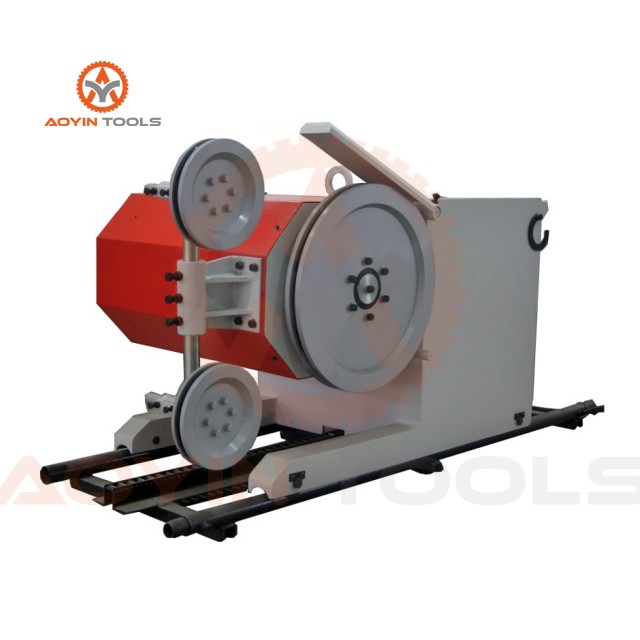

Small Wire Saw Machine MWS-18/22
This small wire saw machine is designed for automatic cutting, utilizing the principle of constant tension. It adjusts the speed and precision automatically, resulting in higher efficiency and lower costs. With built-in protections against overload, open phase, and limit switches, this machine guarantees safe and reliable operation.
The MWS-18/22 Small Wire Saw Machine is a cutting-edge device that revolutionizes the process of granite and marble mining. With advanced dual-conversion technology, it offers real-time monitoring capabilities of the current status of the main motor and cutting speed. This machine ensures optimal performance, efficiency, and safety throughout the cutting process.
Product Parameters:
- Model: MWS-18/22
| Techical Parameter |
|
|
| Model |
Unit |
MWS-18 |
MWS-22 |
| Main Motor Power |
kw |
18 |
22 |
| Flywheel's Diameter |
mm |
Φ650 |
Φ650 |
| Guide pulley’s diameter |
mm |
Φ250 |
Φ250 |
| Wire Linear Speed |
m/s |
0~40 |
0~40 |
| Rotation Angle |
n。 |
360° Electric |
360° Electric |
| Feeding Speed |
m/h |
0~40 |
0~40 |
| Max.Wire Length |
m |
40 |
50 |
| Dimensions(LxWxH) |
mm |
1200x700x750 |
1200x700x750 |
| weight |
kg |
650 |
700 |
Product Highlights:
1. Dual-conversion technology: Real-time monitoring of the main motor and cutting speed.
2. Automatic cutting: Constant tension principle adjusts speed and precision automatically.
3. Higher efficiency: Optimized design and technology for enhanced productivity.
4. Lower cost: Efficient operation leads to reduced expenses.
5. Overload protection: Safeguards against excessive strain on the machine.
6. Open phase protection: Ensures safe operation in the event of a phase failure.
7. Limit switches: Prevents operation beyond safe limits, promoting operator safety.
Applications:

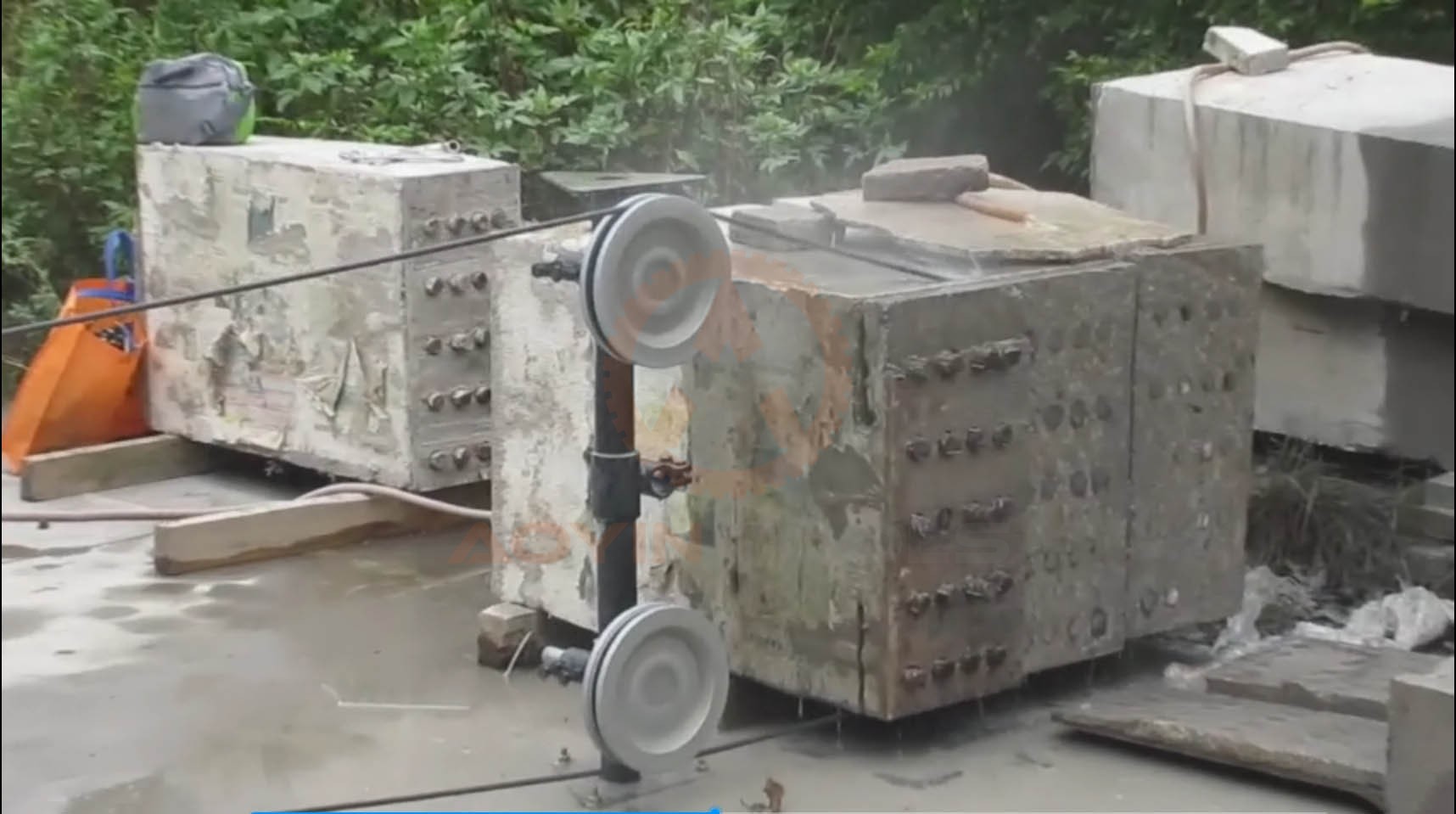

Our MWS-18/22 Small Wire Saw Machine is specifically designed for granite and marble mining applications. It excels in cutting these materials efficiently and accurately, delivering high-quality results.
Company Service Advantage:
Our company takes pride in offering exceptional service to our customers. From pre-sales consultations to after-sales support, we strive to meet all of your needs. Our team of experts is available to provide technical assistance, training, and guidance to ensure that our products meet your expectations.
FAQ (Frequently Asked Questions):
1. How can I customize the power and voltage specifications of the machine?
- For customization options, please contact our sales team and provide your specific requirements. They will assist you in selecting the appropriate power and voltage specifications.
2. What maintenance is required for the machine?
- Regular cleaning, lubrication, and inspection of the machine are recommended to maintain its optimal performance. Detailed maintenance instructions are provided in the user manual.
3. How can I ensure operator safety while using the machine?
- The machine is equipped with built-in protections against overload, open phase, and limit switches. Following safety guidelines and regulations is crucial to ensuring operator safety. Additionally, the machine should be operated by trained personnel only.
