Custom Made Helical Screw Piles

The screw piles #3 can be turned in the ground in order to create a solid support or foundation on the solar panels mounting system. The size and flange diameter could be customized.

Facebook Twitter Pinterest LinkedIn 分享

Customized 4 Bladed Screw Piles Foundation

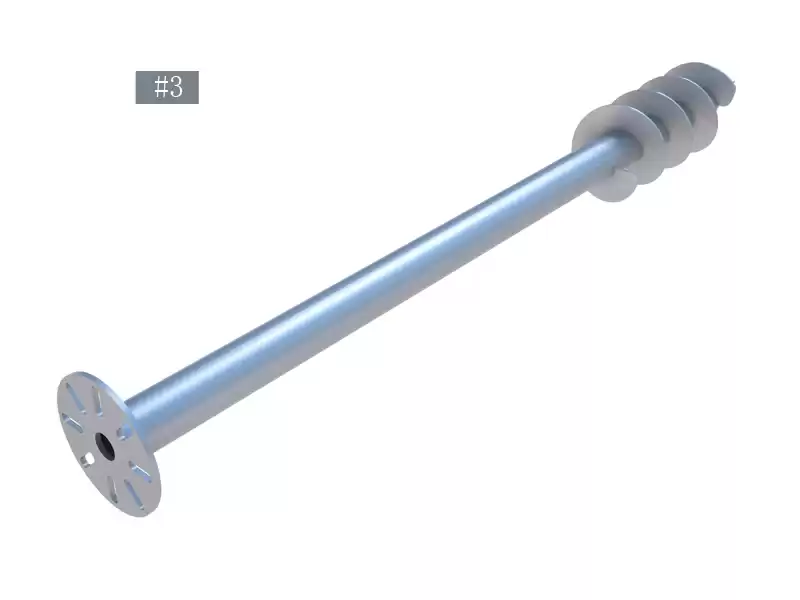

The helical screw piles #3 has 1 helix with 4 blades weled on tube.The size could be customized  to meet any shaft diameters the solar ground mounting system calls for. The main benefits of helical piles foundations include shorter project time, ease of installation and ease of removal when ground screw foundation is no longer required.



Feature

A. Long life span and maintenance free

B. Greater load capacities

C. Corrosion resistance

D. With 4 bladed for sandy soil

  • Solar Panel Brackets

                            About It

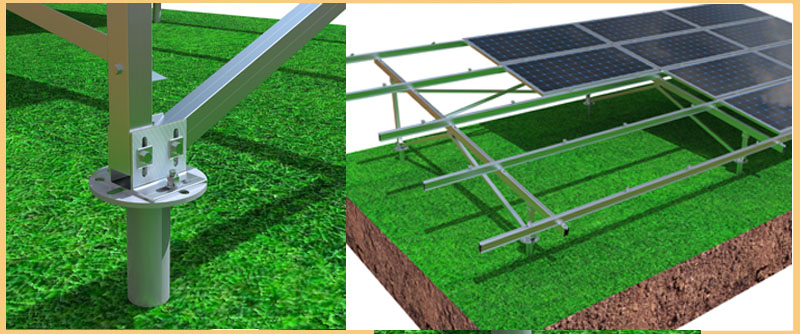

    Each ground screw pile is twisted deep into the soil with powerful hydraulics to provide massive support on the solar mounting system. The screw anchors require no concrete poring and leave the vetation untouched. The tube normal diameter is 76mm, flange diameter is 200-220mm. Size also could be customized.



Q1: Do I have to pay for the sample?
Cowell Solar Mounting: Well, the free sample is offered if they have on stock. The customized product have to be charged, but the sample cost could return when mass production.

Q2: Does it matter that I do not have experience to install?
Cowell Solar Mounting: Pls do not worry, most of accessories are designed to be highly pre-assembled. And we provide includes the structural analysis as well as the installation plan for all components.

Q3: What is your guarantees and services?
Cowell Solar Mounting: All of product have strictly quality control on the production line. We guarantees 12 years life time.

Q4: Do you have the factory? And do you offer the custom service?
Cowell Solar Mounting: Yes our factory have established for about 30 years, and we have the professional technicians and engineers to meet your customized requirement.
