Custom Pins Positive Reflective TN Segment LCD Display for Gas Meter
Jinhua company is able to give custom service for segment LCD display. For "custom", it means the display size, display mode, type, drive voltage, and other specifications are able to implement as per clients' requirement.
For a segment LCD display, it could show dynamic digit changing timely according the customers' requirement and combining with fixed grahpics. Noramlly the display is connected with main control box with FPC, pins, zebra, bus bar, etc. The brightness of LCD is determined by the LED back light panel or so called LCD backlight.
Segment LCD Display
Product Parameters
| LCD Type |
TN |
| Display Type |
Transmissive |
| Display Mode |
Negative |
| View Angle |
6 o'clock |
| AA |
16x75 mm |
| Driving Condition |
VOP 3.3V |
| Duty 1/4 |
| Bias 1/3 |
| Connetor |
Pin |
| Display Technology |
COB |
| Control IC |
None |
| Interface |
None |
| Operating Temperature |
-20-70°C, custom |
| Requirements On Environmental Protection |
ROHS HSF |

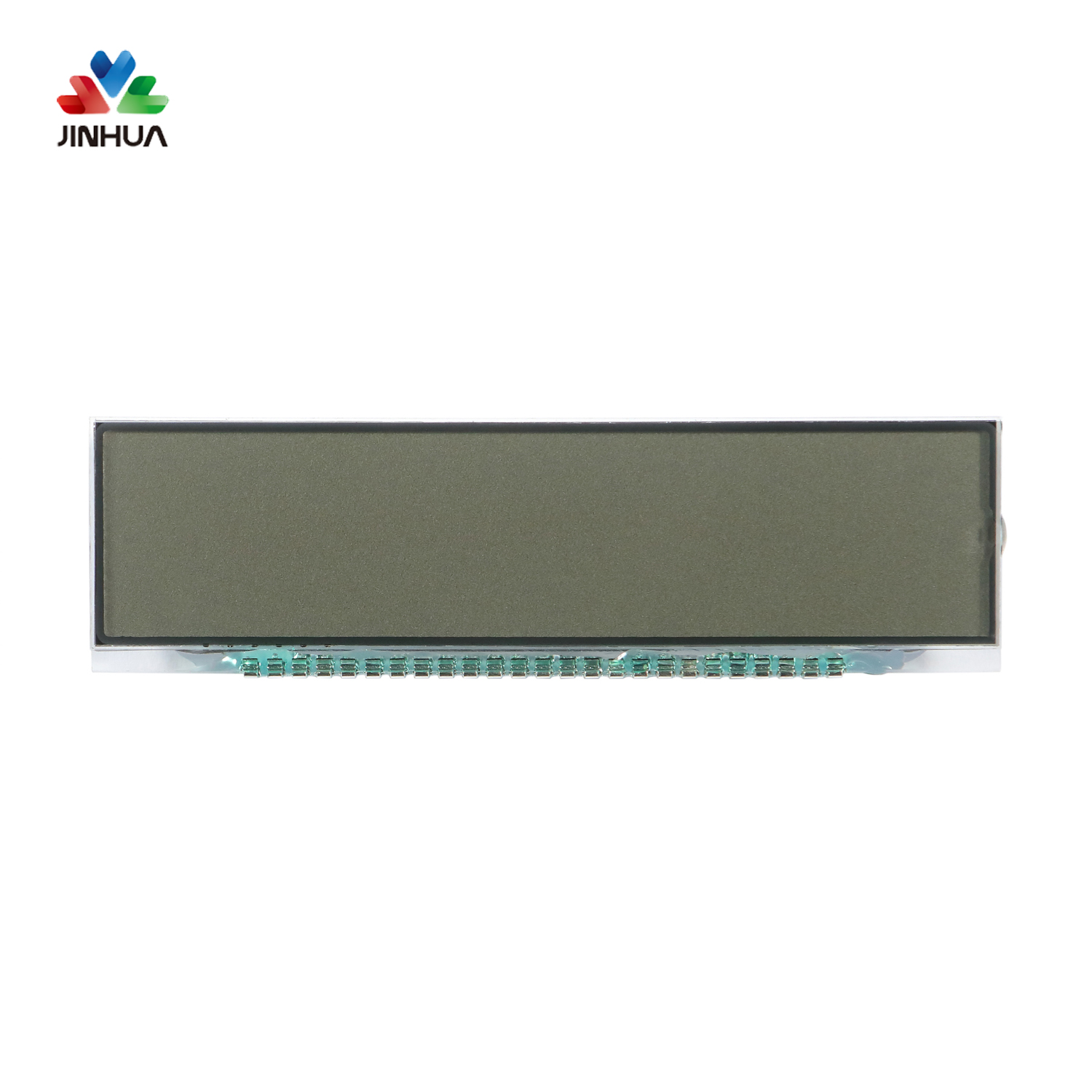

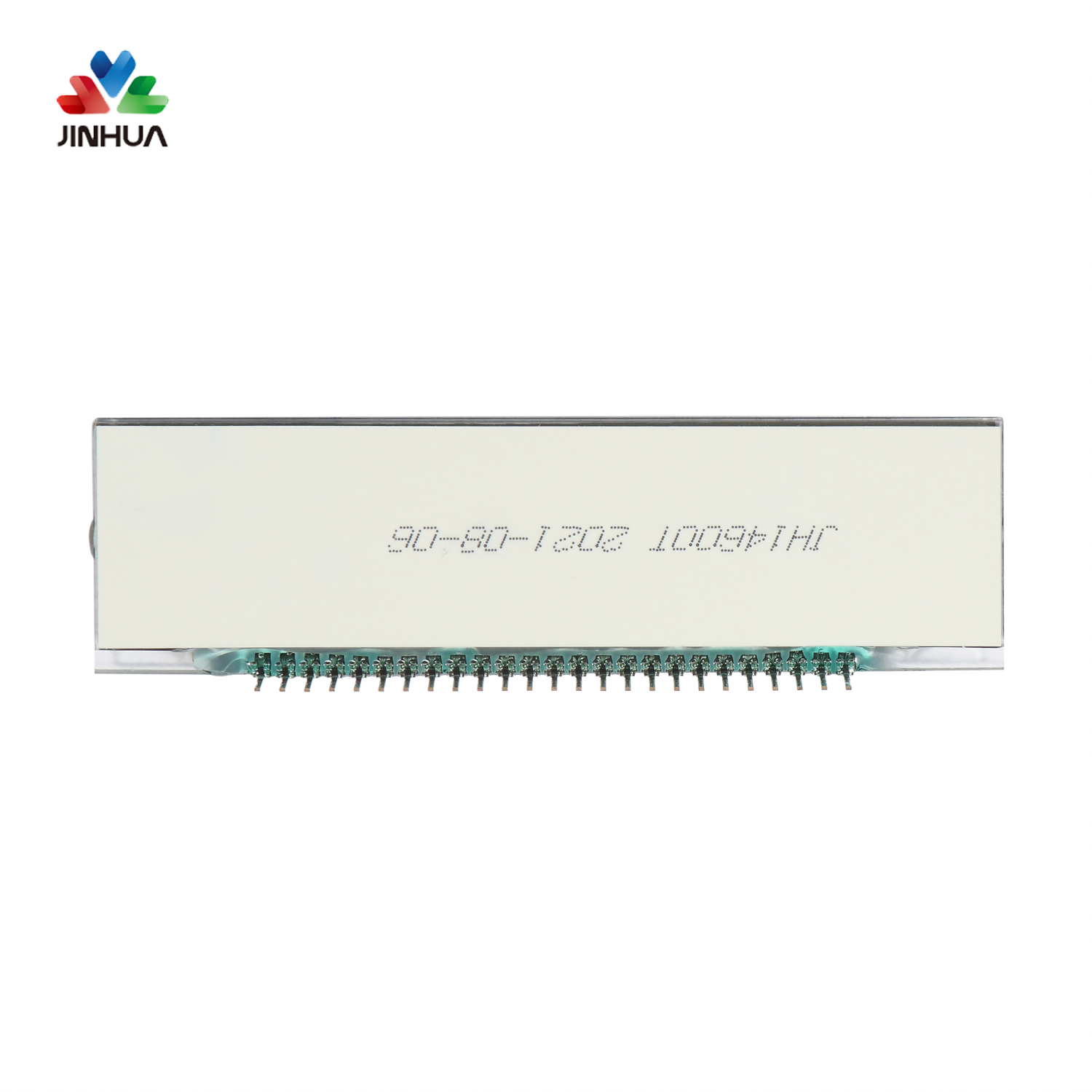

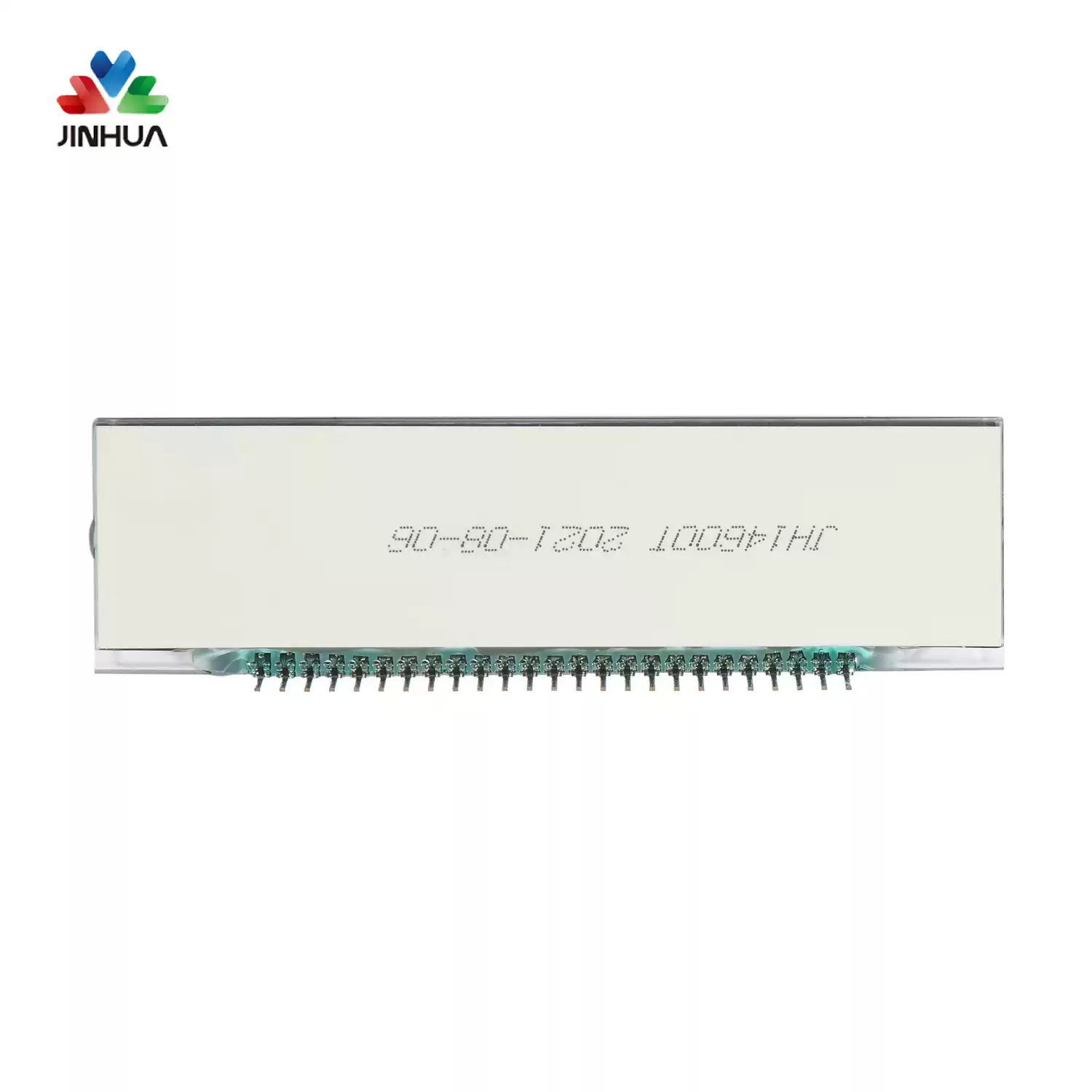

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Segment LCD display has many advantages such as low piece price, low tooling fee, low power consumption and so on. And normally it only needs 2 weeks for sample making. This largely helps to reduce period of product r&d. The Jinhua company has its onw r&d team to take part in the very first phase of r&d for a client project to provide technical support. This makes the company even more flexible and professional when getting the requirement from the clients.

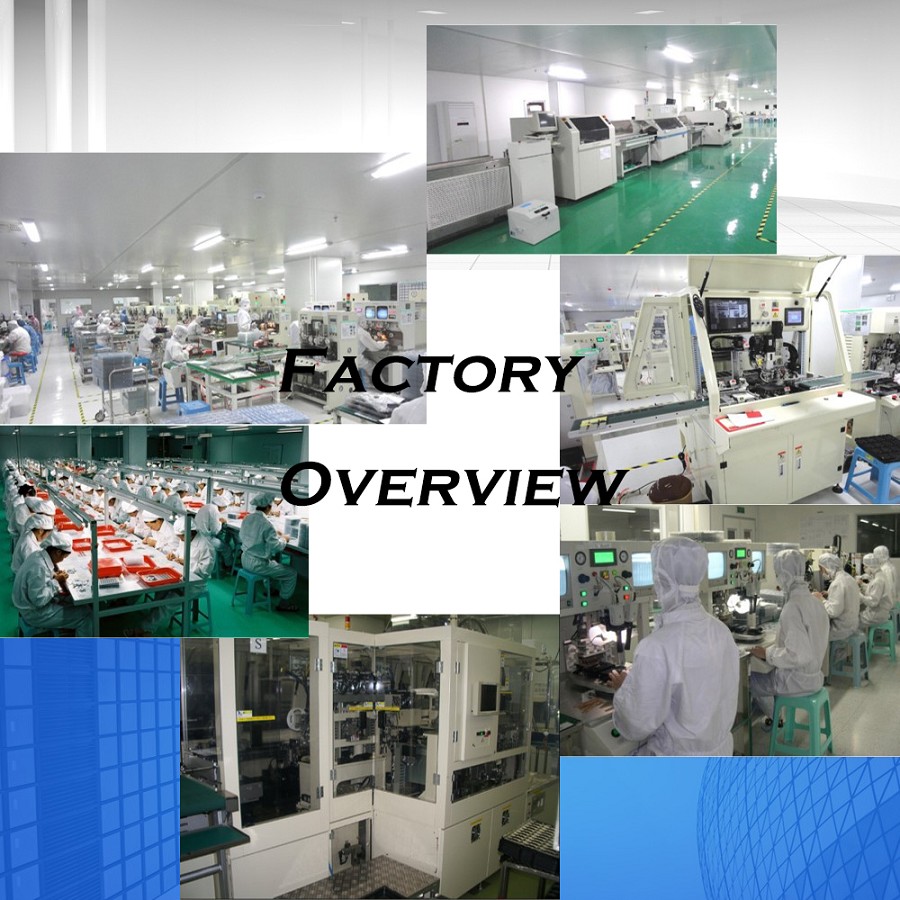

Production Line And Equipment
Company Profile
Why Choose Us
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
FAQ
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
