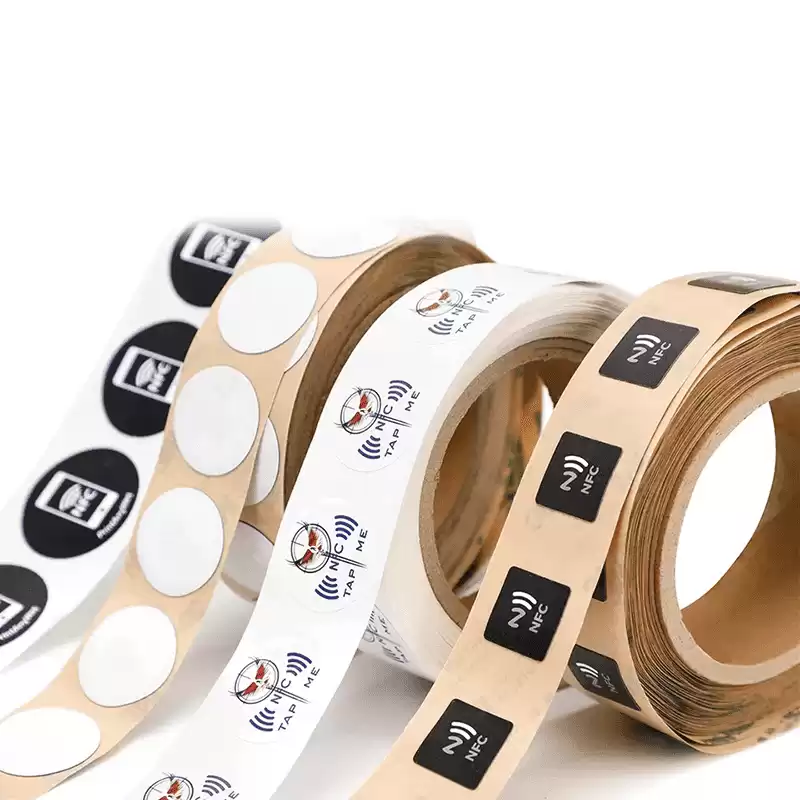

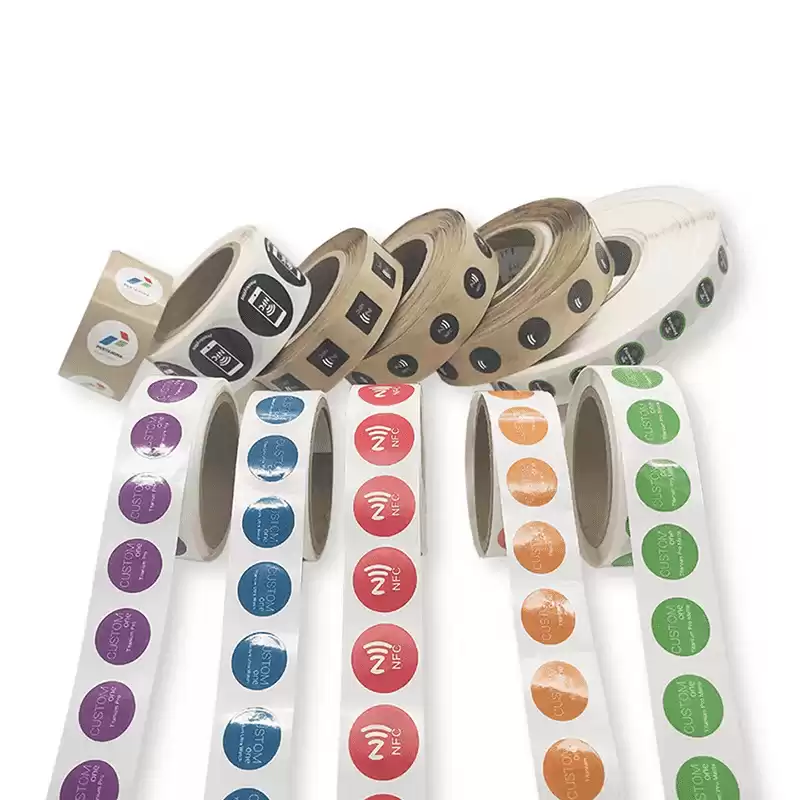

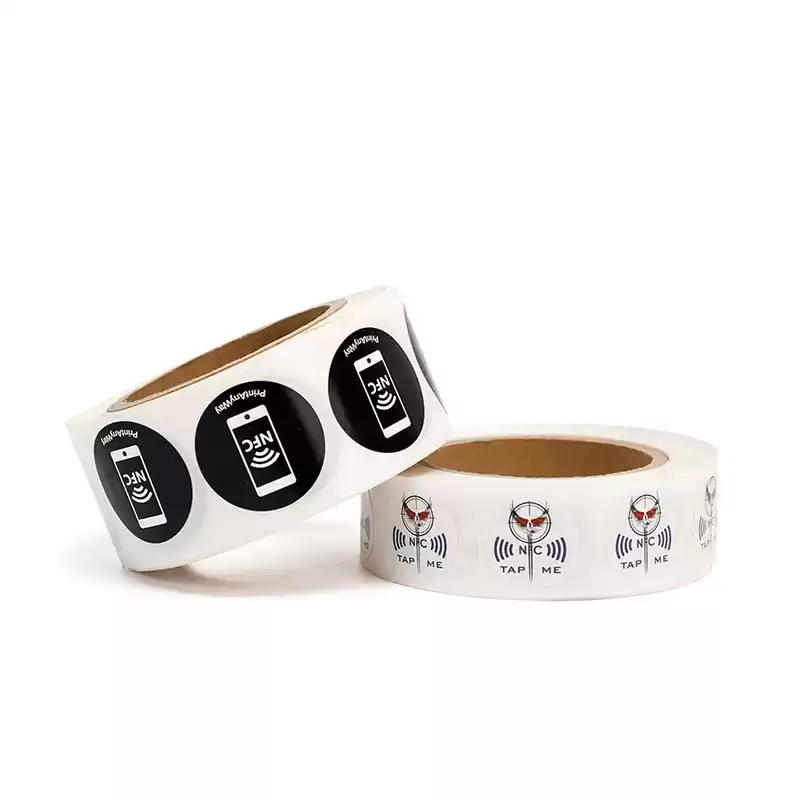

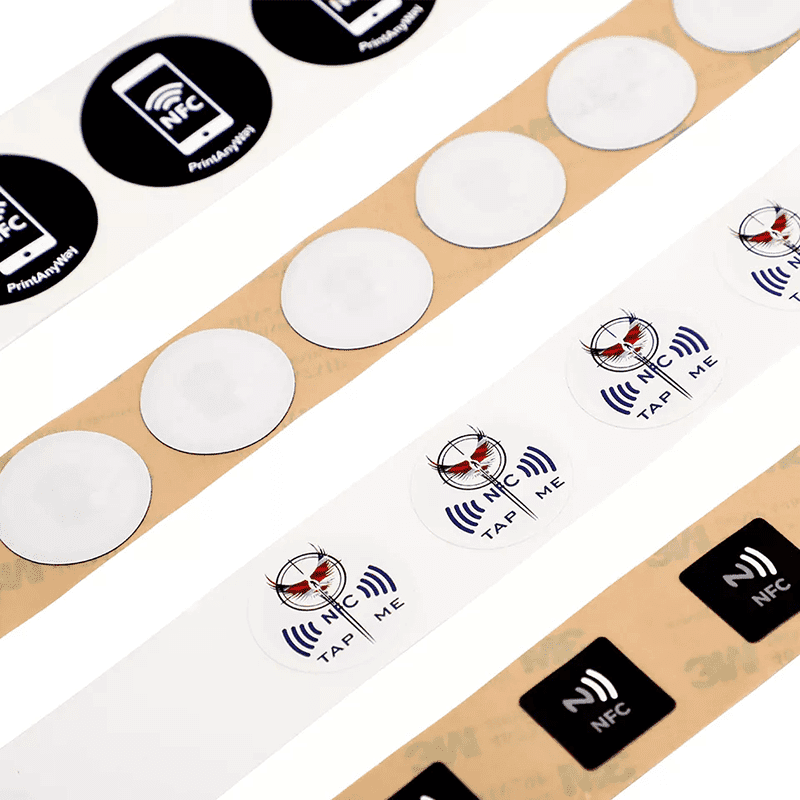

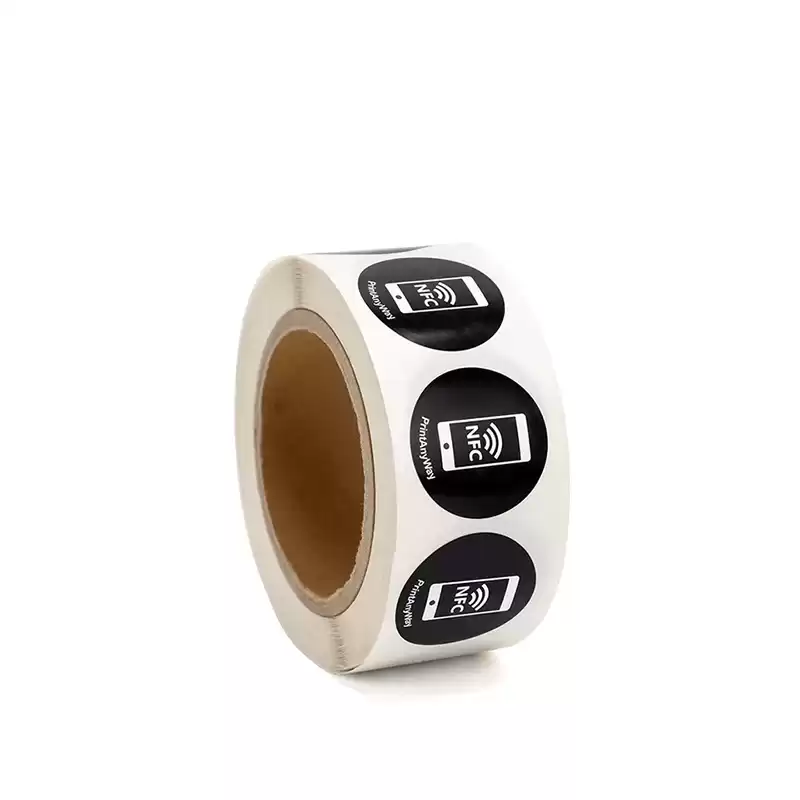

Custom Printable Waterproof 13.56MHz NFC Cashless Payment MIFARE 1K Sticker
Description
NFC MIFARE 1K Sticker is different from other normal NFC Sticker. The high security chip MIFARE Classic EV1 is widely used for access control, cashless payment. You can custom the RFID products to be a card or sticker according to your application.
EEPROM
- 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each
(one block consists of 16 byte) User definable access conditions for each memory block
- Data retention of 10 years.
- Write endurance 100.000 cycles
Security
- Mutual three pass authentication (ISO/IECDIS9798-2)
- Data encryption on RF-channel with replay attack protection
- Individual set of two keys per sector (per application) to support multi-application with keyhierarchy
- Unique serial number for each device
- Transport key protects access to EEPROM on chip delivery
Advantages of NFC MIFARE 1K Sticker
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: Up to 100mm (depending on antenna geometry)
- Operating frequency: 13.56 MHz
- Fast data transfer: 106 kbit/s
- High data integrity: 16 Bit CRC, parity, bit coding, bit counting
- True anticollision
- Typical ticketing transaction: < 100 ms (including backup management)
Our Advantages
1.Support OEM/ODM.
2.Advanced equipment like Heidelberg CYMK Offset Printer &Lamination machine.
3.Professional sales team and 100% quality assured with at least 3 times QC.
4.Flexible delivery time and accepct split shipment if needed.
5.Complete certificates like ISO9001 & ISO14001, EN71 & CPSIA, etc.

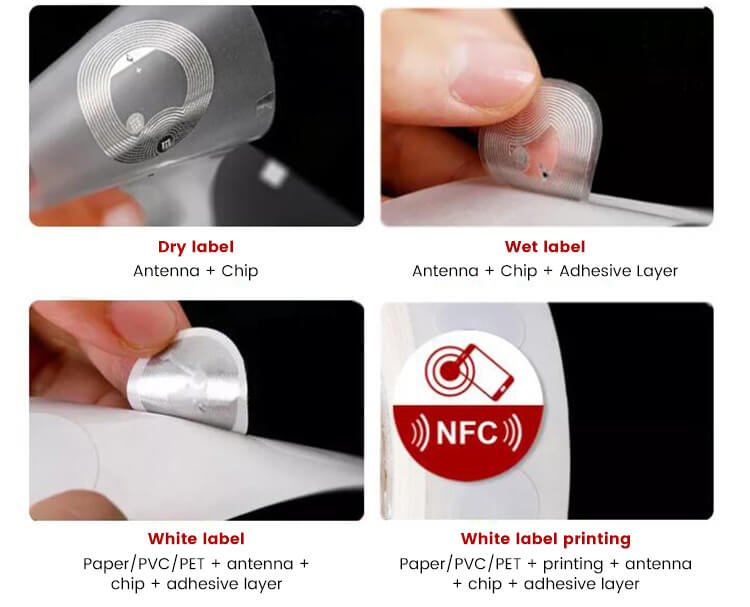

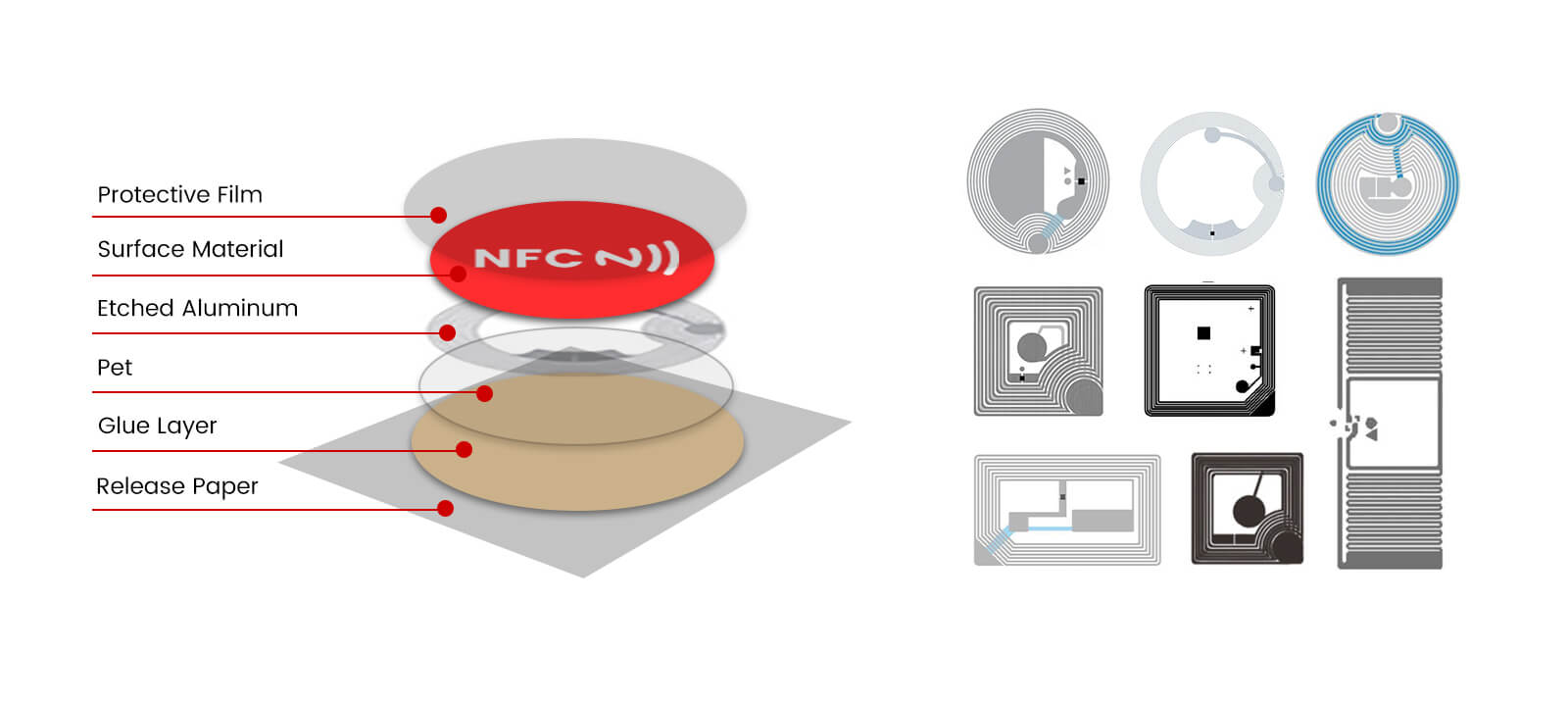

RFID Tag Structure
Specification:
cellpadding="0px">
Product Name
NFC MIFARE 1K Sticker
Frequency
HF-13.56Mhz
Size
Dia25/30mm, 30*30mm/50*50mm or customized
Customized Support
Customized size & shape, logo, materials and packaging
Material
Coated Paper, Waterproof PVC, , Eco-friendly PET
Features
Waterproof & Durable, Read & Write, High speed transactions
Printing
Offset /Digital printing, Silk screen printing, and Customized
Surface Effect
Glossy/Matte/Hologram
Crafts
Epoxy, Anti-metal, Hologram, series no.,QR code, Bar code etc
Application
Cashless payment, access control, asset management, anti-counterfeiting,etc
Place of Origin
China
Brand Name
FOCUSED
RFID Tag Type

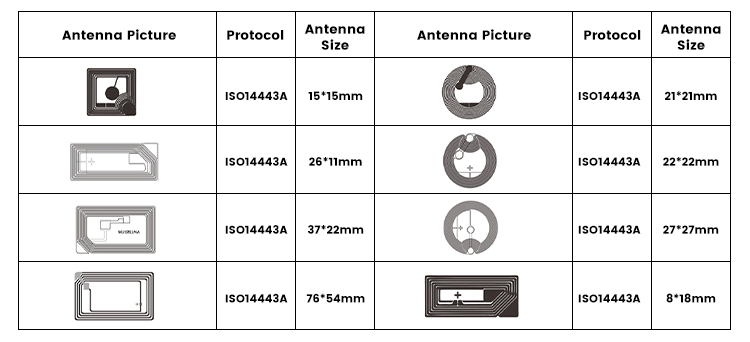

Popular Antenna Size

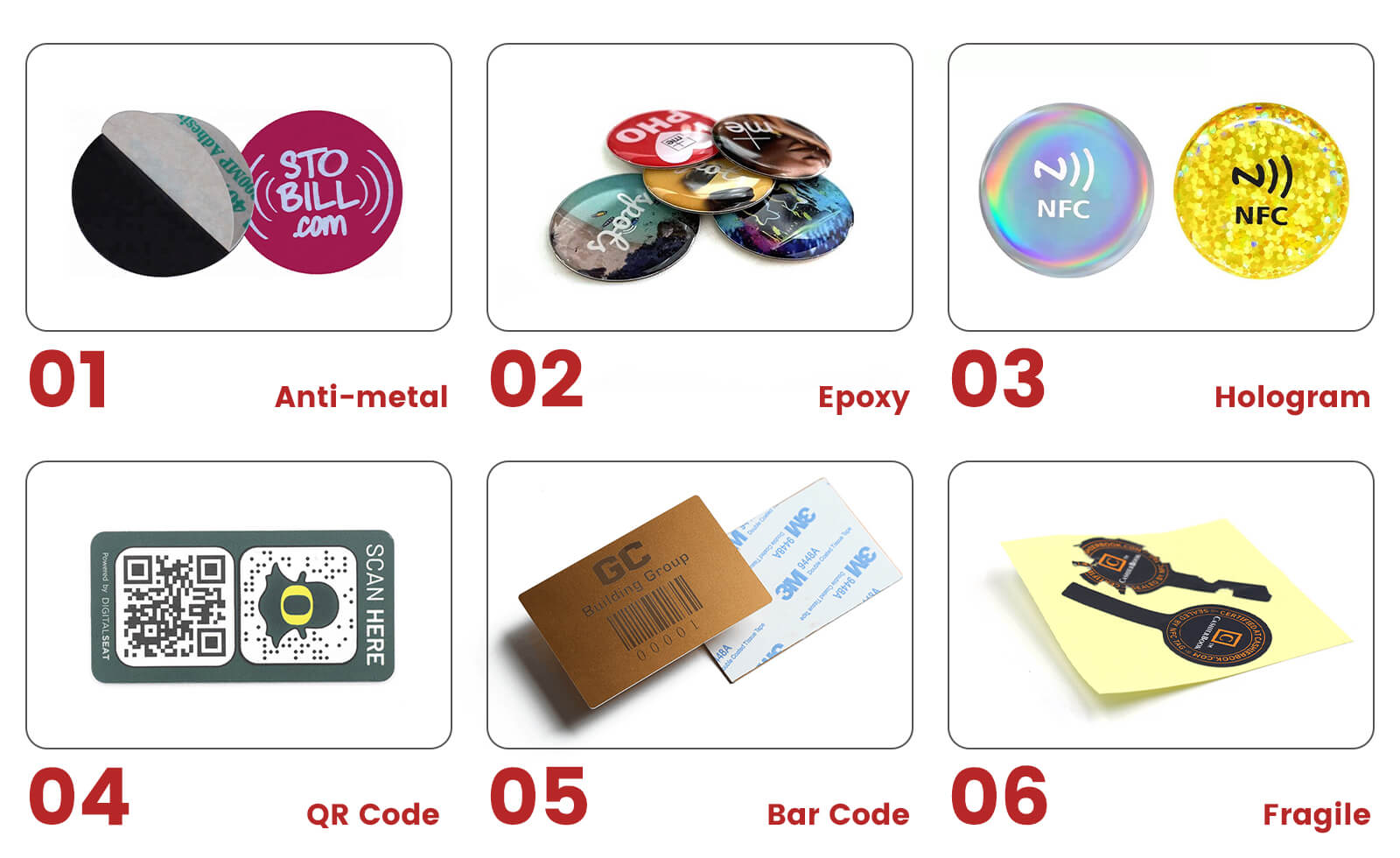

What other Crafts You Can Do
Popular Chips Options
|
|
MIFARE Classic® 1K, MIFARE Classic® 4K
|
|
MIFARE® Mini
|
|
MIFARE Ultralight®, MIFARE Ultralight® EV1, MIFARE Ultralight® C
|
|
NTAG213 / NTAG215 / NTAG216
|
|
MIFARE ® DESFire® EV1 (2K/4K/8K)
|
|
MIFARE ® DESFire® EV2 (2K/4K/8K)
|
|
MIFARE Plus® (2K/4K)
|
|
Topaz 512
|
|
|
ICODE SLI-X, ICODE SLI-S
|
Remark:
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license

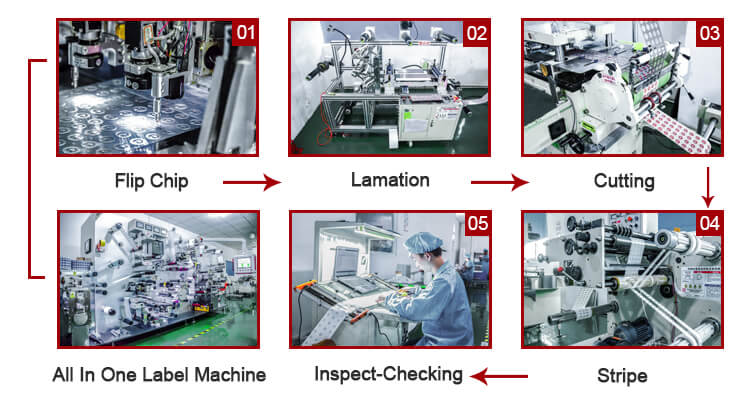

RFID Tag Production Process

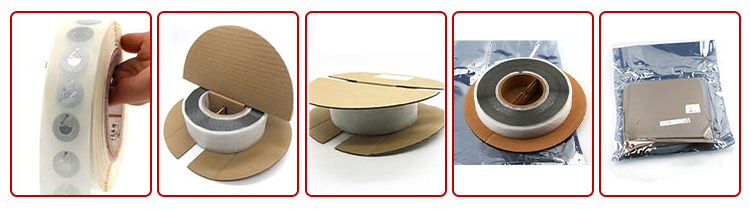

Packaging Way
1/ Can you provide stocking samples for free?
Yes, stocking free sample can be offered to you, you just to support the freight cost by yourself.
2/ Do you have MOQ request?
No, we don't have the MOQ request, just the smaller quantity will cost more.
3/ Are you a manufacturer?
Yes, we are the manufacturer with more than 10 years experience in RFID industry and support OEM & ODM.
4/ How do you handle after-sale problems?
We have strict quality control system. 3 times QC, from raw material to the finished products.
Guarantee the quality before shipment.
Meanwhile, We stand behind every product we sell, so if any after-sale problems, we'll be here to solve it ASAP.
5/What is the lead time?
Samples within 1-5 days; Quantity below 10K within 7-15 days; Bulk order within 30 days.
We can offer flexible delivery time, if you got urgent order, we can cooperate with your schedule very well .
6/ What else can you offer me?
Factory direct competitive price, professional technical & graphic designer support and responsible& professional sales service.
We are always ready for your inquiry.
