Main material ：
(0.4-0.75mm) high thermal conductivity silicone rubber fabric +(0.03-0.1mm)nichrome + (0.4-0.75mm) high thermal conductivity silicone rubber fabric
Physical and electrical characteristics ：
Voltage range ：0-600VAC/DC
Maximum operation temperature：220℃（Long term below 200℃ ）
Dielectric Strength ：≥1500VAC/MIN
Ambient temperature range：-52℃~250℃
Insulation Resistance：≥100MΩ
Thickness ：1.2mm/1.5mm or custom made
Specifications of the products：custom made
Color：Orange or custom made
Recommended power density：0.15~0.6W/cm²
Mechanical compressive strength ：100KG/cm²
Density of maximum power：0-2W/cm²
Tension of guide line：≥80N
Working life：5-10yeas
Tension of welding point：≥20N

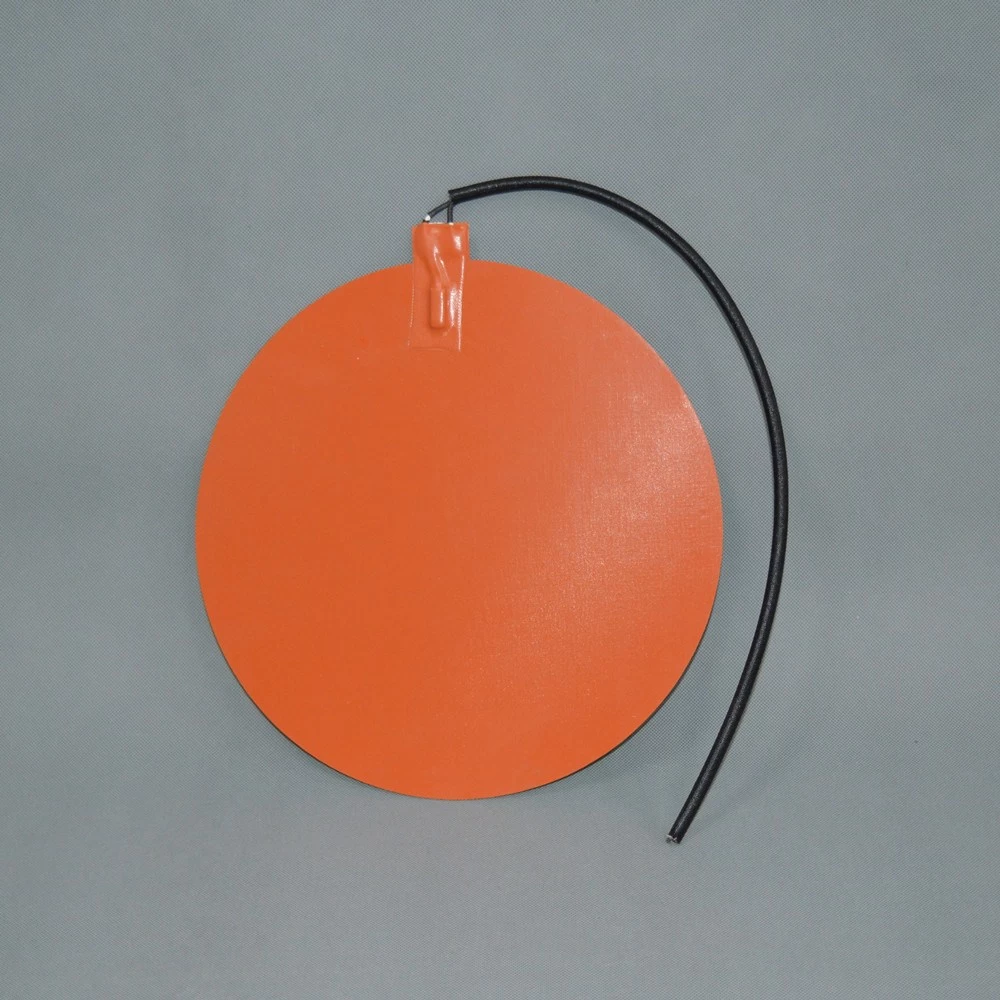

Silicone rubber heater is consist of high thermal conductivity silicone rubber fabric and nichrome. We adopt high temperature resistance, high thermal conductivity and high insulation and strength Silicone rubber, high temperature resistance fabric material as well as softness heating film made of metal heat wire. Each slice is combined by two glass fibre cloth and two silicone glass fibre cloth. Swift heating, unit temperature, high heat efficiency, user-friendly, safe and long life silicone rubber heating slice is the best choice.
Main applications:
1) Thermal transfer equipment;
2) Prevent condensation in motors or instrument cabinets;
3) Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings
4) Composite bonding processes
5) Semiconductor process heating
6) Food processing equipment
7) Airplane engine heaters and aerospace industry
8) Drums and other vessels and viscosity control and asphalt storage
9) Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
10) Curing of plastic laminates
11) Computer peripherals such as laser printers, duplicating machines
12）EV (electric vehicle) battery heating -our main products
NOTE: If the above parameters is not suitable for you,we can customize according to your voltage, size, power and so on.
If you have any other questions,please feel free contact us
As a trustworthy manufacturer, we can assure you for:
Consistent & Uniform quality of products throughout the Merchandise.
Shipments well within the time agreed between us.
Most competitive prices and assuring our products quality.
We can send the sample to you for free, and you can test it.
Pls advise below details when inquire
(1). Type of Heater
(2). Wattage and Voltage
(3). Dimension of the heater Belt
(4). Drawing required for special configuration
(5). Working environment
