Custom Segment LCD Display HTN Positive Transflective COB ST7565R driver Lcd Display

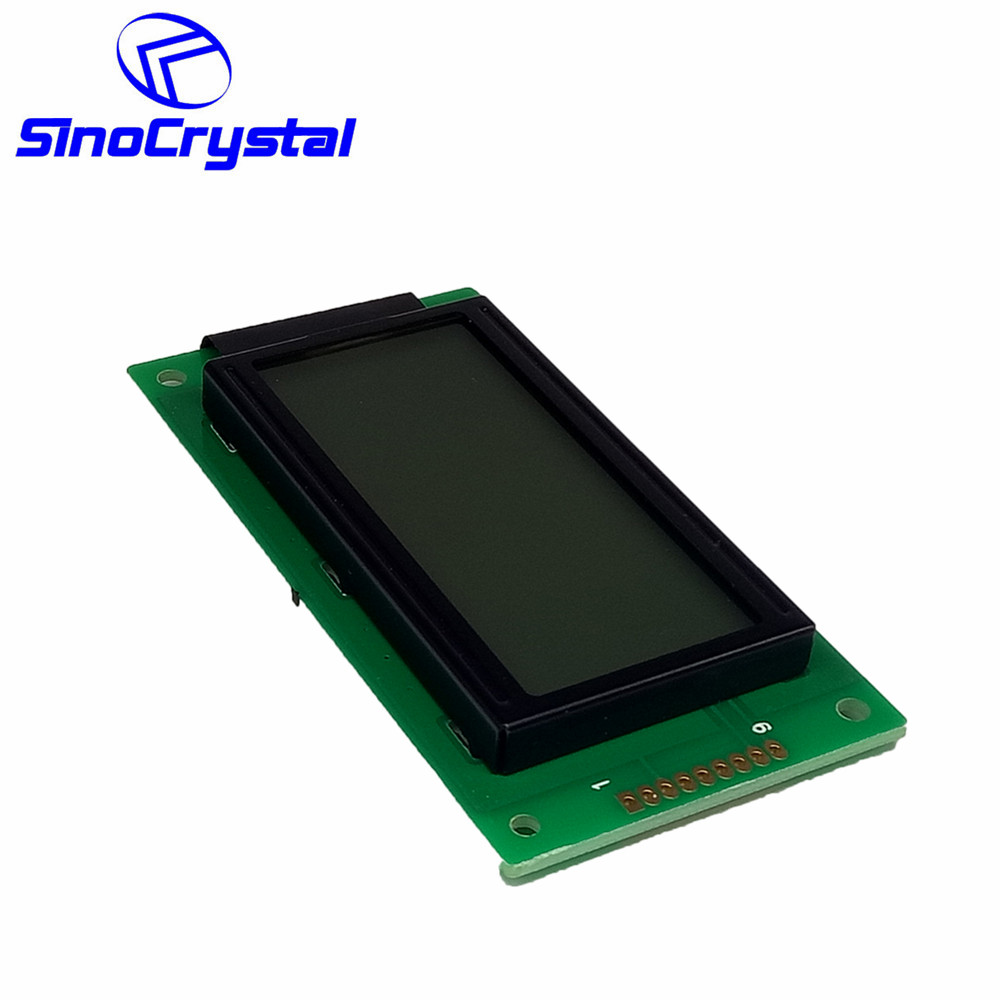

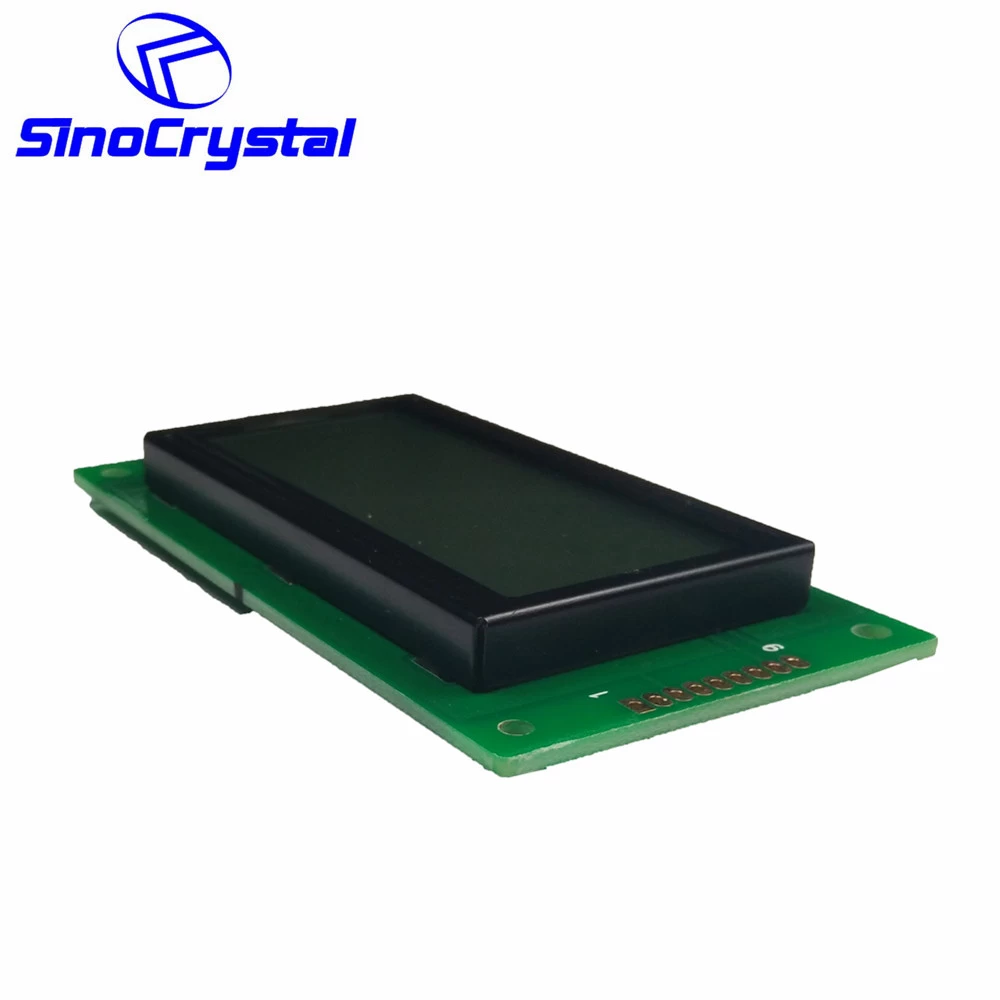

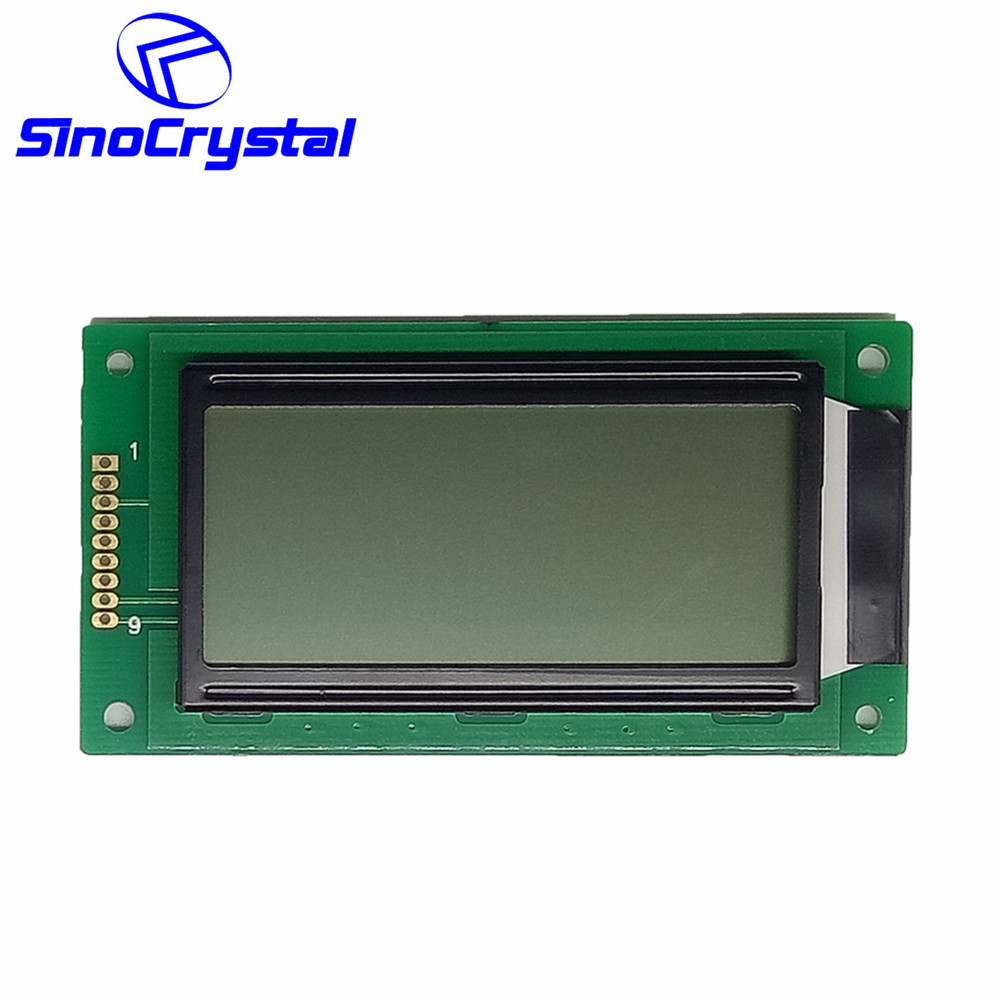

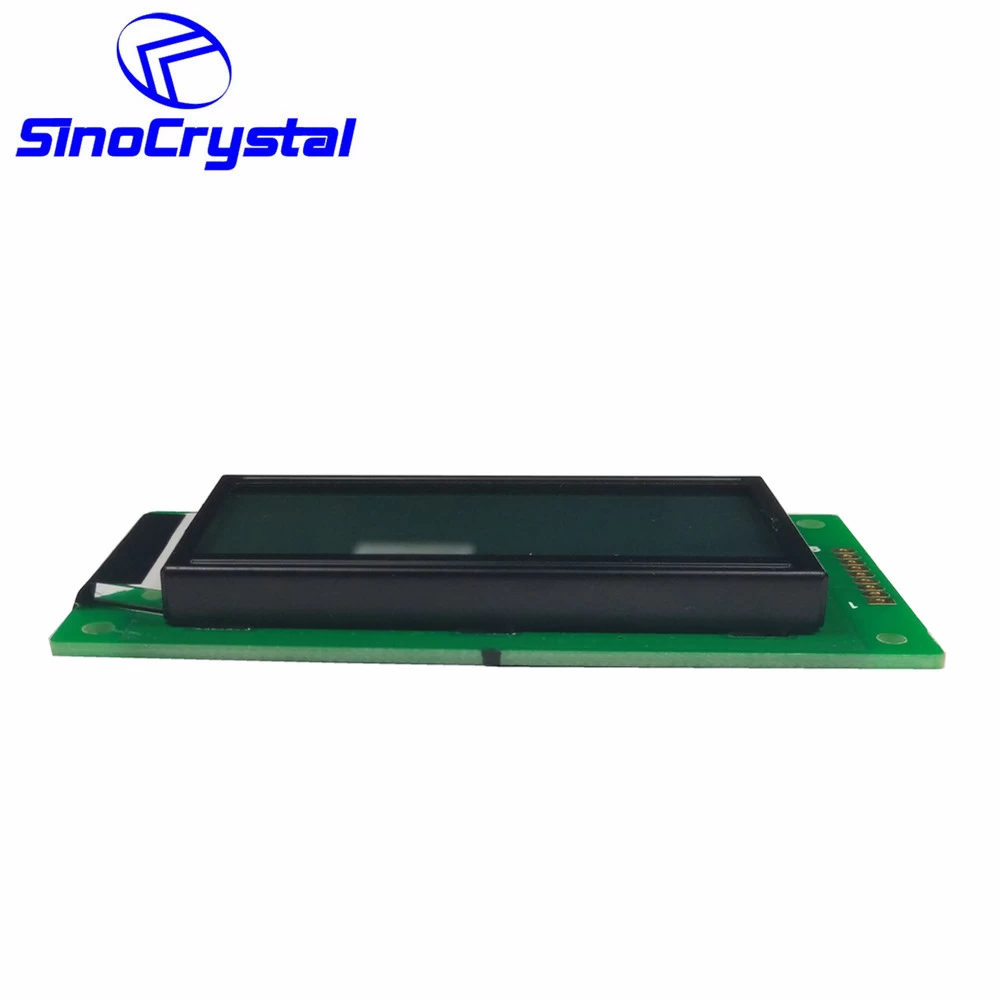

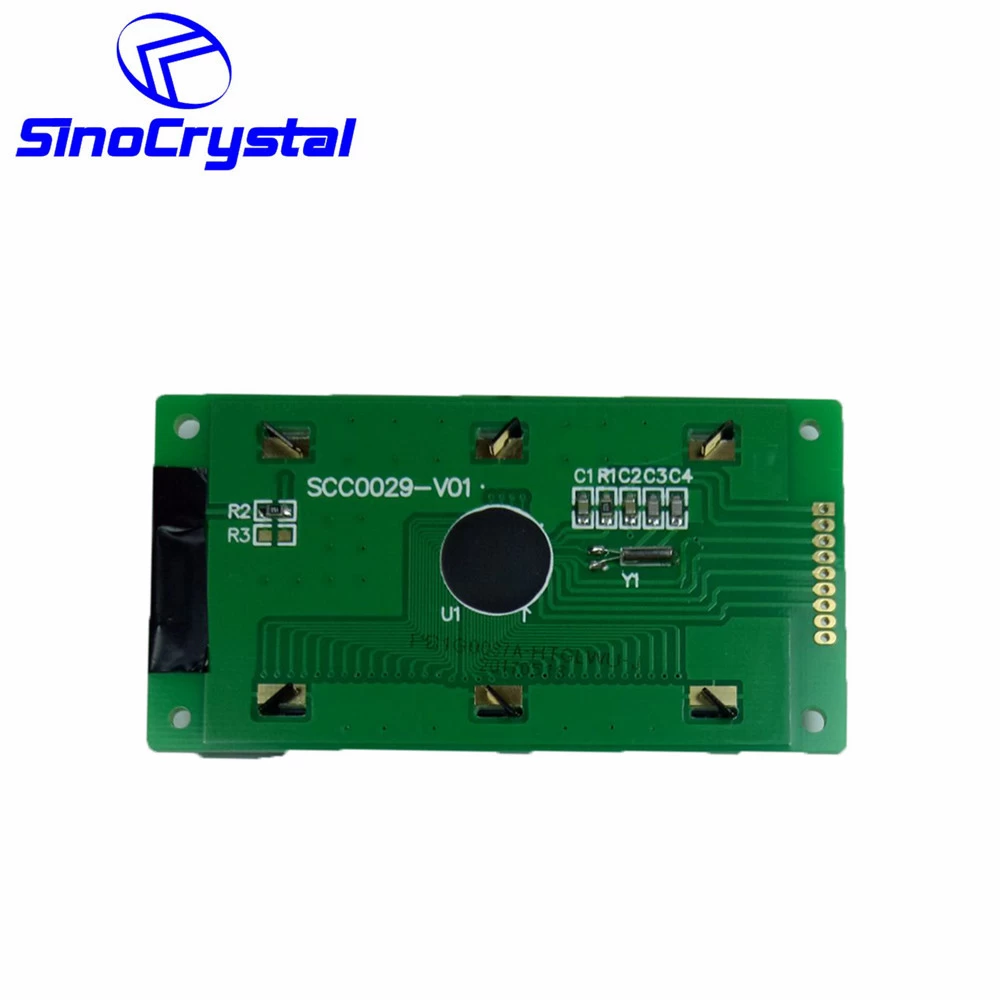

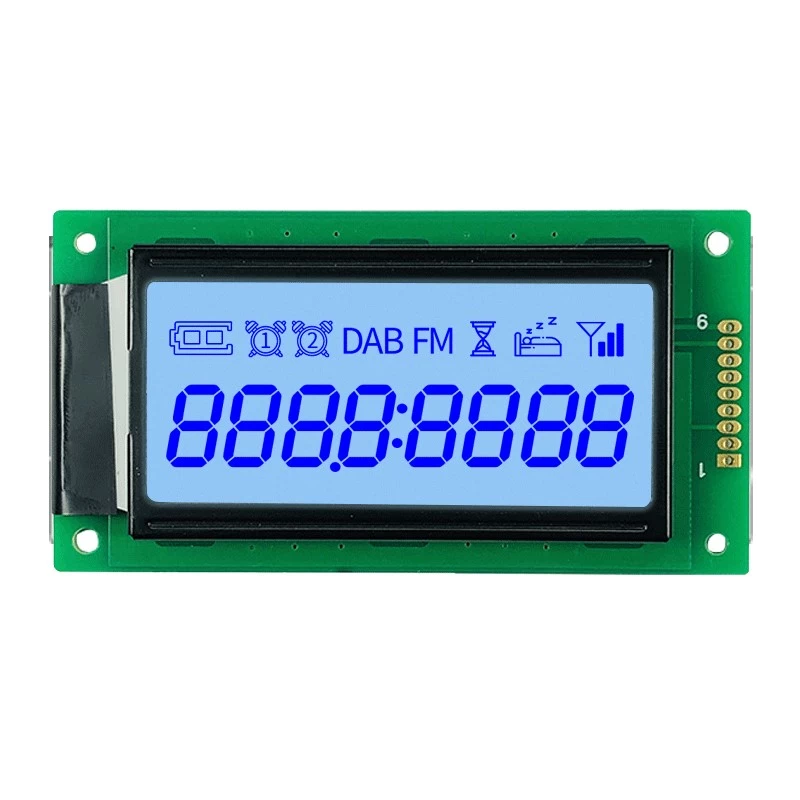

SCC0029-V01 is a Customized Segment Mono LCD Display, it built in with 8 PIN, 12 o'clock View direction.


  • PIN9
  • BacklightWhite LED
  • View Direction12
  • Driver IC-
  • View area59.00*26.00
  • Outline Dimension (mm)71.05*29.30*2.30
  • Display TypeHTN

Basic Information


LCD Type:                     HTN Postitive Transflective

Number of Graphic:      Segment

Outline Dimension:       84*44*9.8

View area:                     59.00*26.00

View Direction:              12 o'clock

PIN:                                9

Backlight:                      White LED

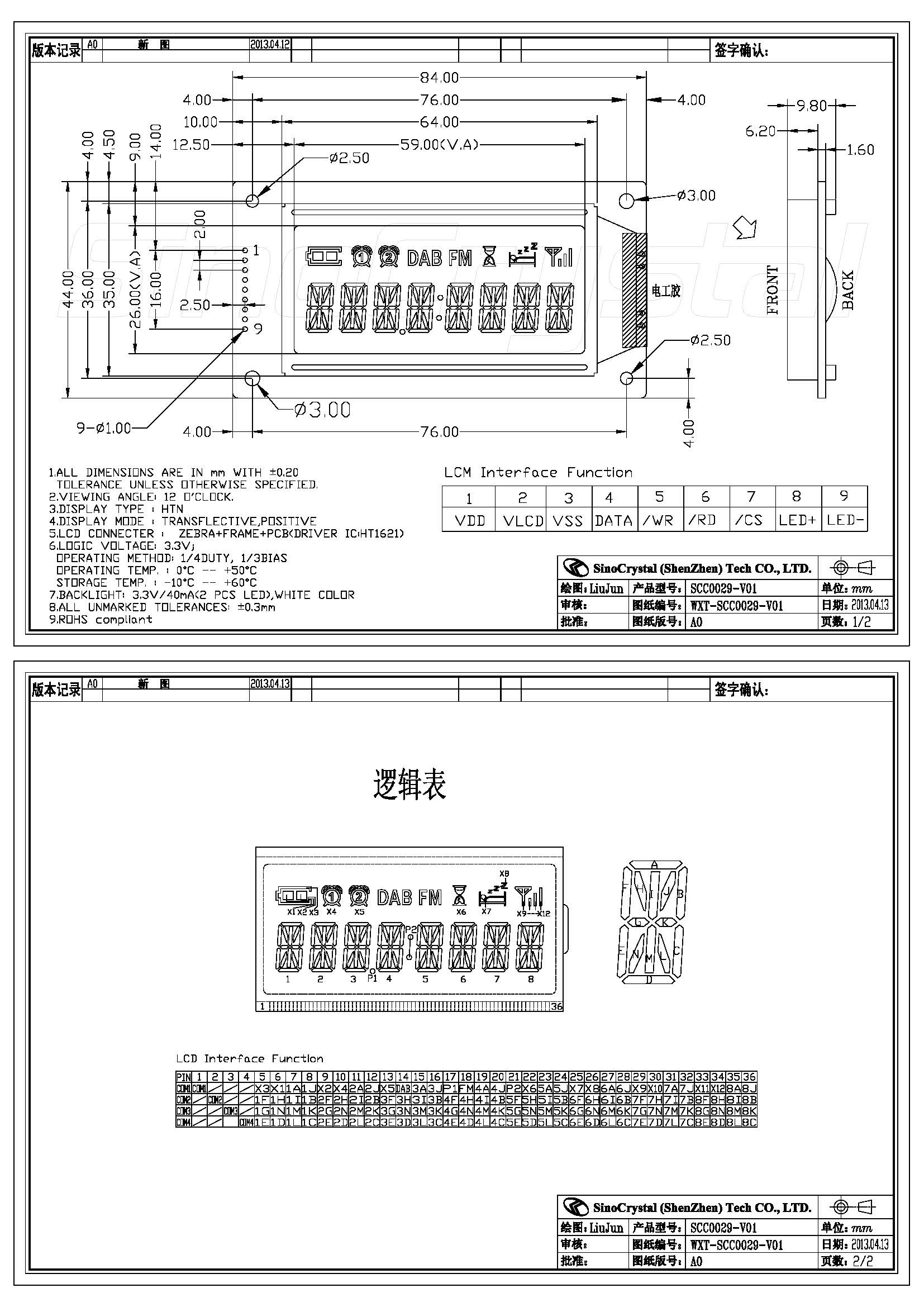

Drawing




General Specification


ITEM STANDARD VALUE UNIT
NUMBER OF GRAPHIC SEGMENT Mm
MODULE DIMENSION 84.0×44.0×9.8(MAX) Mm
VIEWING AREA 59.0×26.0 Mm
DOT SIZE - Mm
DOT PITCH - Mm
LCD TYPE HTN/ POSITIVE/TRANSFLECTIVE
DUTY  1/4
VIEWING DIRECTION 0.5 o'clock
BACK LIGHT TYPE SIDE LIT LED
BACK LIGHT COLOR WHITE
APPROX. WEIGHT TBD G




Interface Definition


Pin No. Symbol Level Description
1 VDD - Supply voltage for logic
2 VLCD - Supply voltage for LCD
3 VSS - Ground
4 DATA H/L Serial data input/output
5 /WR H/L Write clock input
6 /RD H/L Read clock input
7 /CS H/L Chip selection input
8 LED+ -- Backlight anode
9 LED- -- Backlight cathode
