Custom size Coin Button UHF RFID Laundry Tag heat resistant nfc tag
RFID Laundry tags are the most robust and cost effective textile tracking RFID tags in the world.
These RFID Laundry Labels are ideal for tracking linens, uniforms, and other garments, which is made of fabric, or PPS, or silicone for harsh environment.
They can be designed to meet the tracking requirements of the laundry industry in terms of shape, robustness and ease of fixation.
PPS rfid coin tag:
• Application: Used in clothes washing tracking and management
• Chip available: LF, HF, UFH chips
• Frequency: 125khz, 13.56mhz, 860-960mhz
• Read Distance: 3cm-5m(relative to reader)
• Protocol: ISO18000-6C
• Material: Textile, PPS or Silicone
• Water-proof,high temperature resistance.
• Color: white, black
• Package: 1000pcs/box
• Working Temperature: -20 º - 200 ºC
• Washing cycles: 200 wash cycles
• Features:
Washable identification tag (transponder) for garment application.
Widely used in apparel items, garments, costumes, uniforms, patients’ clothing in hospital – Robust design for harsh laundry environment.
Good chemical resistance, withstand corrosive laundry agents.
|
Chip
|
UHF:H3 H3/H4,Monza 4/5,UC 7;
HF:N213,N216,IC SLI,F08;
LF:TK4100,EM4305.Or customized
|
|
Protocol
|
UHF:ISO18000-6C;
HF:ISO14443A/ISO15693;
LF:ISO18000-2
|
|
Size
|

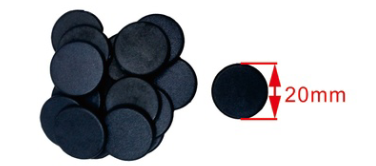

Dia 30mm(as picture), Dia 20,22,25,28mm,55*10*1.6, 55*10*2.2, 60*20*1mm,
Or customized.
|
|
Memory
|
144,1K,128Byte,96bit,128bit,64bit,etc.
|
|
Frequency
|
860-960MHz;13.56MHz;125KHz/134.2KHz
|
|
Material
|
PPS,Silicone,Soft Plastic,ABS,or customized
|
|
Write Endurance
|
≥100000 cycles
|
|
Reading Range
|
UHF:1-3m;HF/LF:0-5cm(depends on the reader and antenna)
|
|
Applications
|
Clothing,Apparel,Garment,Laundry management,Dry clean shop,etc.
|
