Custom Square Bore Flanged Disc Harrow Bearings

Flanged disc series incorporates a bearings with two , one-piece triple lip shroud seals and two rubber “o” bearings, it is encased in two heavy gauge stamped steel housings which are riveted together.



Custom Square Bore Flanged Disc Harrow Bearings

This Flanged Disc Harrow Bearing designed for agricultural applications. It is relubricatable and features a Square Bore with Cylindrical Outer Diameter. This bearing comes with a drilled oil hole in the groove and is pre-lubricated with grease to be ready for use upon arrival. Square bore disc harrow bearings are engineered to withstand the harsh conditions of agricultural use, including exposure to dust, dirt, moisture, and other environmental factors. They are typically sealed to prevent contaminants from entering the bearing and causing premature wear.



Application :

The Flanged Disc Harrow Bearings are used in a range of agricultural and farm machinery applications,typical applications include Combine harvesters, balers, seeder, tillage and lawn and garden machinery.



Photo:

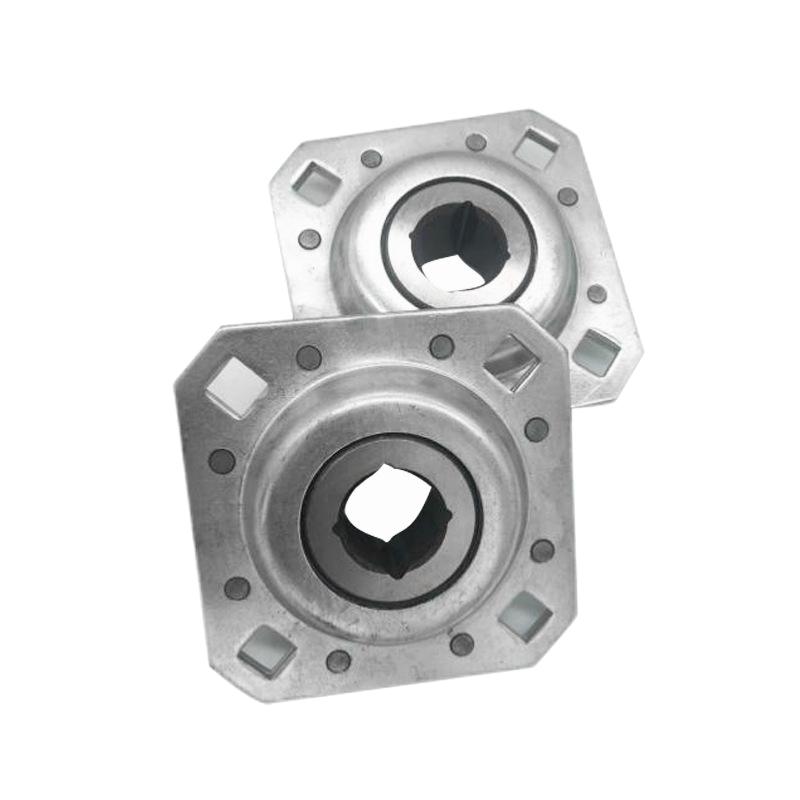

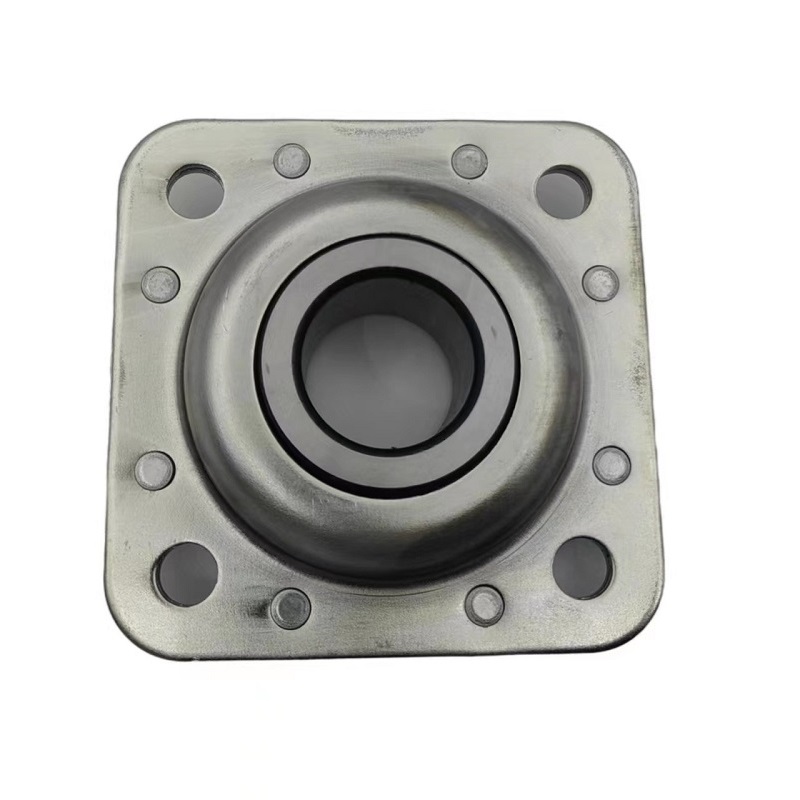

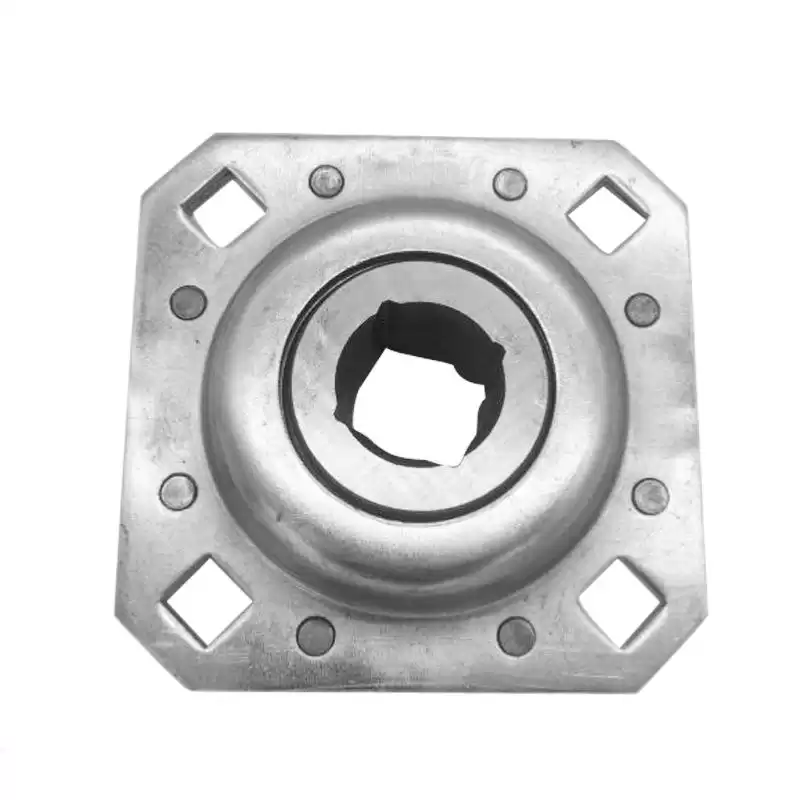

Square Bore Riveted Flange Harrow BearingsCustom Flange Disc BearingsDisc Harrow Bearing Manufacturer



Square Bore Agricultural Ball Bearings Models:

Custom Agricultural Machinery Bearings

Bearing NO.

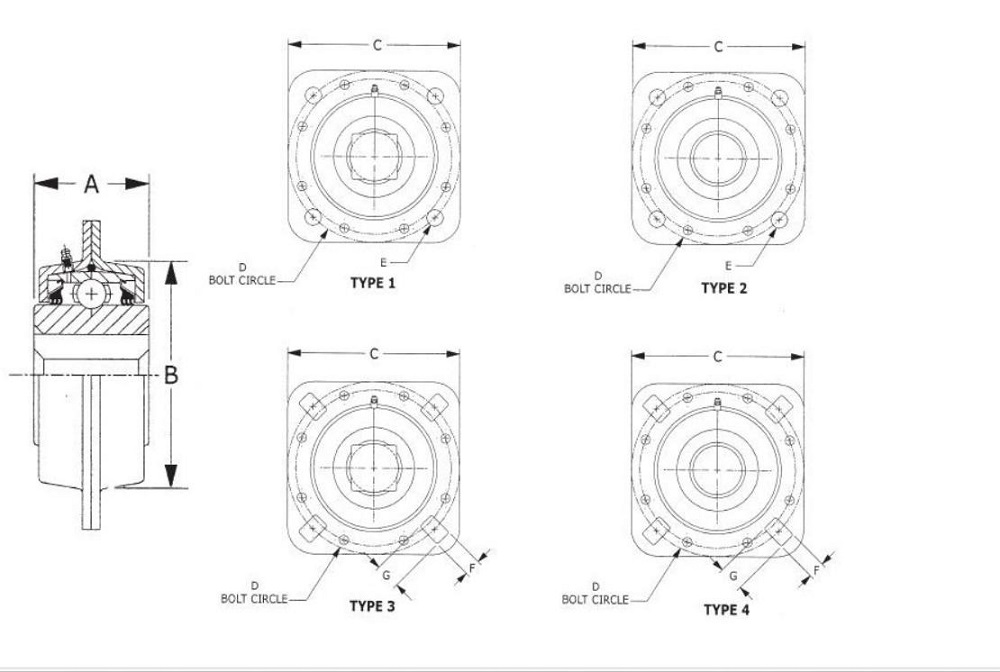

Dimensions(mm)

Weight(kg)

D

A

C

F

J

K

FD209RB

38.7

13.5

42.86

127

127

41.7

6.75

1.86

ST491

44.83

13.5

42.8

127

127

41.7

6.75

1.53

ST491A

45

13.5

42.7

127

127

41.7

6.75

1.52

DHU1-3/4" R-211

45

13.5

54

139.7

139.7

46

8

2.67

FD211RJA

49.21

13.5

49

139.7

139.7

46

8

2.58

FD211RJ

49.21

13.5

49

139.7

139.7

46

8

2.58

FD211RB

55.57

13.5

55.6

139.7

139.7

46

8

2.42

ST740

55.57

13.5

55.6

141.3

141.3

45

7

2.42

ST491B

38.7



42.86

127

127

41.7

6.75

1.58

FD209RM DHU1-1/8" S-209





42.86

127

127

41.7

6.75

1.86



Advantage of WIS Bearing:

  • Rich experience

With over 15 years bearing industry experience ,we have perfect group pf technical engineers give you best support

  • Competitive price and small MOQ

Direct manufacturer of bearings can offer you lowest price with small MOQ

  • Customized service

WIS bearings can provide OEM and ODM service as to your sample or drawings.

  • Strict quality control

We focus on quality during production and guarantee 100% quality inspection before delivery

  • Delivery strength

WIS bearings give you on time delivery

  • Free sample provided
