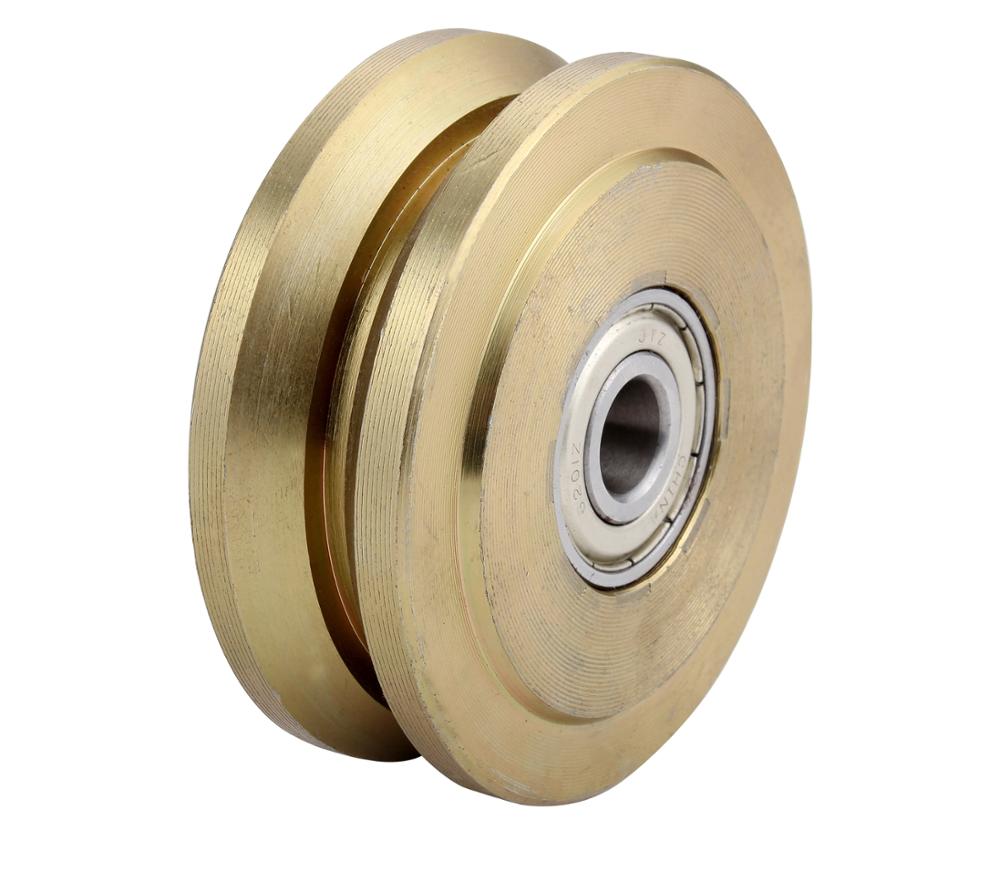

U Groove Steel Sliding Gate Track wheel Specification :
1.With Material: steel,Q235 and we can finish surface treatment with yellow zinc plating or silver zin plating .
2.We can produce with wheel diameter with 30mm ,38mm etc and customized size also welcome
4.We can produce with inside with single or double bearings
5.Except V groove wheels ,we can produce sliding gate wheel with U groove and Y groove

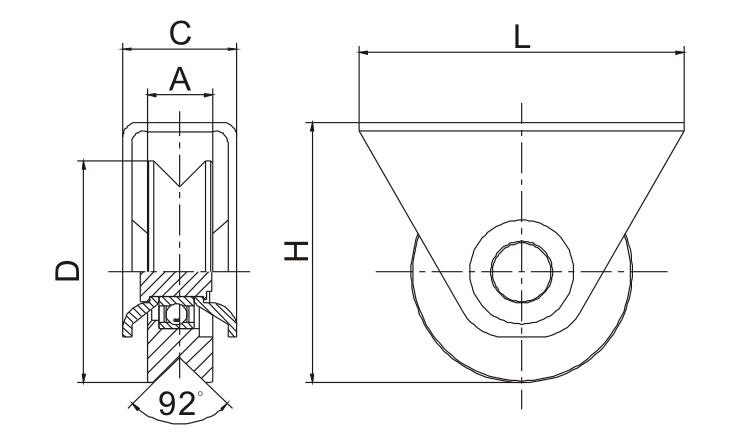

We Can Produce Different Size of Sliding Gate Roller ,Below Here Is List For Your Reference :
|
NO.
|
D
|
A
|
C
|
H
|
L
|
WT(G)
|
|
MKL1V30
|
30
|
10
|
16
|
35
|
45
|
60
|
|
MKL1V40
|
38
|
12
|
20
|
44
|
58
|
112
|
|
MKL1V50
|
50
|
15
|
25
|
57
|
75
|
266
|
|
MKL1V60
|
58
|
17
|
28
|
64
|
85
|
392
|
|
MKL1V70
|
68
|
20
|
35
|
80
|
100
|
638
|
|
MKL1V80
|
78
|
20
|
35
|
85
|
100
|
809
|
|
MKL1V90
|
88
|
20
|
36
|
100
|
132
|
1104
|
|
MKL1V100
|
98
|
22
|
36
|
105
|
132
|
1391
|
|
MKL1V120
|
118
|
25
|
37
|
127
|
158
|
2301
|
Sliding gate door wheel also can be produce with two bearing which can bear double weight capacity ,for moe informations ,pls contact with us directly .

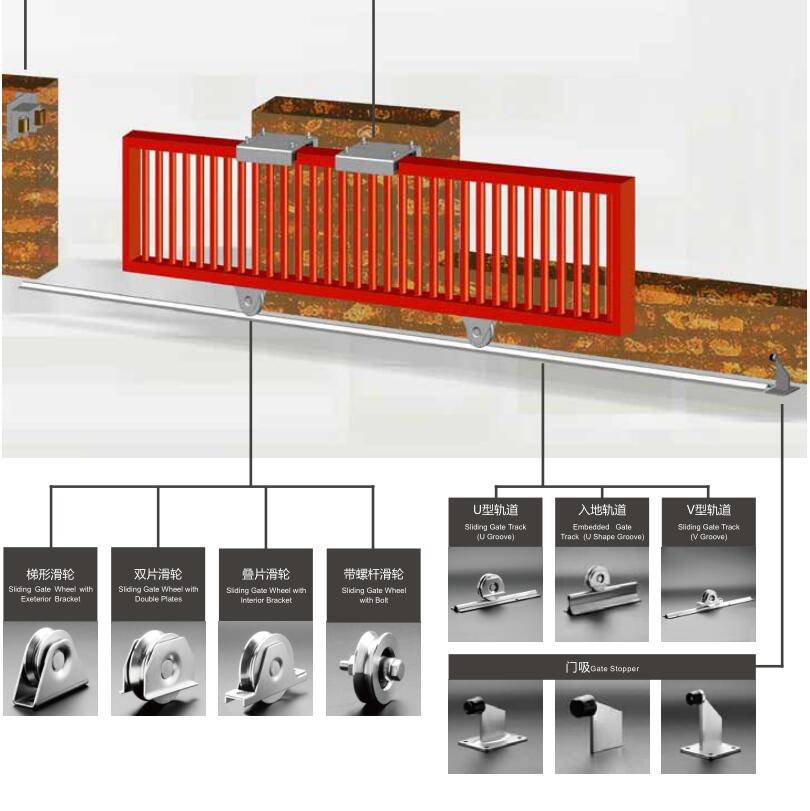

Other Type of Sliding Gate Bearing wheels
|

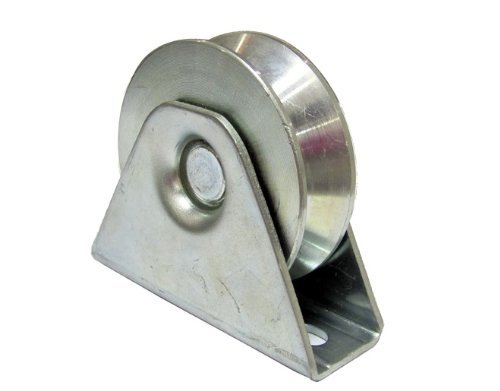

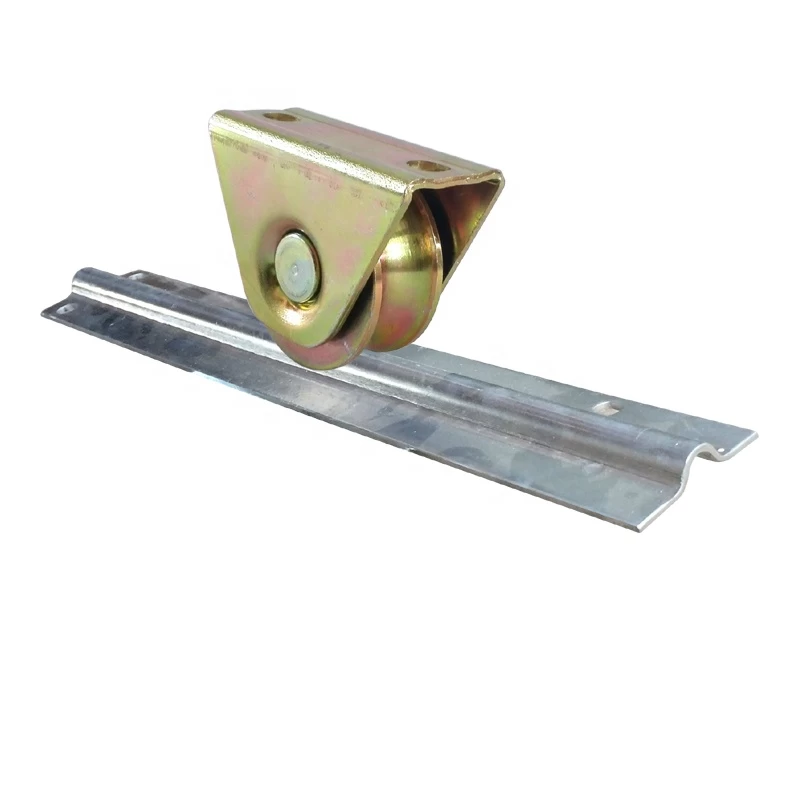

sliding gate wheel with exterior bracket
|

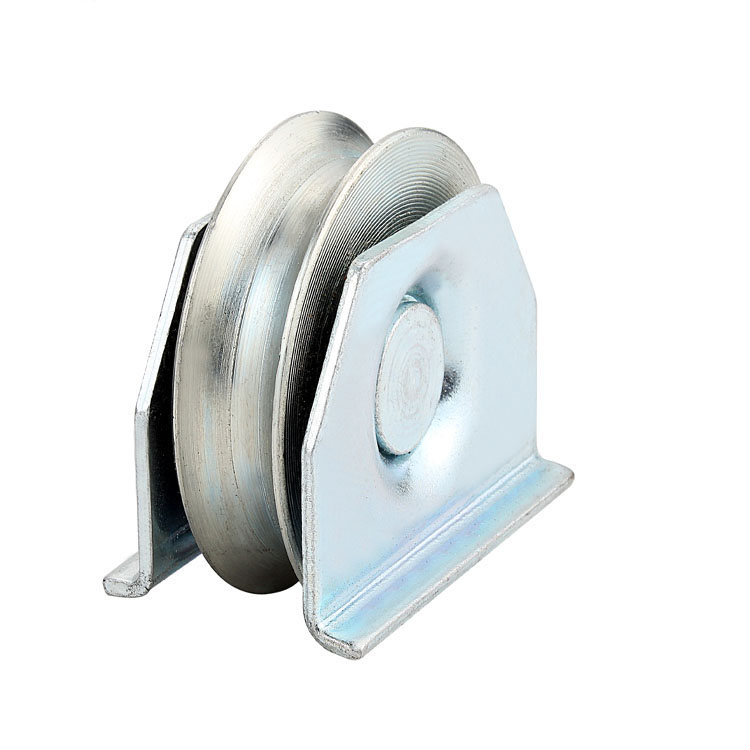

sliding gate wheel with double plates
|

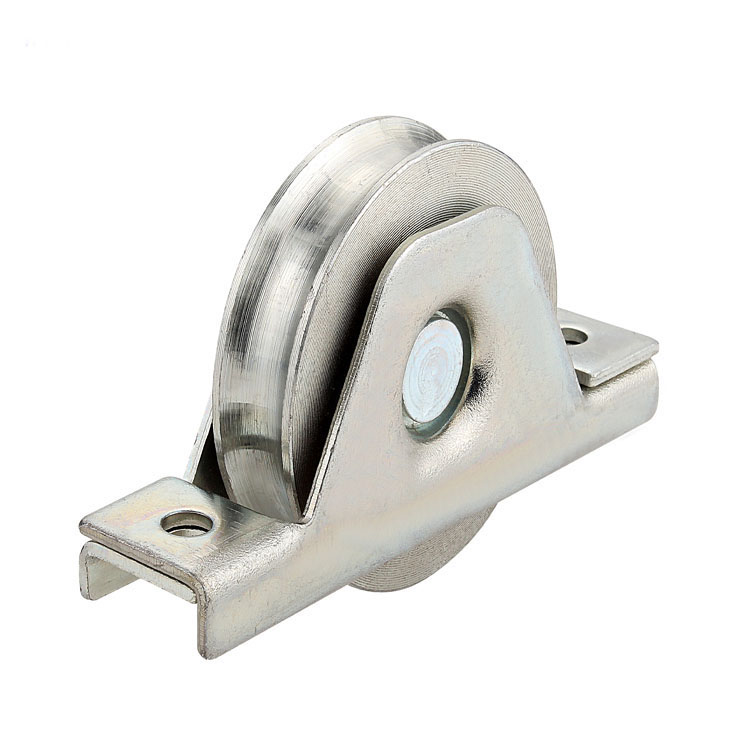

sliding gate wheel with interior bracket
|

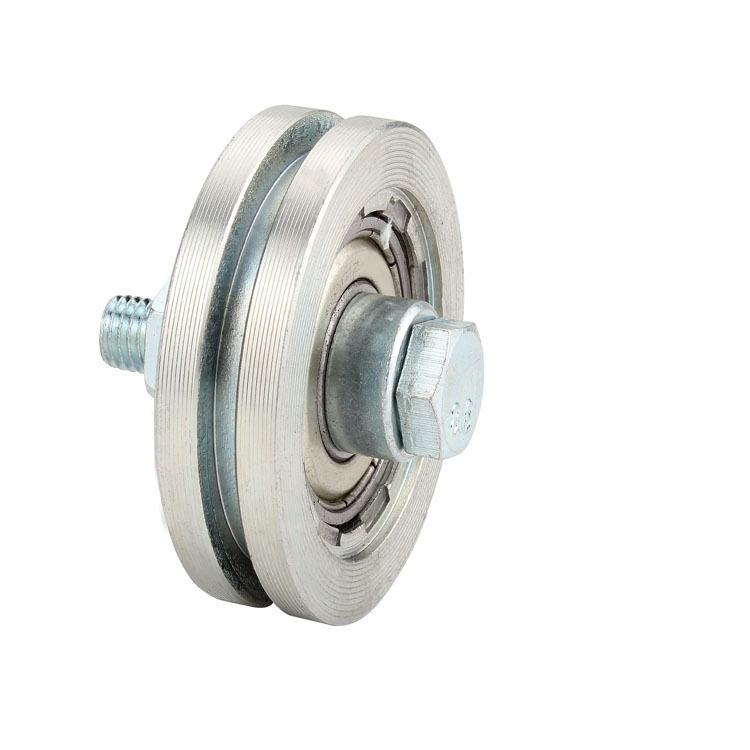

sliding gate wheel with bolt
|
sliding gate wheel with bolt
|
|
|
|
|
|

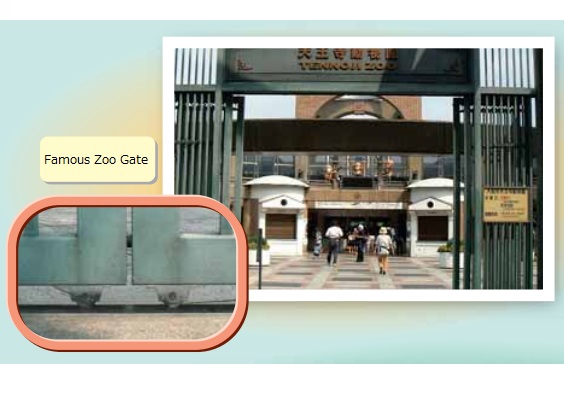

Sliding Gate Roller Wheels Are Widely Used In :
Gate doors
Factory doors
Entrance doors
Warehouse sliding doors
Sliding Gate V Track Packing:
Normally we packed gate wheel in plastic per 2 pcc ,then take it in cartons,finally packing pallet;if you have own requirements ,pls let us know.
