Quick introduction
Why Choose Carbon Fiber Infrared Lamp Elements?
The temperature rises rapidly, more than 30% energy saving than the traditional metal electric heating materials.

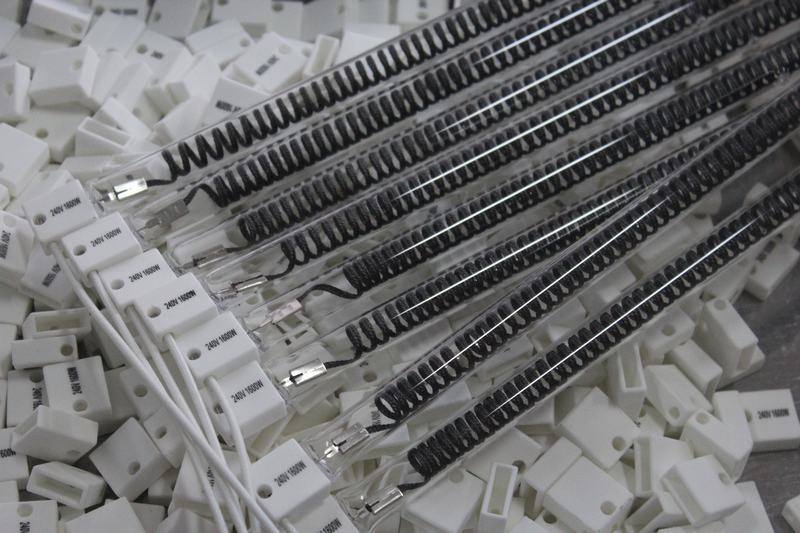

Carbon Fiber is a pure black body heating material. There is almost no visible light in the electro-thermal conversion process. It has the characteristics of rapid temperature rise, small thermal hysteresis, uniform heat generation, long heat radiation transmission distance and fast heat exchange rate.

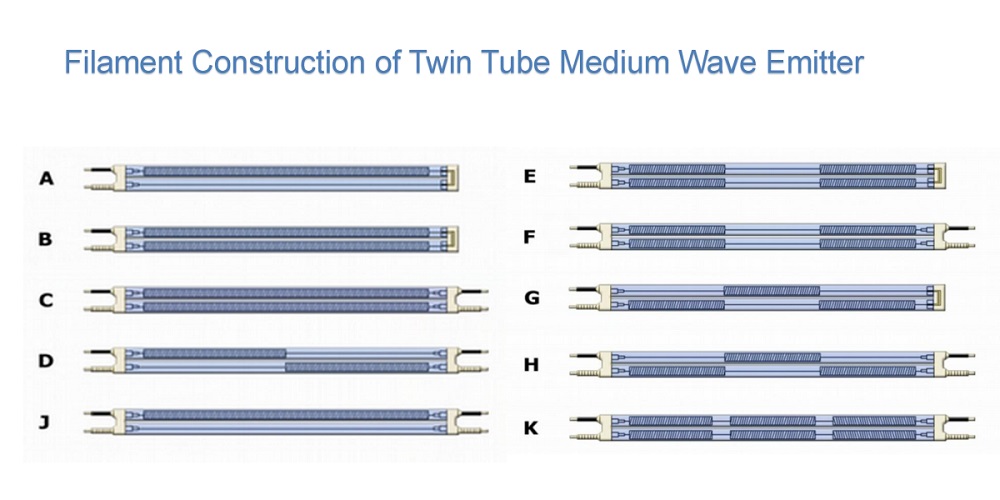

Carbon Fiber Medium Wave Infrared Heaters operate at around 1,200℃ and emit medium wave infrared. The carbon fibers produce gentler heat, and their light is less intense than tungsten. They also have long service lives. These emitters are produced as single round tube or twin tube emitters, in lengths up to 3 meters. This unique lamp is ideal for drying applications that don’t require high, intense heat of short-wave and long drawn-out heat of medium-wave, but rather falls in between. And it is available with white ceramic reflector and golden coating.
Carbon-based Medium Wave Infrared Emitters dry water-based coatings more efficiently than short-wave infrared radiators. Materials such as glass and plastic, are more suitable for medium wave radiation.
| Glass tube |
99.9% pure fused silica quartz sealed |
| Filament material |
Wound Carbon Fiber-Woven |
| Filament temperature |
~ 1200°C |
| Response time |
> 3 seconds |
| Average working life |
10000 hours |
| Cross section(mm) |
10, 11, 12, 13, 14, 15, 18, 20, 23*11, 33*15 |
| Max unit power |
80w/cm |
| Available length |
100-4000mm |
| Operation orientation |
Universal |
| Typical Applications |
Drying Processes
Curing of Coated Surfaces
Pre-heating and Post-heating
|
These Carbon Fiber Infrared Lamps are available in numerous standard lengths, Wattages, and Voltages for new applications or direct replacement for existing equipment. Contact us for more customized information!
Products Details

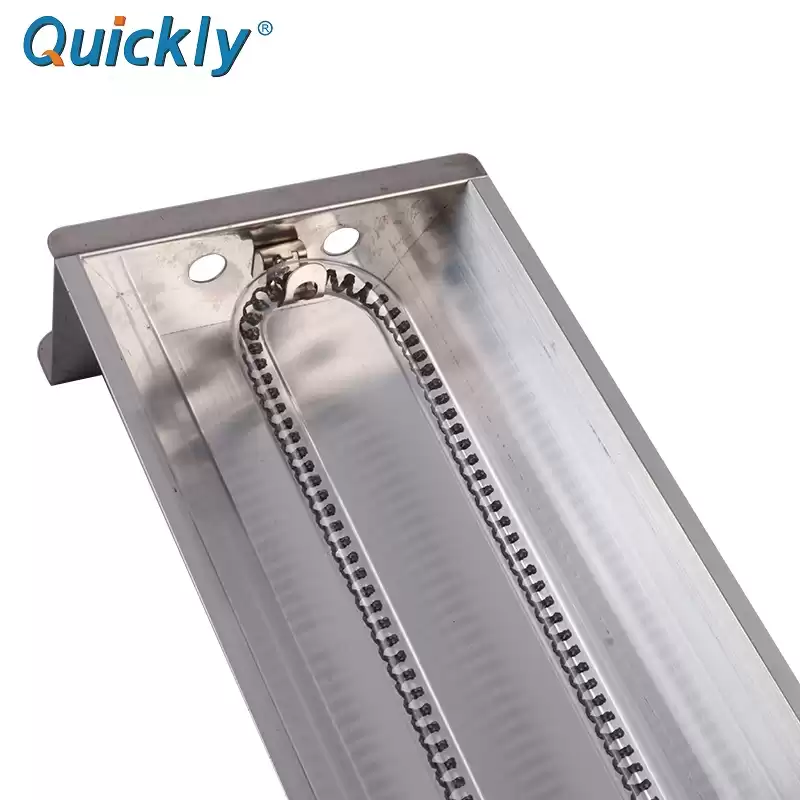

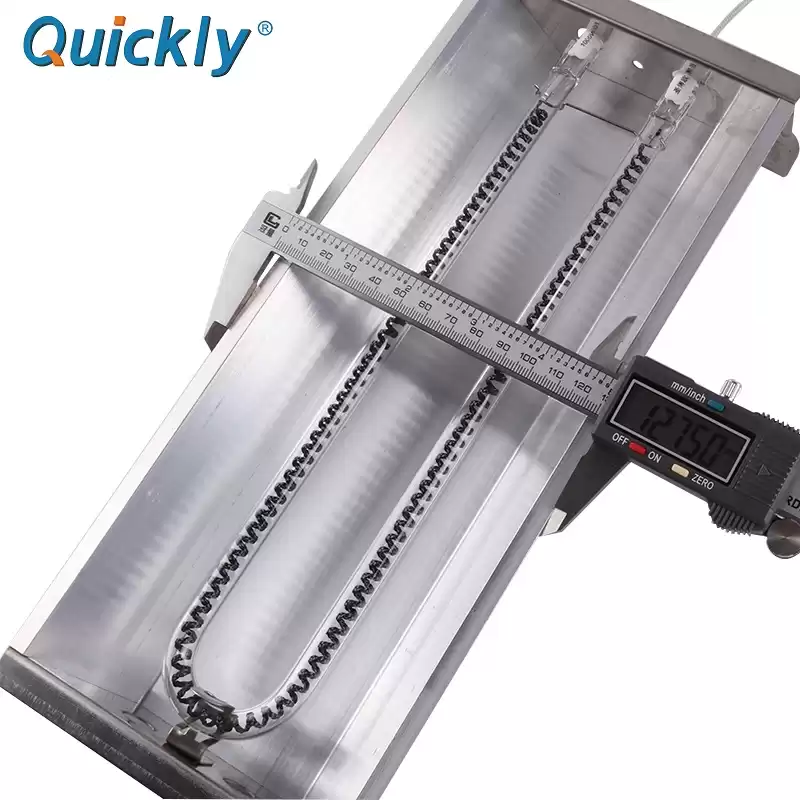

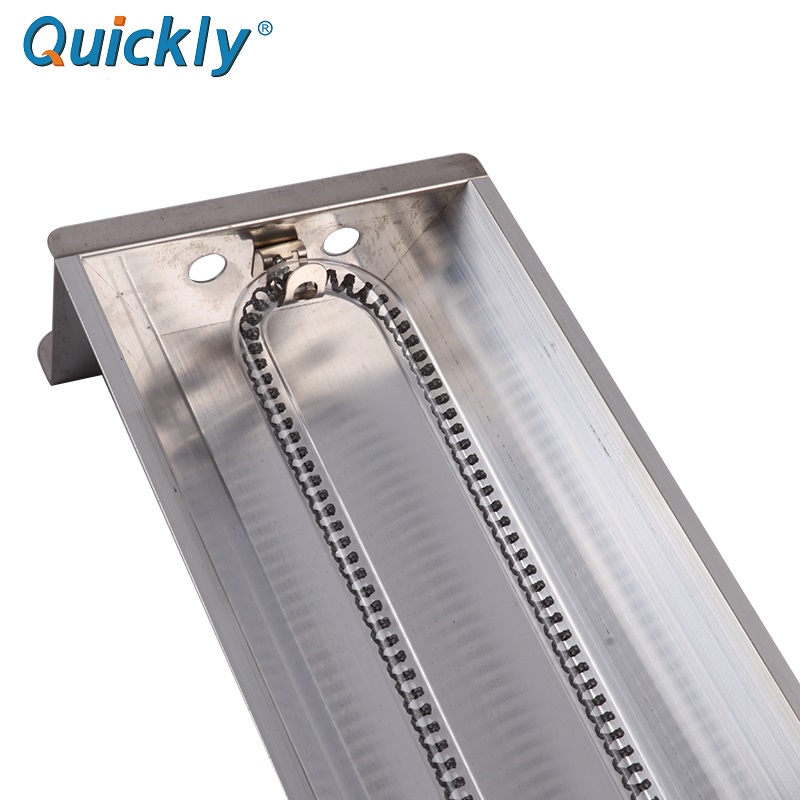

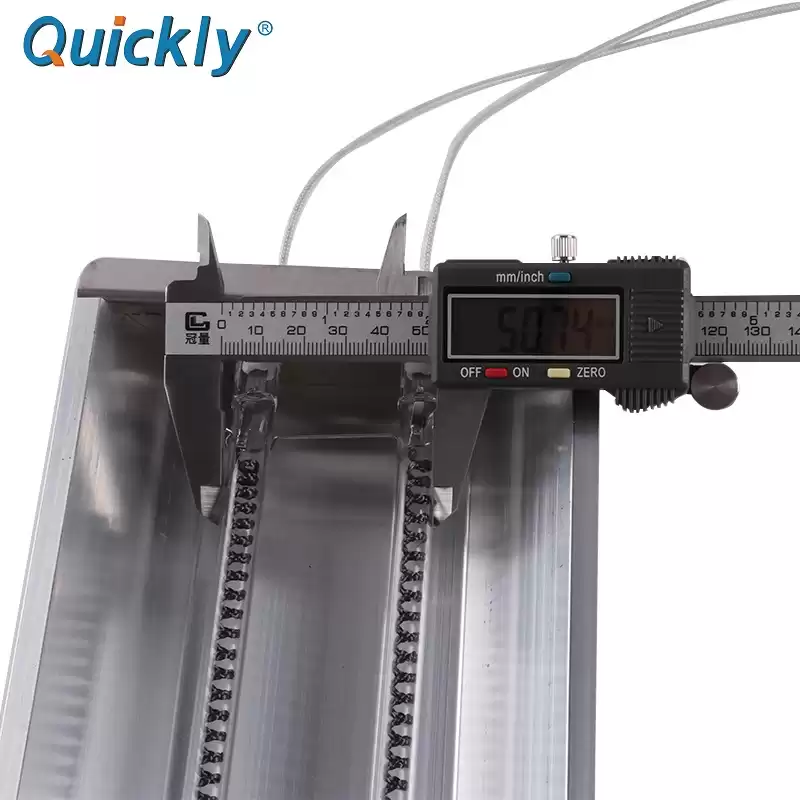

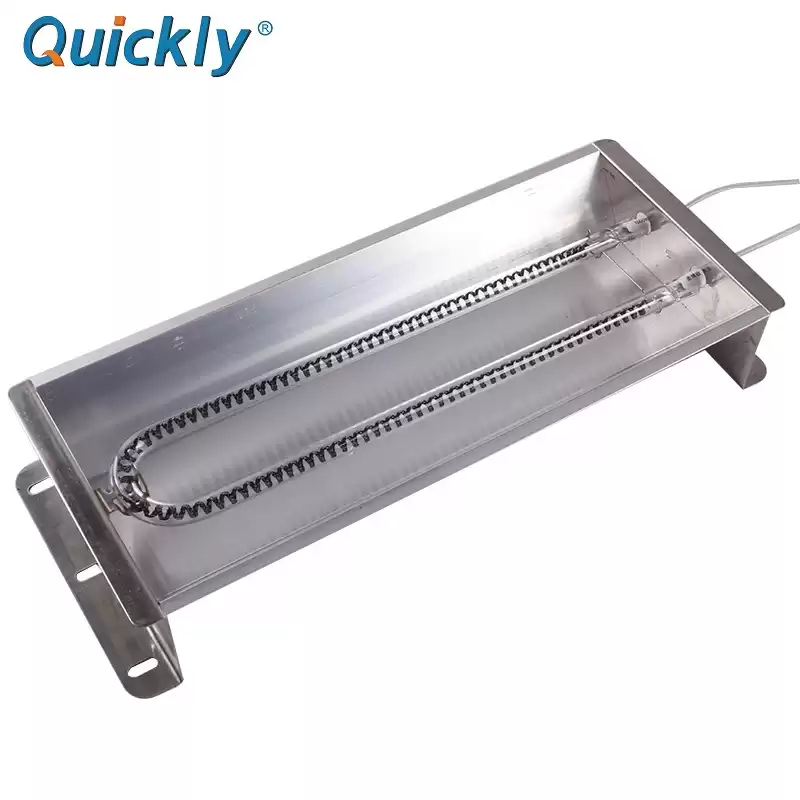

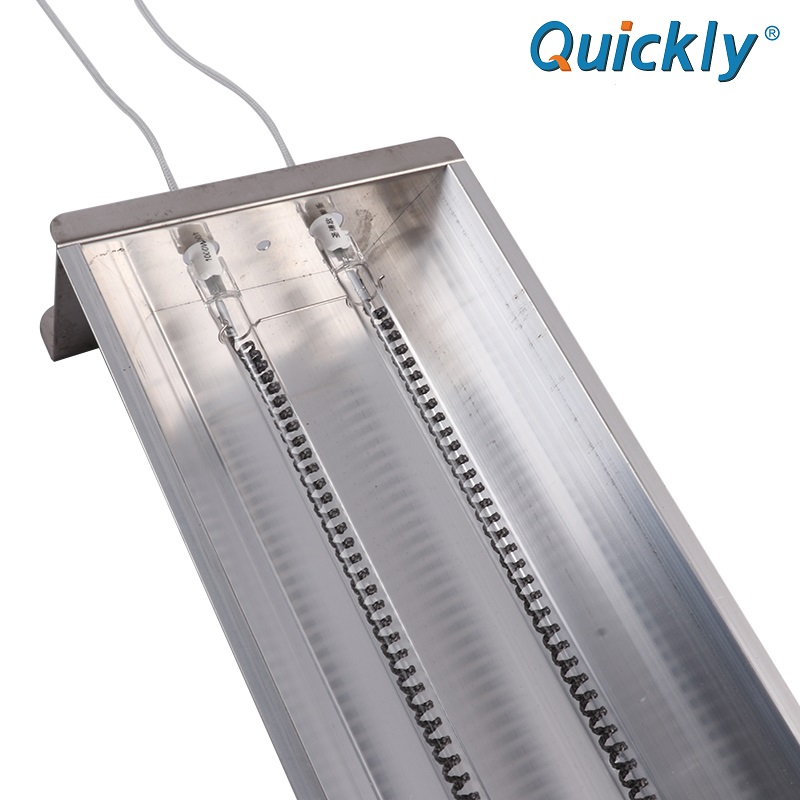

Custom U Shape Halogen Infrared Carbon Fiber Heating Lamp for Inks Drying Machine IR Heaters with Alloy Metal Reflector

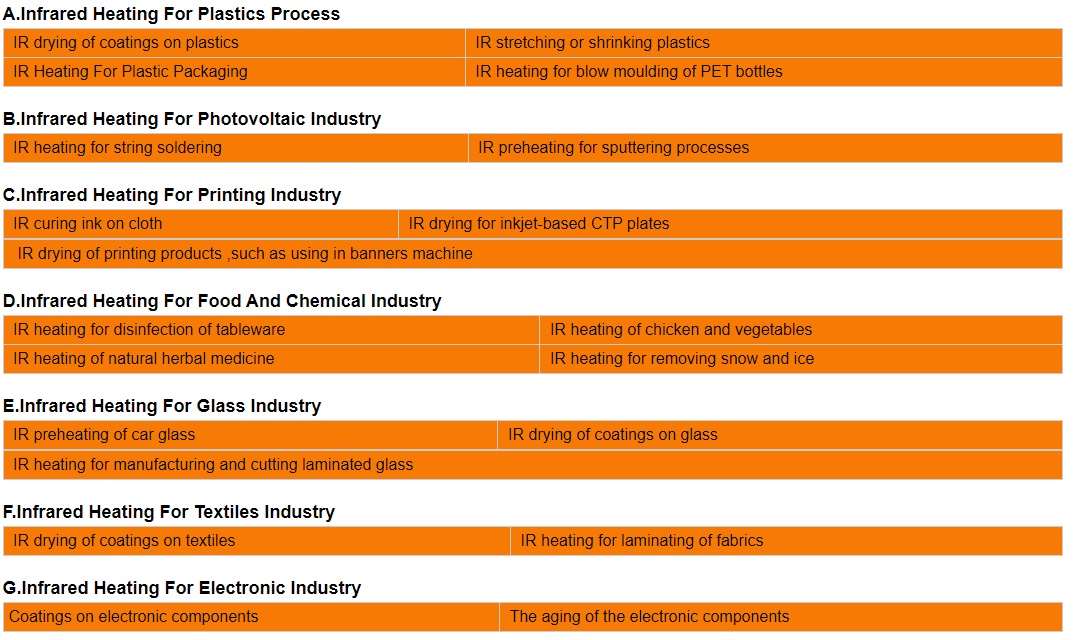

Industrial Applications

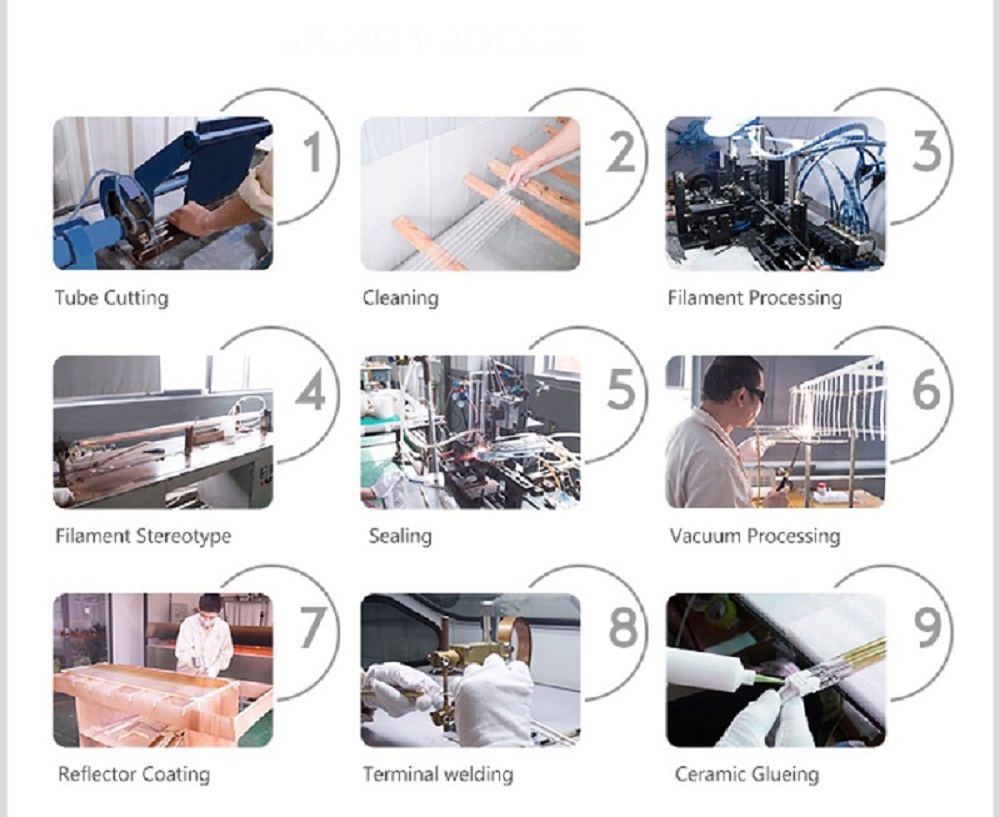

Production Process
About QUICKLY
Anhui Quickly Industrial Heating Technology Co., ltd is a family of privately-owned companies focused on the development of infrared heating technology which dramatically reduces the time and space required for industrial heating and drying processes and provides quantum leaps forward in efficiencies for our global customers.QUICKLY has experience in meeting the needs of a broad range of industries. Applications include paper, printing, textiles, non-woven products, liquid coating, powder coating, adhesives, laminating, welding, thermoforming, and annealing. We will continue to provide excellent process heating solutions for today's industrial needs, and for the challenges of tomorrow.QUICKLY locates in Hefei, Anhui, China,with more than 70 Skilled workers with over 5 years of working experience on average. Dozens of our production employees have been in QUICKLY since the company was first established until today.
Why Choose Quickly
Our Infrared Heater Replacement Element are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!By the way,we support the best service for you:
A:Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
B:Customized Service
1. All of our Infrared Heating Emitters are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc Infrared Heater for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
C:After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.
FAQ
1. Are you a factory or trading company?
Quickly is a factory, we are professional manufacturer of infrared heater for more than 10 years.
2. Where is your factory? Can I visit your factory?
We're in Hefei city,Anhui Province of China. You are warmly welcome to our factory, we will be happy to show you our production, QC, warehouse, etc.
3. Can I have samples? Is it free?
Yes, we are happy to offer samples for you to check and test. Depends on sample quantity and product model, we will
confirm with you whether it's free sample or not.
4. What is your term of delivery?
We accept FOB, CIF, EXW etc. Please choose the one which is the most convenient and cost effective for you.
5. What about the lead time for mass production?
It depends on the order quantity and the season you place the order. Generally speaking, the lead time of MOQ is about
7-15 days. We suggest that you start inquiry at least two months before the date you would like to get the products at your country.
6. Do you offer guarantee for the products?
Yes, it must be. We guarantee 2 years for heaters and 5000-8000 hours for infraraed heater.
7. What type of payment do you accept?
T/T.WEST UNION.PAYPAL.CREDIT CARD.
8. Is it OK to print my logo on product?
Yes, it's possible. But please kindly note we have MOQ request for different products.
9. Can you do the design for us?
Yes. We have a professional team having good experience in box design and manufacturing. Just tell us your idea and
we will help to carry out your ideas into perfect packing boxes. It does not matter if you do not have someone to complete
files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you
finished files for confirmation.
