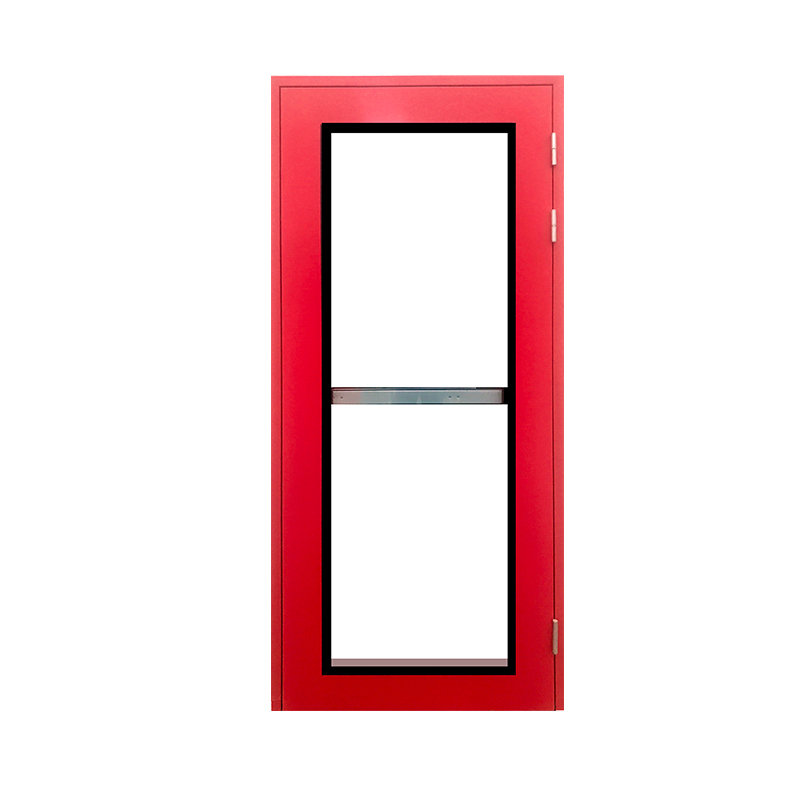

Specification
|
900mm*2100mm (single door) 1000mm*2100mm (single door) 1200mm*2100mm (sub-mother door) 1500mm*2100mm (double swing door) Can Be Customized.
|
|
Door Frame TCK
|
Galvanized sheet 1.5mm
|
|
Door Leaf TCK
|
Galvanized sheet 1.0mm
|
|
Filler
|
Paper Honeycomb, Aluminum Honeycomb
|
|
Window
|
Double glazing，Rounded corners, Right angles, (border white and black)
|
|
Surface Treatment
|
Electrostatic resin powder coating
|
|
Lock
|

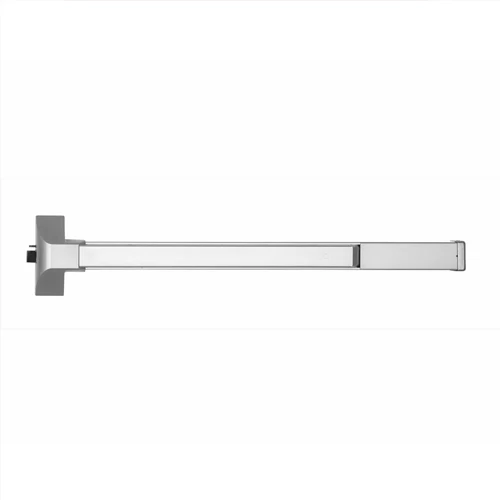

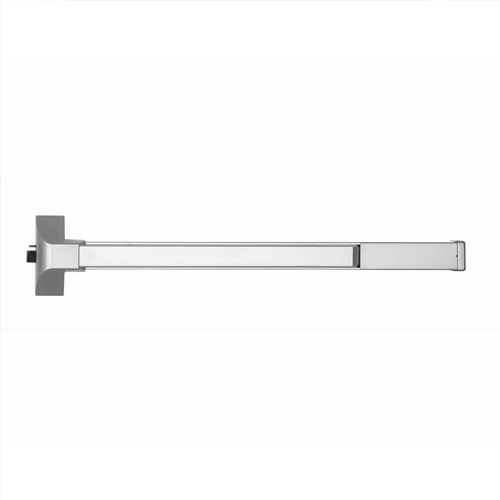

Safety putter lock
|
|
Hinge
|
304 stainless steel hinge
|
|
Sealing Device
|
Door sealing strip，door bottom automatically pressing the sealing strip
|
Advantage：
1. Wiskind whole surface of the door is sprayed with electrostatic resin powder. The thickness of the paint surface is not less than 70um micron grade paint surface. The steel plate substrate is passivated before spraying. The paint surface has stronger adhesion and durability. It is better than general paint and has high temperature resistance. It is resistant to general disinfection and is more suitable for long-term use in the pharmaceutical industry and other industries that require frequent cleaning and disinfection
2. The integral automatic pressing door bottom sealing strip is designed according to GMP requirements. After the door is closed, the sealing strip is automatically lowered to strengthen the overall airtightness of the door. The sealing strip is made of silicone rubber, which has good durability and is harmless to the human body.

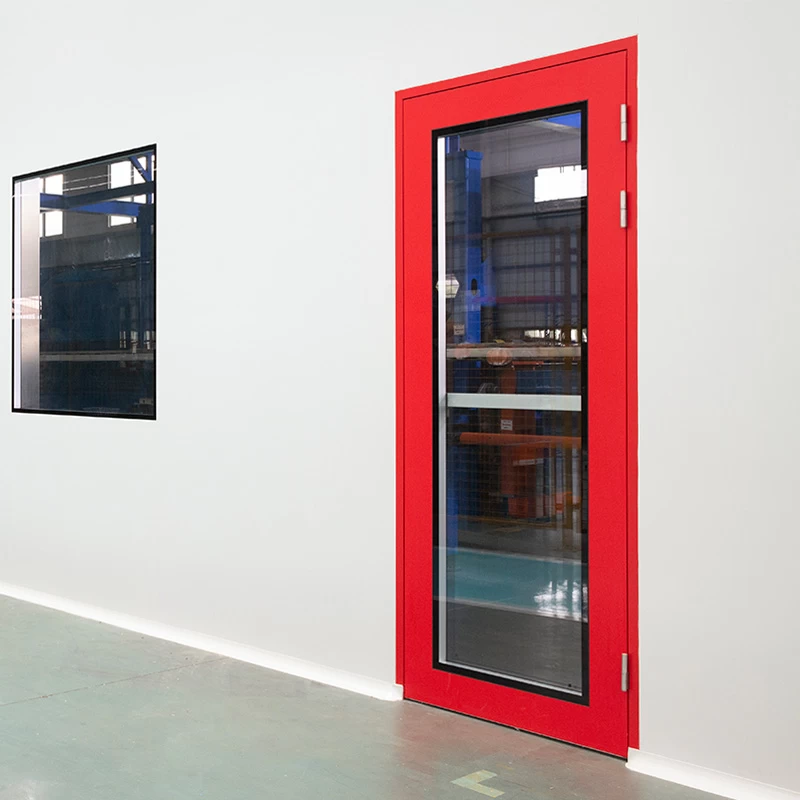

3. The door window adopts double-layer cleanroom hollow tempered glass and is surrounded by black printed edges (white printed edges). The window on the door is flush with the surface of the door leaf. It is beautiful and clean, and does not fog in the environment. , affecting observation.

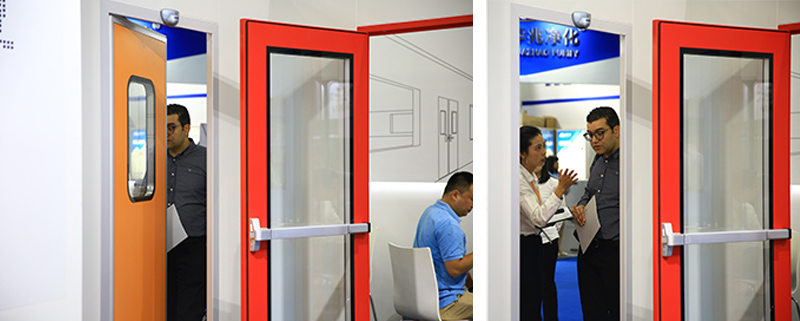

Wiskind clean room security door in 2019 Shanghai CPhI exhibition, get customers and experts praise.
