Customize Pre-painted Steel Door Guider Roll Forming Machine

Customize any kinds of steel door, shutter door roll forming machines

Product name: Customize Pre-painted Steel Door Guider Roll Forming Machine

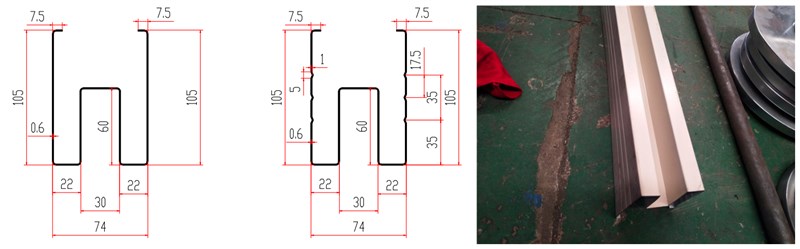

Profile Design Drawing

This pre-painted steel door guider roll forming machine can roll forming below design with or without strengthen rib door guiders, the raw material can be stainless steel sheet, pre-painted  sheet and galvanized sheet, and suit for 0.6-1.0mm thickness.

Main Machine Details

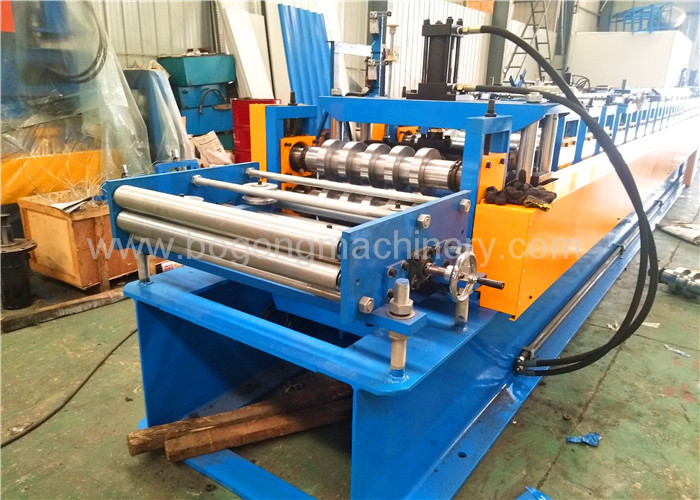

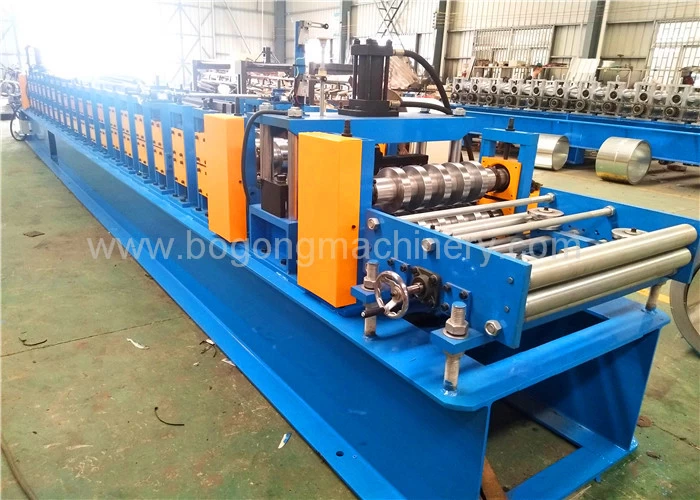

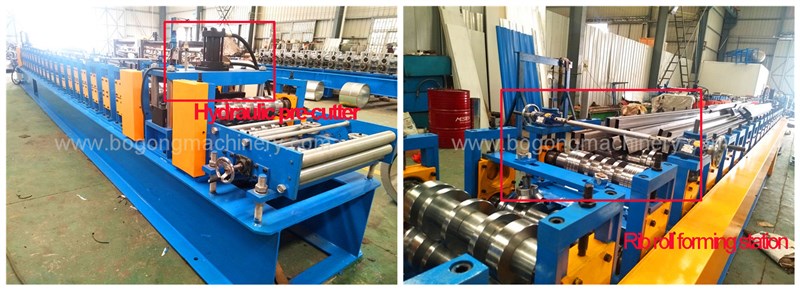

 After feeding table and straightening rollers, there is  hydraulic pre-cutter, because this producing line is for roll forming 0.6-1.0mm raw material thickness, if we choose manual pre-cutter, the power is too strong for workers, hydraulic type of more better for this  Pre-painted Steel Door Guider Roll Forming Machine line.

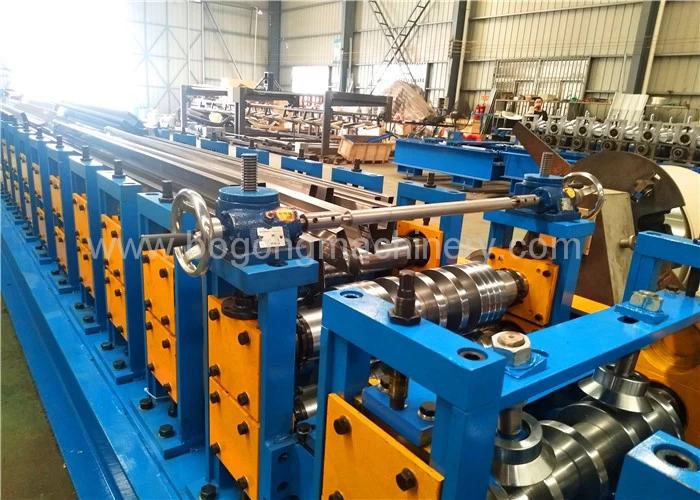

After hydraulic pre-cutter device, it is the rib roll forming station, if the door guider needs ribs, we can adjust the upper rollers down a little by operating the hand wheel, or adjust the upper roller up to stop forming ribs. This is option working station for whole metal door guider equipment.

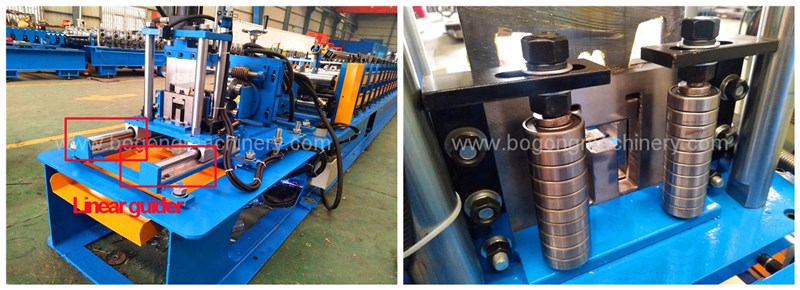

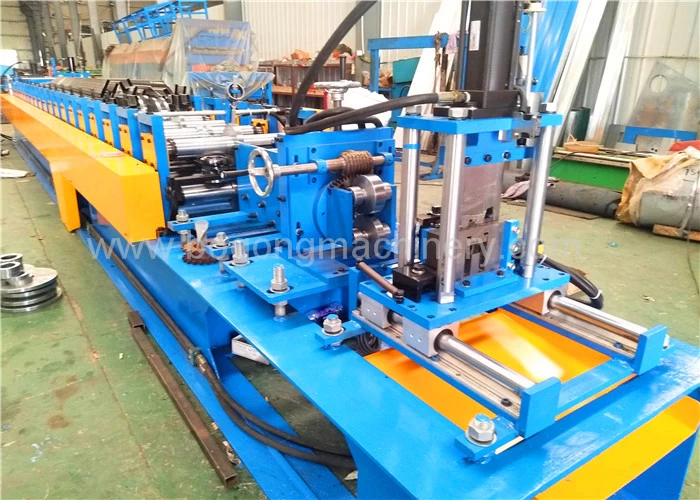

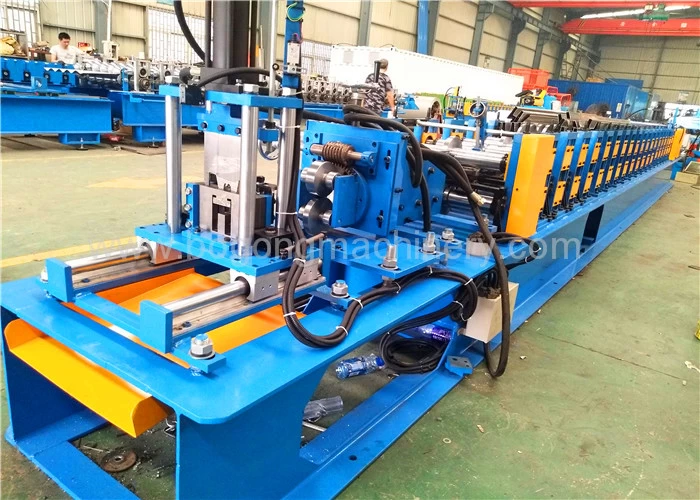

There is running guider on this Pre-painted Steel Door Guider Roll Forming Machine, it is linear guider, whole cutting section can be moved if any resistance power happen. See the cutting blades inner edge, inside machine end is wider than outside end,  this is the special design of ours to solve door guider sample block inside cutting section.

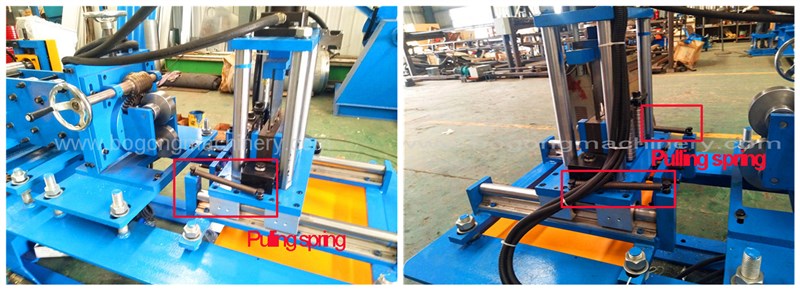

When the whole galvanized steel door gutter roll forming machine is running quickly, we should ensure the cutting section is safe, won't fall down from machine frames, we add pulling spring to tight it into whole machine body.

Technical Parameters

Need More information? Contact with us soon.
