Customized 100-240VAC to DC 8V Switching Power Supply open frame SMPS
Description:
The 150W Open Frame Power Supply series is the single output 150W switching power supply,and it is very popular among the market,and it is widely used for equipments,such as the stage lights and medical equipments etc.
Features:
1,8V switching power supply with High efficiency, low temperature rise;
2,open frame switching power supply with Built-in filters, low output noise;
3, 150W switching power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;
Parameter
|
|
Item NO
|
KPSH150-8
|
KPSH150-12
|
KPSH150-24
|
|
Output
|
Output Voltage
|
+8V
|
+12V
|
+24V
|
|
Rated Current
|
17A
|
12.5A
|
6.3A
|
|
Current Range
|
0-17A
|
0-12.5A
|
0-6.3A
|
|
Rated Power
|
136W
|
150W
|
151.2W
|
|
Ripple
|
100mVp-p
|
120mVp-p
|
240mVp-p
|
|
Adjustable Output Range
|
±10%
|
|
Output Accuracy
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500ms, 50ms, 20ms
|
|
Input
|
Input Voltage Range
|
90~264V AC,100~370VDC
|
|
Input Current
|
1A/220VAC
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
>85%@220VAC
|
|
Inrush Current
|
Cold start 20A@115VAC,40A@230V
|
|
Leakage Current
|
<0.5mA@240VAC
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup,automatic recovery
|
|
Short Circuit Protection
|
Hiccup,automatic recovery
|
|
Environment
|
Working Temp.,Humidity
|
-10~50℃,10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943,EN60950
|
|
Withstand Voltage
|
I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min
|
|
Insulation Resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254 EN55022
|
|
Others
|
Dimension
|
222*62*35mm(L*W*H)
|
|
Weight
|
0.4kg
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

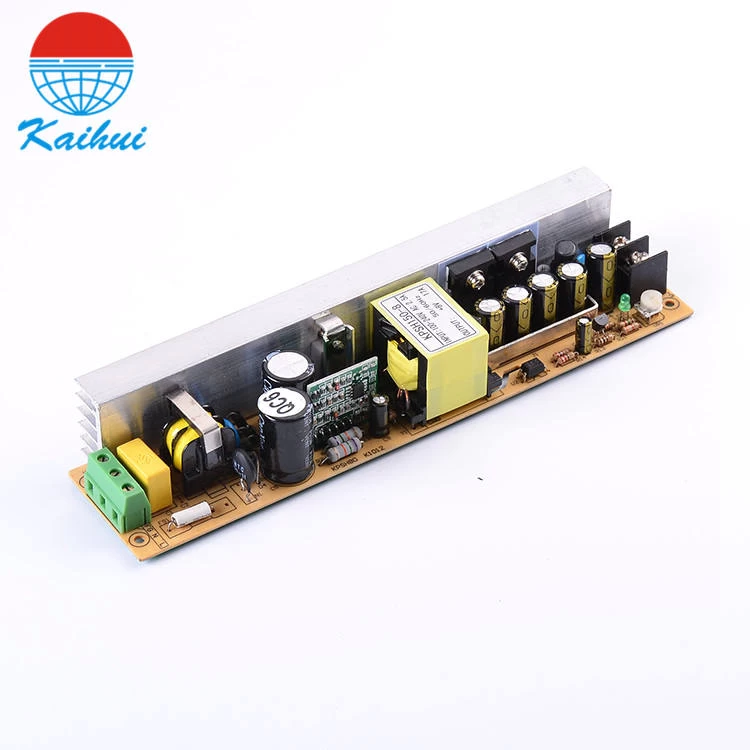

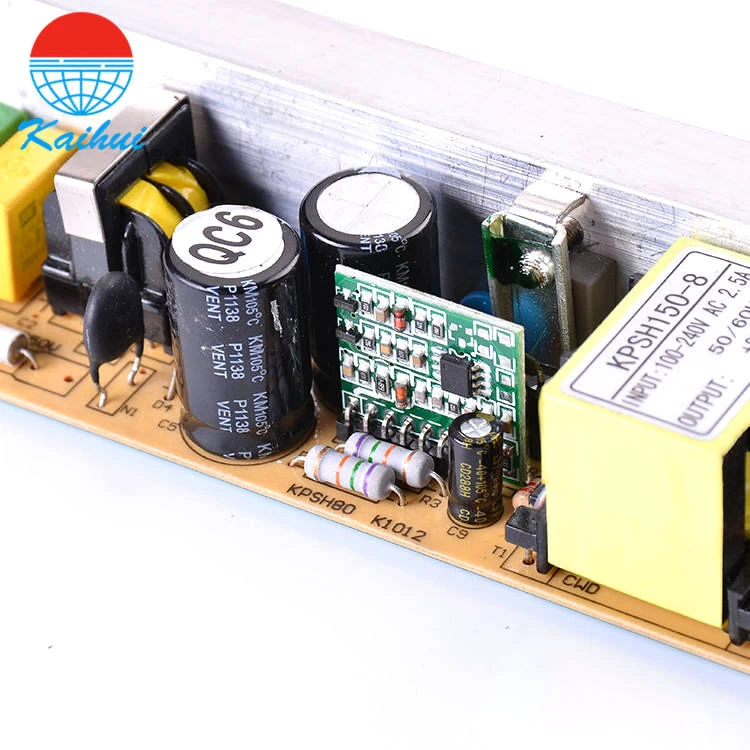

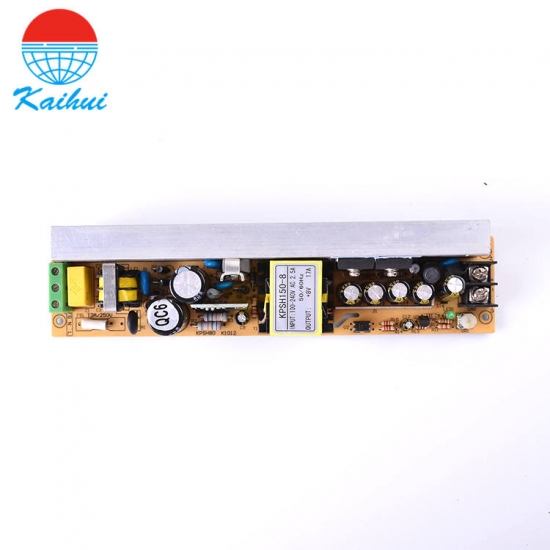

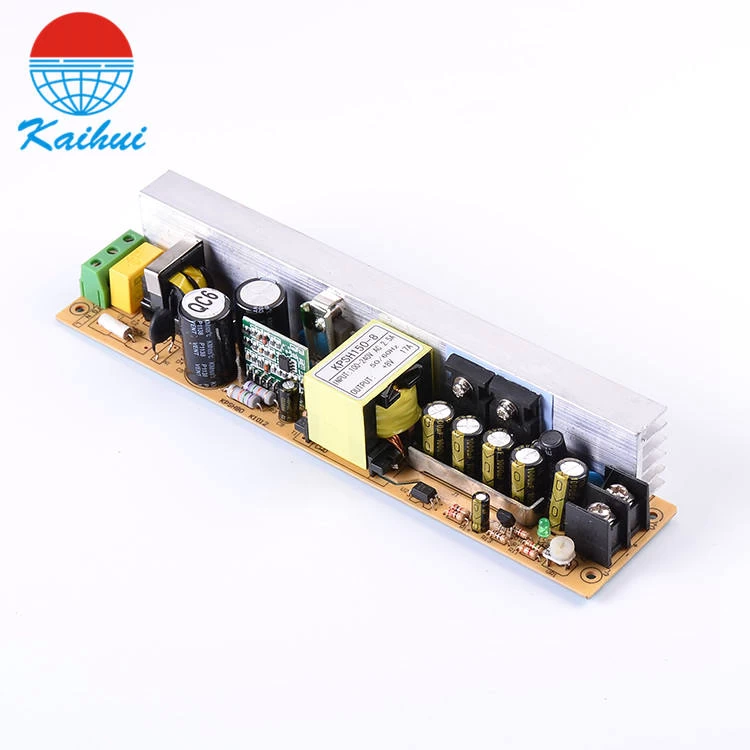

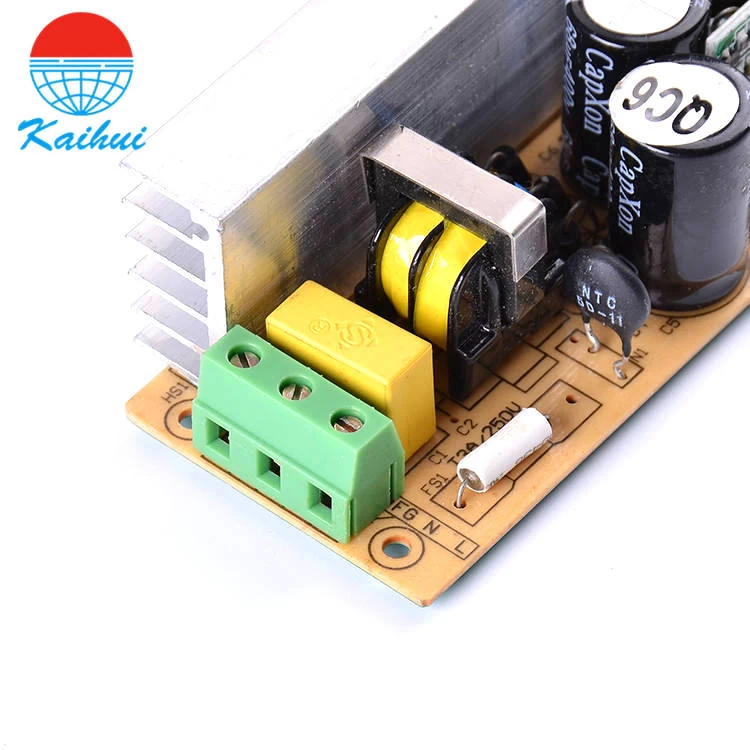

Product picture:
