As the development of New Energy,We expand our business arrange,not only in lithium battery, but also to its relative electric forklifts,we have build our technical team.As a leader of lithium, we can provide comprehensively solutions for lithium battery and material handling
We have large scale factory for material handling forklifts in Anhui,China .We not only have A grade modern facilitities and automated production line
We cooperate with our factory to attend numerous fairs in China every year,such as : Carton fair in Guangzhou,Bauma fair in Shanghai and Beijing fairs
Our factory loates at Anhui,China,which is about 2-4H to us by airplane ,high speed train and car from Shanghai City,welcome to visit us.
Quick details
| 1.1 |

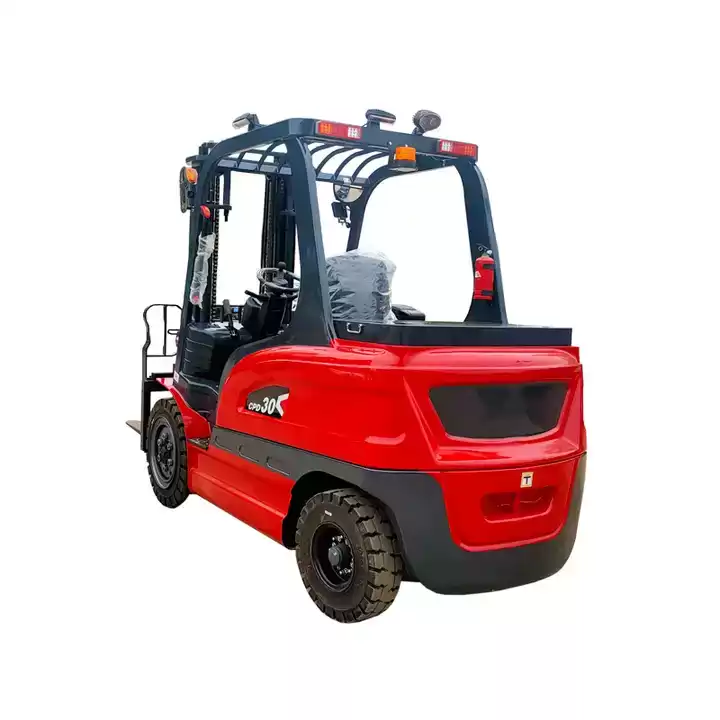

model |
|
|
CPD30A |
| 1.2 |
power type |
|
|
electric |
| 1.3 |
operation |
|
|
sit down |
| 1.4 |
load |
Q |
kg |
3000 |
| 1.5 |
load center distance |
C |
mm |
500 |
| 1.6 |
front overhang |
X |
mm |
420 |
| 1.7 |
wheel distance |
y |
mm |
1860 |
| |
weight |
|
|
|
| 2.1 |
dead load(battery included) |
|
kg |
3700 |
| |
tyre,underpan |
|
|
|
| 3.1 |
tyre type |
|
|
solid tyre |
| 3.2 |
driving wheel size(dia*width) |
|
mm |
28x9-15 |
| 3.3 |
steering wheel size(dia*width) |
|
mm |
650-10 |
| 3.4 |
(x= driving wheel)driving,steering wheel qty |
|
mm |
2X/2 |
| 3.5 |
driving wheel distance |
b10 |
mm |
1000 |
| 3.6 |
steering wheel distance |
b11 |
mm |
990 |
| |
size |
|
|
|
| 4.1 |
mast,fork tilt |
α/ β (°) |
|
5/9 |
| 4.2 |
mast height after falling |
h1 |
mm |
2180 |
| 4.3 |
standard mast max lifting height |
h3 |
mm |
3000 |
| 4.4 |
mast height at its highest lifting |
h4 |
mm |
4100 |
| 4.5 |
cockpit height |
h6 |
mm |
2100 |
| 4.6 |
seat height |
h7 |
mm |
1200 |
| 4.7 |
traction pin height |
h10 |
mm |
550 |
| 4.8 |
overall length |
l1 |
mm |
3860 |
| 4.9 |
distance to fork vertical |
l2 |
mm |
2750 |
| 4.10 |
overall width |
b1/ b2 |
mm |
1220 |
| 4.11 |

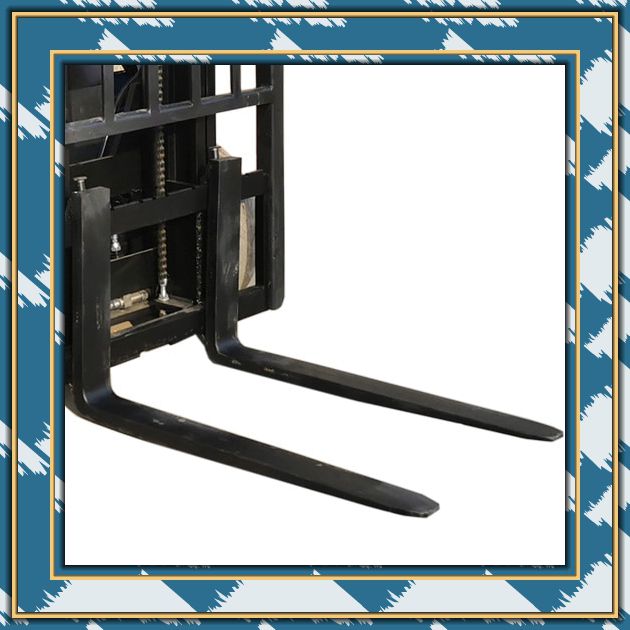

fork size |
s/ e/ l |
mm |
45X122X1070 |
| 4.12 |
fork width |
b3 |
mm |
1240 |
| 4.13 |
full load mast clearance |
m1 |
mm |
160 |
| 4.14 |
min body clearance |
m2 |
mm |
150 |
| 4.15 |
aisle width for tray 1200(W)*1000(L) |
Ast |
mm |
4100 |
| 4.16 |
aisle width for tray 800(W)*1000(L) |
Ast |
mm |
4300 |
| 4.17 |
radius of turning circle |
Wa |
mm |
2480 |
| |
performance |
|
|
|
| 5.1 |
walking speed,full load/empty load |
|
km/ h |
12/13 |
| 5.2 |
lifting speed,full load/empty load |
|
m/ s |
0.35/0.45 |
| 5.3 |
falling speed.full load/empty load |
|
m/ s |
0.4/ 0.36 |
| 5.4 |
max climbing speed,full load/empty load |
|
% |
14/15 |
| 5.5 |
working brake type |
|
|
hydraumatic+machanical |
| 5.6 |
parking brake type |
|
|
mechanical |
| |
motor,power |
|
|
|
| 6.1 |
driving motor rate power S2 60min |
|
kW |
11.5 |
| 6.2 |
lifting motor rate power S3 15% |
|
kW |
12 |
| 6.3 |
battery volt/nominal capacity K5 |
|
Ah |
48V500（Lifepo4 battery 5Y warranty) |
| 6.4 |
driving control type |
|
|
AC |

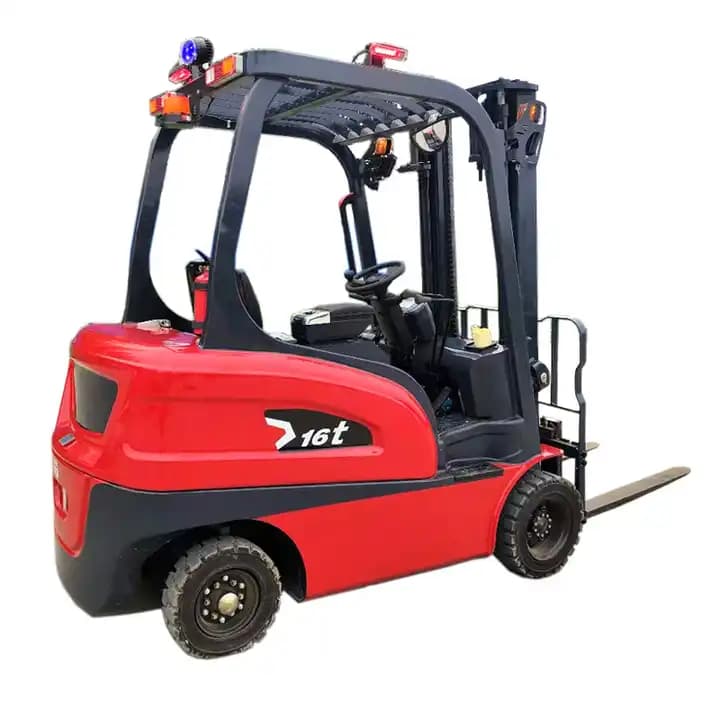

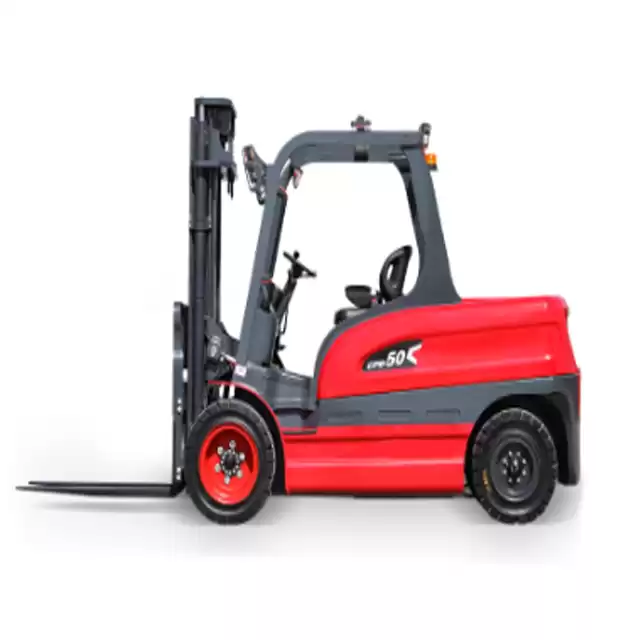

Qianhang forklift manufacturer 1.2t,1.6t,2t,2.5t,3t 3.5t 4t,5t new lithium battery forklift truck electric forklift/folklift
Brief introduction for our material handling forklift
1-----With advanced technology and design;
2----- High quality steel for frame and mast, not easy to deform
3----- LED lights for all working lights, easy to see in night
4----- Thickened height guard

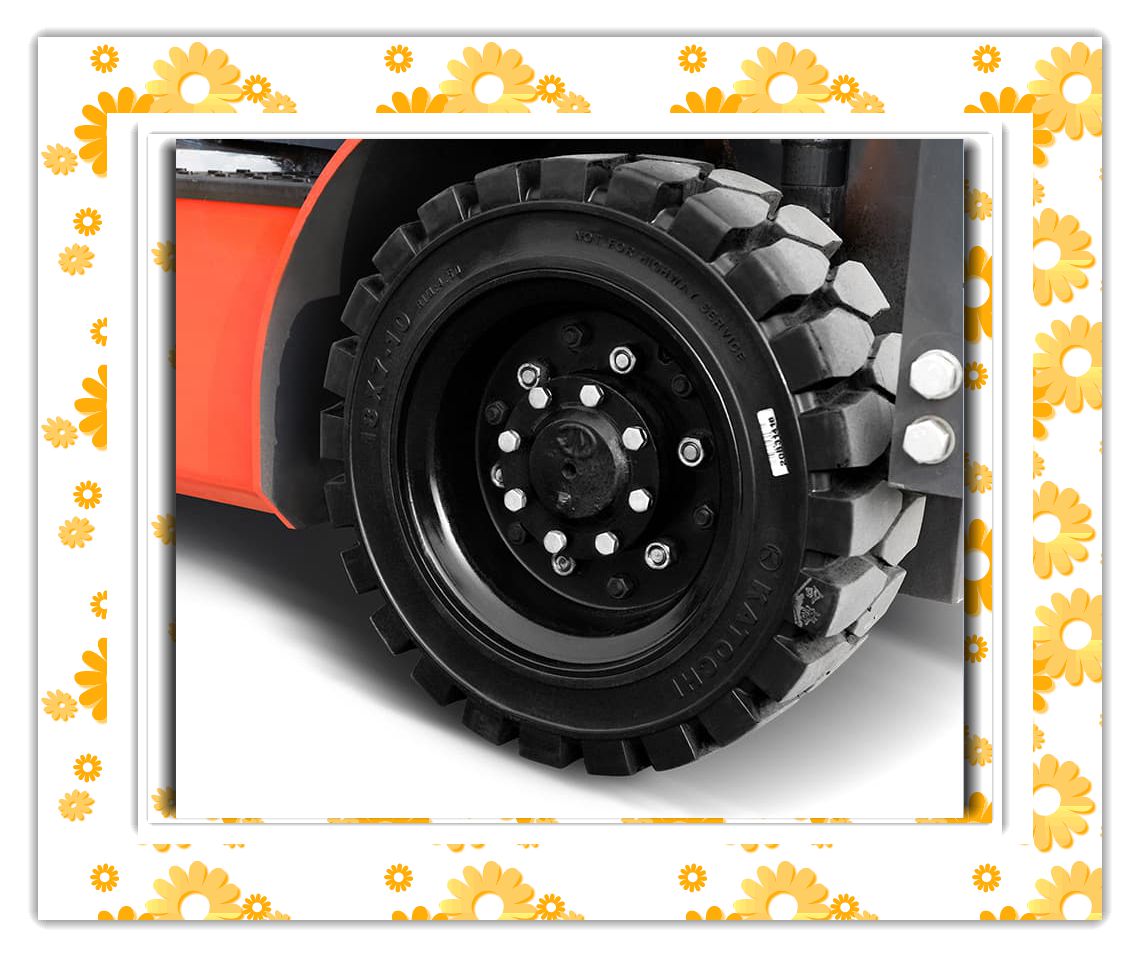

5-----Wear-resisting solid tire
6----- AC motor , less noise
7-----powerful branded batterym,optional for lead acid battery, lithium battery and traction battery
8-----High voltage ,low current design , prolong the lifespan of electric components
9-----Powerful in climbing to climp slop, with gradeability over 30%.
10----Comfortable seat with safety belts,with large operation space.
11----All use lithium battery, charging efficiency is higher, more lightweight, only takes 2.5 hours to recharge
Main features
1)Environmentally friendly,zero emission,certificates available
2)World famous controller, to achieve high precision walking and upgrade control, high working effect
3)Powerful lithium battery,work for 6H or more

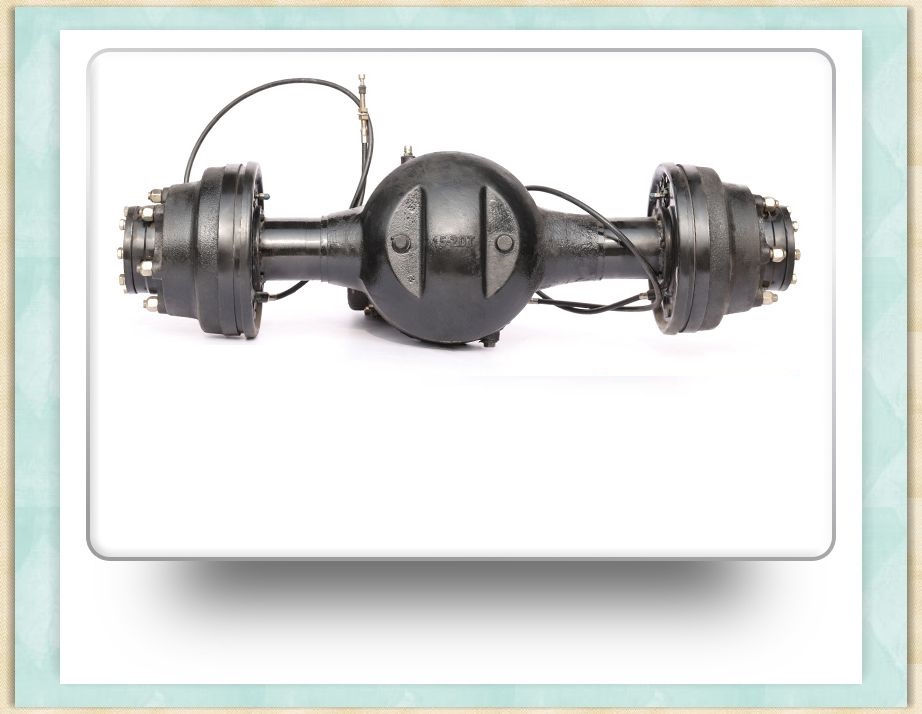

4)Advanced remote drive unit, compact structure, lower center of gravity, more reasonable layout, more stable drive
5) Lifepo4 battery for your choice, Large capacity battery, strong endurance
6) Dynamic load-sensitive priority steering system for faster steering response and smoother ride.
Our details for your refer
OEM/ODM
After sales service
-
Warranty
We grants our customers a 12-months period warranty for any forklifts purchased from us.duriing the period of warranty,in case of defect of material or workmanship,defective parts will be replaced for free charge as compensation at our discretion
-
Spare parts
We are delicated to provide our customer high genuine spare parts with high quality,exact fitness and appropriate function.No matter where you are,pls submit your spare request, we promised to send you our fast and appopreciate
-
Installation
We are able to provide you with overall installation instructions ,allowing you to start a proper operation of our forklifts. If necessary,engineers can send to you to give face to face installation and instructions
-
Training
We promised to provide training to our buyers from any areas.our training includes: product training ,operation training and maintaince know-how and technical trainings.All of which are tailored to meet with your individual needs
