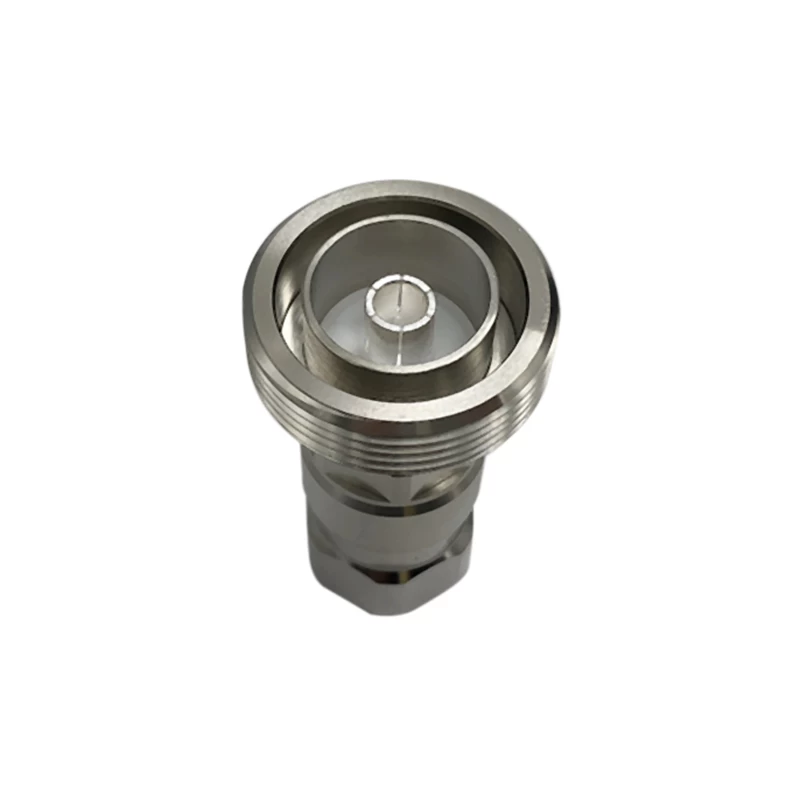

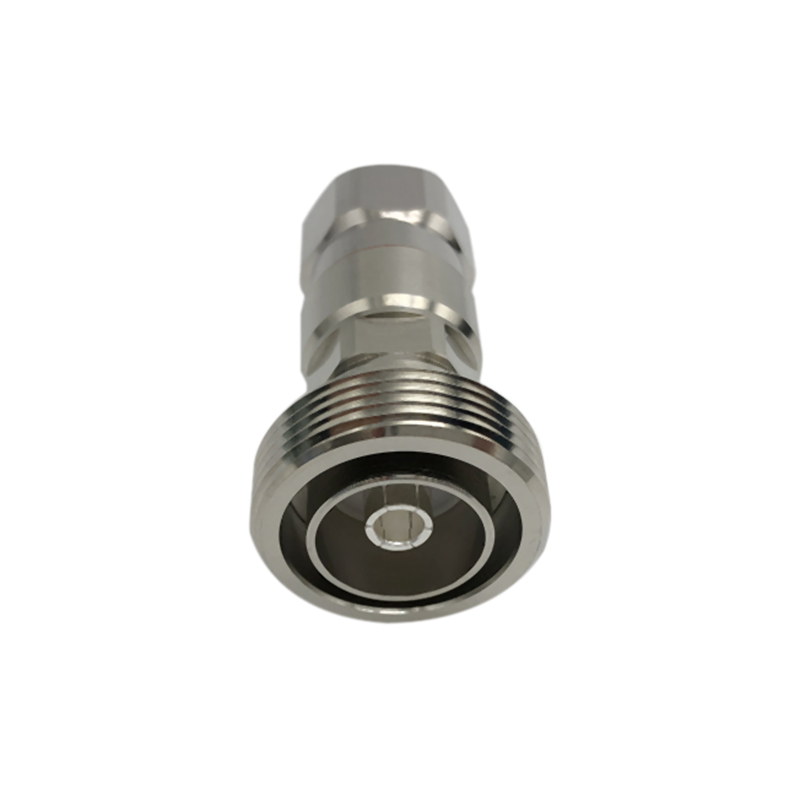

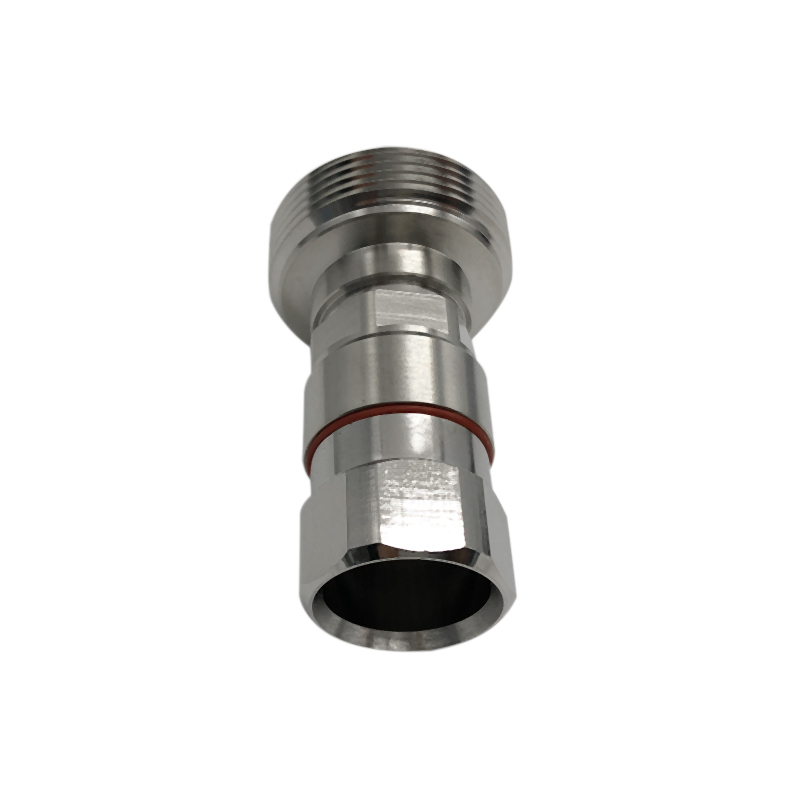

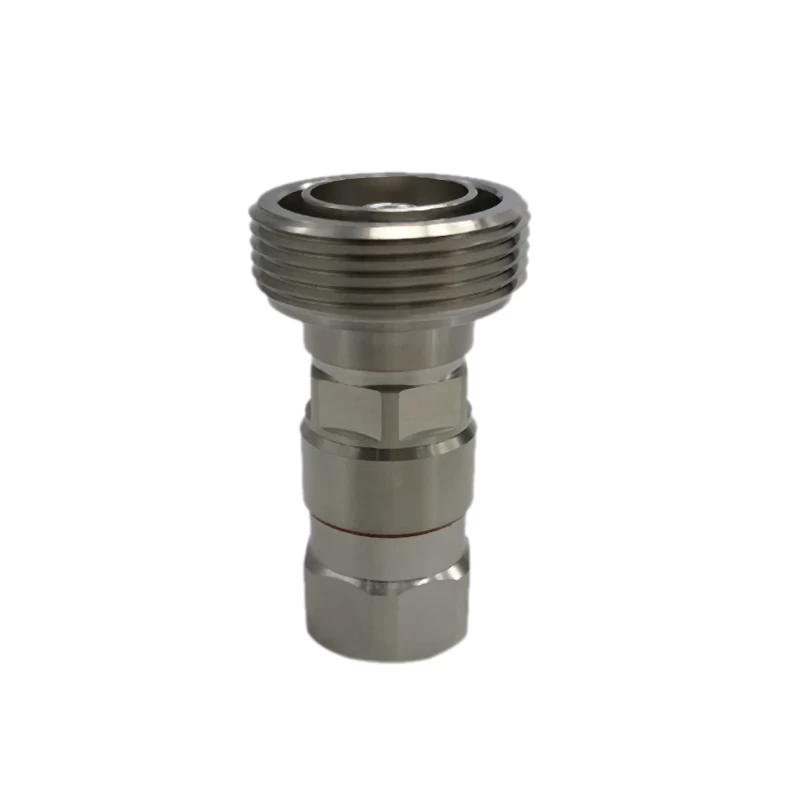

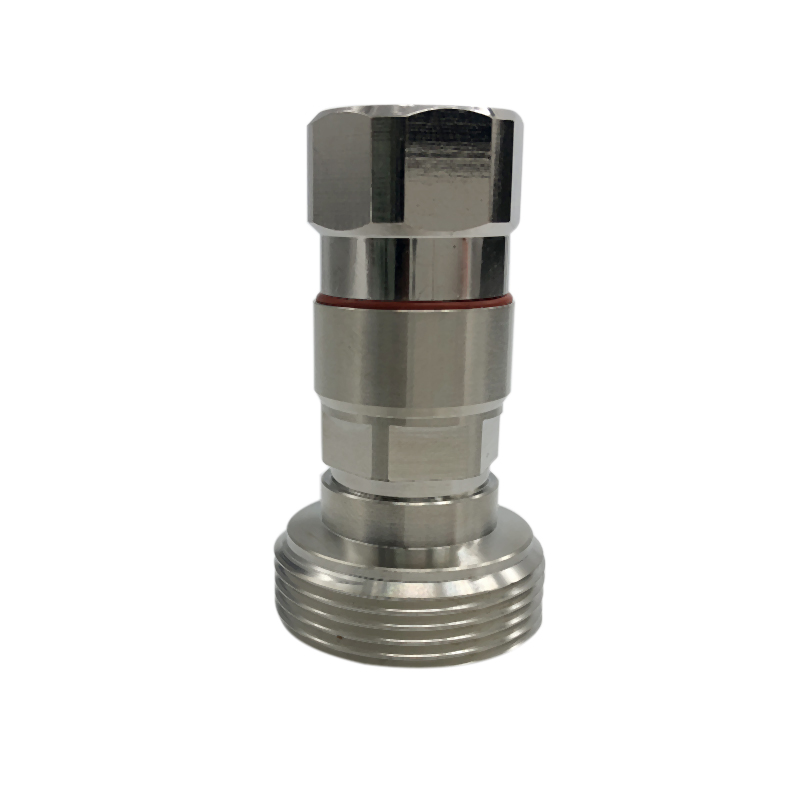

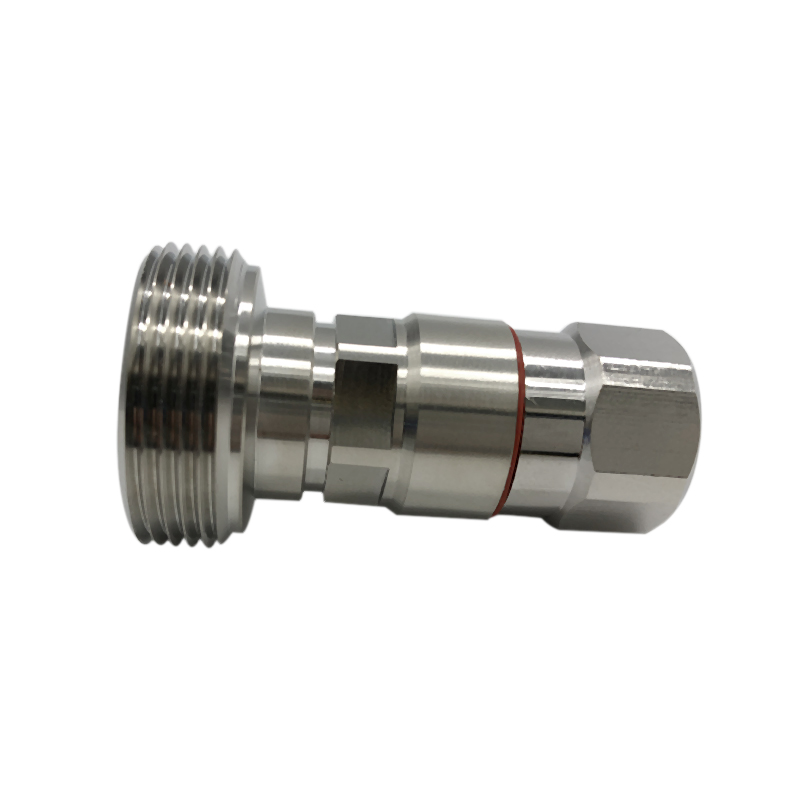

Customized 7/16 DIN FEMALE RF CONNECTOR for 1/2" FEEDER CABLE

7/16 (DIN, L29) connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems,low loss,featuring high power, high operating voltage and perfect waterproof performance and applicable to various environments.

It is easy to install and provides reliable connection.

Facebook Twitter Pinterest LinkedIn 分享

Description

Product Name

The joining device of 7/16 DIN Female type Connector has whorl to join the organization, its characteristic is power, the capacity is large, Voltage little to stay Bob, three steps it pays to be superior to transfer performance, kind airtight have, Suitable for radio, TV aerial system, jump line join and microwave communication system present cable connection spend mainly. These RF Connector is low VSWR and Low PIM.

Product Features

7/16 DIN FEMALE RF connector for 1/2" FEEDER CABLE is Low VSWR and excellent impedance matching, supports-105/-120/-150dBc PIM Rating and Widely used in IBS projects

Technical &Mechanical Specifications

Model No.	MN-C-DF
Interface	According to IEC 60169-4
Electrical	Characteristic Impedance	50 ohm
	Frequency Range	DC-11GHz
	Working Voltage	2700V max
	Average Power	3KW max
	Contact Resistance	Center Contact≤0.4M ohms Outer Contact≤1.5M ohms
	VSWR	≤1.10
Mechanical	Durability	Mating cycles≥500
Material and plating	Body	Brass Ni or Tri-Alloy
	Insulator	PTFE
	Center Conductor	Phosphor Bronze or Ag
	Coupling Nut	Brassi Ni
Temp	-40~+85

Mechanical Drawing (mm)

7/16 DIN FEALE RF connector for 1/2" FEEDER CABLE
