Customized bimetal temperature switches for household appliances

HC01 temperature control switch is sensitive and reliable,usually used in home appliances.



HC01 series temperature switch for household appliances



The HC01 series customized temperature switch adopts the material chip imported from the United States, which makes the disconnection time and trip temperature more accurate. Contacts are made of AgNi alloy to ensure longer life and more reliable. Terminals of HC01 sensitive temperature control switch are diverse, available for customer selection and customization.HC01 series is widely used in home appliances.



Features

Small size, long life and high reliability.

High level bimetal ensure that it can withstand the current of normal circuit.

The combination of bimetal and heater strip can action snappily.

Accurate trip off time can prevent motor from overheating.

Both temperature and current sensitive.

Each type of parts strictly implemented European ROHS environmental standards.

Terminals are optional and customized.

Available terminal specifications: A. same insert B. opposite insert C. same terminal D. opposite terminal E.

Wires are optional and customized.



Specifications

Item No.

HC01/6AP

Electrical specifications

45 amps/15 volts DC

15 amps/30 volts DC

28 amps/250 volts AC

30 amps/125 volts AC

Operating temperature range

30°C-180°C (optional and customized)

Temperature tolerance

±5°C,±8°C,±10°C

Trip off current range

1-45A

Trip off time

4-10s

Case material

Metal

Wire

Optional and customized



Applications

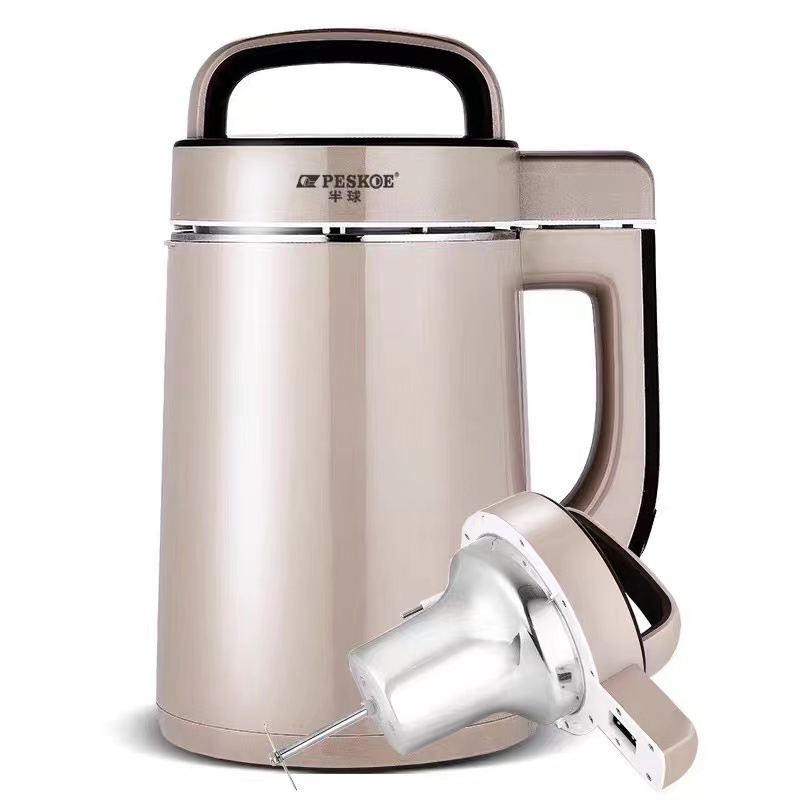

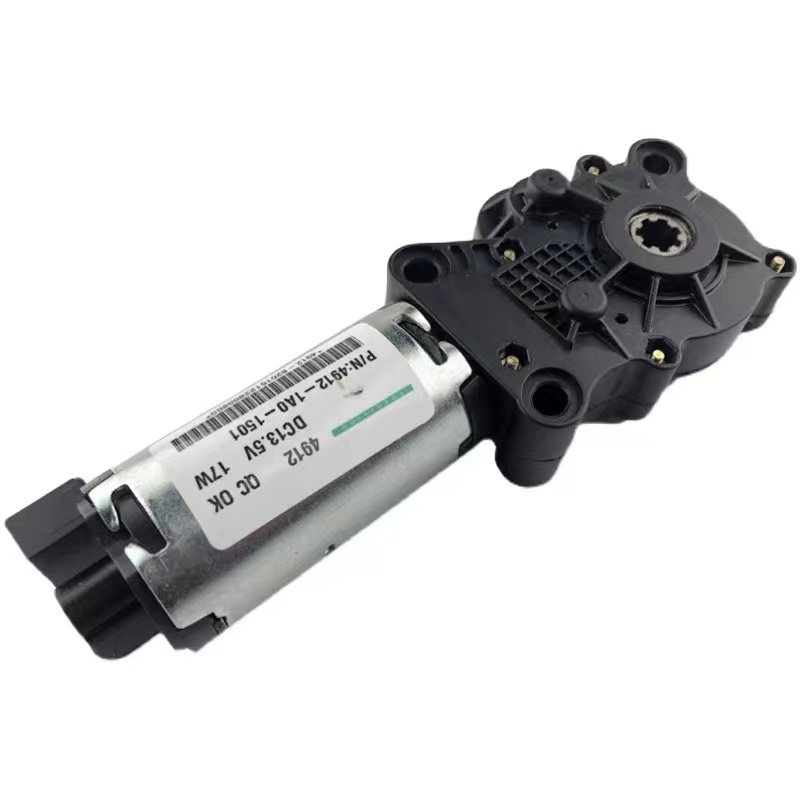

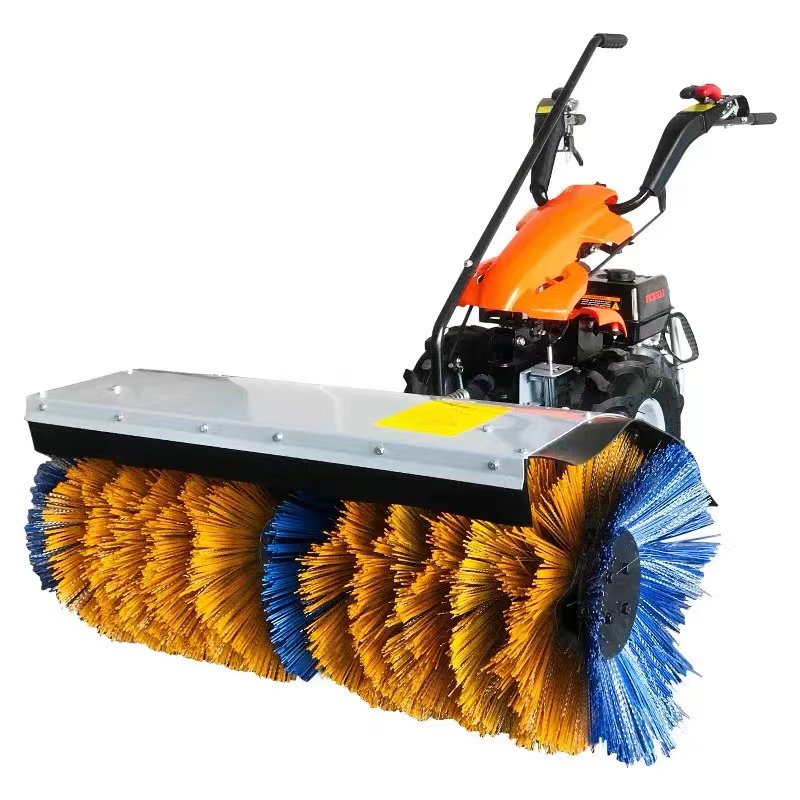

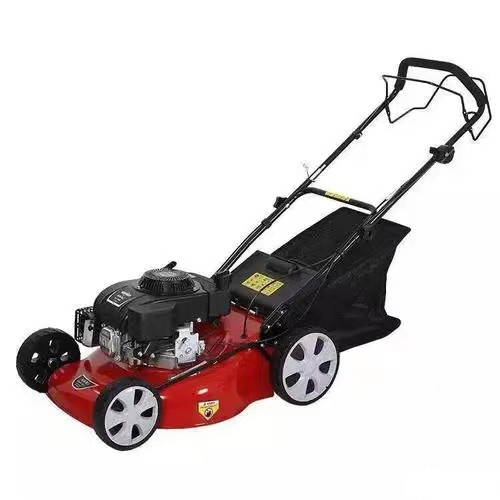

Lawn mowers Seat motors Snowplows Soybean milk machines

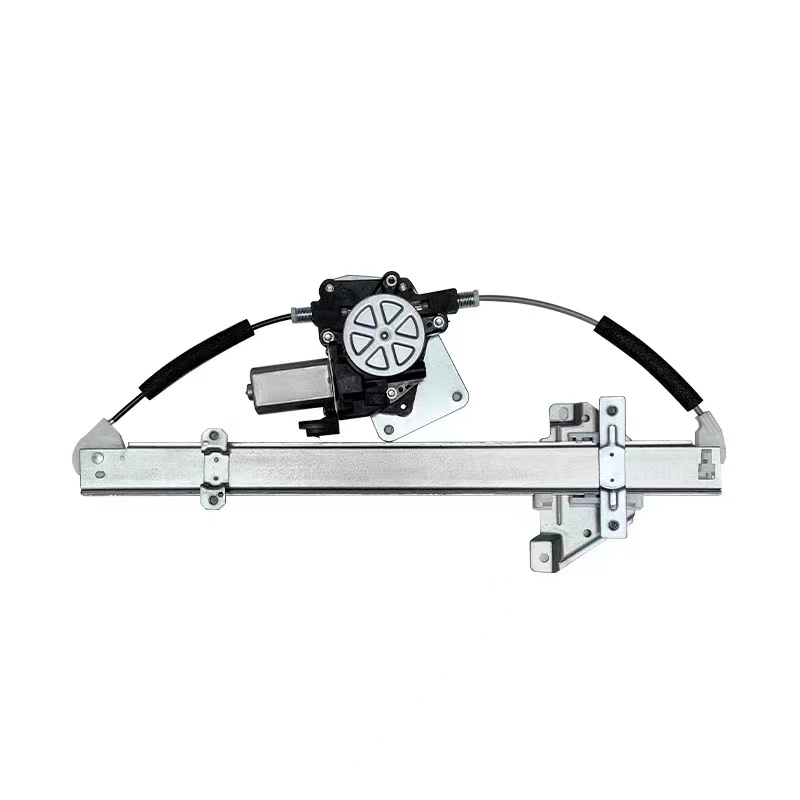

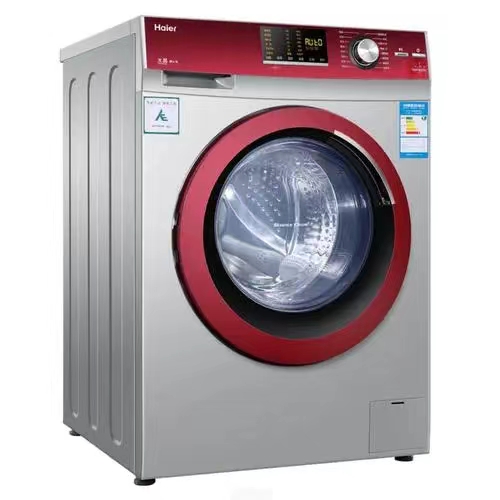

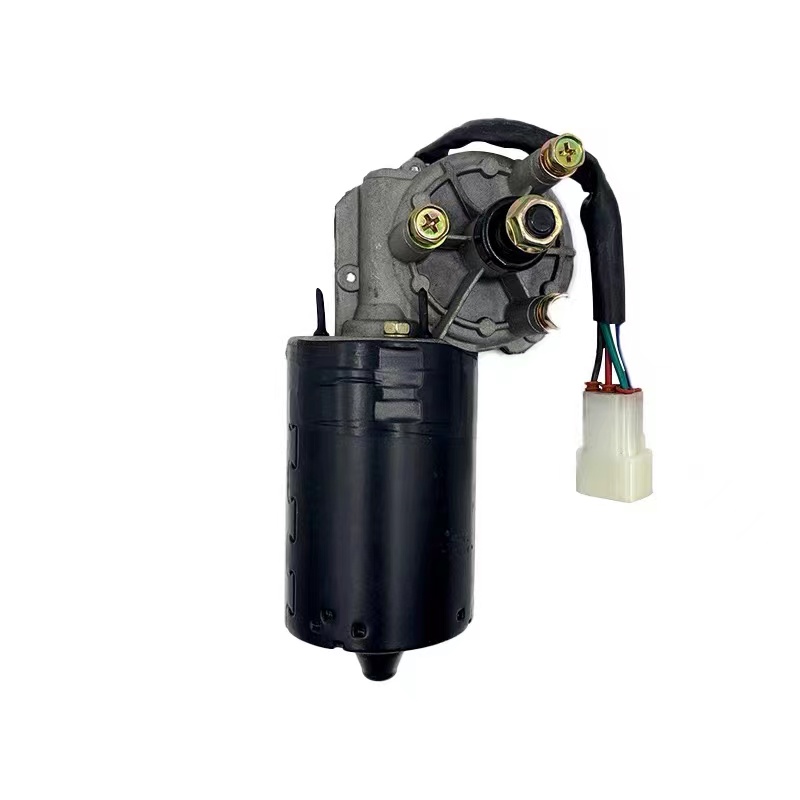

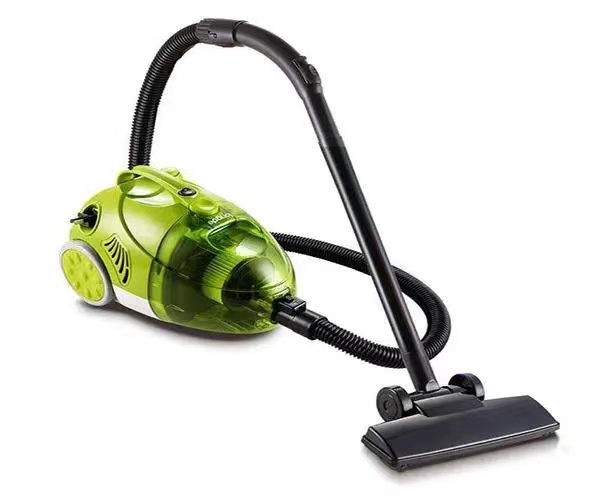

Vacuum cleaners Washing machines Window motors Wiper motors

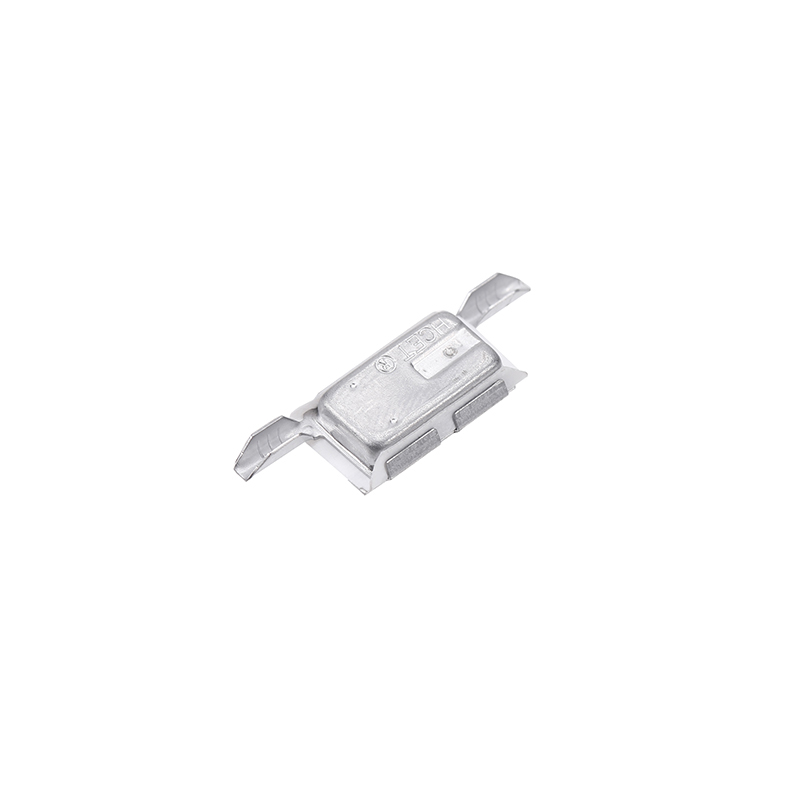

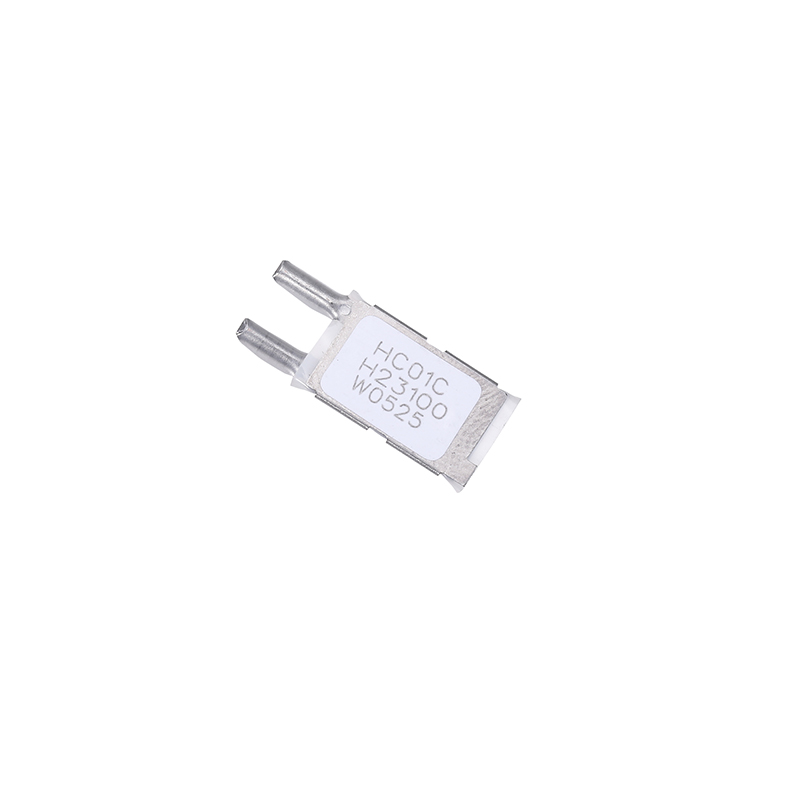

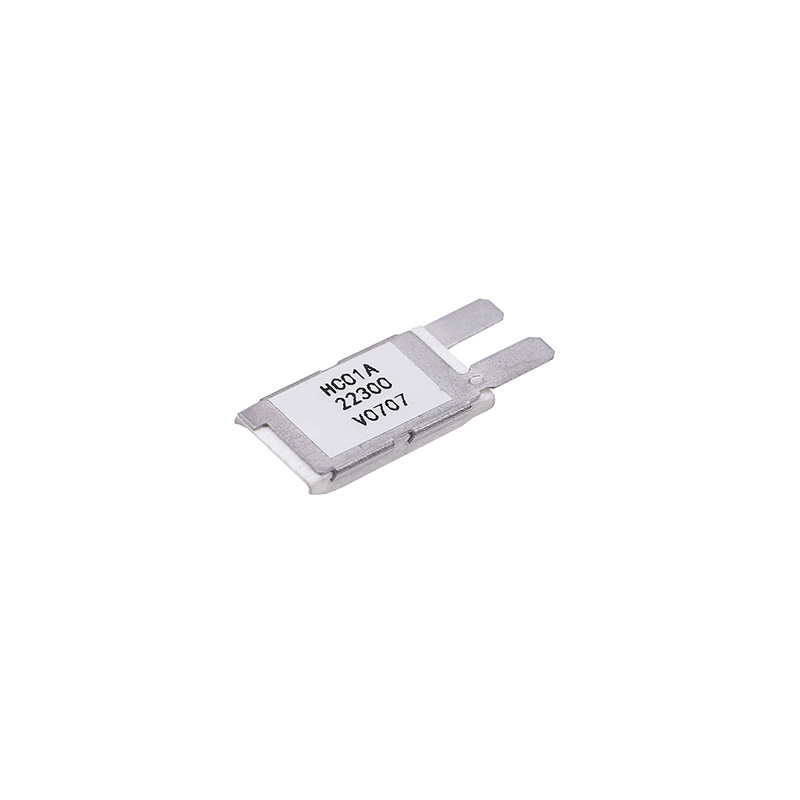

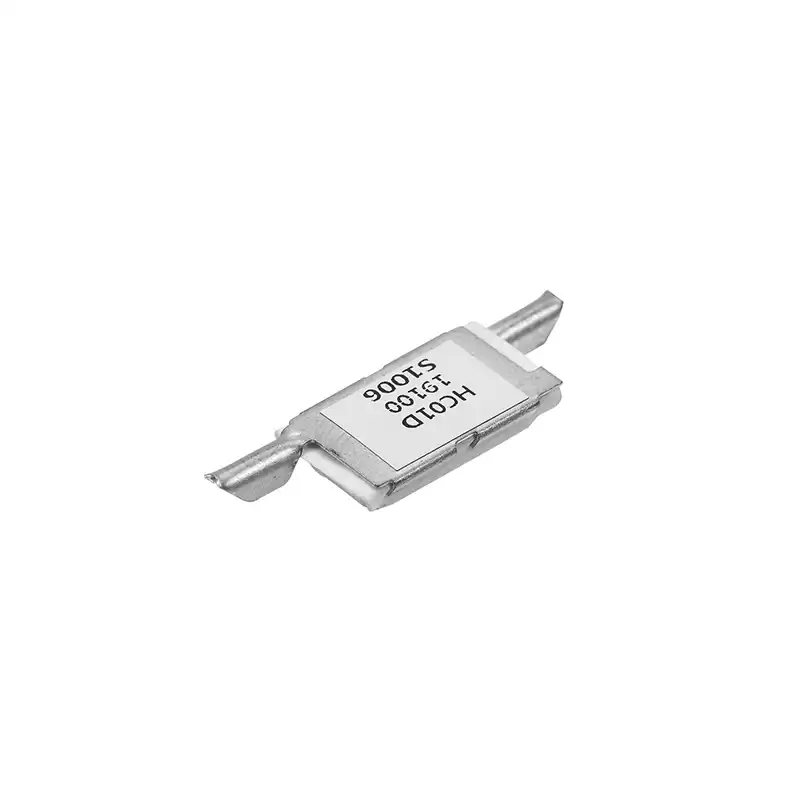

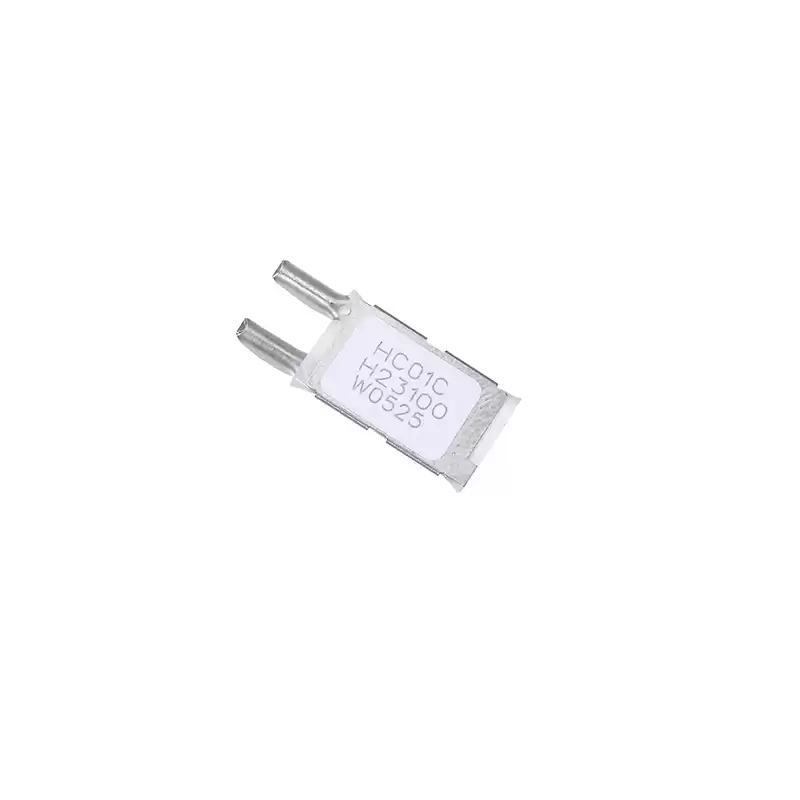

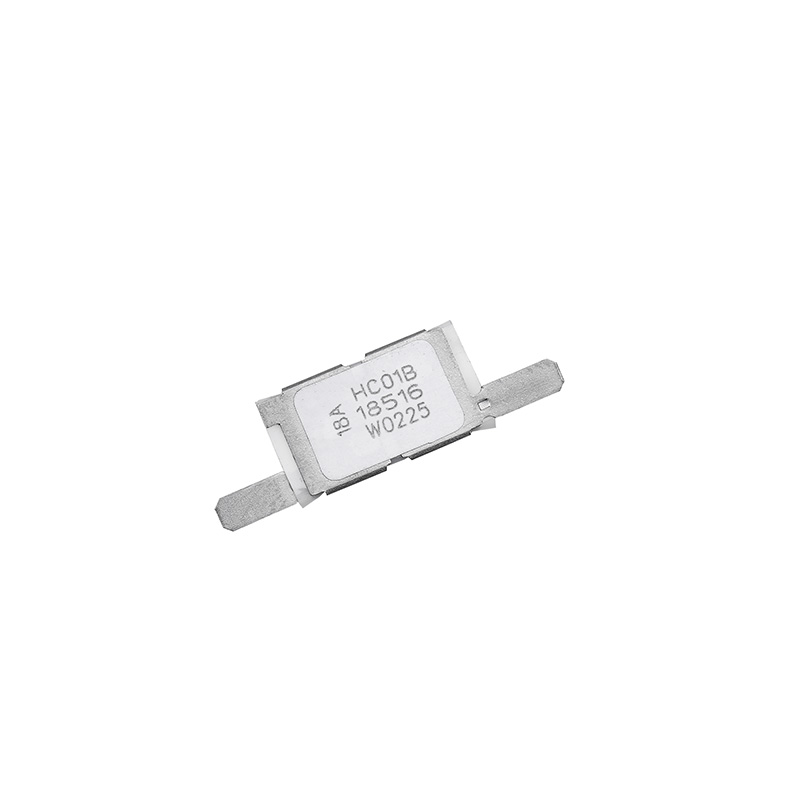

Product display

Bimetal temperature switch for electric fanCustomized bimetal temperature switchSensitive bimetal temperature control switchBimetal temperature switch for household appliances

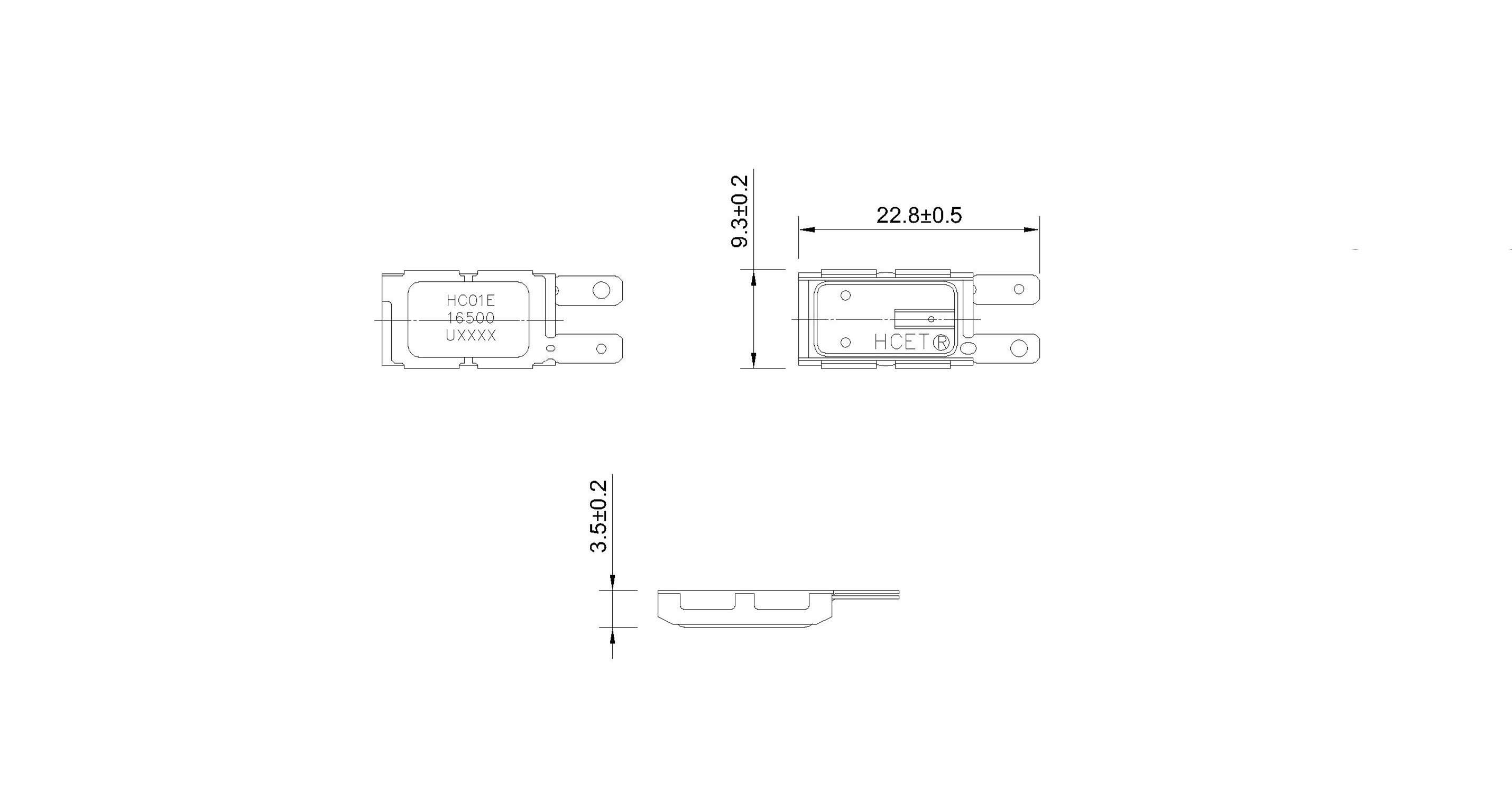

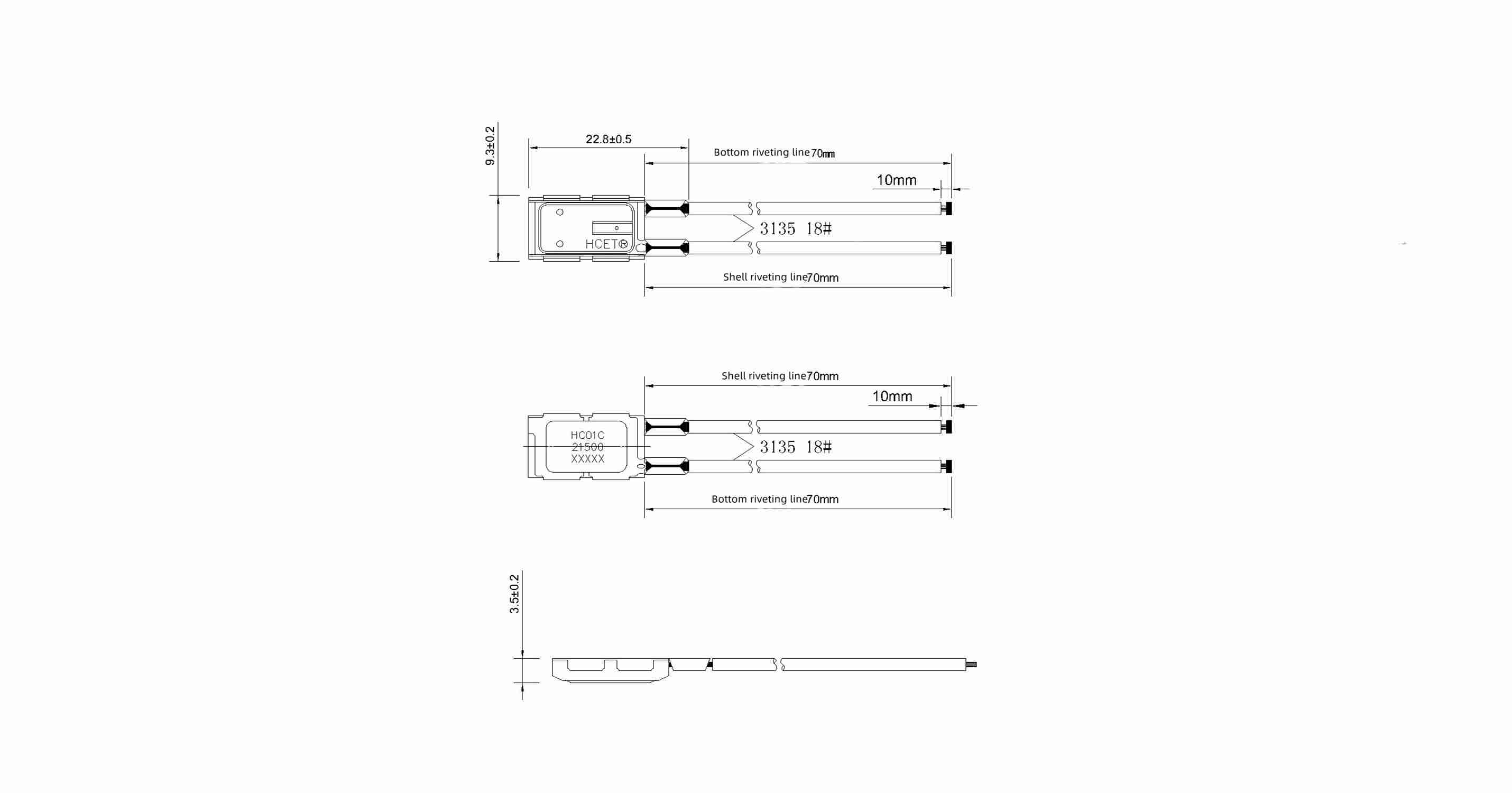

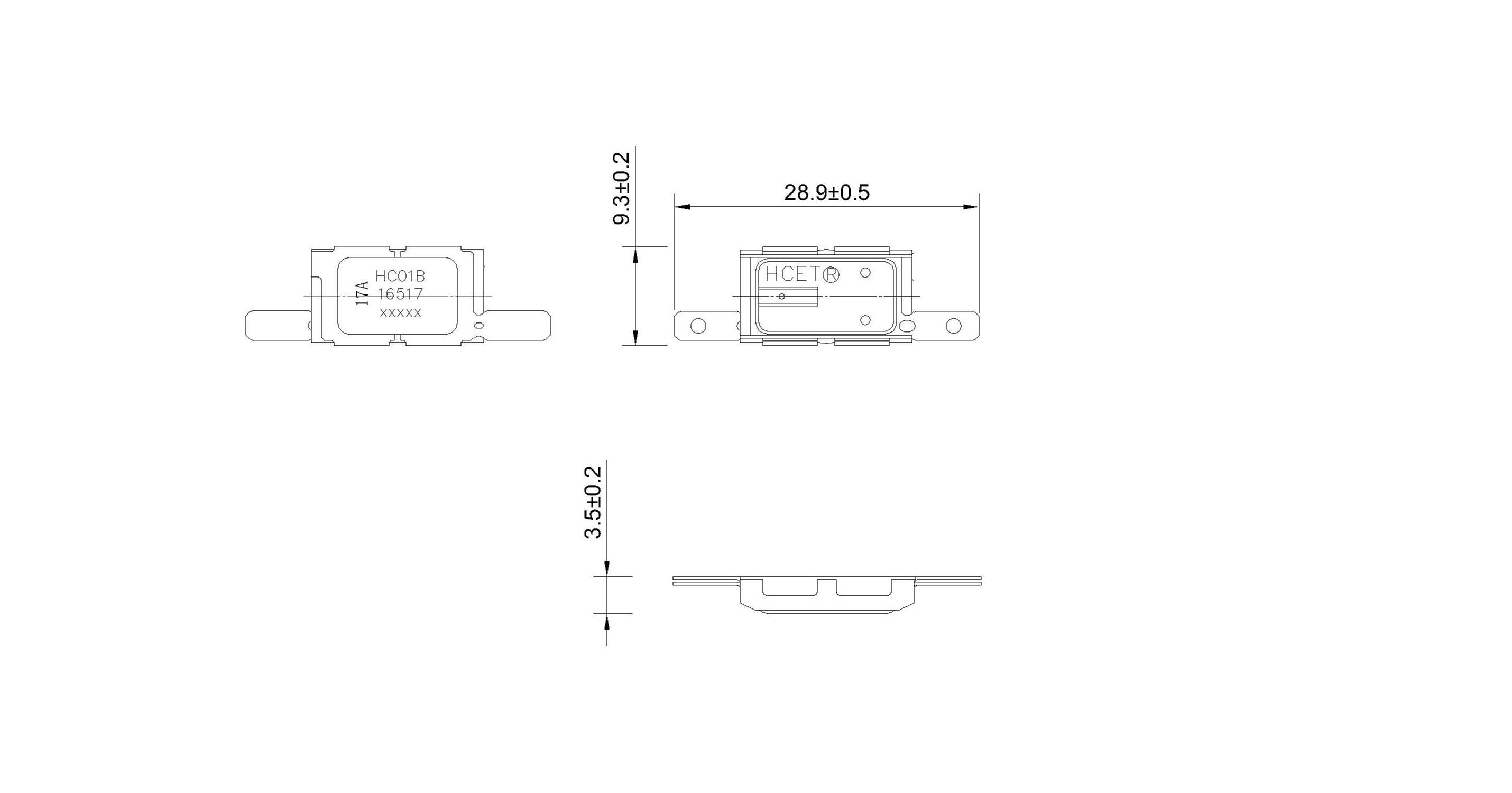

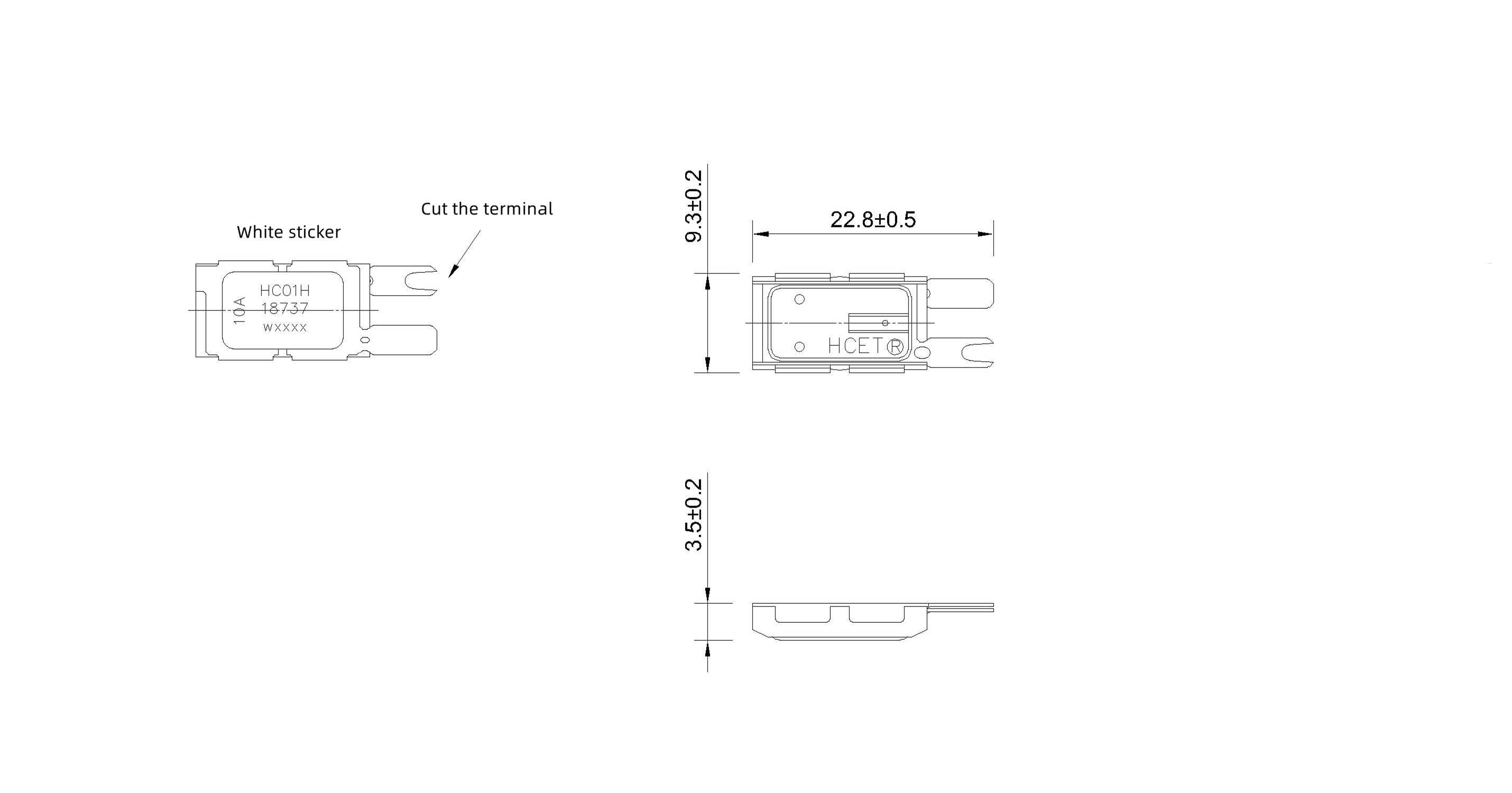

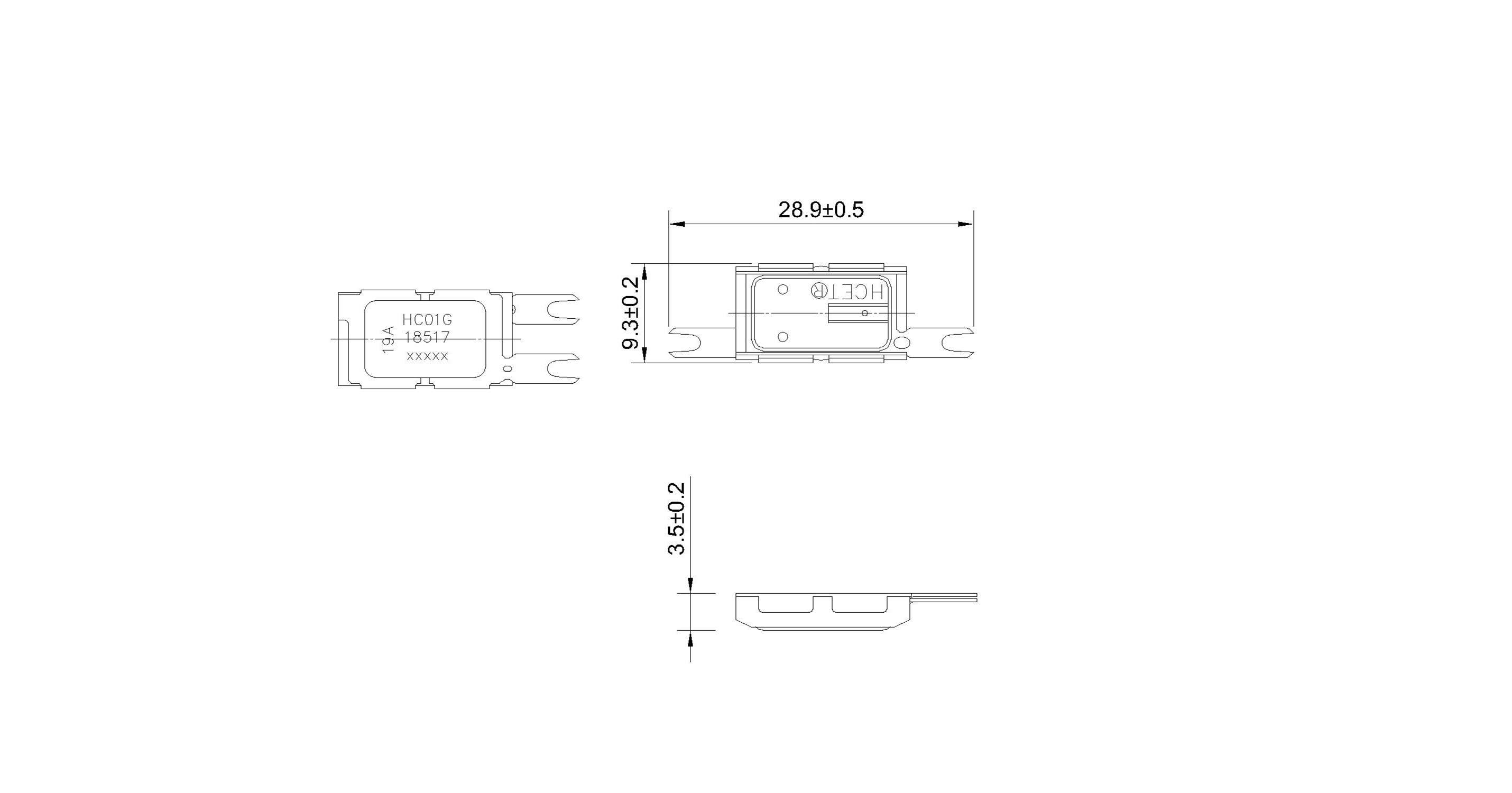

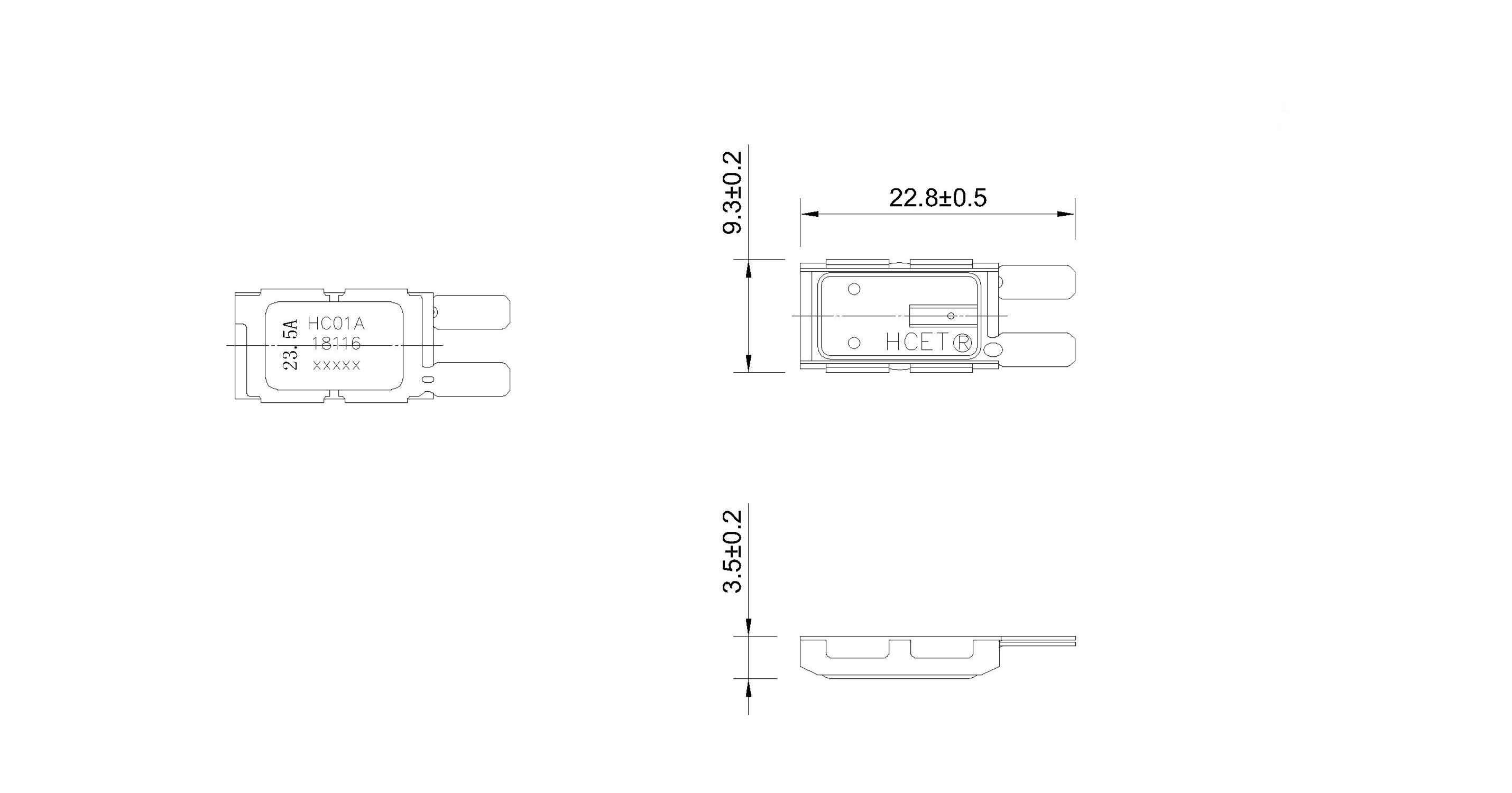

Size details

bimetal temperature switch drawing

bimetal thermostat switch

bimetallic temperature switch

KSD9700 thermal protector diagram

thermal protector diagram

motor overload protectors diagram

Packing & Delivery



Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.

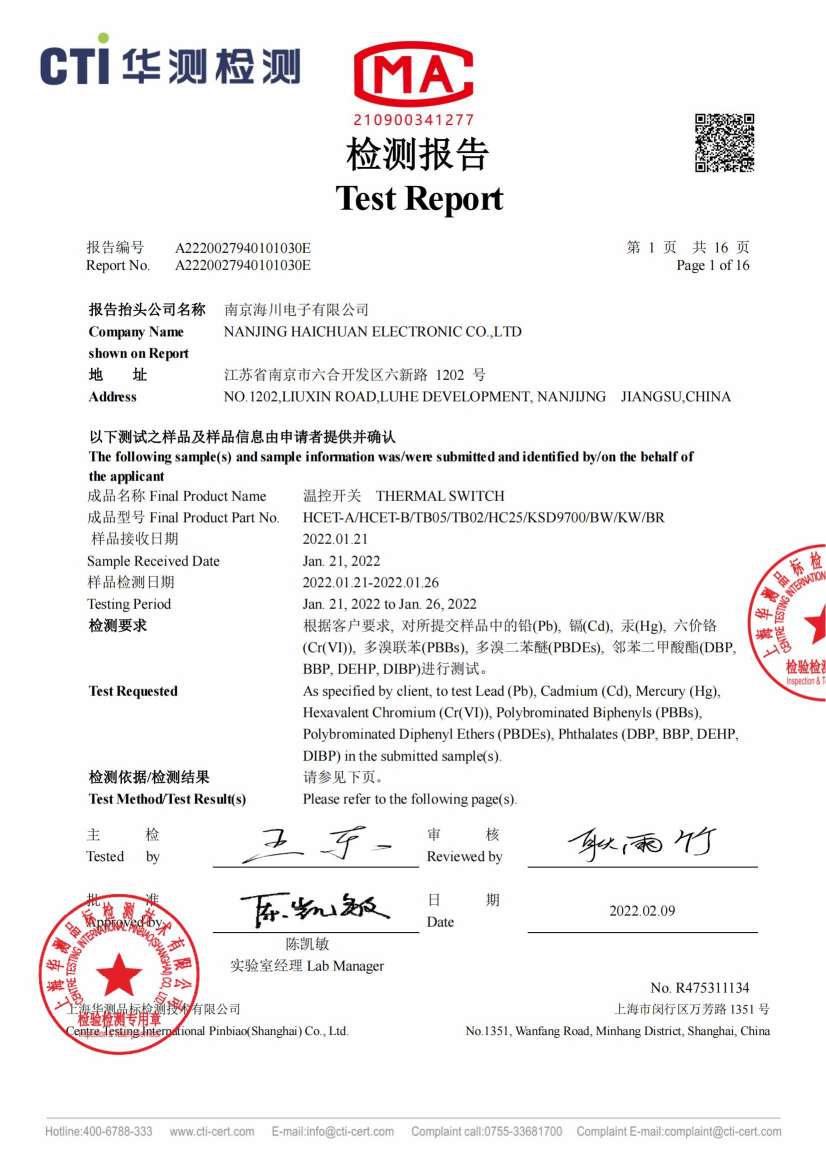

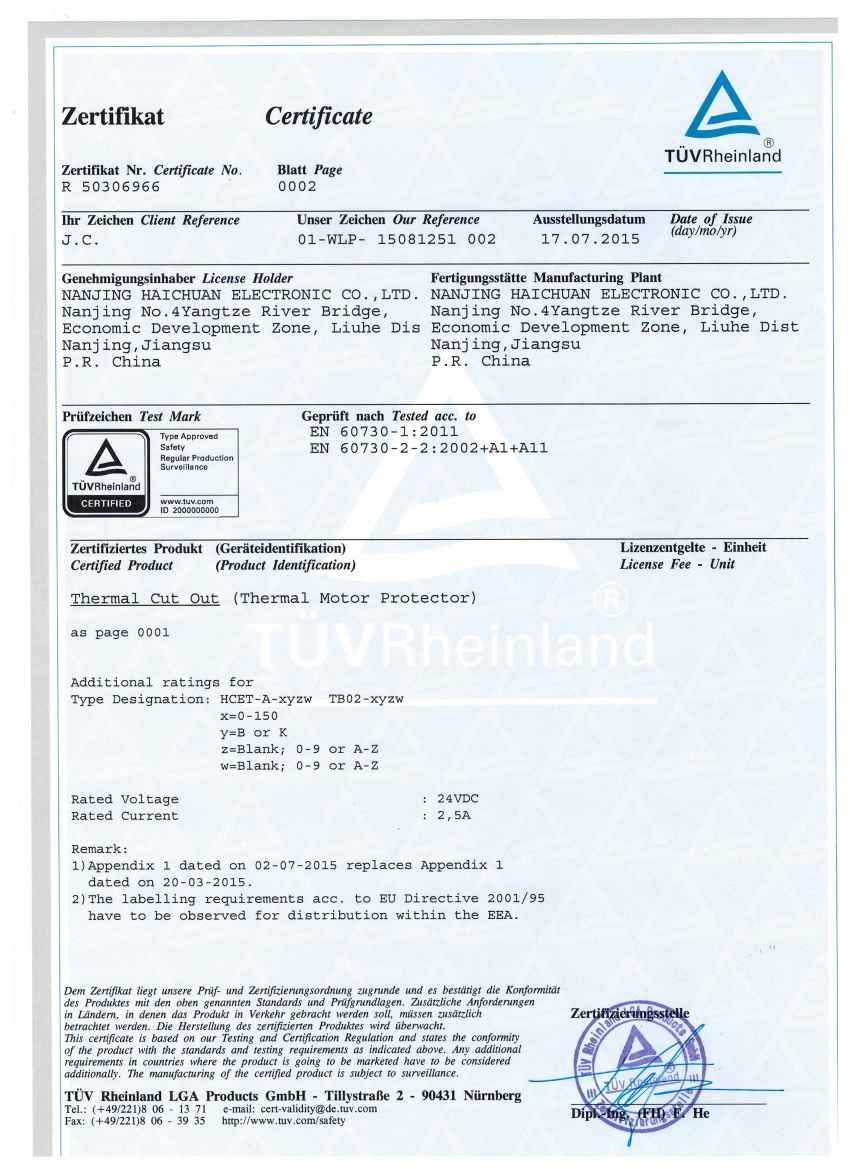

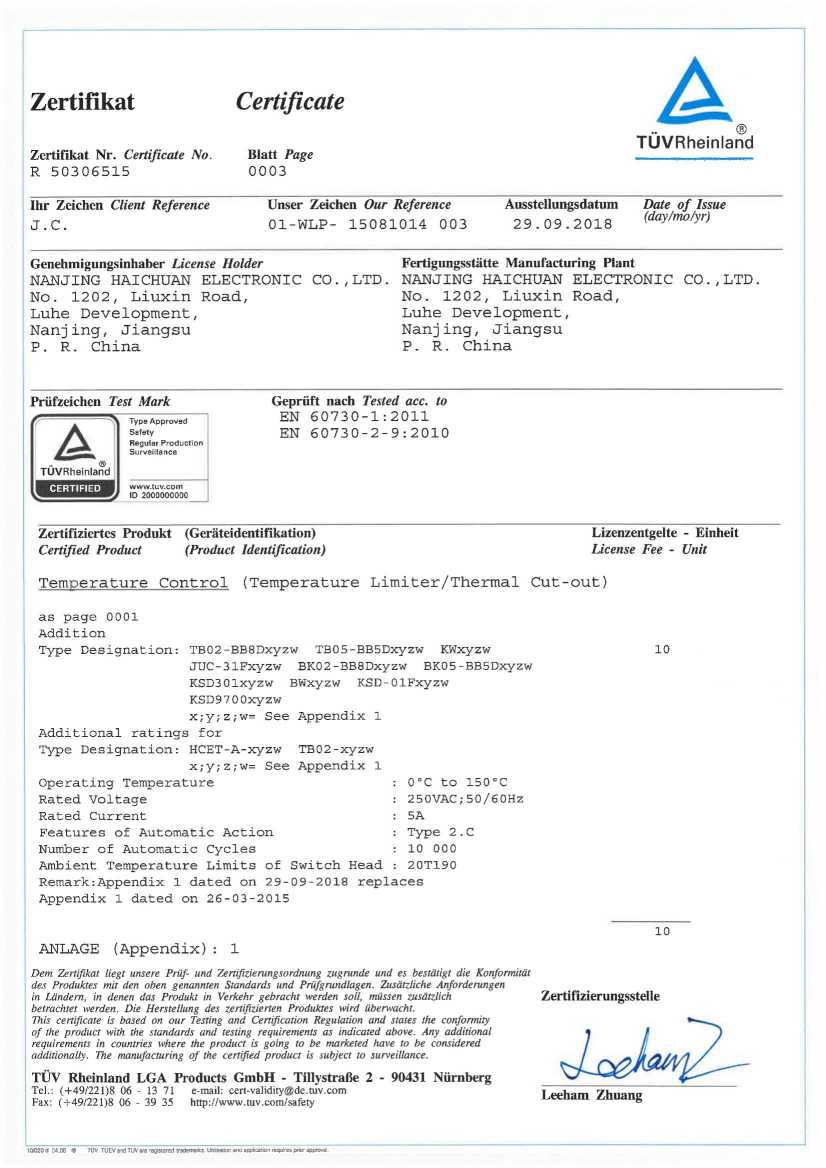

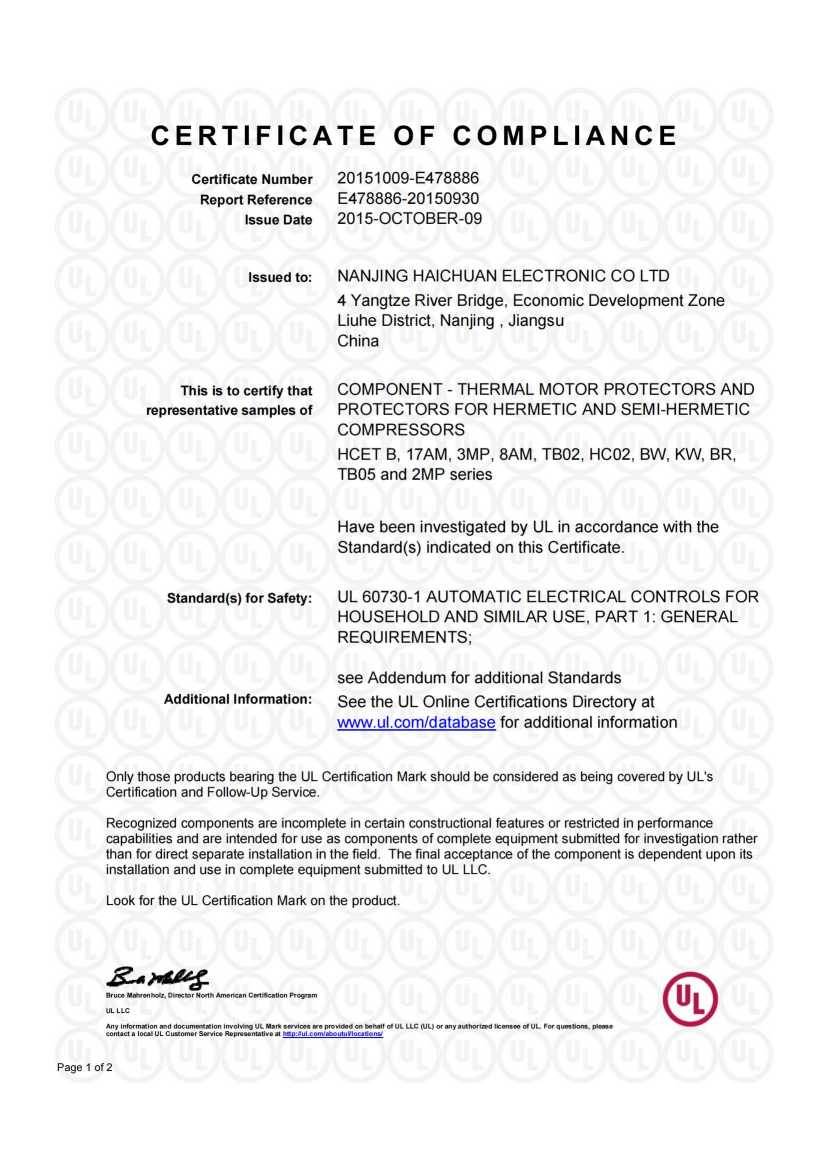

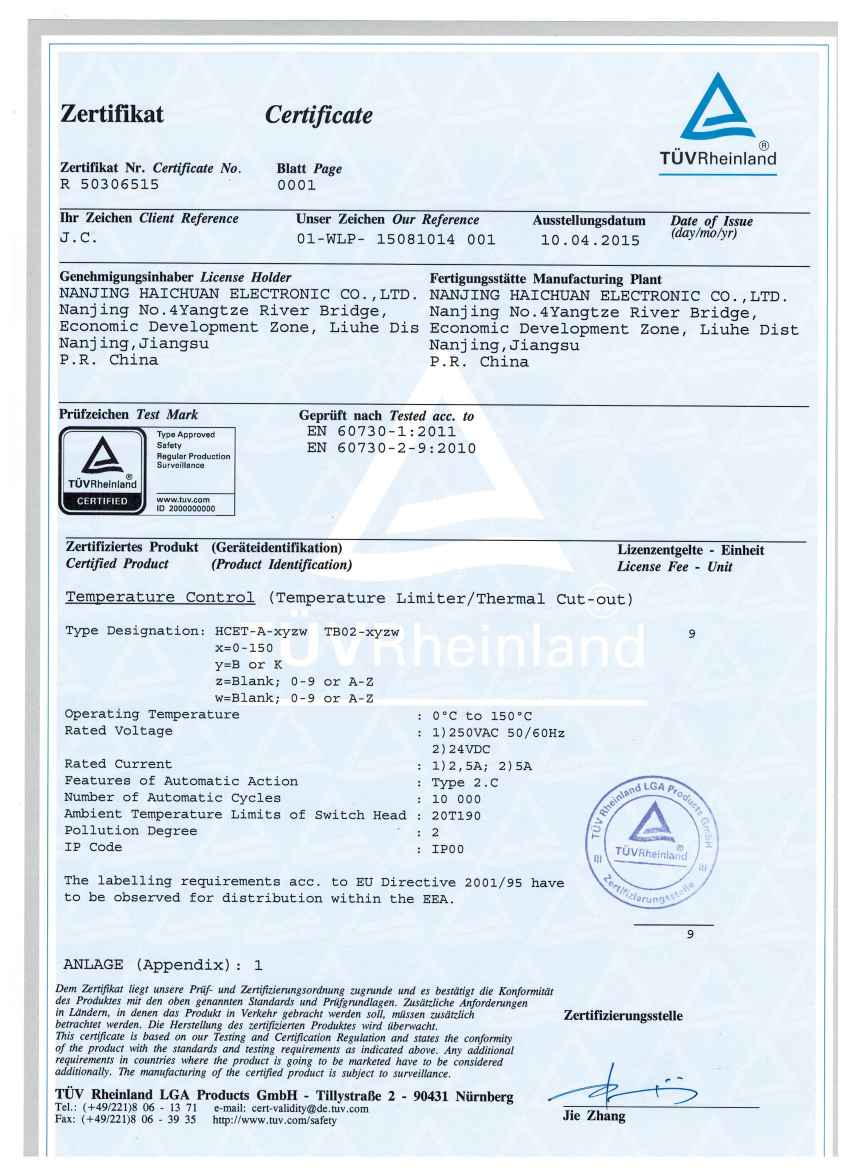

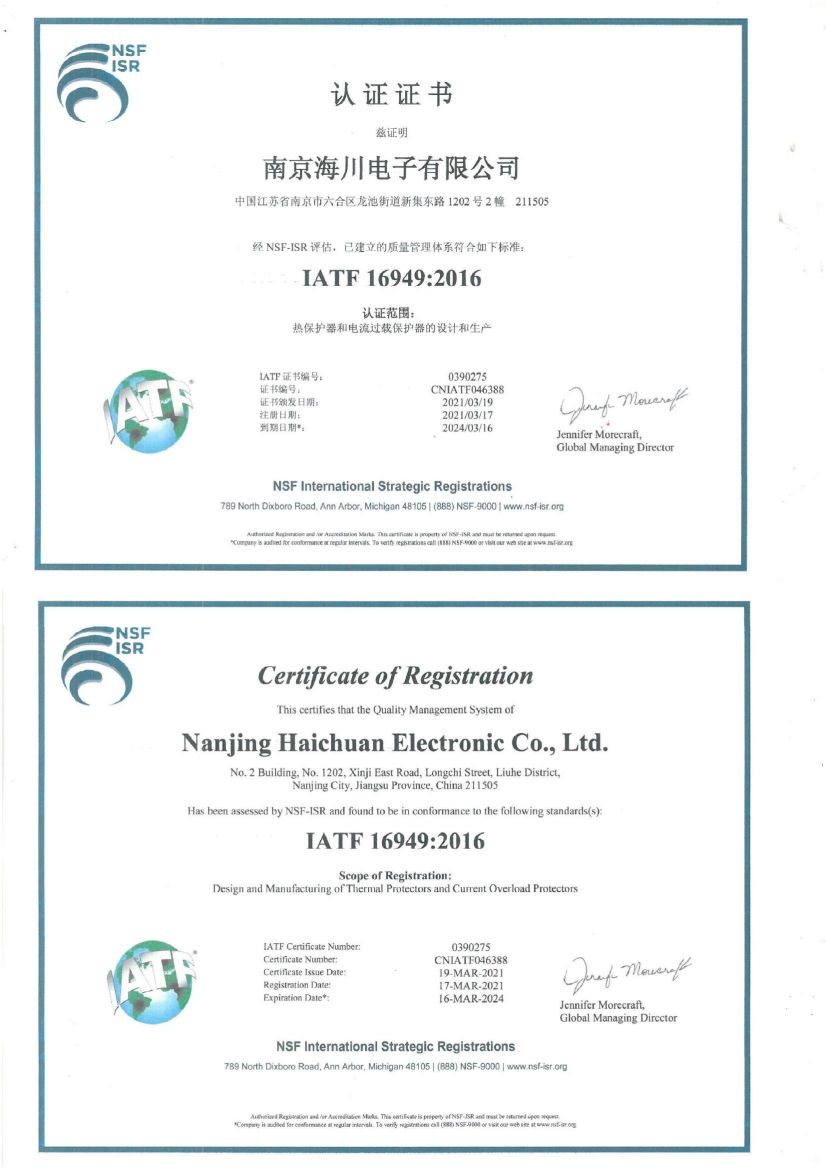

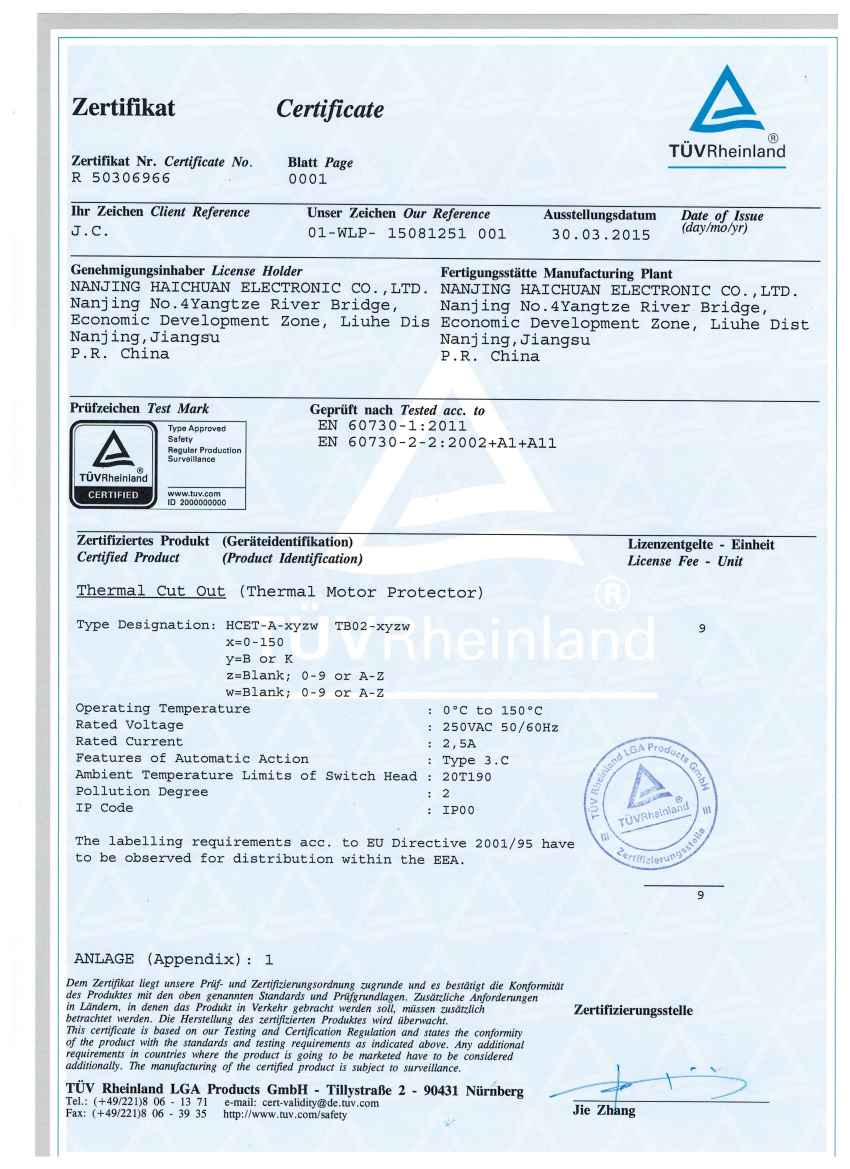

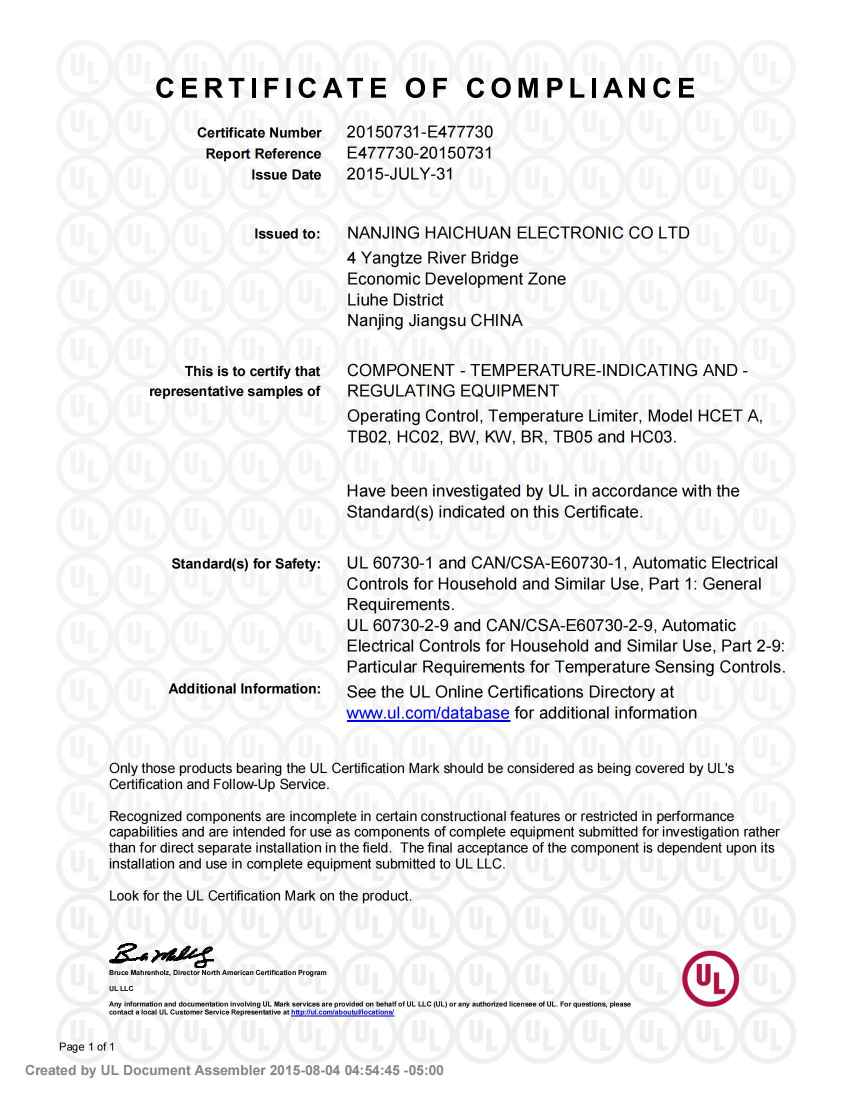

Certificates

Nanjing Haicheng Electronic Technology Co., Ltd. is a national high-tech enterprise which has passed the ISO/TS16949 quality management system certification. It has a number of independent patents, and its products have passed the UL, TUV, CQC, PSE multinational international safety regulations certification.
