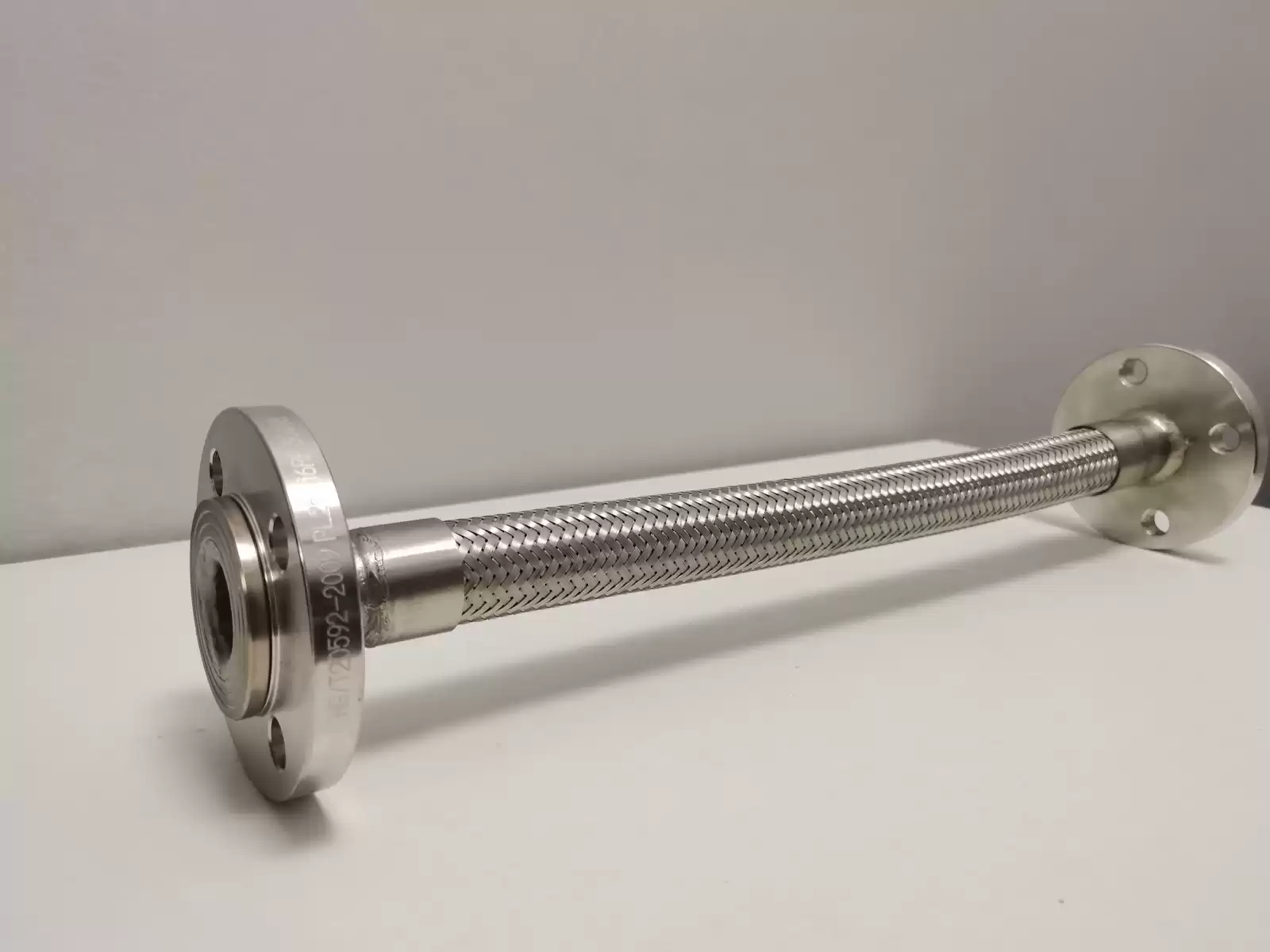

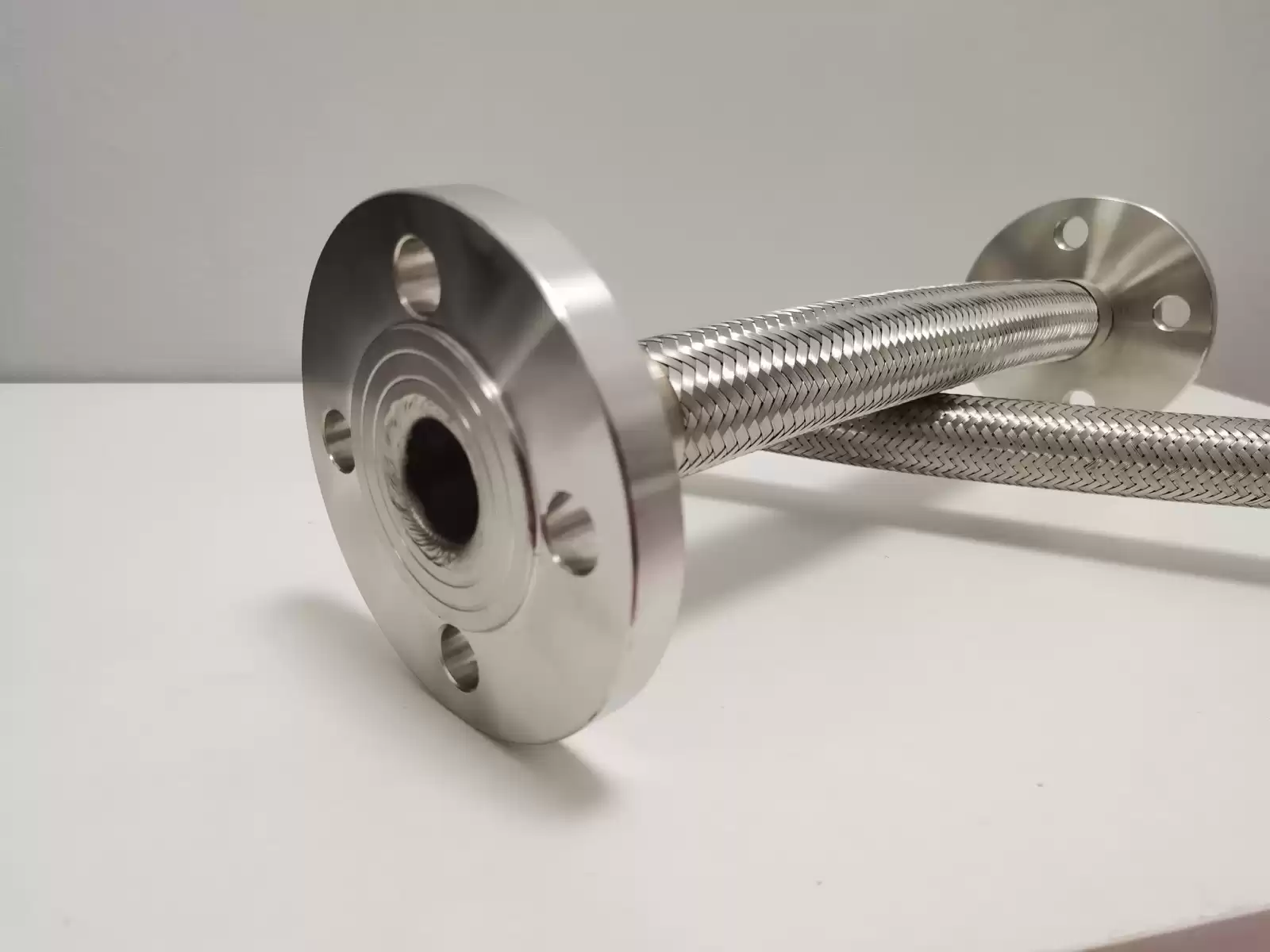

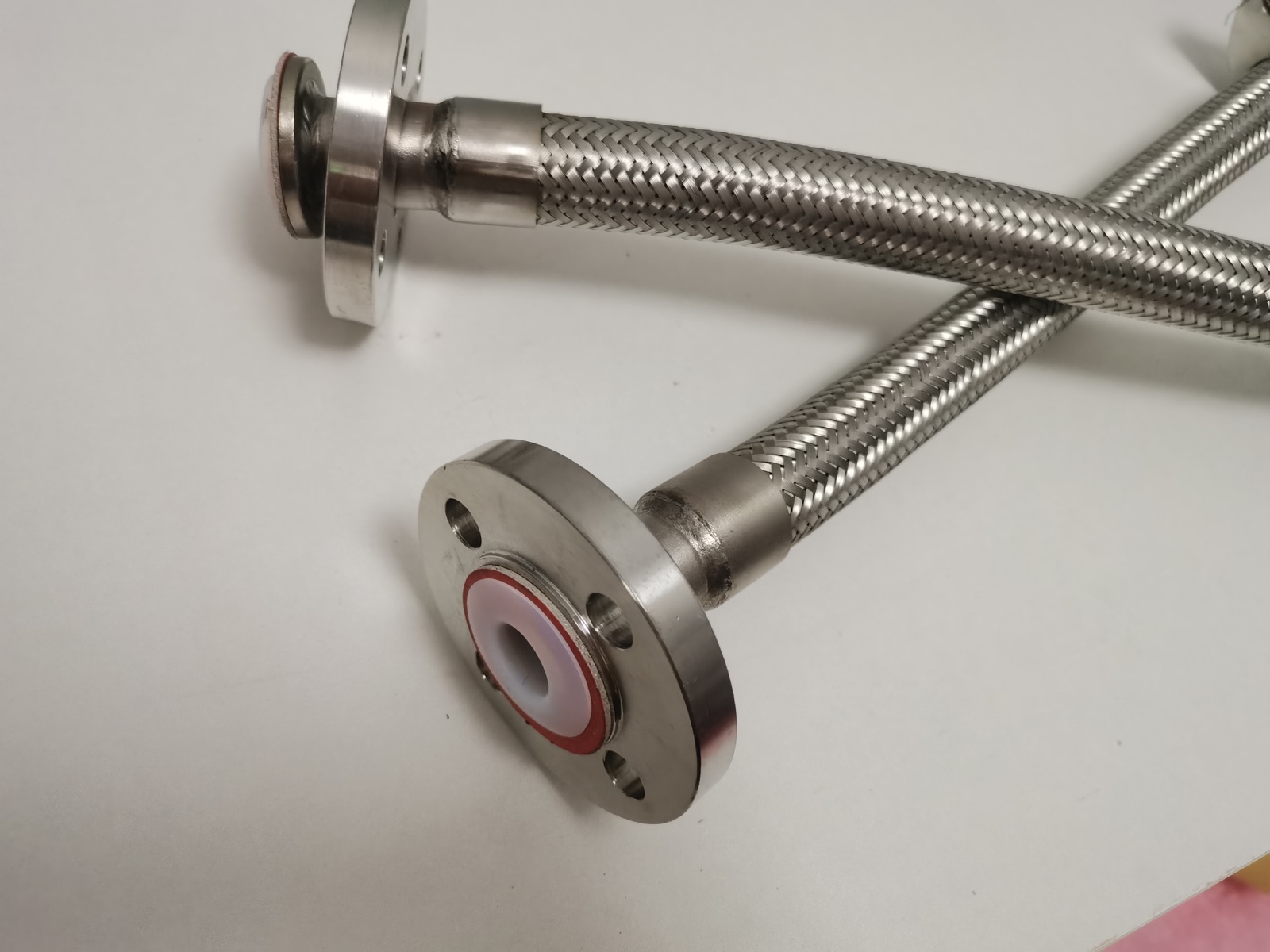

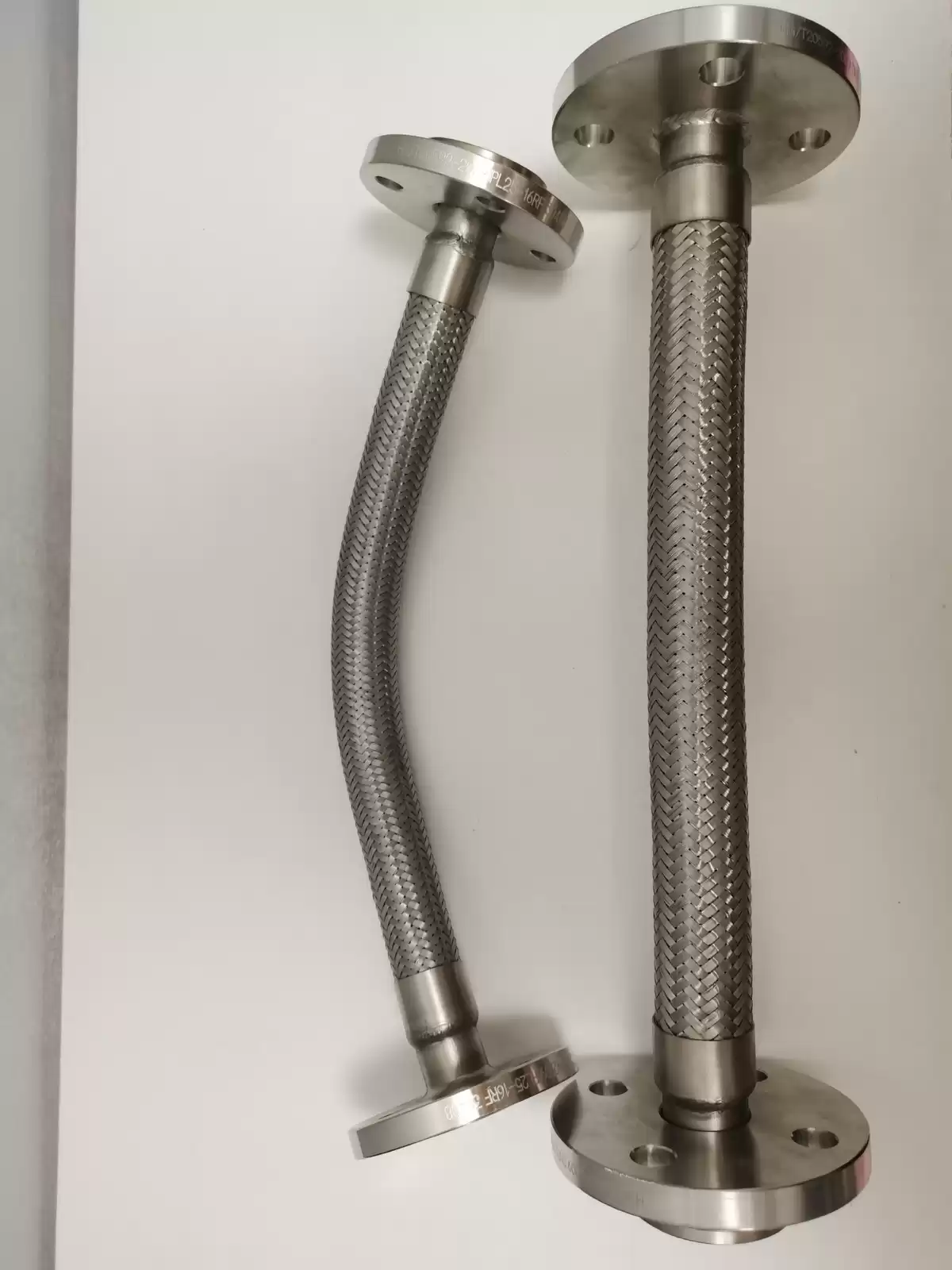

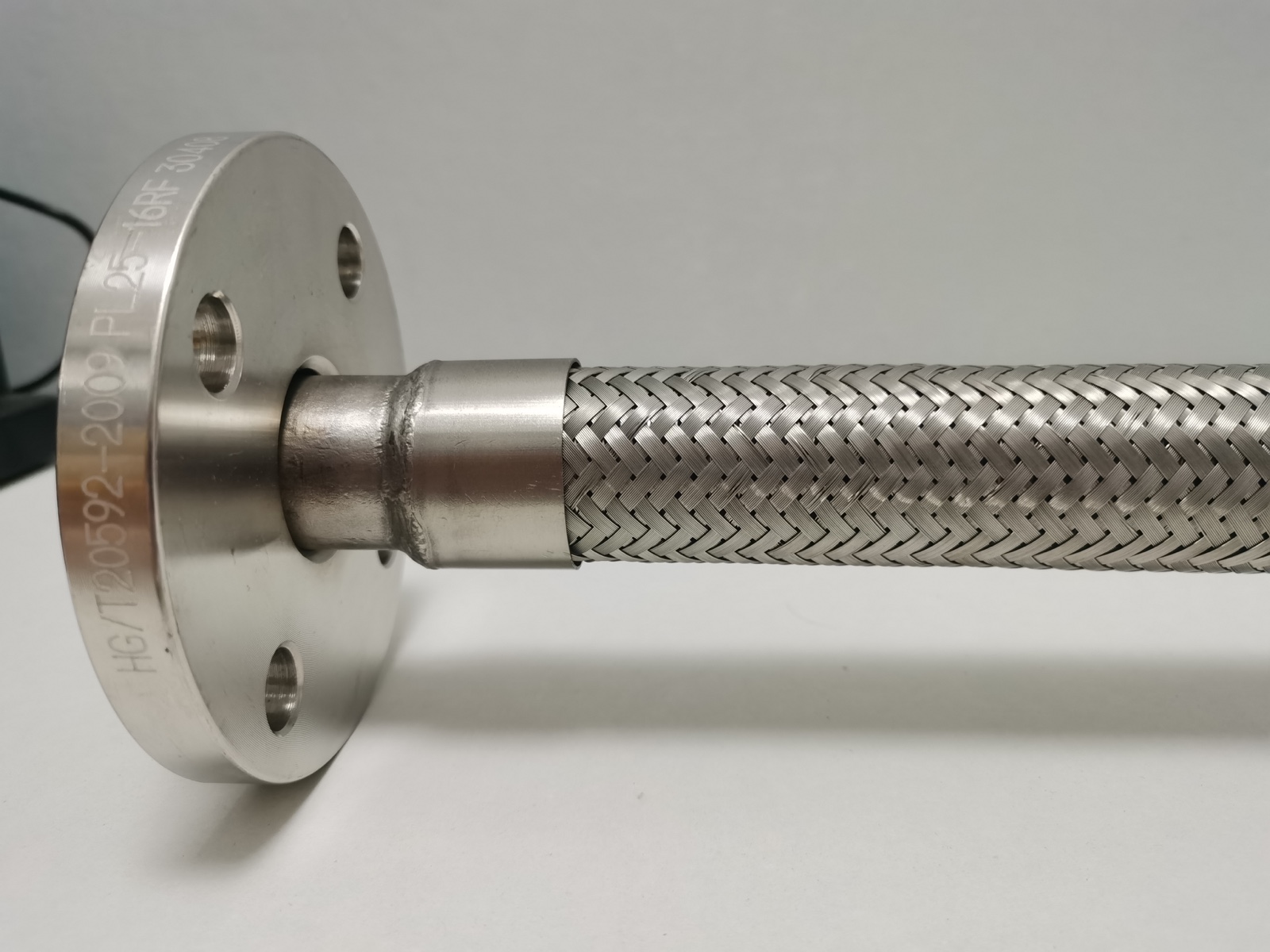

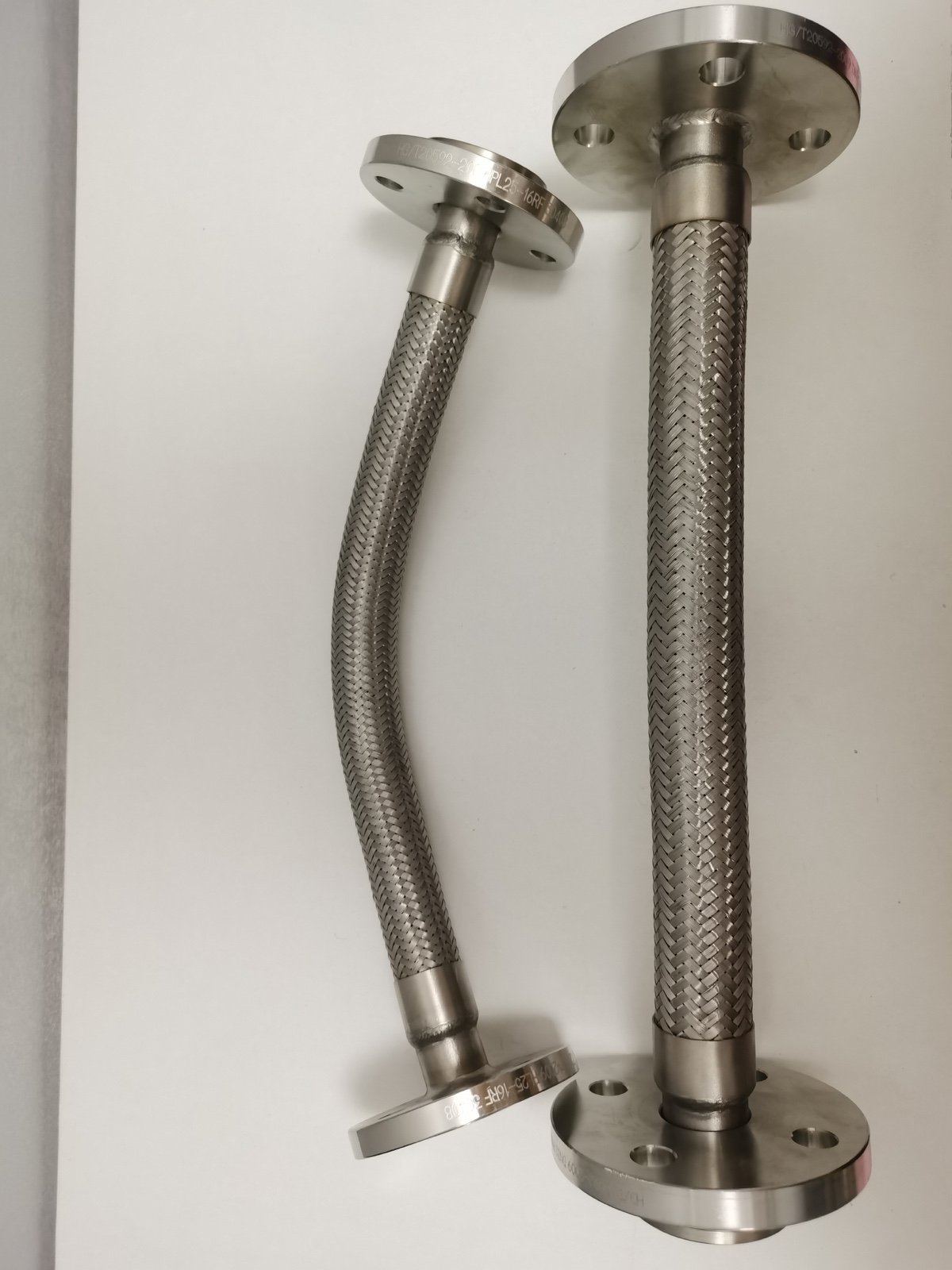

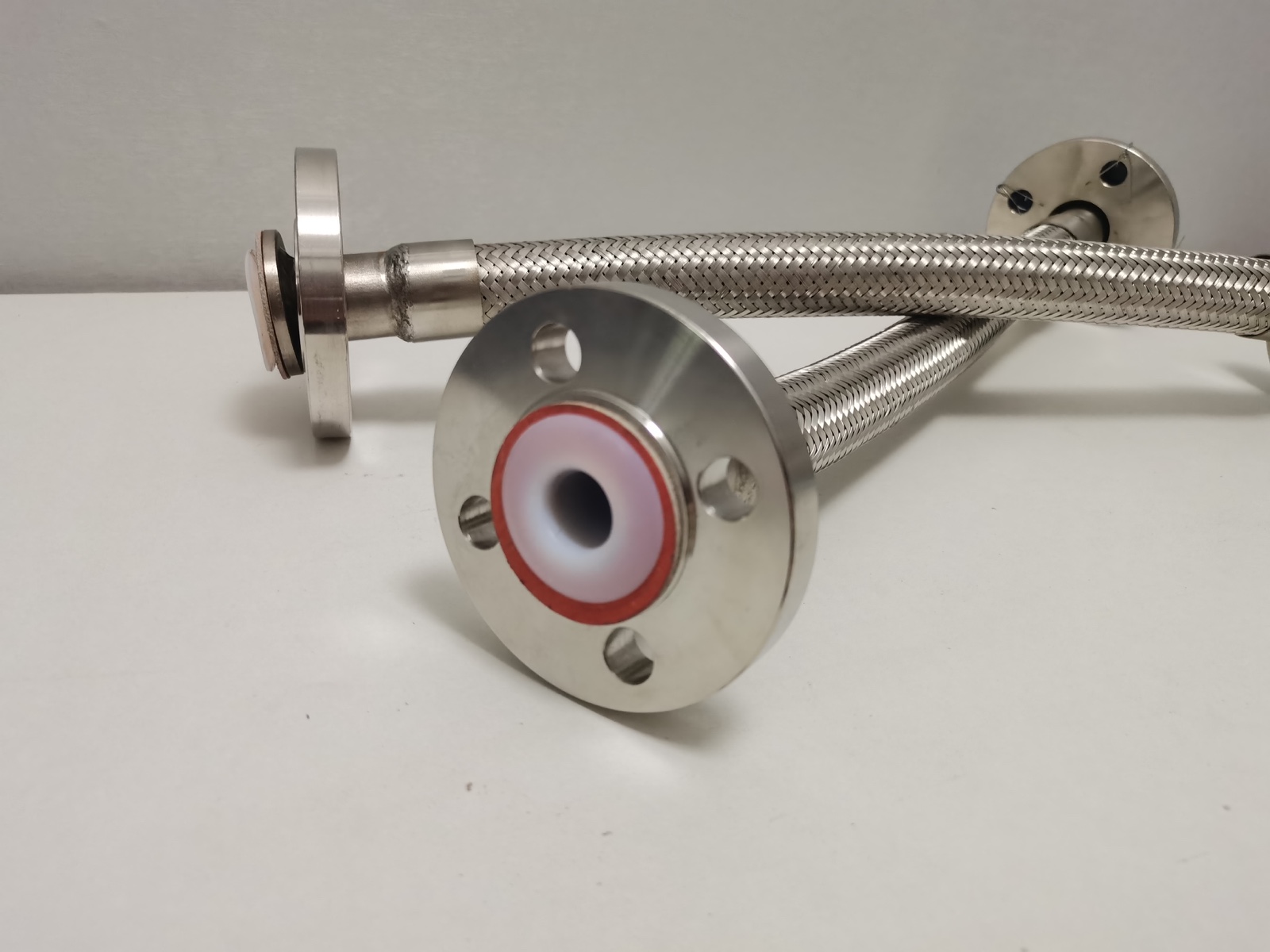

Customized Braided Flange Flexible Hose

Experience the unparalleled quality and reliability of our Customized Braided Flange Flexible Hose. We pride ourselves on delivering an extensive range of customizable options, ensuring we meet your specific requirements for various types and sizes. With our commitment to prompt delivery, non-standard customization, and a steadfast and dependable supply chain, we stand as your trusted and stable supplier.

Precision Engineering:
Our Customized Braided Flange Flexible Hose offers unparalleled versatility and adaptability to meet the most demanding industrial needs. We tailor each hose to your precise specifications, including I.D, O.D, Length, Connectors, Material, Printed Tag, Package, and more. Whatever you require, our design and manufacturing capabilities are fully equipped to satisfy your custom needs.

Critical Soft Connections in Industrial Pipelines:
The Braided Flange Flexible Metal Hoses serve as crucial soft connections within industrial pipelines. Our hoses feature flat welding flanges and loose sleeve flanges for connectors. Flat welding flanges are primarily used for short pipe connections, while loose sleeve flanges address the challenge of mismatched flange holes in long pipe connections. Flange materials typically include carbon steel, cast steel, and stainless steel.

Premium Materials for Superior Performance:
Crafted from premium 304, 316, or 316L stainless steel, our Metal Corrugated Hoses exhibit exceptional pressure resistance, high and low-temperature resistance, corrosion resistance, and fatigue resistance. These hoses are ideally suited for conveying water, hot water, steam, gas, air, petroleum, chemicals, and other compatible media. We offer stainless steel corrugated hoses with different grades to best suit the specific medium and application requirements.

Construction of Flexible Metal Hose Assemblies:

• Joint: Flange

• Flange materials include carbon steel, cast steel, and stainless steel.

• Movable flange connections and fixed flange connections are available at both ends.

• Inner Core: Corrugated Stainless Steel

• We offer flexible metal hose materials in 304, 321, and 316L stainless steel.

• Annular or spiral corrugated options are available to meet specific needs.

• The stainless steel bellows are formed with parallel corrugations.

• Outer Core: Braided Stainless Steel Layers

• Our Braided Flexible Metal Hoses feature single or double braided layers.

• The materials used in the layers align with the corrugated bellows, including 304, 321, and 316L stainless steel.

• The braided layers reinforce and shield the hose, ensuring enhanced strength and protection.

Features of the Customized Braided Flange Flexible Hose:

1. Thin-walled stainless steel pipe construction provides remarkable flexibility, scalability, bending capacity, and reinforced protection through a woven net sleeve, resulting in superior load-bearing capabilities.

2. Designed to withstand challenging indoor and outdoor environments, including harsh conditions and various complexities.

3. The hose is compatible not only with rotary joints but also with a wide range of fluid media, making it an ideal choice for conveying applications.

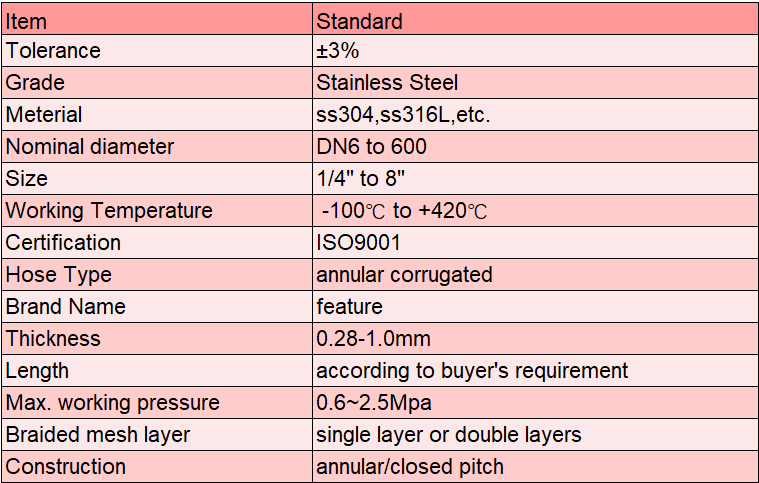

Product Standards:

Quality Assurance:
All our processes are ISO9001 certified, guaranteeing the highest standards of quality. Before shipping, each product undergoes 100% rigorous inspection to ensure complete compliance and customer satisfaction.

Installation Guidelines:
Flexible Metal Hose can be installed horizontally, vertically, or diagonally, with vertical installation being optimal. Avoid positioning the hose near wheels and consider the addition of a baffle if necessary.

Customization Services:

1. Our Customized Braided Flange Flexible Hose offers endless possibilities for specific designs, including I.D, O.D, Length, Connectors, Material, Printed Tag, Package, and more.

2. Our dedicated OEM/ODM services cater to your unique requirements, allowing for custom design and printed specifications to meet your exact needs.

3. We offer the convenience of a free sample order, allowing you to test the product's quality before proceeding with a full order.

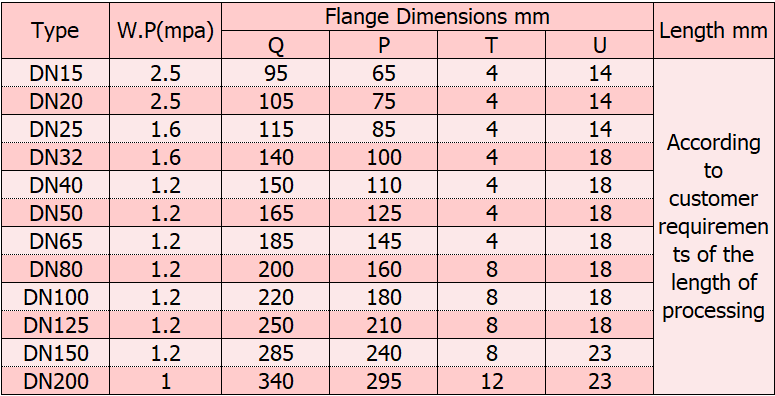

Flange Flexible Metal Hose Performance Parameters As Below:

Experience the reliability and customized excellence of our Braided Flange Flexible Hose. Contact us today to discover how we can meet your specific industrial needs.
