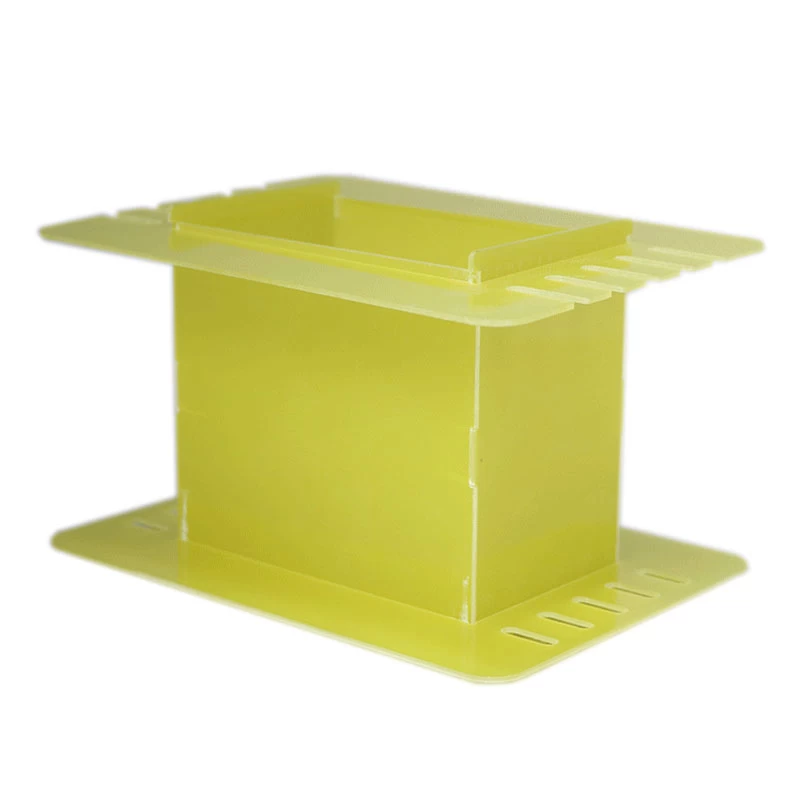

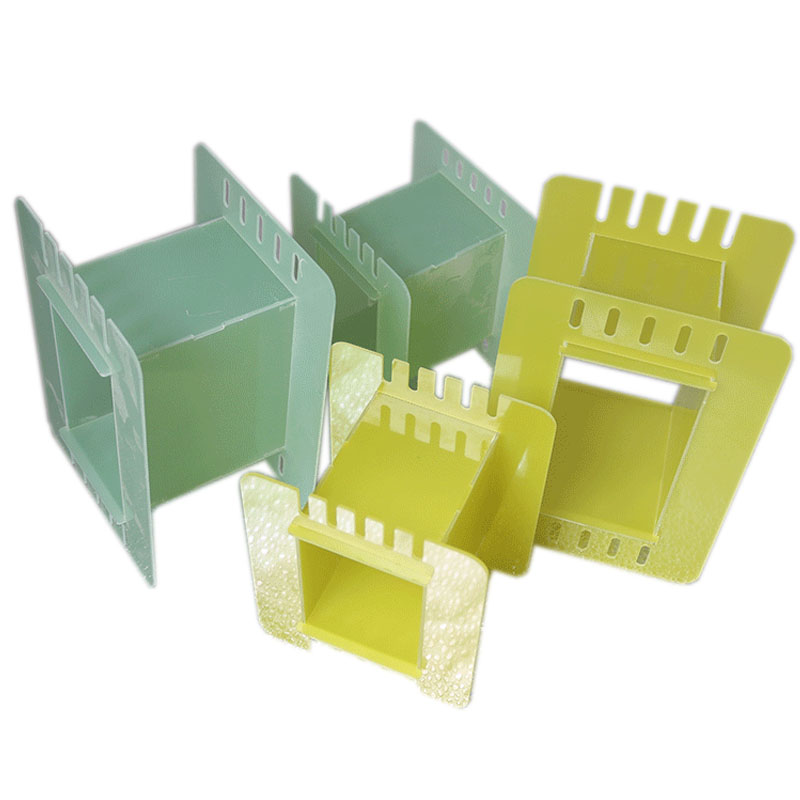

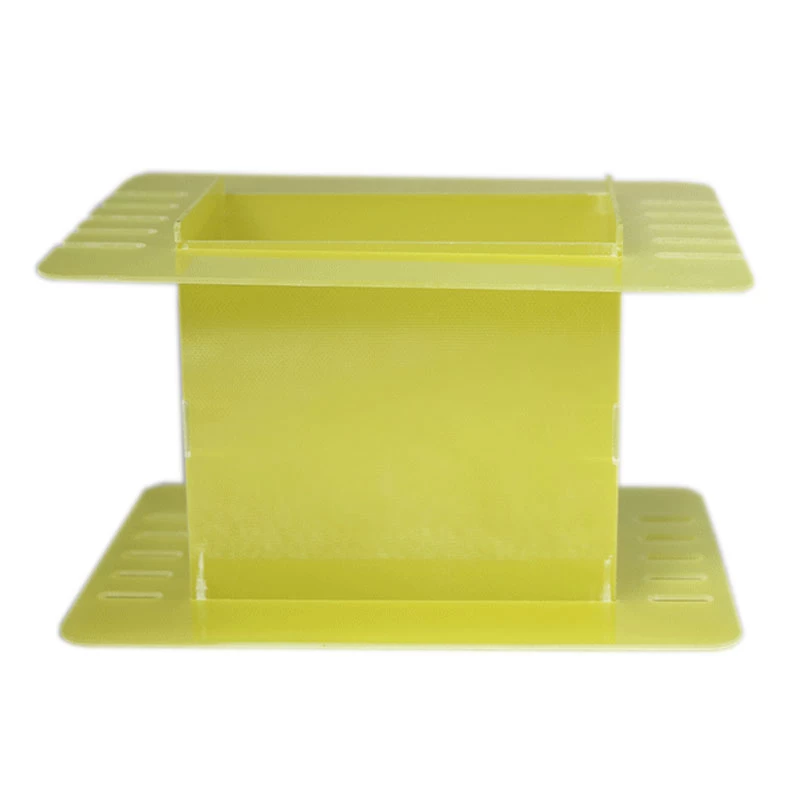

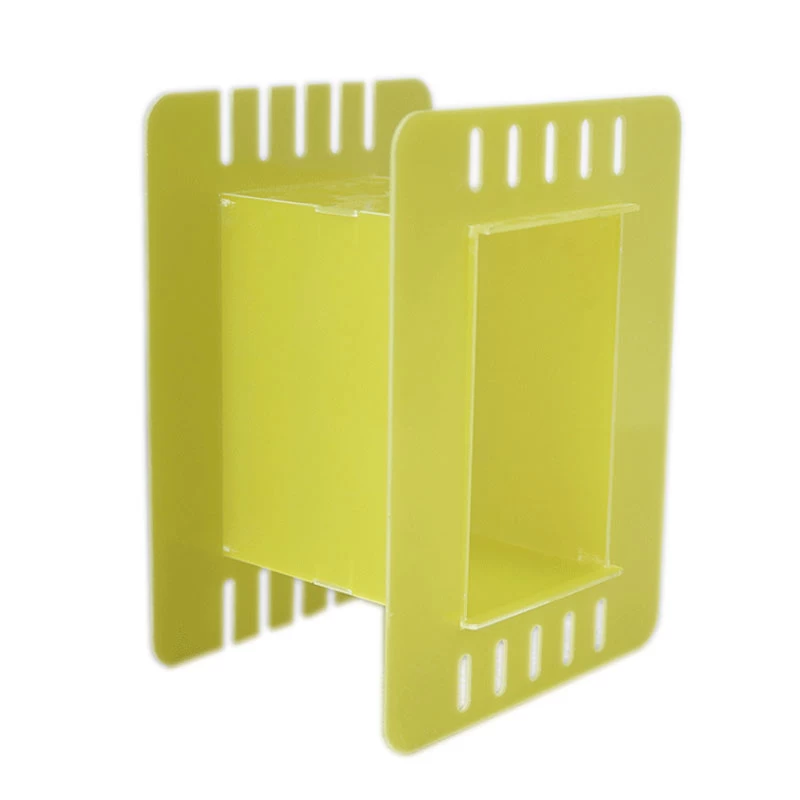

Customized CNC Machining Insulation Parts FR4 G10 Transformer Skeleton and Transformer bobbin

  • Transformer Skeleton and Transformer bobbin
  • All NEMA grades available, Phenolic, Epoxy grades
  • Common Grades include 3240,FR4,FR5,G10,G11.Phenolic paper/cotton laminates,GPO-3...
  • Laminate Insulation is readily machined to customer specifications


  • Inspector reporter
  • Surface Treatment
  • Spindle speed
  • Max.part size
  • Minimum Tolerance
  • Monthly capacity
  • Delivery time(Prototype)

Product Show


Product Description


1,Fire Resistance: UL94 V-0.

2,Good flatness, smooth surface, no pits, standard thickness tolerances.

3,Has good moisture resistance and good dielectric properties .

4,Stable electrical insulating properties, good electrical performance in dry or wet conditions.

5,Good mechanical workability.

6,In high temperature electric performance is stable.

7,Thickness: 0.1mm - 150mm

8,Color: aqua,yellow,black, white

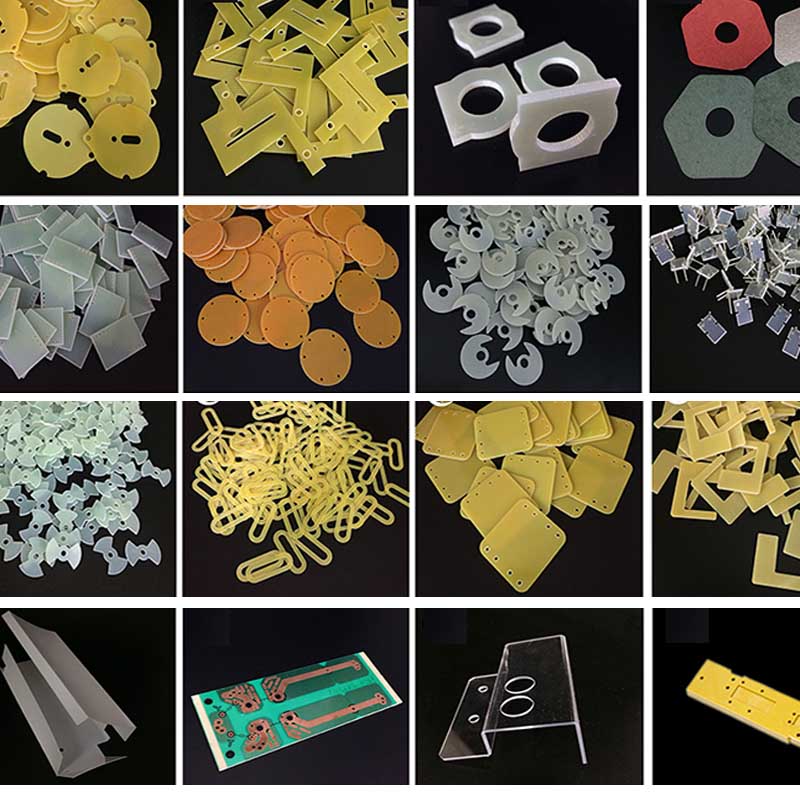

Other Customzied Products

Our Services

  • Composite & plastic fabrication and machining is the very core of JY MACHINERY. - in fact, we've been machining thermoplastics, thermosets and industrial laminates for 10+year.
  • We machine thousands of fiberglass-reinforced industrial laminate & composite parts daily.
  • Complete CNC machining capabilities including saws, lathes, vertical machining centers, and 4th & 5th axis capabilities.
  • Low and high volume quantities are produced daily to our customers specifications.
  • Reverse engineering of custom fabricated parts is readily available.
  • Blanket order servicing from stock, multiple shift work, 24-hour delivery if needed.
  • Additional services include conditioning, polishing, painting, stamping, assembling and cleaning of parts.
  • Close tolerance work completed for small and large custom plastic parts.



Product Tags machining insulation parts          insulator parts          insulation machine          machine insulation          insulation parts          insulations parts          insulator machine          parts of insulation tester          insulated panel machine
