Customized Continuous Roll to Roll Coater Coating Machine large For Lithium ion Battery Production

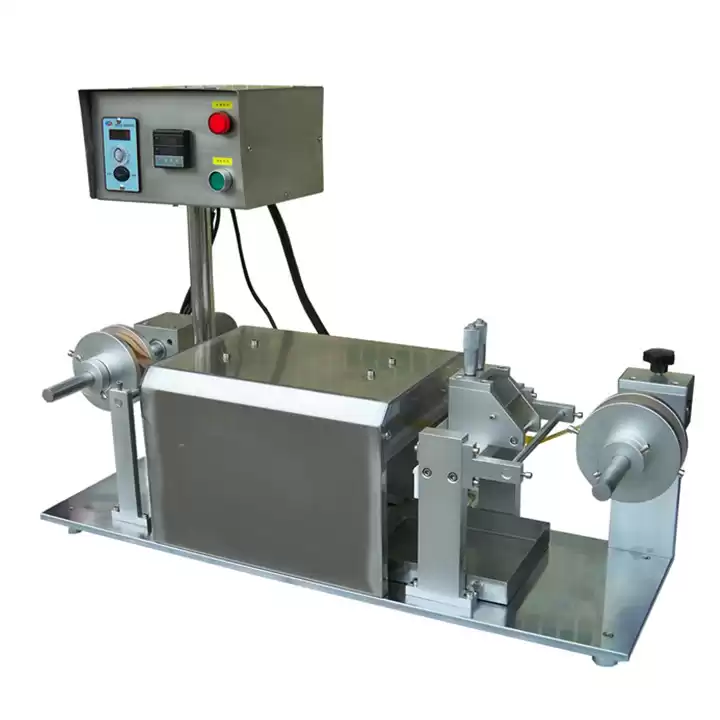

The TMAX-TMJ-180C desktop continuous coating machine is a small roll to rolling coating machine （Roll to Roll Coater）for lab research, it is assembled by high high precision coating device, suitable for institutions, university and factory pilot scale battery research work.
|
Model
|
Roll to Roll Continuous Coating Machine TMAX-TMJ-180C
|
|
Source voltage
|
AC 220V/110V, 50HZ/60HZ
|
|
Power
|
400W
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|

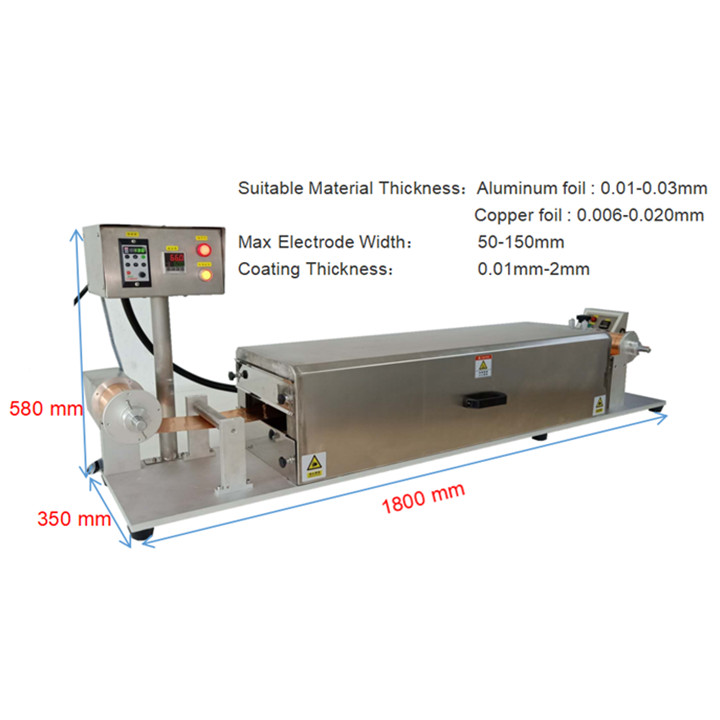

Suitable material thickness
|
Aluminum foil : 0.01-0.03mm
Copper foil : 0.006-0.020mm
|
|
Max electrode width
|
50-180mm
|
|
Coating speed
|
0-2m/min, adjustable
|
|
Max baking temperature
|
100℃ ,PID control mode
|
|
Coating thickness
|
0.01mm-2mm
|
|
Coating thickness accuracy
|
0.01mm
|
|
Dimension
|
800* 350 * 580 mm
|
|
Weight
|
About 50kg
|
