Customized Encapsulated Common Mode Chokes Vertical Transformer Bobbin

Encapsulated common mode chokes. Testing frequency:1KHz/0.25V. Operating temperature: -40°C~+105°C. Mainly used in power system, LCD panels, DC converters, RFI suppression. It has large current, high frequency and low power loss.



Professional magnetic components factory, supplied different series encapsulated common mode chokes. We have a technical team consist of 5 experienced engineers, we can design common mode inductors for customers.


Quick Details

Part Number: MCT Case Potting28C Series Common Mode Choke



Brand name: MCT

Type: Choke Inductor



Custom made: Available

Testing frequency: 1KHz/0.25V



Logo: Can be customized

Operating temperature:-40°C~+105°C.



Shipping: Air, Ship, etc

Certification: ISO9001,ROHS,CE



MOQ: Any quantity

Lead time: 25 days after payment



OEM: Available



Part Information

Product Name: Customized Encapsulated Common Mode Chokes Vertical Transformer Bobbin

Applications: Low Frequency AC Reactor. PC USB interface cable. Solar Power System. LCD panels. Power Conditioning System. Wind Power System. Automatic Drive Machine. RFI Suppression Choke

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

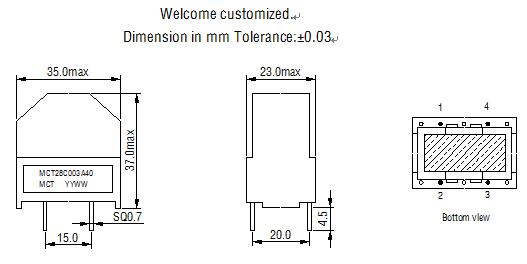

Product Specification

Encapsulated common mode choke for power supply


Typical electrical parameter

MCT Part No.

Inductance(mH) min

DC Resistance(Ω)max

Rated Current(A)

MCT28C033A12

33.0

0.45

1.2

MCT28C025A14

25.0

0.35

1.4

MCT28C018A17

18.0

0.25

1.7

MCT28C010A20

10.0

0.15

2.0

MCT28C006A25

6.80

0.10

2.5

MCT28C003A40

3.30

0.05

4.0

MCT28C001A60

1.80

0.03

6.0

MCT28C001A80

1.00

0.015

8.0


We can design for you, if you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu
