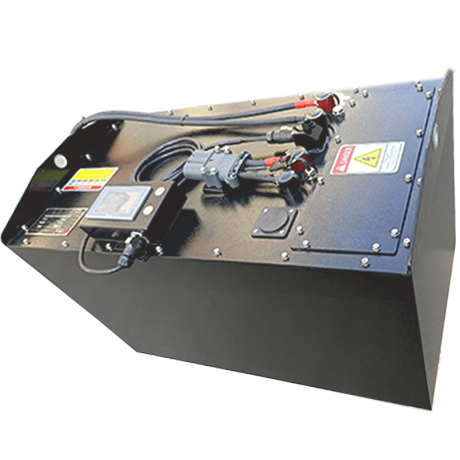

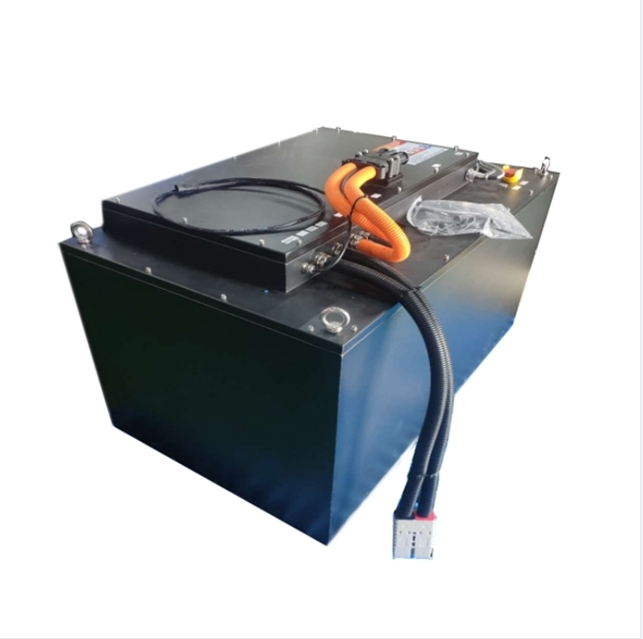

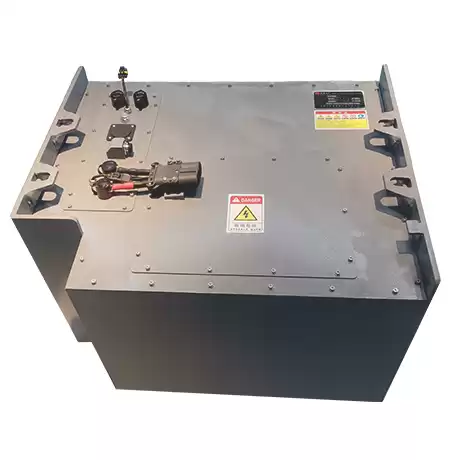

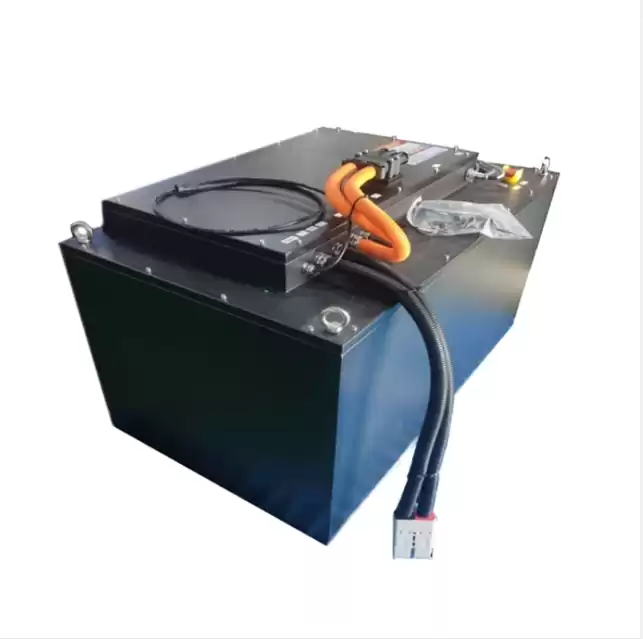

Customized High-Power Deep Cycle Forklift Lithium Battery for Enhanced Performance and Longevity

We are China professional supplier in providing lithium battery pack for forklifts, AGV,RV,tricycles and engineering lifing machines. We welcome customized battery to us from all over the world.





Quick details


1,Model:83.2V600AH

2,Shell:Q235 d=3mm

3,Build in BMS

4,Warranty: 5Y

5,Rated volt:83.2V

6,Rated capacity:600AH

7.Continuous current: 400A

8,Peak current:600A



More models




Project
Parameters
Notes
Normal voltage
25.6V
51.2V
83.2V

Voltage arrange
20-29.2V
40-58.4V
65-94.9V

Capacity arrange
150-300AH
300-600AH
300-600AH
Customized
Single electrical core
Lithuim iron phosphate(LiFePO4)

Fast charge
available
Customized
Charge voltage
29.2V
58.4V
94.9V
Charge current
50-200A
Continuous discharge current
100-400A
Transient discharge current
200-600A
Work temperature
"-20℃-55℃“

Charge hole
Anderson/REMA/Charge gun

primary protection
Over pressure/Low pressure/Over current/Short-circuit
Over temperature/Low temperature/Relay adhesion test/Wiring falling test

Expanding function
Precharge function/Insulative testing
Customized
Showing function
Voltage Showing/Liquid screen
BMS power
Out auxiliary power/inner convertor
Heating function
Silicone electric heating
Shell/Weight
Metal plate/Customized
Communication
RS485/CAN



FAQ




Q1: what is your MOQ?

A: Only one sample available.
Q2: what is your guarantee life for the battery?
 A: 5Y warranty for lifepo4 built in bms battery .
 Q3. Can you explain in detail how you match cells for a battery pack before you assembling the pack?
 A: We will do the following things before assembling the pack:
a. Select capacity: same capacity rate cells for one pack
b. Measure the voltage: same voltage cells for one pack(difference is under 0.02 v per cell)
c. Measure the inner resistance: same IR cells for one pack (difference is under 1 mOhm)
All above steps are very strict to make sure the pack performance is perfect.
 Q4: Before order, can I have samples for testing?
 A: Yes, we can provide you samples for testing firstly.
 Q5: What kind of environment should lithium batteries store?
A: -40°C~50°C, 65±20%RH storage for a long time(>3 months) and the storage condition shall be:<35°C , 65±20%RH
