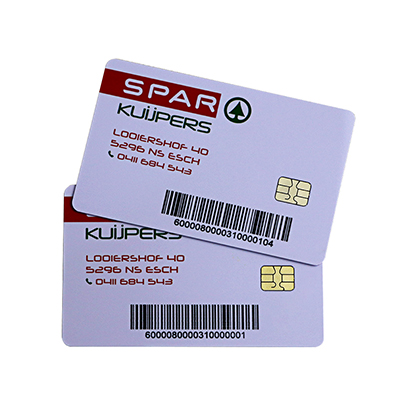

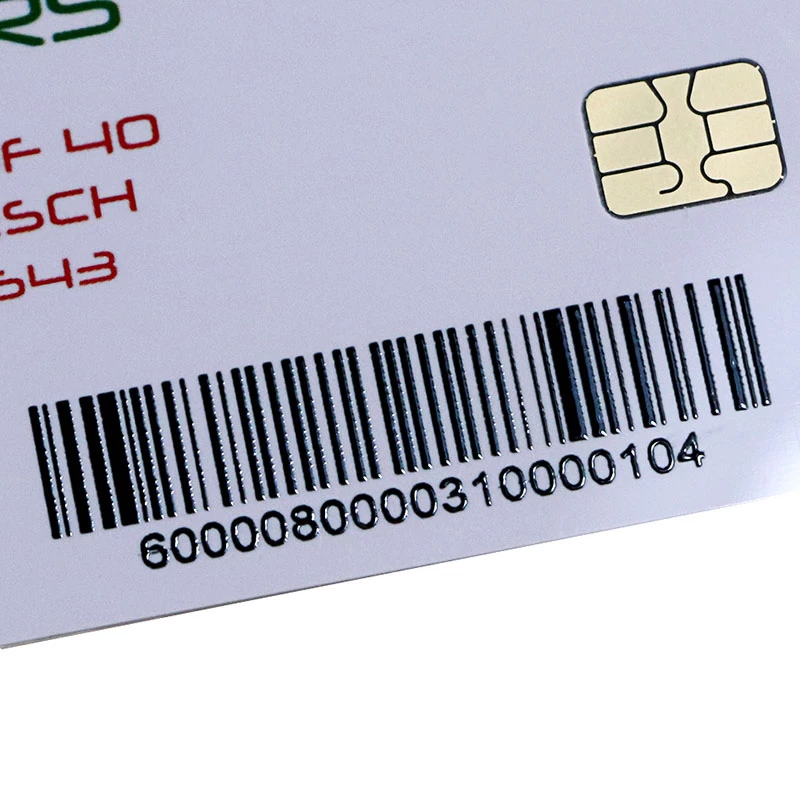

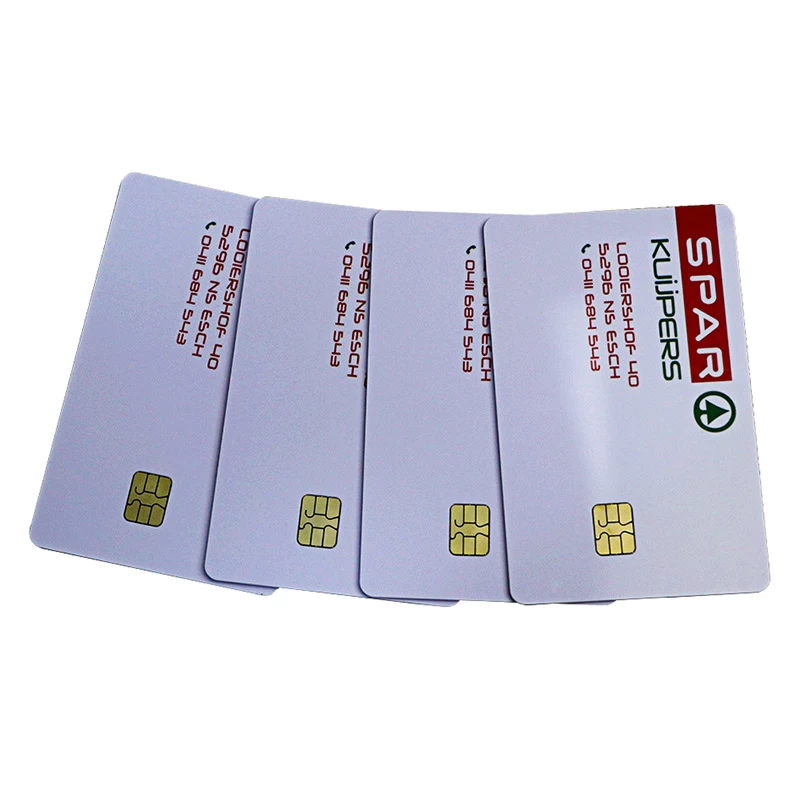

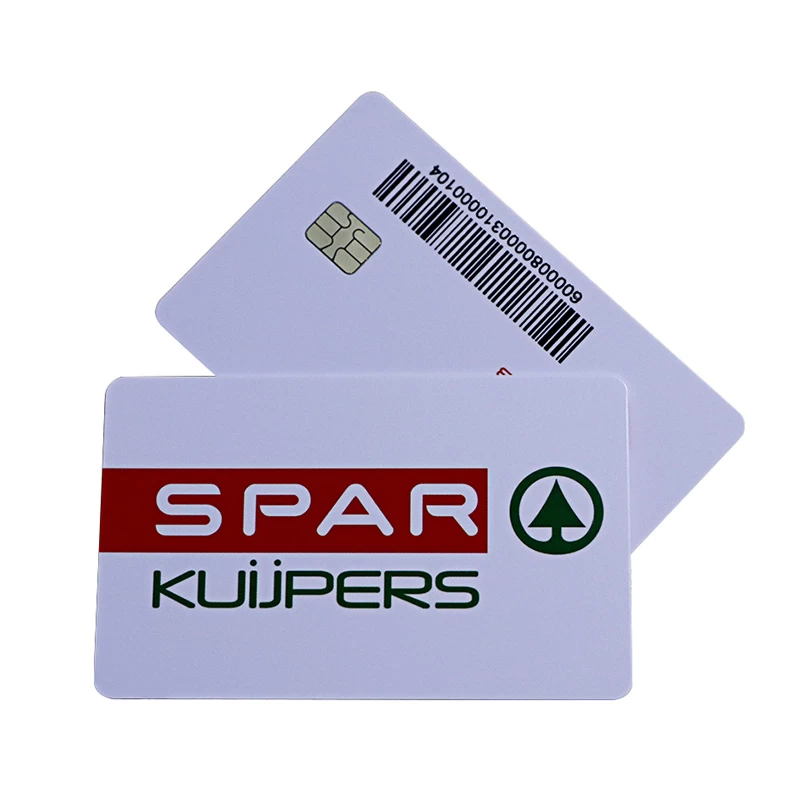

Customized ISO7816 AT24c16 Contact IC Cards With Barcode
The Atmel AT24C016 card is a memory smart card that it provides 2K (16834 bits) of serial electrically erasable and programmable read only memory (EEPROM).The type of memory IC card is usually white PVC as basic raw material and is standard CR80 size.
Product Details
Size：CR80,85.5*54*0.84mm
Material：PVC/PET/PETG /ABS
Operating temperature：-30℃ to 80℃
Print：CMYK offset printing, Silk-Printing, Digital printing
Features：Water-proof, moisture-proof,shock-proof, high temperature resistance
Package： 200pcs/box ,3000pcs/carton or customize
Weight ：7Kg /1000PCS
Available crafts：Barcode, Scratch off panel, Signature panel, Spray number, Laser number, Embossing, Encode data etc.
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
Main Features Of Atmel AT24C016 Chip :
1, Low-voltage and Standard-voltage Operation
– 2.7 (VCC = 2.7V to 5.5V)
– 1.8 (VCC = 1.8V to 5.5V)
2，Internally Organized 2048 x 8 (16K)
3，Two-wire Serial Interface
4，Schmitt Trigger, Filtered Inputs for Noise Suppression
5，Bidirectional Data Transfer Protocol
6， 100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility
7，Write Protect Pin for Hardware Data Protection
8，8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes
9，Partial Page Writes Allowed
10，Self-timed Write Cycle (5 ms max)
11， High-reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
12，Automotive Devices Available
13， 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages
14，Die Sales: Wafer Form, Waffle Pack and Bumped Wafers
