Customized Lithium Iron Phosphate Battery Cells for Reliable and Long-lasting Performance

Lithium battery cell to be as our upstream material, we  are also be qualified with production in lithium battery cell  ,more models includes :3.2V100AH,3.2V135AH,3.2V150AH,3.2V200Ah,3.2V230AH,3.2V280AH and 3.2V320AH etc...

Facebook Twitter Pinterest LinkedIn 分享

Professional lithium battery manufacturer in China for more than 10 years,rich exporting experience,our models exported to more than 15 Countries in the world ,enjoy good reputation ! Our products inlcudes:forklift lithium battery,AGV battery, RV battery and golf carts li ion battery and so on,customized battery available

Quick Details



Common Cell Specifications 3.2V320AH     remarks
  Item Specification
1 nomial capacity 320ah
2 delivery capacity ≥320ah
3 nominal volt 3.2V
4 charge volt 2.5-3.65V
2-3.65V		   Cell temperature T＞0℃

Cell temperature T≤0℃
5 impedance 0.12-0.22MΩ
6 shipping capacity 80±1.5Ah
7 shipping volt 3.20~3.35V 40%SOC
8 residualcapacity loss per month≤3.5%   Fresh cell after 3 month, 40%SOC,
25±2°C storage
9 working temperature（charge） 0-60℃
10 working temperature（discharge） ”-20-60℃“

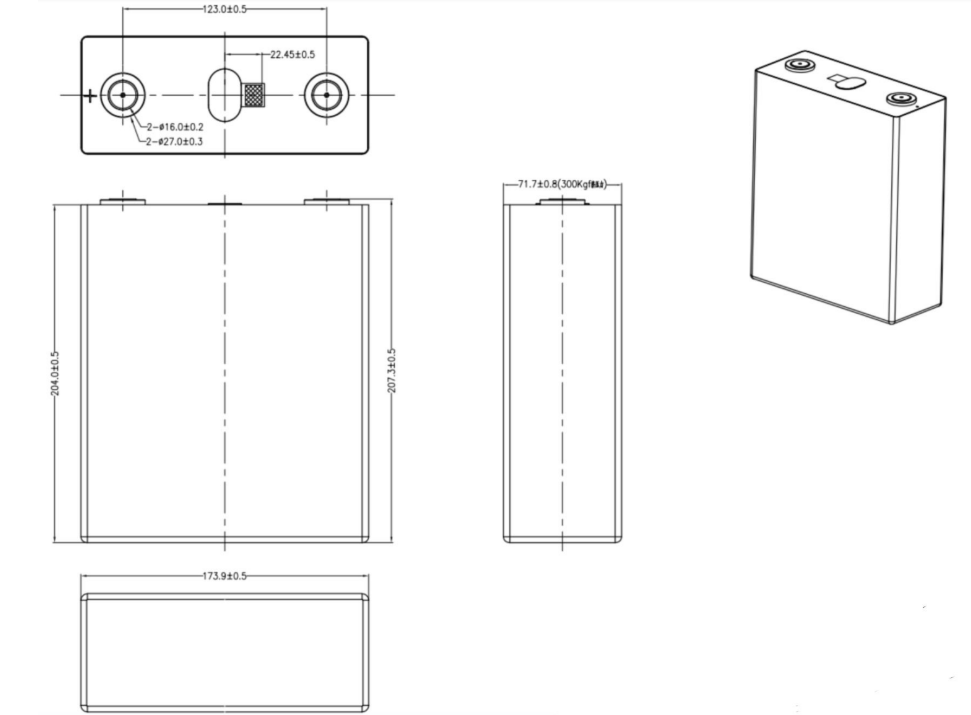

11 cell size (Width)：173.9±0.5mm
(Height)：207.3±0.5mm
(Thickness)：71.7±0.8mm
12 cell weight 5.27±0.3kgs
13 rest SOC ≥5%
14 standard charge/discharge current 0.5C CC-CV charge to 3.65 V，cut off 0.05C condition: 25±2℃
15 standard charge volt Cell max voltage 3.65V
16 Discharge cut-off voltage 2.5V
2V		   T＞0℃
T＜0℃
