Customized Solar Mounting Systems Ground Brackets

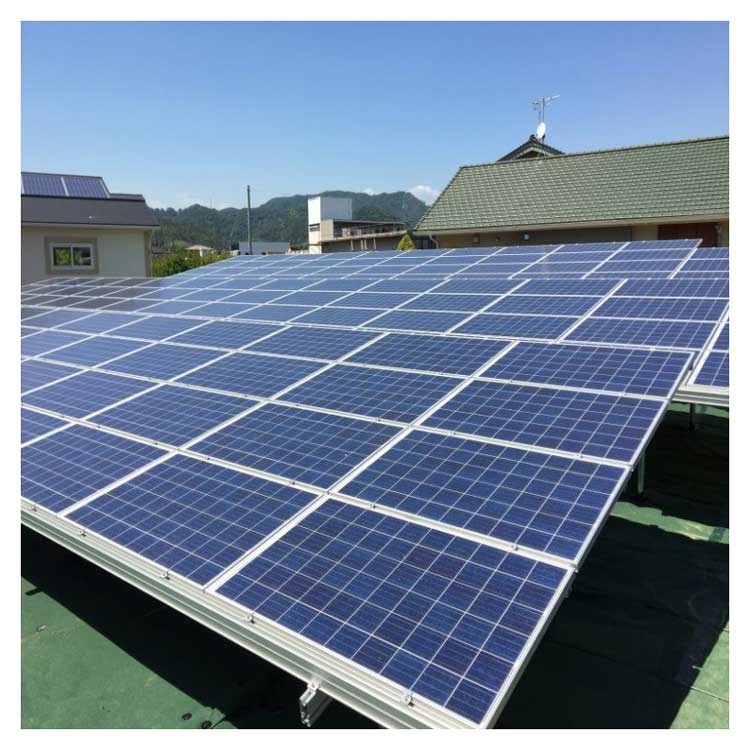

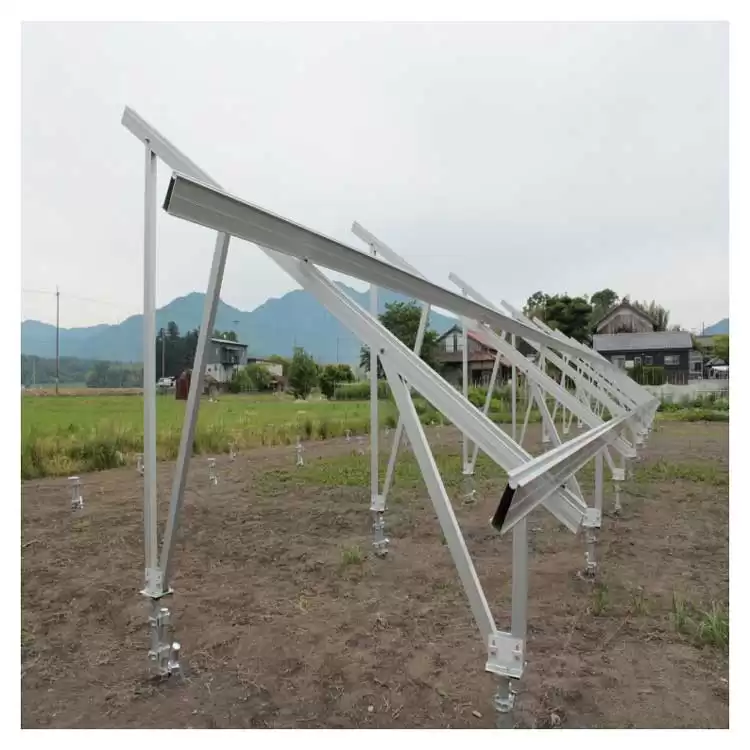

Solar ground mounting structure is developed for the solar ground mounting system. It could be used together with ground screw or concrete base. Its main material is AL6005T-5(Anodized), which is anticorrosive for outdoor use. The whole structure is extremely anti-corrosion during its entire life span.

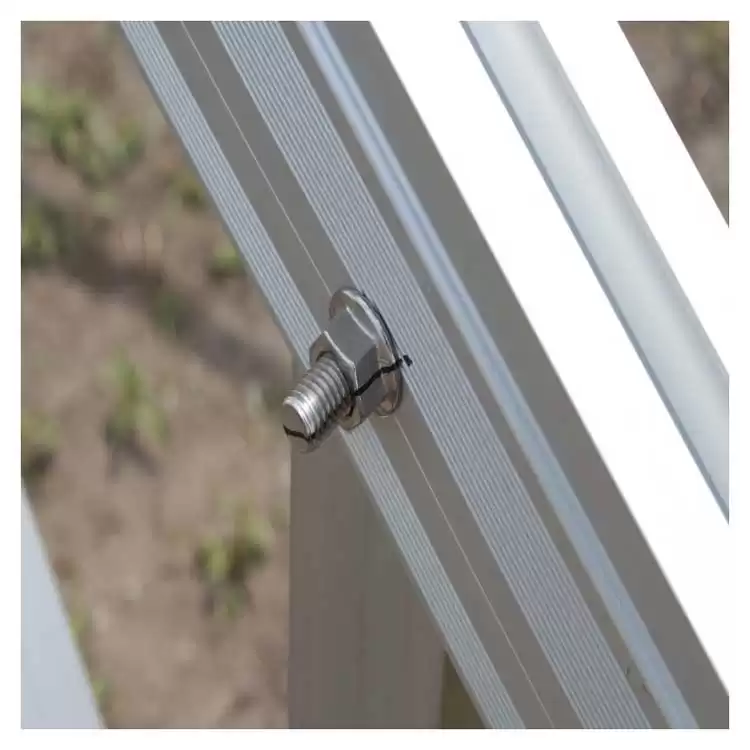

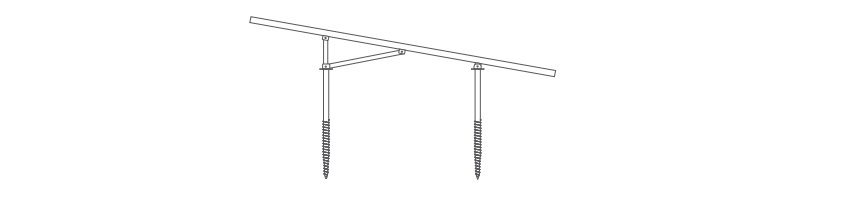

System Structure
Product Information
*uited for all open filed ground
*prefect design reduce the difficulty of the installation on the most condition.
*easy installation- All the components will be pre-assembled
*welcome OEM order
Technical Parameters
System Name
|
Ground Mount System GM09
|
Panel Layout
|
Landscape or Portrait
|
Foundation
|
Concrete Foundation,Ground Screw
|
Material
|
Anodized AL6005-T5
|
Tilt Angle
|
0-60degrees
|
Fastener
|
SUS304 &Zinc-Nickel Alloy Electroplated Steel
|
Snow Load
|
1.6KN/㎡
|
Color
|
Customized or Silver
|
|
Wind Load
|
60m/s
|
Design Standard
|
AN/NZS1170,DIN1055,JIS C8955,etc.
|
Applicable Solar Module
|
Framed or Frameless
|
Warranty
|
10 Years
|
|
Ground Clearance
|
500-800mm
|
Small Components
|
Anodized AL-6005-T5
|

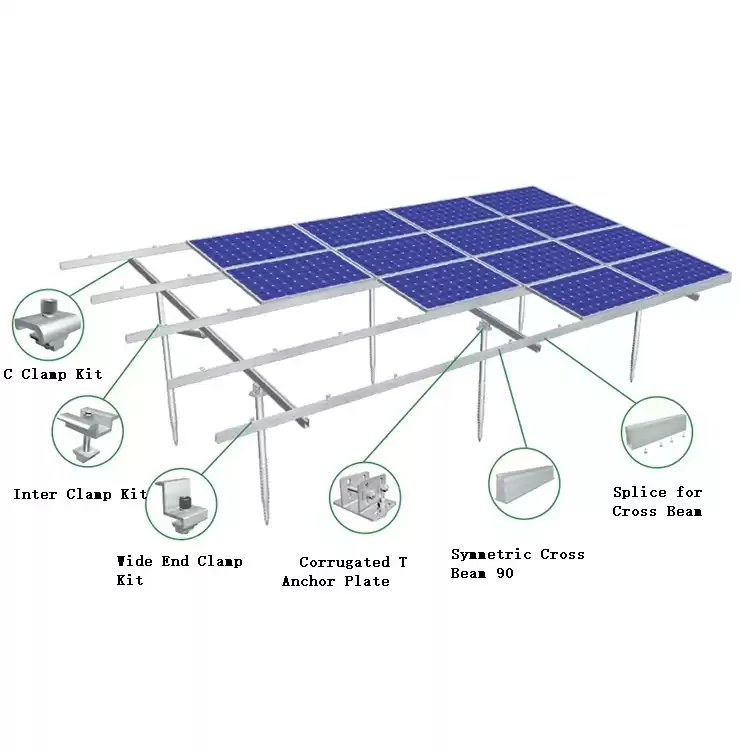

Components Details
 Ground Screw
Specification：L1600mm
|
 Pre-assembled Support
Components：Conical Symmetric Cross Beam 90,T-Shape Joint；
C Clamp Kit,Tube；Flat Washer；Spring Washer,Hexagon Nut；
Hexagon Bolt,Hexagon Socket Bolt
|
 Splice for Conical Symmetric Cross Beam 90
Specification：L260mm
Components：Hexa Self-Tapping Screw,With EPDM Washer ST6.3*19
|
 Symmetric Cross Beam 90
Standard Length:3100mm,4100mm,5100mm
Specification：L*58*90
|

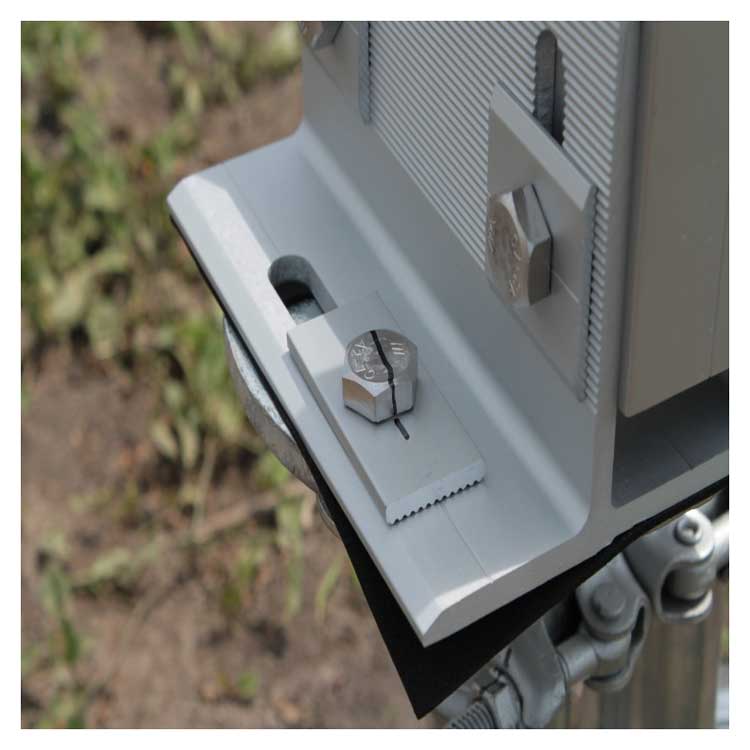

 Pro Corrugated T Anchor Plate (Back)
Specification：L120 ,Material：AL6005-T5（Anodized ）
|
 T Anchor Plate
Specification：L100 ,Material：AL6005-T5（Anodized ）
|
 Wide End ClampKit
Components:Wide End Clamp,Symmetric Cross Module,
Spring Washer M8,Hexagon Socket Bolt
|
 25 Inter Clamp Kit
Components：U25 Inter Clamp,Symmetric Cross Module
Spring Washer M8,Hexagon Socket Bolt
|
 C Clamp Kit
Components:C Clamp,Symmetric Cross Module,Spring Washer M8
Hexagon Socket Bolt
|
|

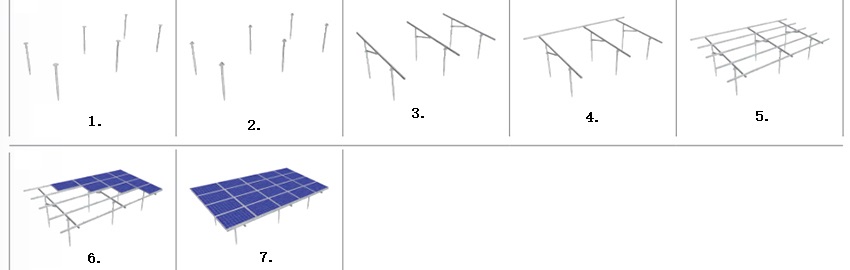

Installation Guide
1.Install the ground screw based on project solution. 2.Fix Corrugated T Anchor Plate Kit on ground screw.
3.Install the Pre-assemble Support on ground screw. 4.Install the Cross Beam.
5.The installation of Cross Beam is done. 6.Fix the solar module with Inter Clamp Kit & End Clamp Kit.
7.Installation is done
