Product introduction
1.The ability of the fire-proofing of rock wool sandwich panel is over 1000°C for the rock wool is the non-fire material.
2. Good future in noise reduction, special suitable for the place where is high requirement in the sound insulation
3,Our Rock wool sandwich panel composite European standard.It is basalt as main raw materials.Upper and lower cotton board material is PPGI steel.

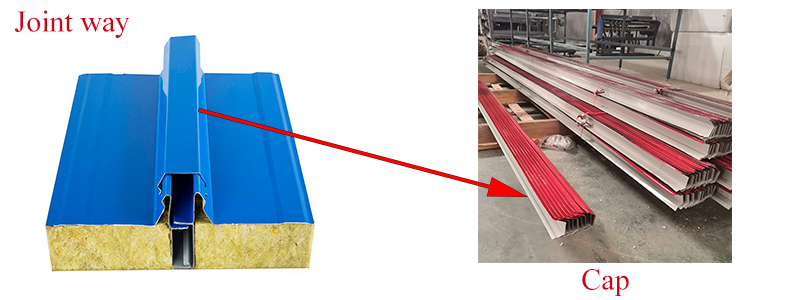

Joint way
There have a cover steel on the surface, it is improve the waterproof performance.
Panel features:
1.Fireproof with grade A1,
2.Heat insulation,
3.Sound proof,
4.Thermal insulation,
5.Anti-corrosion,
6.Earthquake resistance,
7.Eco-friendly,
8.Easy to install,
9.High strength,
10Long life time.

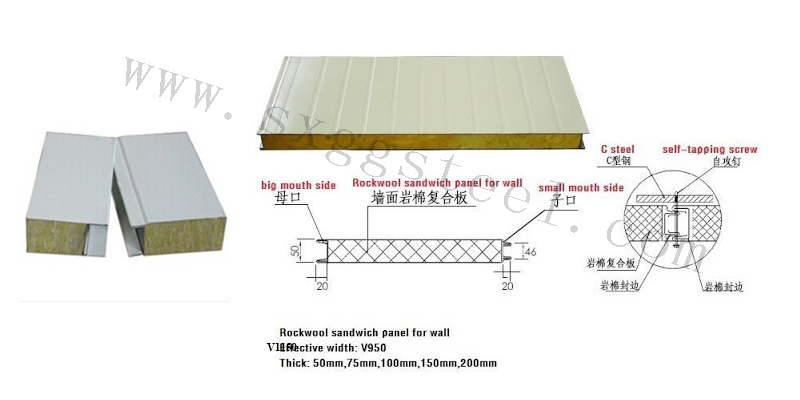

Product technology data
|
Rockwool Sandwich Panel
|
|
Effective WIDTH
|
Wall panel: 950mm
|
|
Roof panel: 960mm
|
|
MATERIAL
|
Color Steel Sheet
|
|
Rockwool board
|
|
STRUCTURE
|
Upper and lower layer: color steel sheet
|
|
Middle layer: Rockwool board
|
|
THICKNESS
|
Color steel sheet: 0.3~0.6mm
|
|
Rockwool board: 50mm, 75mm, 100mm
|
|
Rockwool Density
|
80~110kg/m³
|
|
Lifetime
|
20~35 years
|
Payment and shipment
1.Packaging Details: According to international export standard for Fireproof Australian standard rockwool / mineral wool sandwich panel 50mm 75mm 100mm wall panel and roof panel
2.Delivery time:20days after deposit

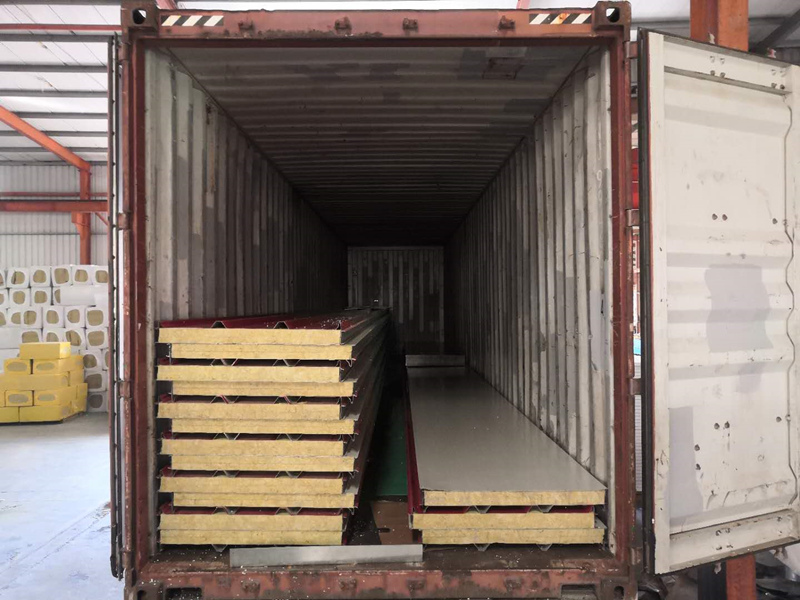

Loading reference
