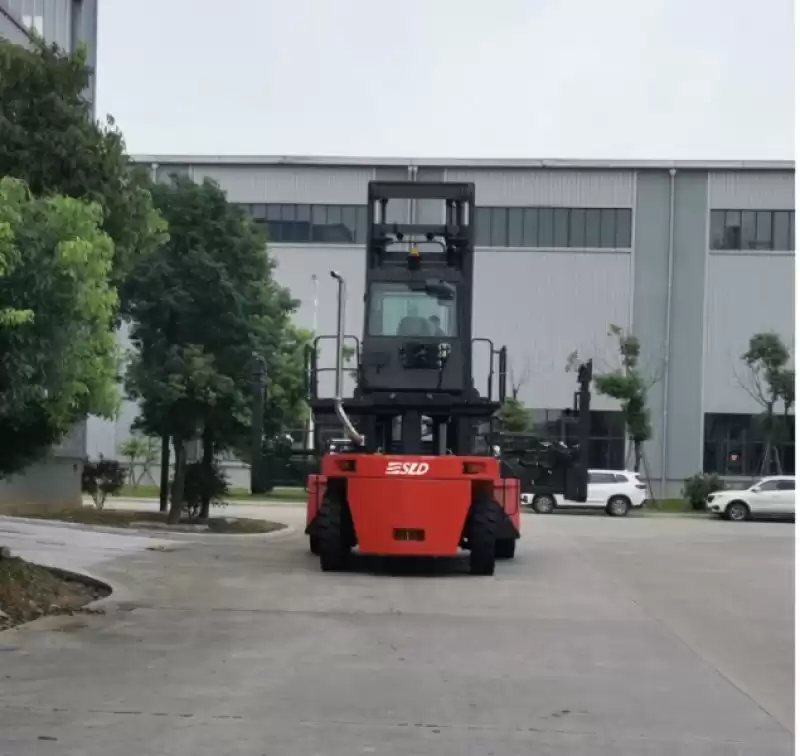

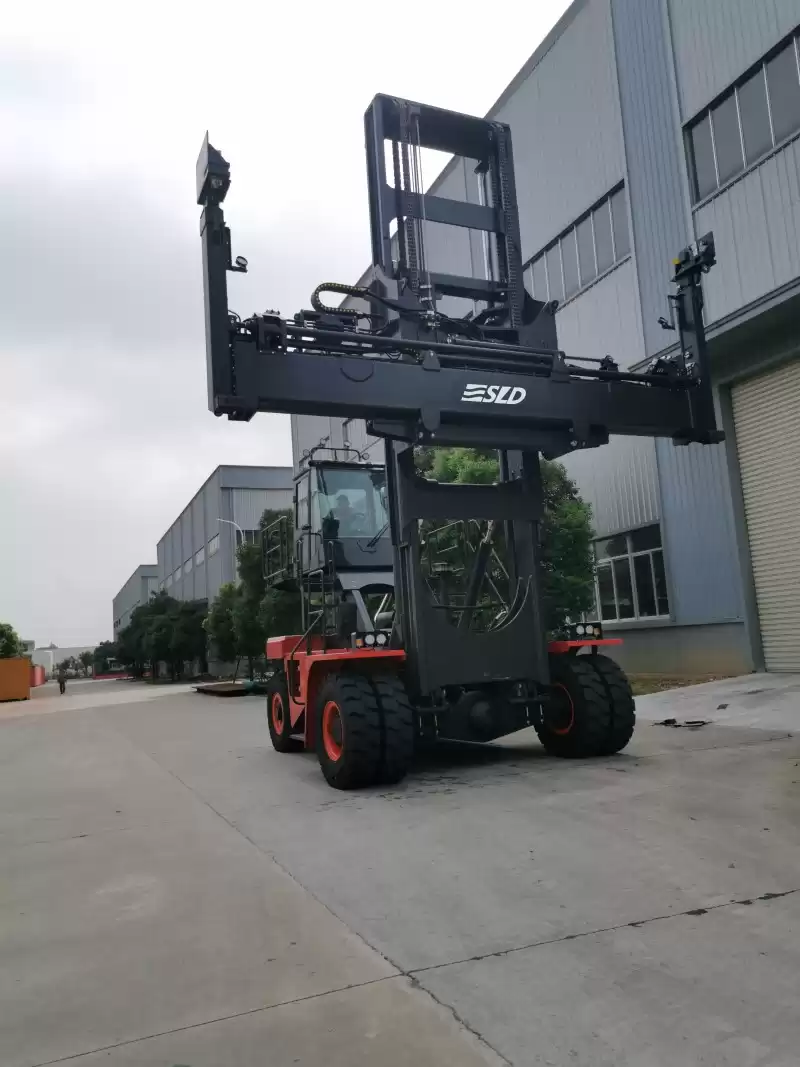

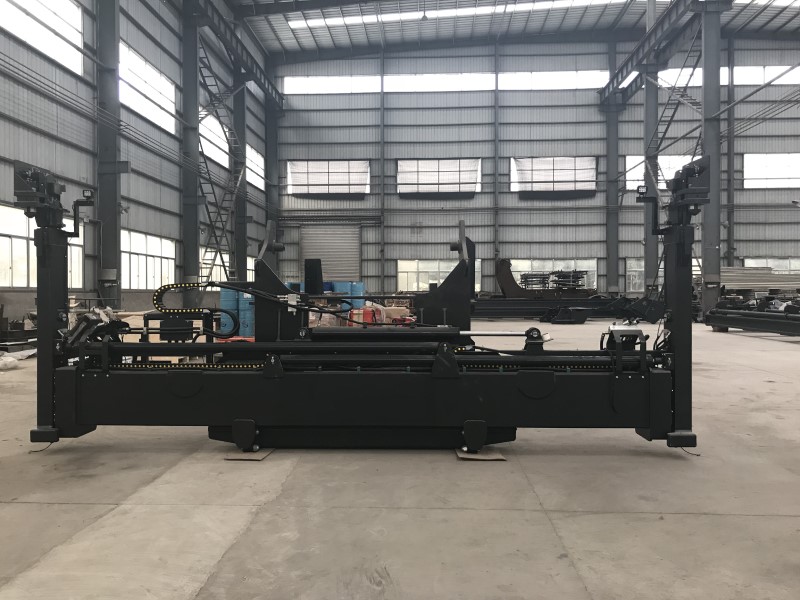

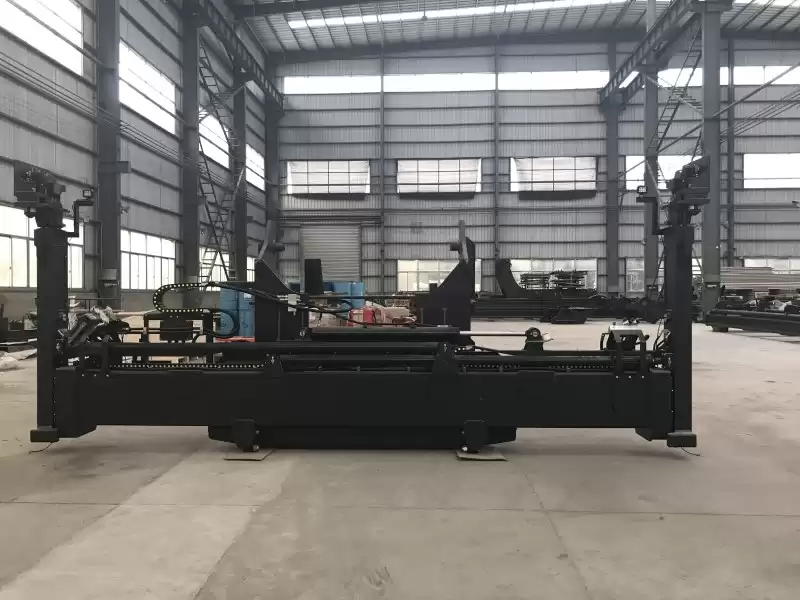

Customized Special Empty Container Handler 8 ton ECH with special mast height
This special flexible empty container handler
are good use in private container factory, don't need so much large space. small turning radius, more flexible, high efficiency ,high
cost-performance.
Empty container handler advantages:
1, Customized special mast height
Some customers need empty container handler with special mast height and spreader functions to satisfy their actual working conditions. such as only 3 high layers , not only lift for standard empty containers but also for special containers etc. we can do them only you tell us your detail requirements.
2, Empty container handler
is equipped with full Can-bus control system.
The engine / transmission / electric system / hydraulic system / loading safety
system / spreader system are all integrated in the Can-bus system, all devices
are monitored at real time. Parker control units ensure the system reliable and
flexible.
4, Scientific and rational design of self-made structural parts
Advanced FEM analysis about the strength of chasiss and mast, making ECH stable and durable.
5, Advanced technology to make sure excellent quality empty container handlers
6, Hydrostatic power steering makes operation smoothly and stable
|
CHARACTERISTICS
|
|
Model
|
ECH90
|
|
Load capacity
|
9 tons
|
|
Maximum stacking layer
|
7
|
|
Lifting speed (Laden/Unladen)
|
m/s
|
0.55/0.60
|
|
Lowering speed (Laden/Unladen)
|
m/s
|
0.60/0.60
|
|
Travel speed (Laden/Unladen)
|
Km/h
|
26/28
|
|
Climbing ability
|
%
|
38
|
|
Tractive force
|
KN
|
157.5
|
|
DIMENSIONS
|
|
Wheelbase
|
y(mm)
|
4520
|
|
Height of mast,lowered
|
h1 (mm)
|
11111
|
|
Tilt angle (Forward/Backward)
|
Degree
|
3/4
|
|
Height of mast,extended
|
h4 (mm)
|
19244
|
|
Height of cabin
|
h6 (mm)
|
4326
|
|
Height, operator's seat
|
h7 (mm)
|
3226
|
|
Twistlock height lowered
|
h13 (mm)
|
2290
|
|
Maximum twistlock height
|
h3 (mm)
|
18642
|
|
Overall length
|
l1 (mm)
|
6850
|
|
Length to spreader face
|
l2 (mm)
|
6682
|
|
Overall width
|
b1/b2 (mm)
|
4120/2570
|
|
Width of spreader 20'/40'
|
b3 (mm)
|
6050/12150
|
|
Turning radius
|
Wa (mm)
|
6300
|
|
Wheelspan,front wheels
|
b10 (mm)
|
3280
|
|
WEIGHTS
|
|
Service weight
|
kg
|
38280
|
|
Axle load,front/rear
|
kg
|
36610/10670
|
|
Axle without load,front/rear
|
b13 (mm)
|
22480/15800
|
|
ENGINE
|
|
Engine manufacturer/type
|
Cummins/QSB6.7
|
|
Cylinder number/Displacement
|
6/6700cm3
|
|
Rated power
|
164KW@2200rpm
|
|
Maximun torque
|
949NM@1500rpm
|
|
Rated current of alternator
|
100A
|
|
Battery
|
24V(2x12/110)
|
|
TRANSMISSION
|
|
Manufacturer/type
|
ZF/3WG211AUTO
|
|
Clutch type
|
Torque converter
|
|
Transmission
|
Auto-shift/interlock
|
|
Gear number
|
3F/3R
|
|
BRAKESYSTEM
|
|
Service brake
|
Wet-disk
|
|
Parking brake
|
Brake enabled when power off
|
|
DRIVE AXLE
|
|
Manufacturer
|
Kessler/Germany
|
|
Type
|
D81PL488-NLB
|
|
STEER AXLE
|
|
Manufacturer
|
OMCI/Italy
|
|
Type
|
ASF
|
|
Steering type
|
Double action cylinder
|
|
TYRES
|
|
Drive wheels
|
14.00-24 28PR
|
|
Steering wheels
|
14.00-24 28PR
|
|
Type
|
Pneumatic
|
|
Pressure
|
10 bar
|
|
Quantity, front/rear
|
4/2
|
