Customized UV LED Cold Light Source UV LED Exposure Unit 365nm 395nm

Professional Manufacturing UV Wafer Tape Curing Machine is low calorie, good bonding performance, fast speed, environmental protection equipment.




High Power UV Irradiation Machine Curing Epoxy Resin is low in calorie, good bonding performance, fast speed, environmental protection equipment.


Parameter of Non-Standard Customization UV Tape Curing Machine:

Brand

DSX-200x200

Input Voltage

AC220V-230V  50Hz

Name

Drawer UV LED Curing Box

Intensity

>700mw/cm2

Material of Light Head

Superconducting hot aluminum

Outside Dimension

L 460mm * W 380.9mm * H 276.8mm

Weight

35KG

Cooling Method

Air Cooling

Irradiance Area

200*200mm

Control Method

I/O

Irradiance Distance

15mm (best effect)

Inside Dimension

410*320*15mm

Power of Light

400W

Intensity of Adjusting

Knob to adjust (0-100%)

Wavelength

395nm (can be customized 365nm-420nm)

Quality Guarantee

One year


Characteristics of High Intensity UV LED Exposure Machine Curing UV Wafer :

1.Small body, suitable for 6/8/12/15 inch chip irradiation.

2.Time and brightness adjustable, touch screen operation, simple and convenient.

3.Top down irradiation for easy placement of wafers.

4.LED clod light source, environmental protection products, with low temperature, uniform exposure, compact structure, low energy consumption, is the ideal type of semiconductor industry, and low temperature no damage to thermal sensitive materials.

5.Its service life is 10 times longer than that of ordinary mercury lamp. Its continuous service life is 15000-30000h.

6.Zero maintenance cost, long-term work without replacement of lighting source parts.

7.Enclosed light source design, no ultraviolet side leakage, no damage to human body.


Application of Collimated UV LED Screen Exposure System Curing UV Glue :

1. Suitable for optical lens, LED, IC, semiconductor, integrated circuit board, mobile hard disk and other semiconductor materials, glass filter and others UV film curing, UV tape curing.

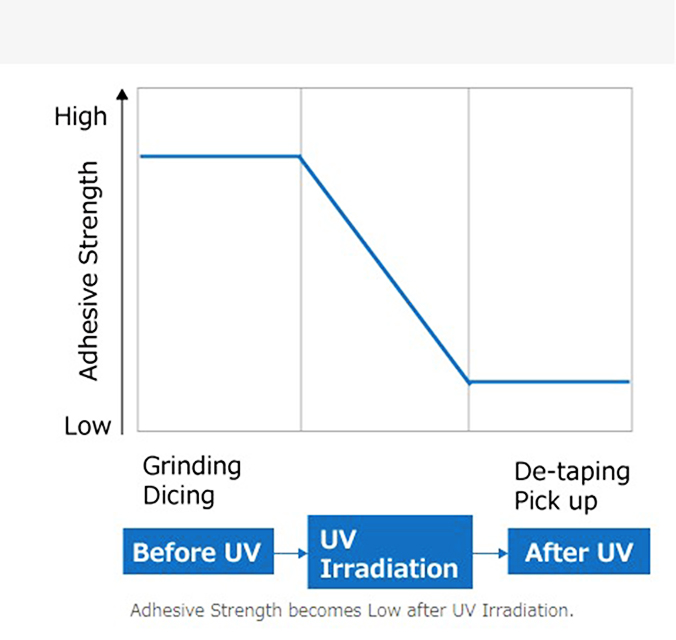

2. UV Tape Curing Machine is a UV film and cutting film adhesive tape viscosity reduction and viscosity relief of automatic curing equipment. For materials such as wafers and glass, UV Tape adhesive is used on 8’’, 12’’, and 15’’ bracket fixture curing device, which has high efficiency curing ability and can quickly reduce the viscosity of UV Tape on materials and parts.

UV Mask Exposure Machine for Semiconductor Bonding Manufacturer

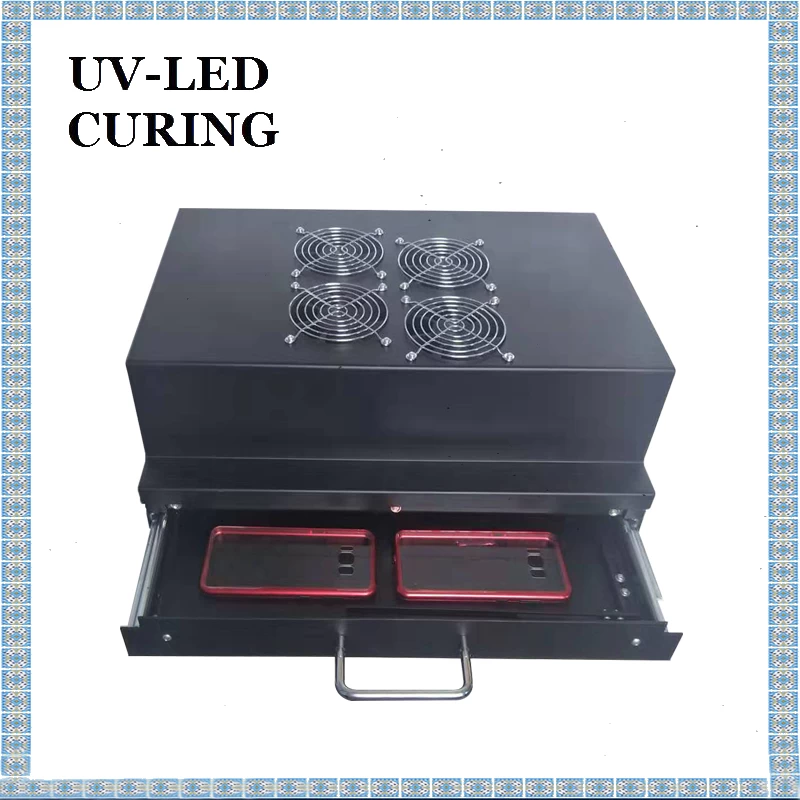

The UV Irradiation Chamber is also equipped with positioning fixture to avoid deviation of the objects.

Best Price for UV Film Hardening Machine Curing UV Wafer Chips

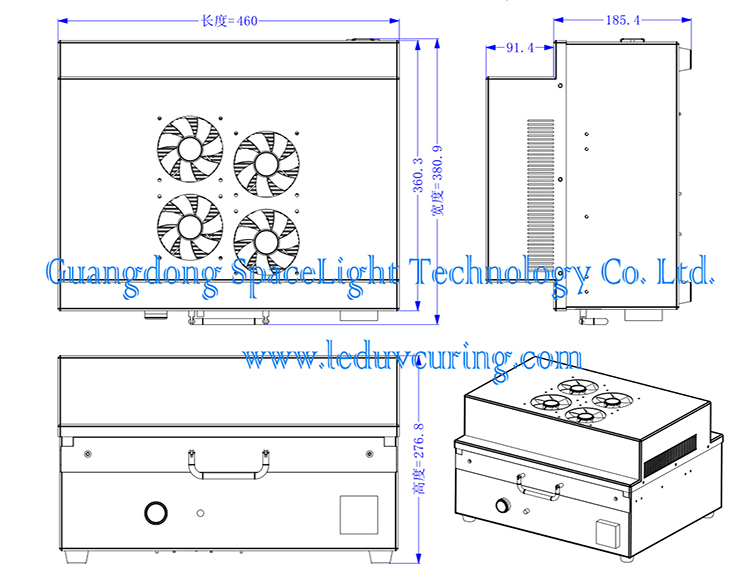

Size for High Performance UV Mask Exposure Machine for Semiconductor Bonding :

UV Mask Exposure Machine Curing UV Glue Ink Manufacturer

Professional UV Irradiation Chamber removing adhesive film Suppliers
