The video shows a gypsum rock wool cleanroom ceiling panel made by Wiskind. The fire resistance of the cleanroom panel is 1 hour. At present, the GMP clean room pharmaceutical factory has clear requirements for cleanroom ceiling panels. During the installation and use, maintenance and equipment installation need to be walked by people, and the bending capacity needs to reach 100-120kg / ㎡. The bearing capacity of the cleanroom ceiling panel produced by Wiskind is 125kg / ㎡.

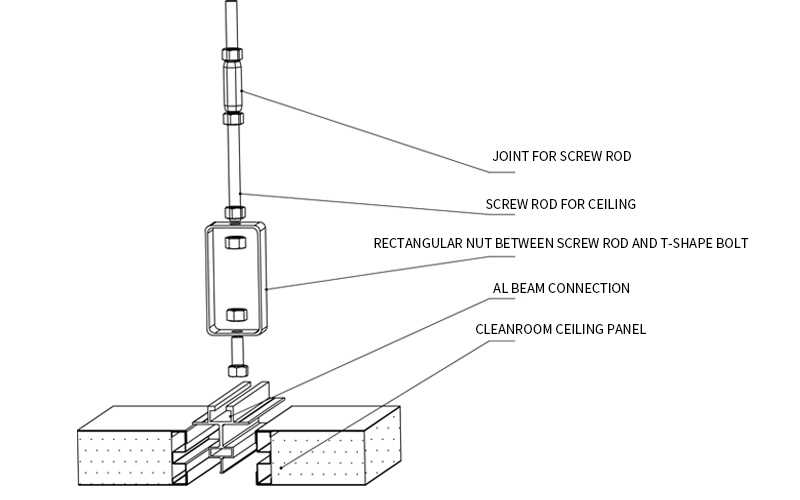

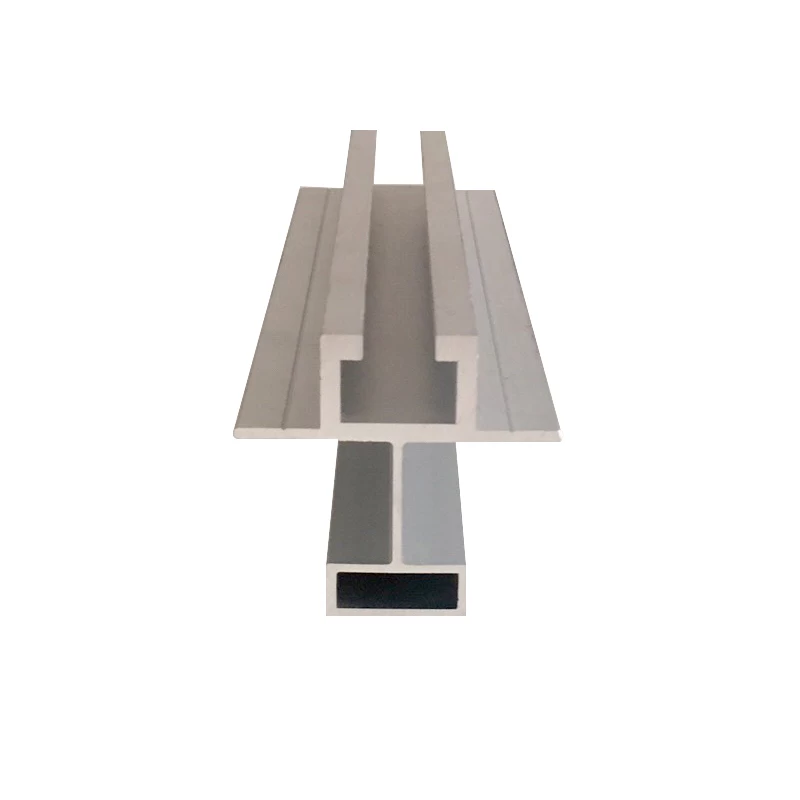

1.The ceiling system consists of a Screw Rod, Rectangular Nut between Screw Rod and T-Shape bolt, Nut, Joint for Screw Rod, T-Shape bolt, AL Beam Connection, and Cleanroom Ceiling Panel connection.

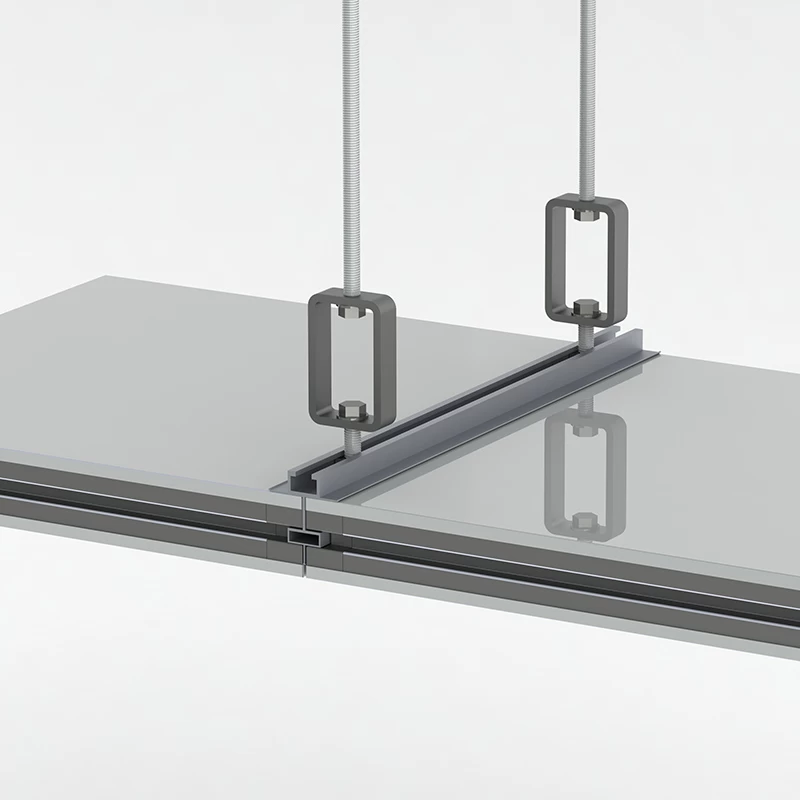

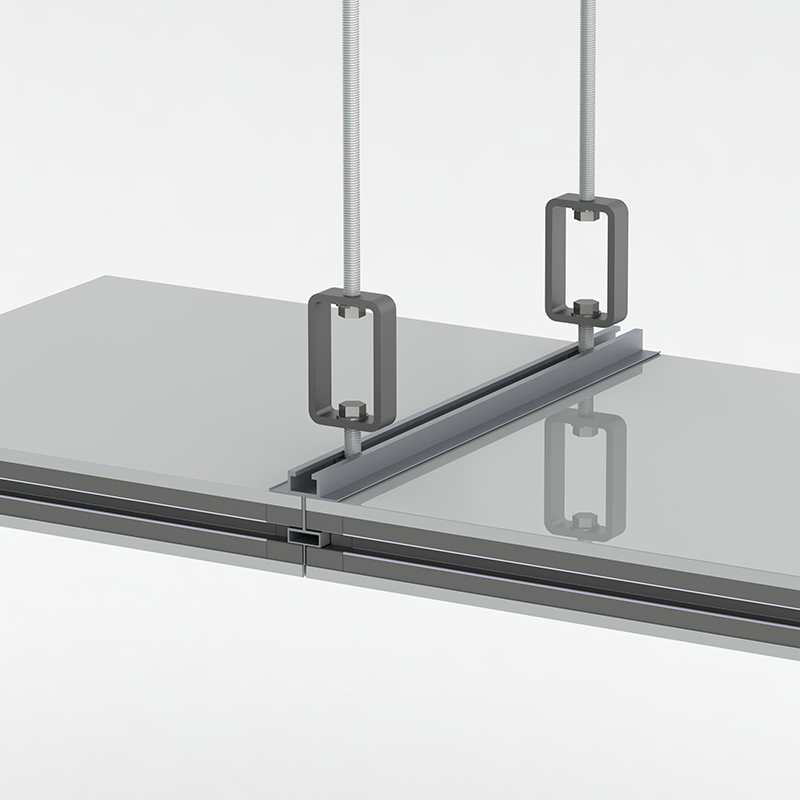

2. The system consists of an aluminum alloy ceiling keel module system and a roof system. The main feature is the keel hidden type, the use of no aluminum alloy strip, the appearance is greatly improved, the equipment installation and the ceiling system are perfectly combined.
3. Z-Grid Aluminum hidden beam ceiling system can choose a variety of sandwich panels，rockwool, paper honeycomb, aluminum honeycomb, PU and other materials, according to different use environments, to provide you with different solutions.
4. The panel paint layer is diverse, you can choose different paint layers and thickness according to your own use environment, Wiskind recommends the use of PVDF, high corrosion resistance.
5. The cleanroom wall panel , strength, flatness and aesthetics of the clean board are greatly improved, and the product quality is more stable.

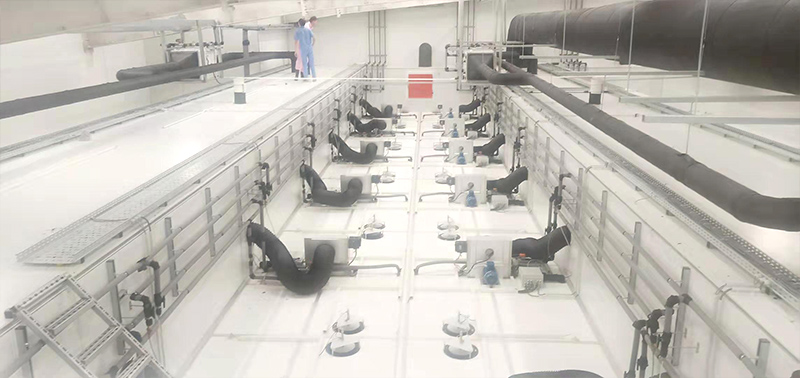

6. The top plate is installed efficiently and conveniently, and is widely used in clean workshops such as medicine, electronics and food. This product is the most recognized and loved by the owner and has been applied in many projects.
