Brief introduction:
It is widely applied to the cutting operations of various spare parts, including end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread, diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling, hole reaming, jacketing, boring, groove
cutting, etc. Hard alloy tools may be utilized to cut the screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare parts machined via this machine tool can be IT7 and the surface coarseness may be 3.2μm
Detailed specification:
|

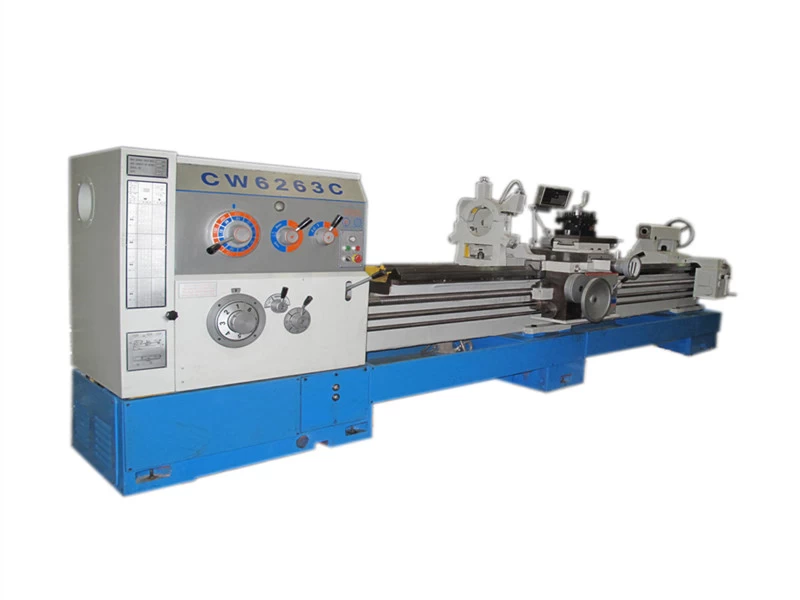

Model
|
Unit
|
CW6163C
CW6263C
|
CW6183C
CW6283C
|
CW6193C
CW6293C
|
|
Swing over bed
|
mm
|
630
|
830
|
930
|
|
Swing in gap
|
mm
|
890
|
1090
|
1190
|
|
Swing over cross slide
|
mm
|
350
|
550
|
650
|
|
Distance between centers
|
mm
|
1000,1500,2000,3000,4500,6000
|
|
Length in gap from face plate
|
mm
|
300
|
|
Spindle nose
|
|
C11 or D11
|
|
Spindle bore
|
mm
|
105, 130
|
|
Spindle speeds/steps
|
rpm/steps
|
10—800/18
|
|
Cross slidle travel
|
mm
|
480
|
|
Toprest travel
|
mm
|
225
|
|
Rapid traverse
|
mm/min
|
Longitudinal Z:3240,Cross X:1870
|
|
Quill diameter
|
mm
|
100
|
|
Quill travel
|
mm
|
260
|
|
Quill taper
|
|
MT6
|
|
Bed width
|
mm
|
550
|
|
Metric threads
|
mm/kinds
|
1—240/53
|
|
Inch threads
|
tpi/kinds
|
30—2/31
|
|
Module threads
|
mm/kinds
|
0.25—60/46
|
|
Diametral pitch threads
|
Lpi/kinds
|
60— ½/47
|
|
Main motor power
|
kW
|
11
|
|
Gross weight
|
kg
|
4200
|
4400
|
4500
|
|
4400
|
4600
|
4700
|
|
4650
|
4850
|
5000
|
|
5450
|
5650
|
5800
|
|
6500
|
6700
|
6800
|
|
7800
|
8000
|
8100
|
Delivery:
The delivery depends on different machines with different configurations. In about 60 days.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
Warranty:
The warranty period is general 13 months after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are caused by machine itself quality problems. Meanwhile, the machine should be under normal operation according to Operation Manual.(Except for improper operation or man-made damaged by buyers)
Agents Wanted:
We have partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. Wherever you are from, we are looking forward to explore new market with you.
