Application for Devotion Gas Fired Hot Water Boiler Directly Heated Hot Water Boiler
-
Mainly Providing heating through radiators, especially fit for
residential areas, hospitals,schools banks and so on. The outlet water
temperature is 90 degrees.
-
Providing heating for central air-conditioning system, floor radiant
heating and 24 hours continuous domestic hot water with a water-water heat
exchange.
-
Vertical type boiler can directly provide boilered water, and
domestic hot water
Features of CWNS Series Gas Oil fired Directly Heated Hot Water Boiler
-
Devotion Horizontal Directly Heated Hot Water Boiler are
of big hearth technology : increase radiated heated area,reduce emission
of Nox.
-
Big flue gas tube: reduce the resistance of smoke flow and
condumption of electricity for horizontal type.
-
Turbulator technology: strength heat transfer,increase heat
efficiency
-
intelligent controlling technology:automatic running and remote
moniyotinh. Automatically adjust the water level according to
environmental temperature.
-
Bi-constituent insulation coating technology: achieve excellent
thermal insulation effect with less insulation effect with less insulation
material, can bear immerge,anti-aging,anti-detached,good molding and save
fuel.
-
Vertical boiler head-shaped furnace technology: increase radiant area
in the furnace,improve heat efficiency,extend boiler life.
-
Complete pothook type faceplate design; fine appearance,convenient to
install, assemble and maintain
-
Applying renowed-brand water level controller, guarantee the boiler
safe running
-
Surface treatment with anti-bask and anti-tarnishing powder,keep the
original color for a long time.
-
Return water feeding from the top of the boiler, hot water boilercoming
out from the circulation and a small water flow resistance.
-
Acondenser is optional for gas-fired boiler.It is possible to save
12% fuel, decrease noise20-30dB
Gas/Oil Fired Hot Water Boiler

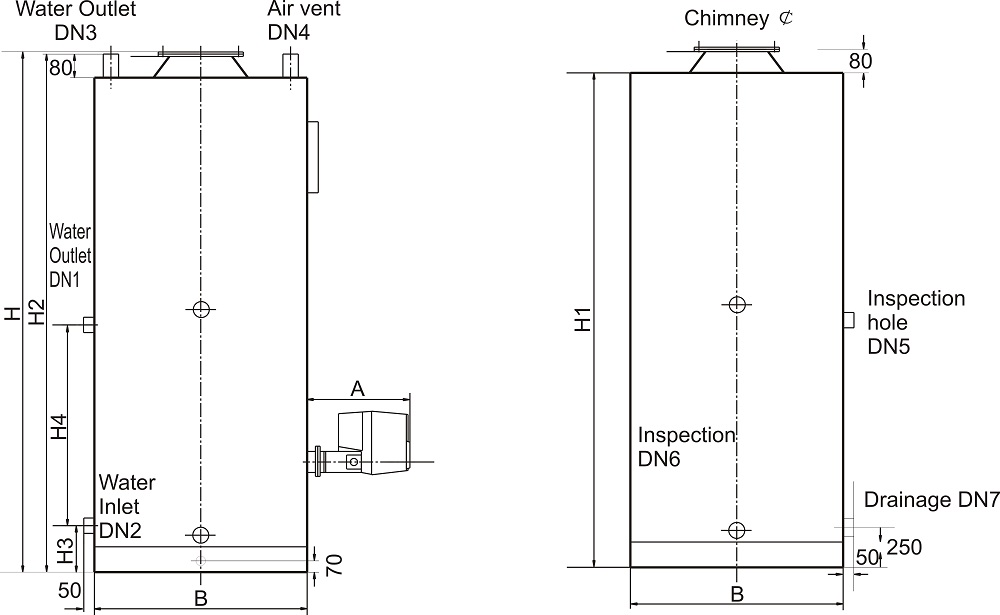

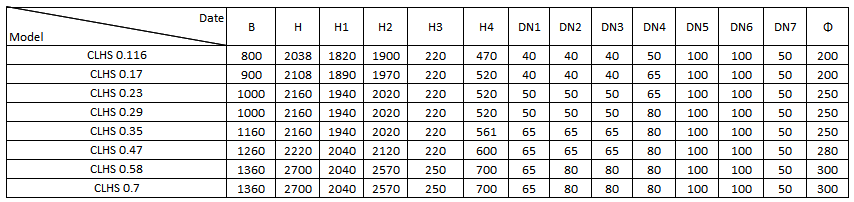

Vertical CLHS Hot Water Boiler Dimension

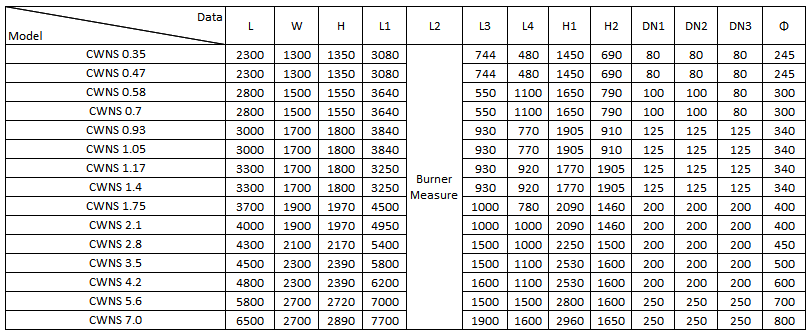

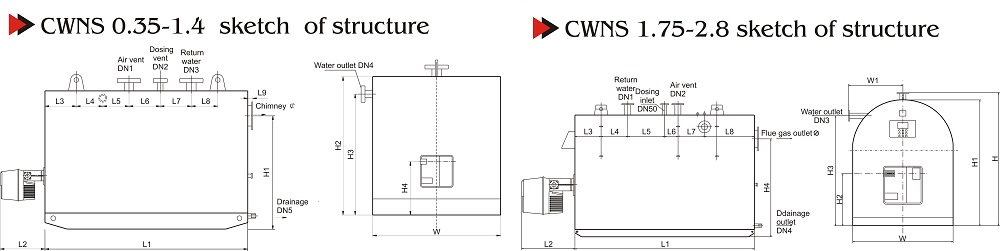

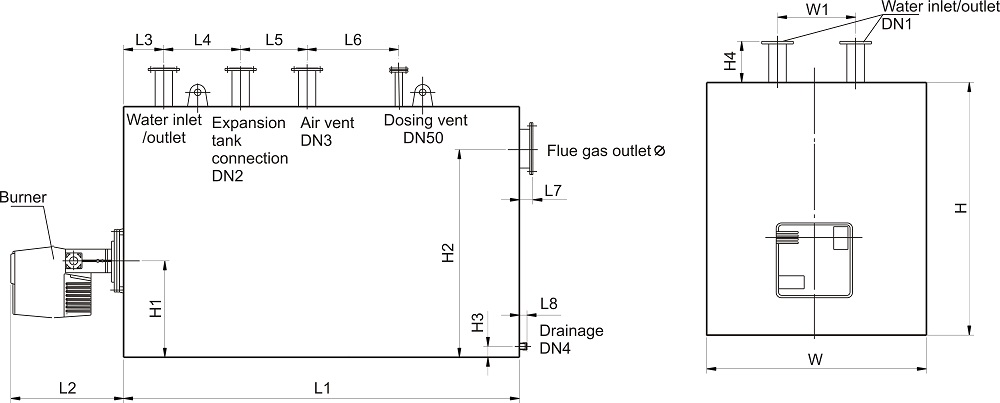

Horizontal Hot Water Boiler Dimension
