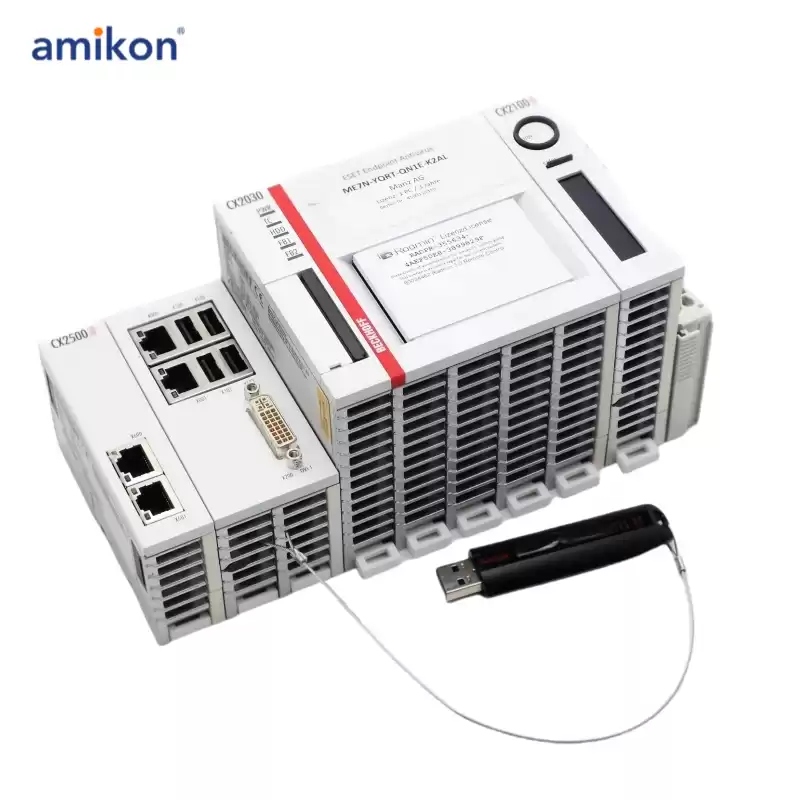

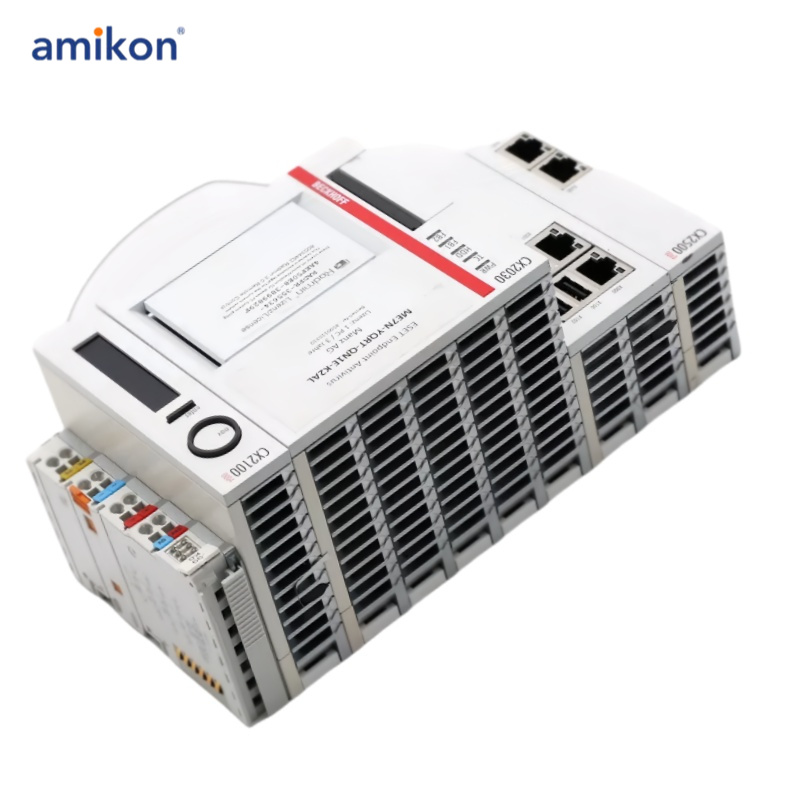

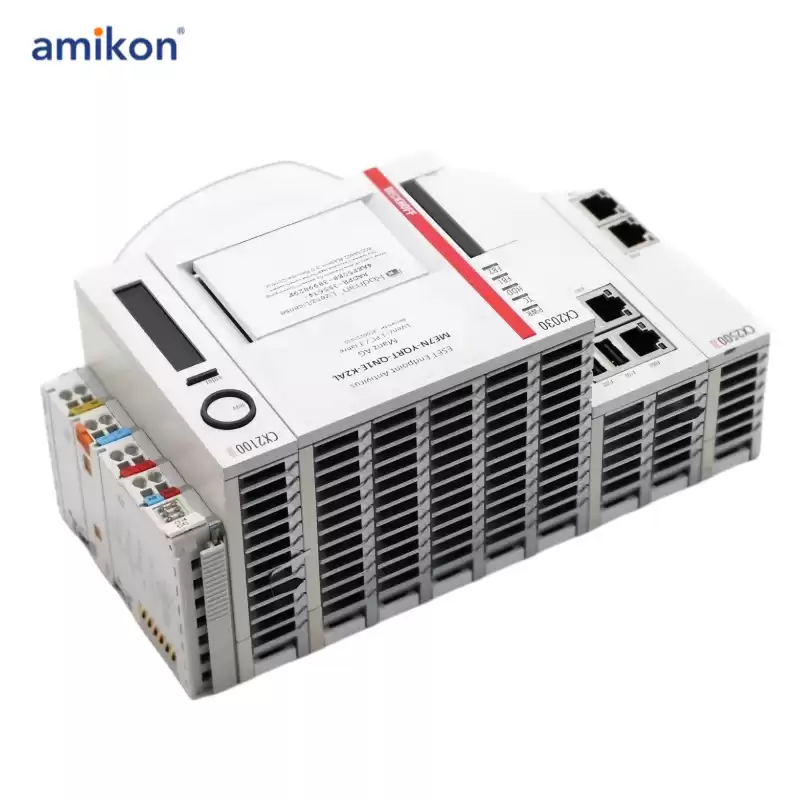

CX2030-0130/4GB | BECKHOFF | Basic CPU module

Category

Specification

Manufacturer

BECKHOFF

Part Number

CX2030-0130/4GB

Processor

Intel® Core™ i7 2610UE 1.5 GHz

Number of Cores

2

Flash Memory

20 GB or 40 GB CFast flash card (depending on the operating system), optionally extendable

Parameter

CX2500/CX2030/CX2550/CX2100/EL6070/EK1110

Main Memory

2 GB DDR3 RAM (expandable ex factory to 4 GB)

Persistent Memory

128 kB NOVRAM integrated

Interfaces

2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-I, 4 x USB 2.0, 1 x optional interface

Cooling

Passive cooling, optionally with active cooling ex factory

Diagnostics LED

1 x power, 1 x TC status, 1 x flash access, 2 x bus status

Clock

Internal battery-backed clock for time and date (battery exchangeable)

Operating System

Windows Embedded Compact 7, Windows Embedded Standard 7 P, Windows 10 IoT Enterprise 2016 LTSB

Control Software

TwinCAT 2 runtime, TwinCAT 3 runtime (XAR)

I/O Connection

Via power supply module (E-bus or K-bus, automatic recognition)

Power Supply

24 V DC (-15 %/+20 %)

Max. Power Consumption

27 W

Dimensions (W x H x D)

144 mm x 99 mm x 91 mm

Weight

Approx. 1165 g

Relative Humidity

95 %, no condensation

Operating Temperature

-25…+60 °C

Storage Temperature

-40…+85 °C

EMC Immunity/Emission

Conforms to EN 61000-6-2/EN 61000-6-4

Vibration/Shock Resistance

Conforms to EN 60068-2-6/EN 60068-2-27
