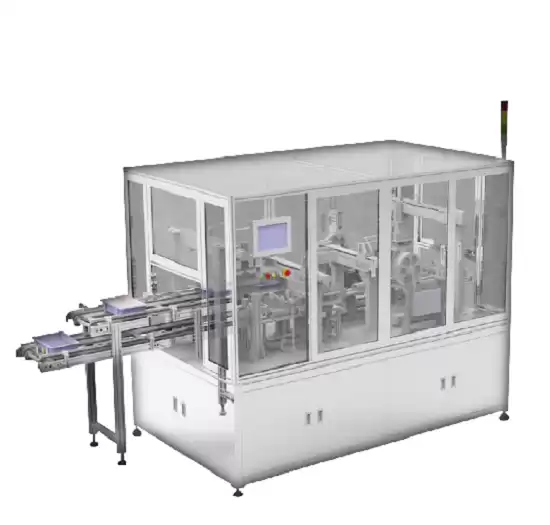

Cylindrical Battery Adhesive Pasting Machine
Products Description
The cylinder battery adhesive pasting equipment is used for pasting high-temperature adhesive tape after stripping cylinder batteries such as 18650,21700, etc. . The full box battery is fed by feeding line, the empty box reflows automatically, the high-speed servo module manipulator grasps the load-shifting battery, the tape material is fed, the servo mechanism feeds the material, the automatic cut off, the equipment stability is good, the efficiency is high. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.
Performance Characteristics
1. The thickness of the tape is 0.05 mm, no centrifugal paper is needed;
2. Automatic feeding and cutting of adhesive tape, accuracy control ± 0.5MM;
3. Roller type adhesive tape, high stability and efficiency, the rhythm can reach 60 PPM;
4. It can be connected with the production line to realize the automatic flow of the battery.
Technical Parameter
|
Model Number
|
TMAX-BJXC-PPT02
|
Beat
|
60PPM
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
3.6KW
|
Pressure
|
0.5-0.7MPA
|
|
Adhesive Tape
|
0.03-0.07mm Polyimide/PI
|
Dimensions
|
2200*1700*2000(mm)
|
