Cylindrical Battery Membrane Equipment - Large Battery
Products Description

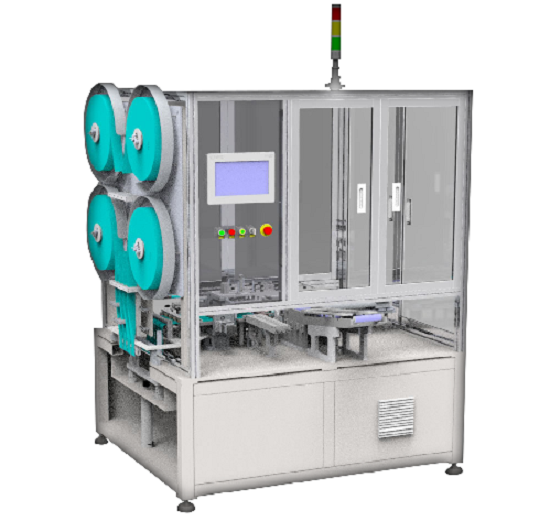

The cylindrical battery laminating equipment is used for laminating and heat shrinkable film of 26650, 32131, 32650 and other cylindrical cells. Four cells are coated at a time. The cells are fed by conveyor line, PET film coil, step-by-step film feeding and automatic film cutting. After laminating, the cell film is heat shrinkable, and the laminating beat can reach 100pcs/min. The equipment has high efficiency and good stability, and can be connected with the front and rear production line equipment.
Performance Characteristics
1. Automatic film feeding and cutting, precision control ±0.5;
2. Four cells coated at the same time, high efficiency;
3. The beat can reach 100 pcs/min;
4. It can connect with the production line seamlessly to realize the automatic flow of cell.
Technical Parameter
|
Model Number
|
TMAX-PEW18-D-07
|
Beat
|
100pcs/min
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
22650/32131/32650
|
|
Power
|
1.5KW
|
Table Height
|
650mm
|
|
Pressure
|
6kgf/cm²
|
Dimensions
|
1550*1300*1950(mm)
|
