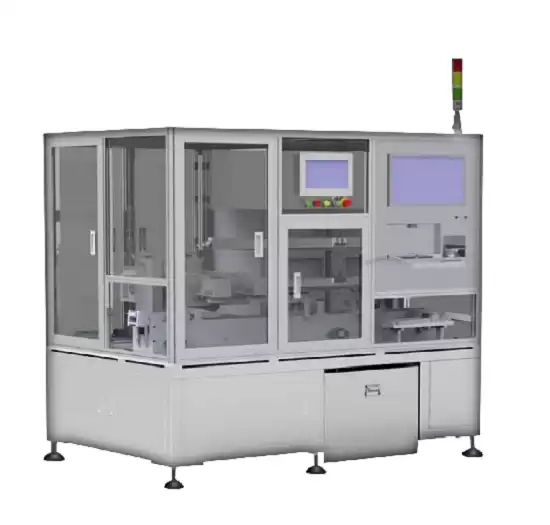

Cylindrical Battery Stripping Machine
Products Description
This battery peeling equipment is used for 18650,21700 cylinder battery peeling, the equipment uses laser cutting peeling, cutting high efficiency and will not cause damage to the battery surface, after peeling automatic detection and spray code, NG automatic removal and collection, skinning waste collection function. Can be customized according to the use of the design of the battery feeding mode, can be used as a stand-alone machine, can also be used with the automated production line.
Performance Characteristics
1. High-speed laser cutting, high efficiency, no damage to the surface of the battery;
2. CCD detection of peeling results and automatic removal of NG products;
3. Skinning waste collection function to ensure that the equipment is clean and tidy;
4. Automatic coating on the surface of battery steel case.
Technical Parameter
|
Model Number
|
TMAX-BJXC-LPE01
|
Beat
|
60PPM
|
|
Voltage Source
|
380V 50HZ
|
Batteries
|
18650/21700/22650 ect.
|
|
Power
|
1.5KW
|
Pressure
|
0.5-0.7MPA
|
|
Laser
|
Cutting 30-50W
|
Dimensions
|
1900*1200*1900(mm)
|
