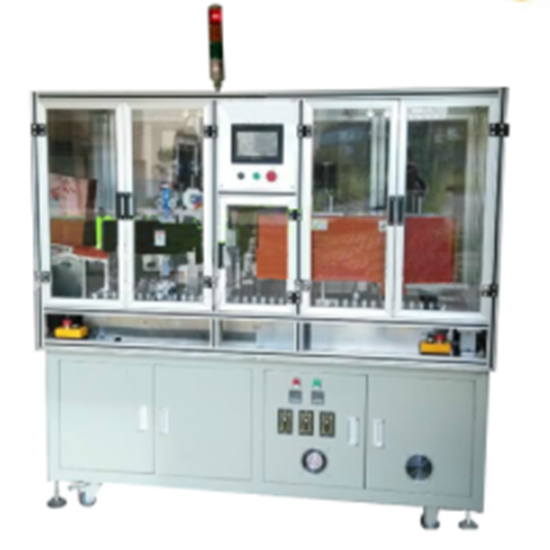

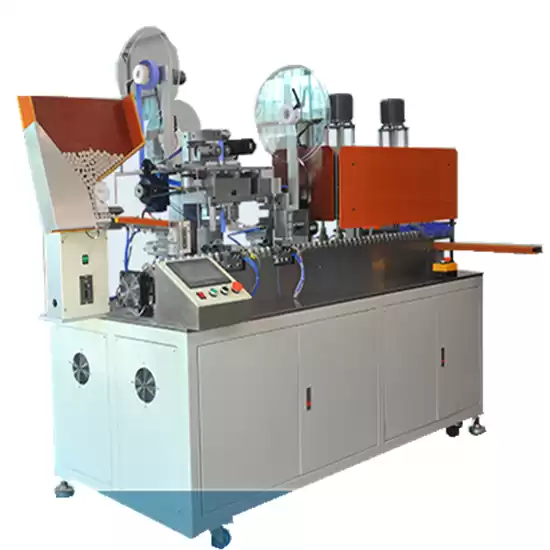

Cylindrical Cell AA AAA 18650 Heat Shrinking Wrapping Machine
Features
(1) High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;
(2) High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;

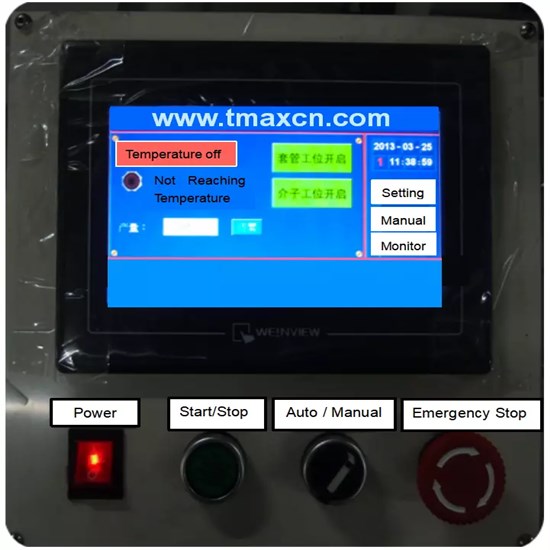

(3) Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;
(4) Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;
(5) High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.
Specifications
(Can be customized)
|
Model
|
Tmax-Shrinking
|
|
Specification
|
AA,AAA,18650
|
|
Film speed
|
50~70PCS/MIN
|
|
Film precision
|
±0.1MM
|
|
Power supply
|
380V/220V
|
|
Air pressure
|
0.5~0.7Mpa
|
|
Power
|
9KW
|
|
Weight
|
800KG
|
|
Machine size
|
2100(L)*950(W)*1600(H)
|
|
Casing requirements
|
The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.
|
|
Insulation sheet coil size
|
width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)
|
|
Insulation sheet die size
|
Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm
|
|
Heat shrinkable bottom edge size
|
2.5mm ± 0.3mm (size error is related to casing material and baking conditions)
|
