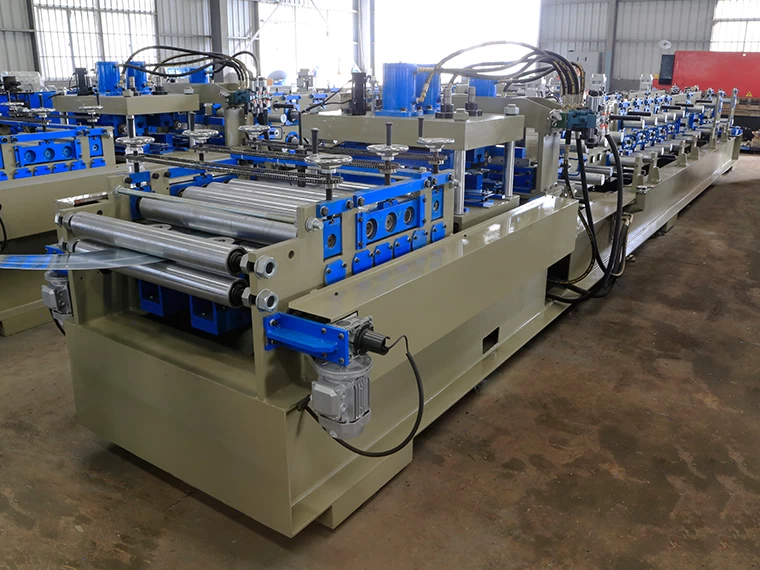

CZ Purlin Machine(Quick Change type)
Click here to check the video: CZ purlin roll forming machine (pre-cutting ,pre-punching)
1.Main features of CZ Purlin Machine(quickly change type)
The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side

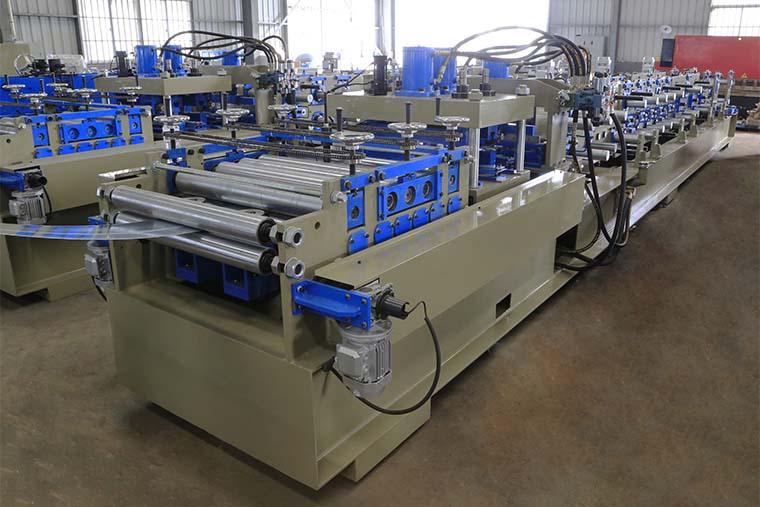

2.Detailed Images of CZ Purlin Machine
Machine Parts

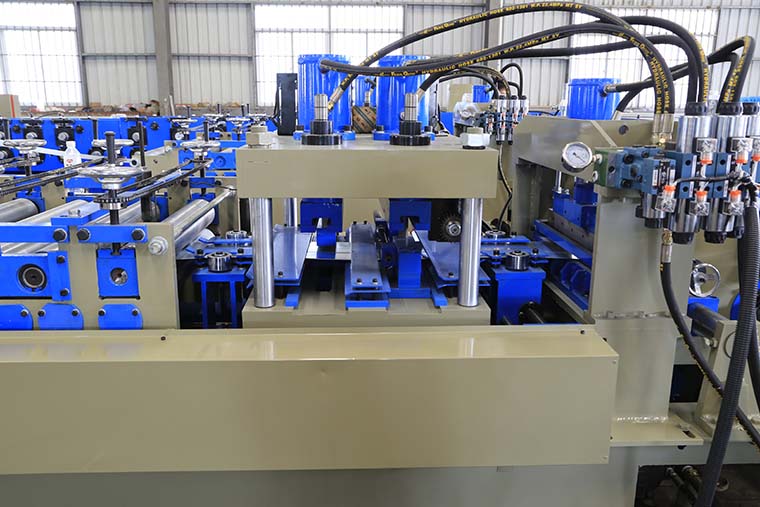

1) CZ purlin machine punching system
Brand: BMS Original: China
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

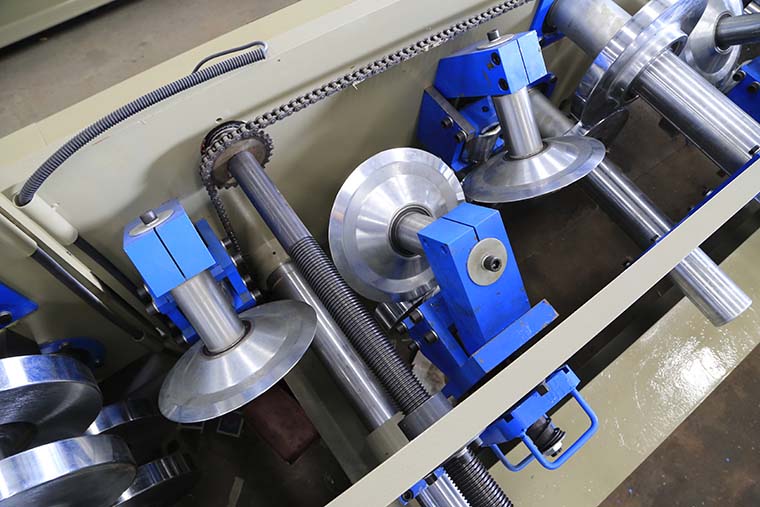

2) CZ purlin machine rollers
Rollers manufactured from high quality bearing steel GCr15(EN31 steel), CNC lathes,
HeatTreatment.With black treatment or Hard-Chrome Coating for long life.
With feeding material guide, body framemade from 450# H type steel by welding

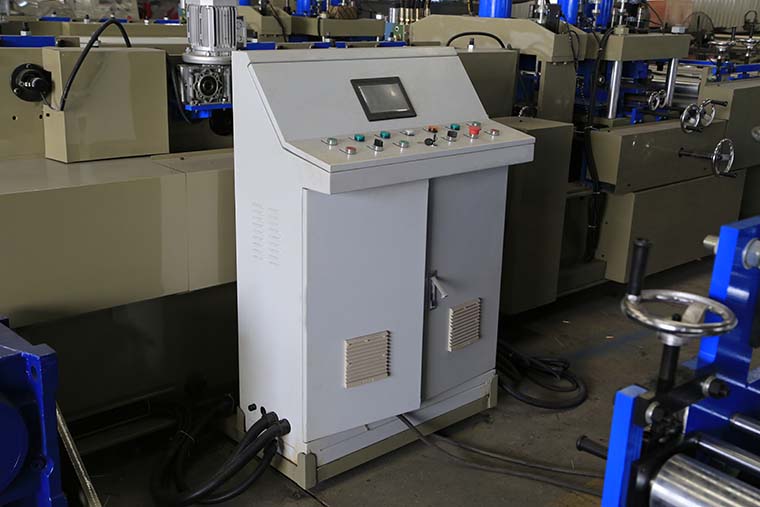

3) CZ purlin machine control cabinet
PLC Control System (Inverter brand:Schneider Electric,Encoder brand:Japan Koyo/OMRON)
Interchange between C purlin and Z purlin: by manual changed, It takes only 5-10 minutes to finish all.
But from C100-300 or Z100-300, change size by PLC system automatically: changeover by
Just press keys on touch screen(input the required production data on the touch screen),
The machine will control the quantity and punching, cutting length automatically.
No need to change rollers or spacers or cutters like traditional old style machine
which takes over 45 minutes for each production size changing).
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V

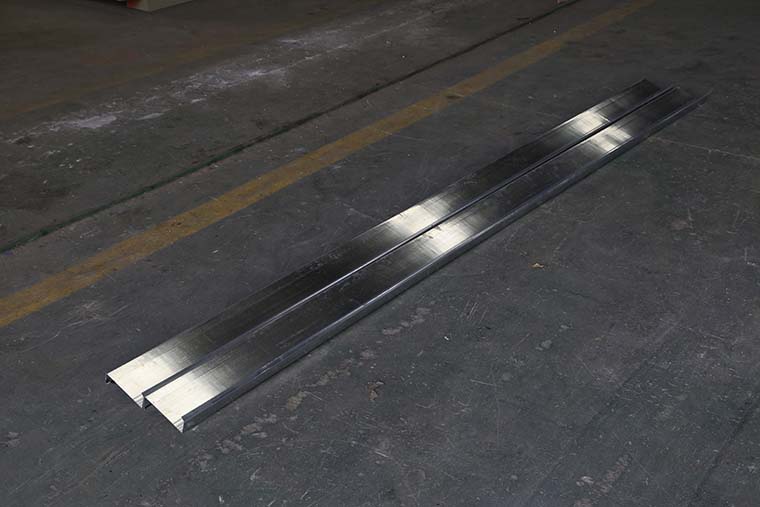

4) CZ purlin machine product display
5) CZ purlin machine decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3-5 tons hydraulic decoiler for option
6) CZ purlin exit rack
Un-powered,one unit
Automatic Purlin Machine is fully automatic for manufacturing C or Z purlin
which can be used for steel frame of factory buildings.
Other detailes of CZ Purlin Machine
Suitable for material with thickness 1.0-3.0mm or 1.5-3.5mm for options
Shafts manufactured from 45#,Main shaft diameter=φ90/100mm
(bigger shaft to ensure stable working for long time and no curving or transforming),precision machined
Motor driving,Gear chain transmission, 15 rollers to form and 4 rollers for straightening and levelling
Main motor=22KW/30KW(bigger power for higher speed)
Frequency speed control. Forming speed approx.18m/min
CZ purlin machine pre-cutter made by high quality mold steel Cr12(D3 steel) with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
Pre-punching & Pre-cutting, stop to punch, stop to cut
hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa
User's manual in English
