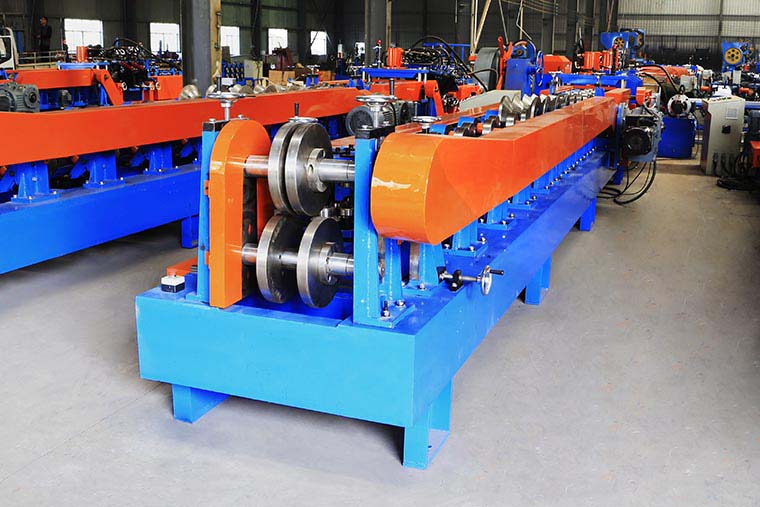

CZ Purlin Roll Forming Machine(c & z purlin line) CZ100-300
Click here to check the video: CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line)
1.Main features of CZ Purlin Roll Forming Machine(c & z purlin line)
The advantages of CZ Purlin Roll Forming Machine(c & z purlin line) are as follows:

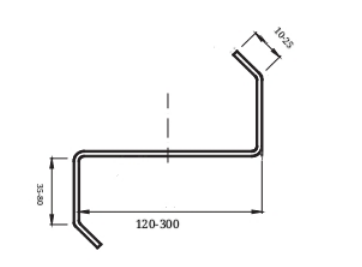

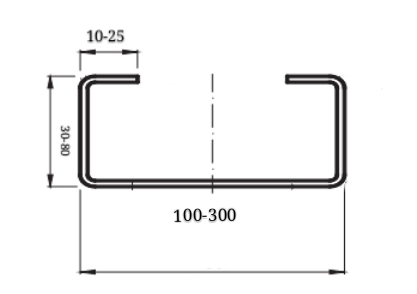

1.Produce different purlin size without changing rollers or spacers.
2.Pre-cutting design,no need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
2.Detailed Images of CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line)
Machine Parts

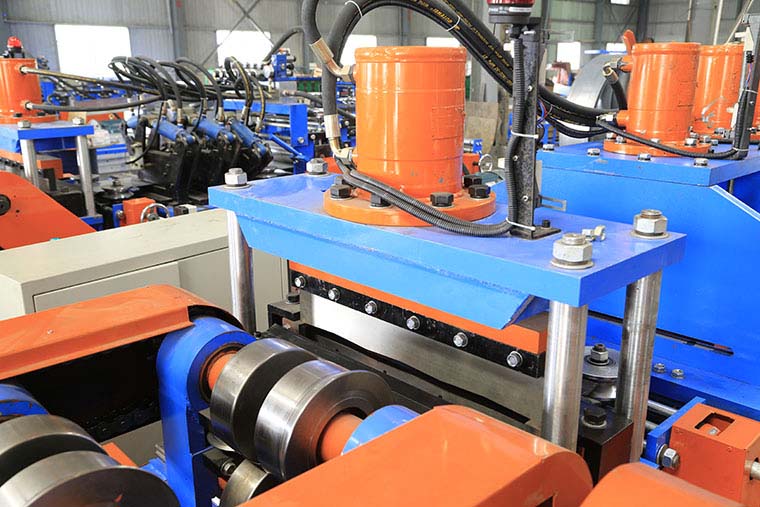

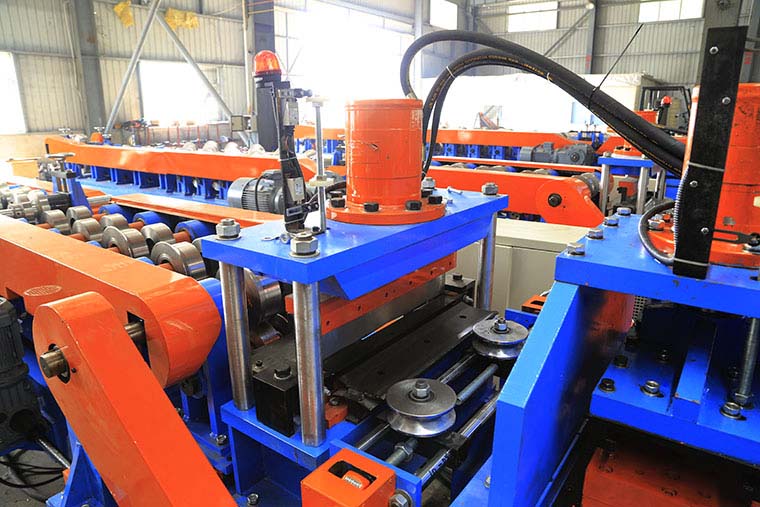

1) CZ purlin machine punching system
Brand: BMS Original: China
with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes) or 5cylinders(popular for solar industry.

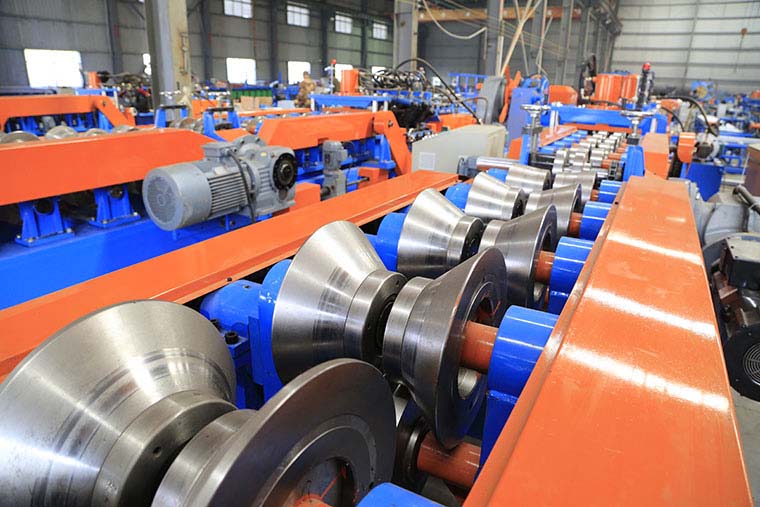

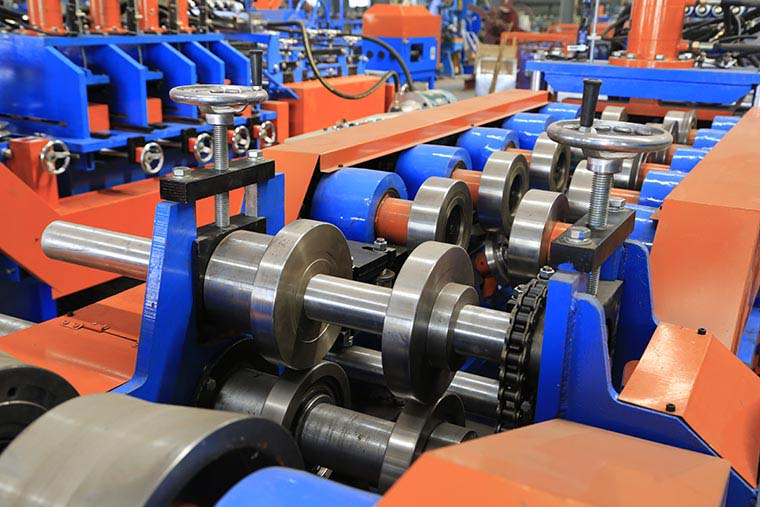

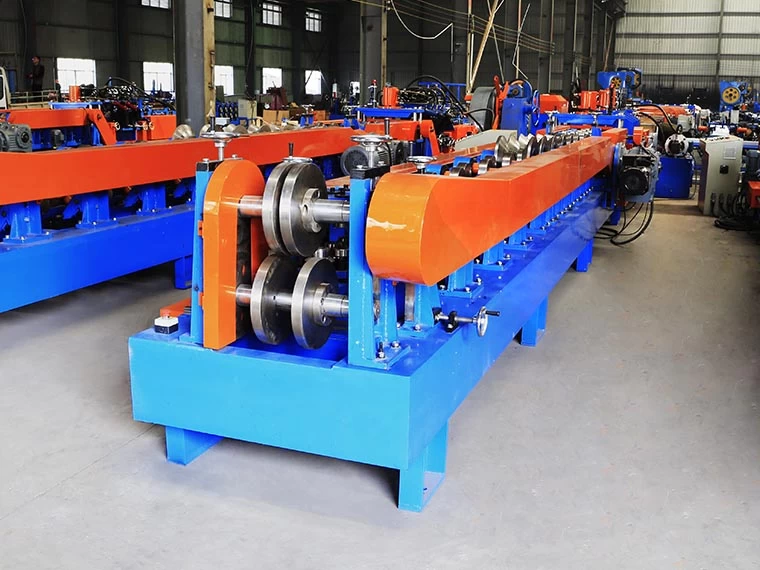

2)CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line) rollers
Rollers manufactured from high quality bearing steel GCr15/mold steel Cr12(=D3 steel), CNC lathes, Heat Treatment.
with Hard-Chrome Coating or black treatment for long working life.
With feeding material guide, body frame made from 450# H type steel by welding

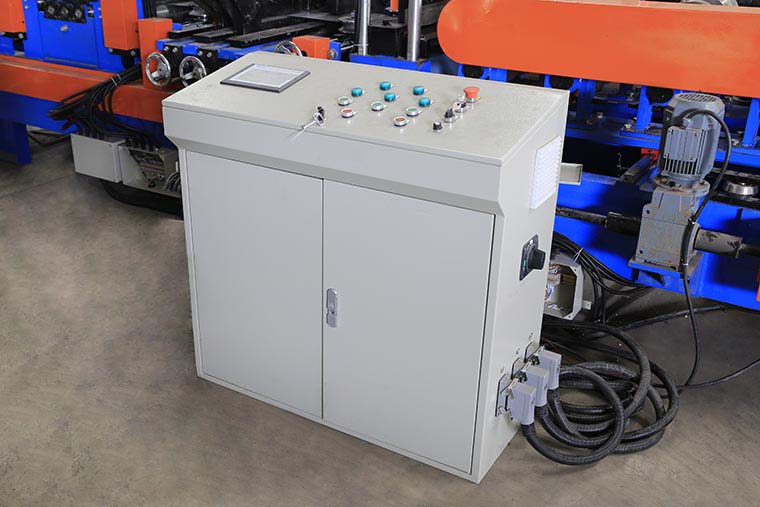

3) CZ purlin machine control cabinet
PLC Control System (inverter brand:Schneider Electric/ Siemens/Taiwan DELTA,
Encoder brand:Japan Koyo/OMRON)
Interchange between C purlin and Z purlin: by manual changed,
It takes only 5-10 minutes to finish all.But from C100-300 or Z100-300,
change size by PLC system automatically: changeover by just press keys on touch screen
(input the required production data on the touch screen),
the machine will control the quantity and punching, cutting length automatically.
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V

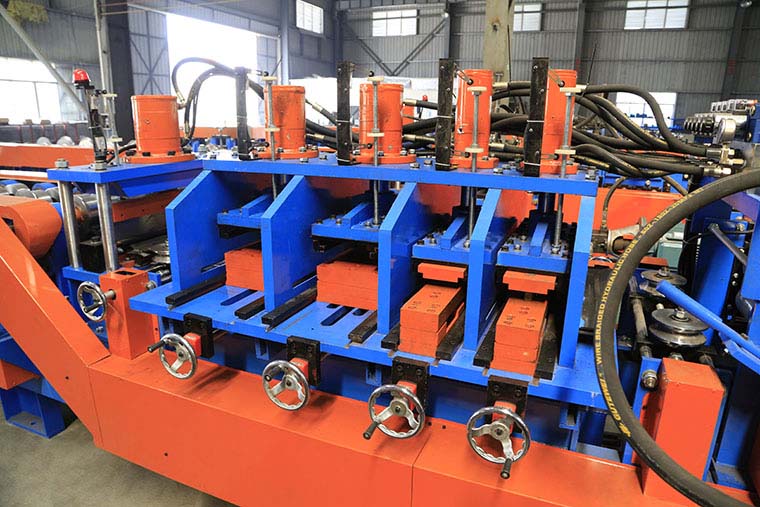

4) CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line) pre cutting device
CZ purlin machine pre-cutter made by high quality mold steel Cr12(D3 steel) with heat treatment
Cutter frame made from high quality 30mm steel plate by welding
5) CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line) decoiler
Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 5Ton
With 5 tons hydraulic decoiler for option
6)CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line) exit rack
Un-powered,twp units,with rollers on it for finished purlins easy movement.
Other detailes of CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line)
Suitable for material with thickness 1.0-3.0mm
Shafts manufactured from 45#,shaft diameter=φ90mm
(bigger shaft to ensure stable working for long time and no curving or transforming),precision machined
Motor driving,Gear chain transmission, 15 rollers to form and 4 rollers for straightening and levelling
Main motor=22KW(bigger power for higher speed) , Frequency speed control. Forming speed approx.18m/min
hydraulic motor:11KW(bigger power for powerful cutting), Hydraulic pressure range: 0-16Mpa
User's manual in English
After-sale service of CZ Purlin Roll Forming Machine Purlin Mill(c & z purlin line)
1. The warranty of CZ100-300 purlin roll forming machine
is 18MONTHS after the client receives the machine.
Within the 1.5 years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export to neraly 50 countries and regions : Taiwan, UK, France, Ireland, Greece, Australia, USA, Mexico,
Brazil, Chile, Bolivia, Trinidad, Israel, Saudi Arabia, UAE, Iran, Kuwait, Yemen, India, Pakistan, Singapore,
Malaysia, Thailand, Indonesia, Philippines, Vietnam, Myanmar, Brunei, South Africa, Zimbabwe, Mozambique,
Zambia, Congo, Cameroon, Sudan, Ethiopia, Nigeria, Guinea, Algeria, Libya and Egypt, Russia,etc.
