Ⅰ. Applications:
S series Thermal Transfer Overprinter is the world's most cost-effective Intelligent code printer, mainly used in food, manufacturing, daily chemical, seeds, living papers, financial tickets and other soft packaging solutions.
1,Add your brand: the printing effect of 300PI, improve the quality of the product,Let your company brand stand out in the peer industry.
2,Add your benefit of holding: can print the Real-time date , time and batch number: change the printed content without hindrance; up to 600 meters super demon color belt, Reduce the frequency of band change; Humanized human-machine interface, easy operate; software pieces straight and easy to learn.Production line control is optimized, cost has been reduced.
3,Protect your property: using 32mm width and 53m width printing tip, 22, 25, 30 33, 35, 55mm and other different width specification ribbons:Meet the printing needs of each color through reasonable configuration, only color print gap 0. 5mm; high clarity, high attachment hindrance effect, avoid being Complaint. To reduce the cost of inspection and service in a comprehensive manner,
4,Protect sale channel: Print variable Barcode, QR code, through the whole circulation software system, Realize product traceability, prevent cross-country goods, fake goods,good for your sell channel.
S series machine advantage
1:Using Double motor machine to Collaborative precision control.
2:the printing gap is more precise, and the distance ring of 0 1mm
printing can be more extensive. The minimum is 2bmm, the highest is 670m / s.
3:Add multiple ribbon saving function , the utilization ratio of color band is improved 4:Adapt to the feed line to avoid leakage and print position drift
5:Increase network interface to facilitate system communication applications
II. Technology Data:
|
Machine type:
|

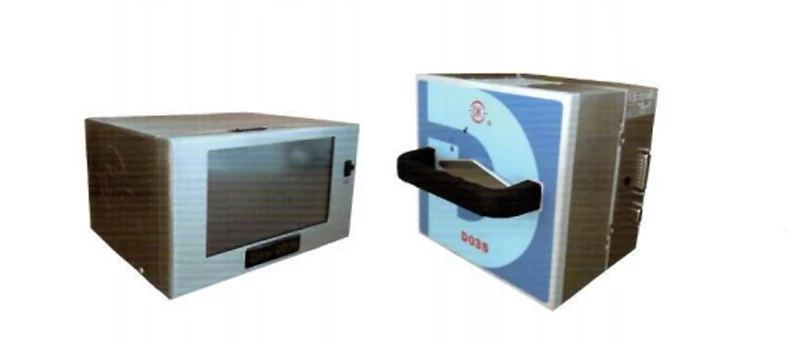

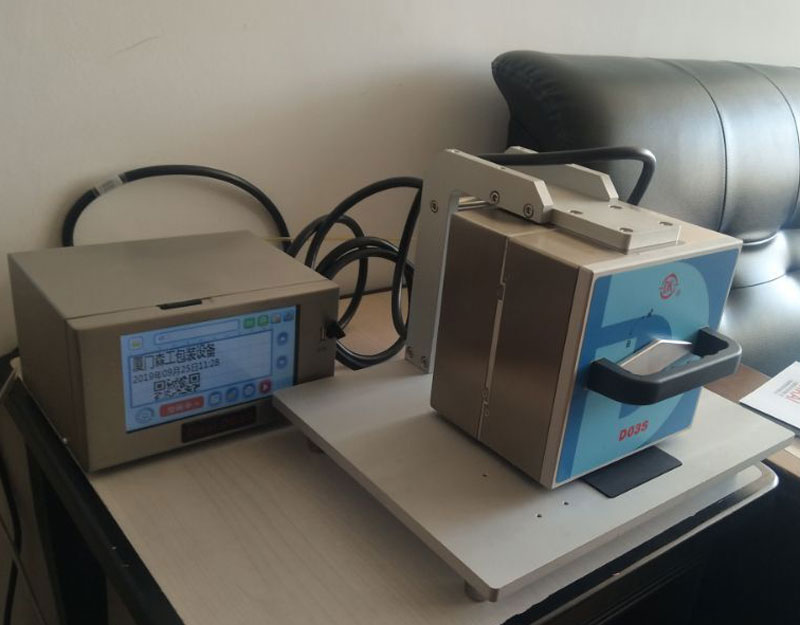

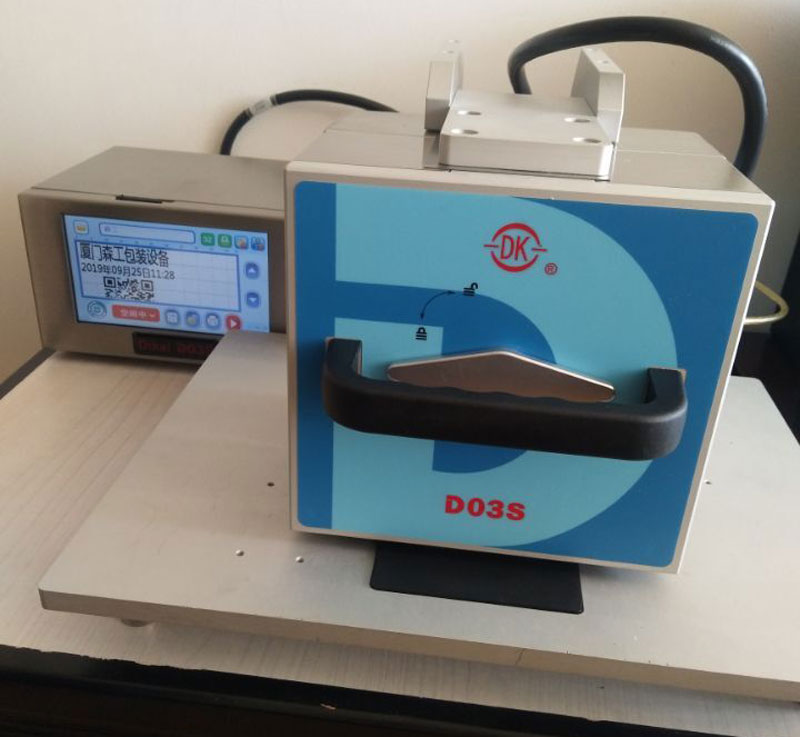

D 03S Intermittent Model Series
|
|
Print head:
|
32mm width,300dpi(12point/mintue)
|
|
Print range:
|
32mmx60mm
|
|
Printing speed:
|
6-20 m / minute
|
|
Printing frequency:
|
Fax 300 per minute
|
|
Ribbon length:
|
500mm
|
|
Ribbon width:
|
22mm-33mm
|
|
Communication interface
|
USB,RS232communication
|
|
Power supply voltage:
|
AC100-240V 50-60HZ
|
|
Power:
|
200W
|
|
Working environment temperature
|
0-40°C
|
|
Relative humidity :
|
10%-95%（Non-condensing）
|
|
Gas source:
|
6 bar/90 psi(max,Dry, no pollution)
|
|
weight:
|
Date code body:8KG,control box:2KG
|
|
Dimension(L*W*H)
|
Date code body:188x190x180mm control box:175x235x110mm
|
