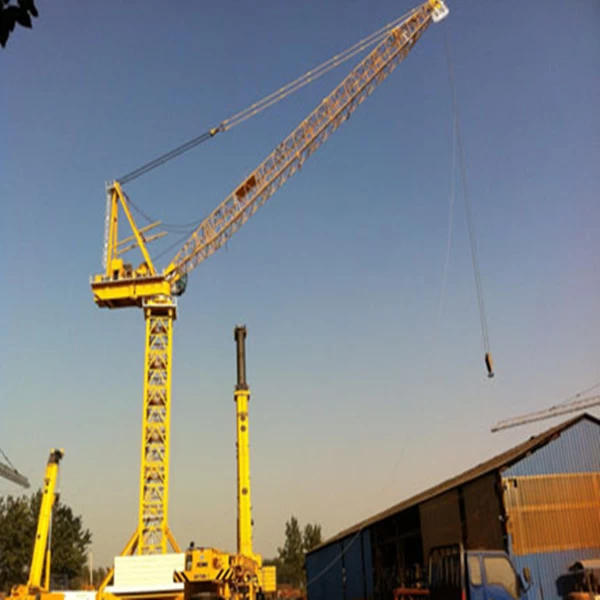

D125 10t Load 50m Jib Luffing Type Tower Crane
D125 luffing tower crane was designed to meet the requirements of the restricted job site.luffing tower crane for sale are reliable from china.
10t luffing tower crane D125 tower crane Load Diagram
50m Arm:
Loading Diagram
|
Radius (m)
|
5.5-18
|
20
|
25
|
30
|
35
|
40
|
45
|
50
|
|
|
|
|
Weight (t)
|
2 Fall
|
5
|
5
|
5
|
5
|
4
|
2.99
|
2.32
|
2
|
|
|
|
|
Weight (t)
|
4 Fall
|
10
|
9.09
|
7.05
|
5.35
|
4
|
2.99
|
2.32
|
2
|
|
|
|
|
45m Arm:
Loading Diagram
|
Radius (m)
|
5.5-18
|
20
|
25
|
30
|
35
|
40
|
45
|
|
|
|
|
Weight (t)
|
2 Fall
|
5
|
5
|
5
|
5
|
4.22
|
3.26
|
2.65
|
|
|
|
|
Weight (t)
|
4 Fall
|
10
|
9.12
|
7.14
|
5.51
|
4.22
|
3.26
|
2.65
|
|
|
|
|
10t luffing tower crane D125 luffing jib tower crane Parameters
Rated lifting moment (kN.m)
|
1250
|
Lifting height (m)
|
Free-standing stationary crane
|
Anchored crane
|
|
37.5
|
162
|
Working radius (m)
|
Max. working radius
|
50
|
|
Min. working radius
|
5.5
|
Max. lifting capacity (t)
|
10
|
Hoisting mechanism
|
Rope fall
|
α＝2
|
α＝4
|
|
Speed (m/min)
|
/
|
40
|
80
|
/
|
20
|
40
|
|
Lifting weight (t)
|
/
|
5
|
2.5
|
/
|
10
|
5
|
|
Power(kW)
|
37
|
Traction mechanism
|
Speed (m/min)
|
40/20
|
|
Power (kW)
|
3.3/2.2
|
Slewing mechanism
|
Speed (r/min)
|
0.6/0.6
|
|
Power (kW)
|
3.7/3.7
|
Safety devices:
1): hoist height limit 2): over speed limit 3) over load limit 4):lifting moment limit 5): slewing angle limit 6): emergency stop button 7):obstruction light (tip of jib, tower head) 8): wind lock device.
